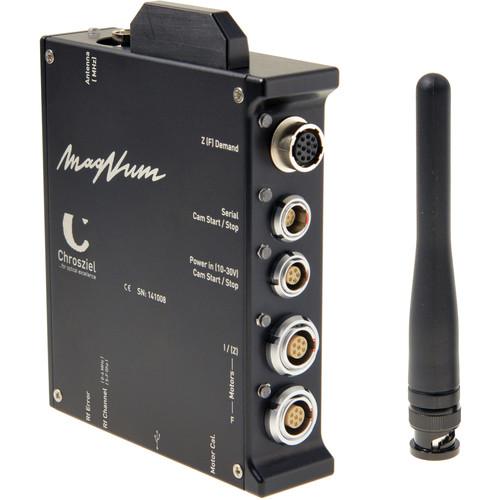

User Manual for Chrosziel MagNum 200 2-Channel Wireless Lens Control Receiver Click to enlarge the picture
Contents of the user manual for the Chrosziel MagNum 200 2-Channel Wireless Lens
- Product category: Wireless Lens Control Accessories Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Accessories
|
User manual for the Chrosziel MagNum 200 2-Channel Wireless Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description With dual outputs, the Chrozsiel MagNum 200 Dual-Channel Wireless Lens Control Receiver can drive up to two motors that connect via 7-pin LEMO. The receiver is capable of calibrating motors to the lens without the aid of the transmitter. When connected to a camera via the serial output, start/stop can be remotely controlled from the transmitter. The MagNum 200 system can operate on 2.4GHz and 430MHz frequencies for ensuring the greatest possible working distance and reliability. The 2.4GHz antenna is built-in and a BNC 430MHz antenna is included. The the receiver can be used in a wired/studio configuration drive motors with input from ENG demand controls. Using an Aladin extension modules, which are mountable to the receiver body, the MagNum system can control up to four motors in total. In the Box Chrosziel MagNum 200 2-Channel Wireless Lens Control Receiver Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum 200 2-Channel Wireless Lens Control Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel MN-200R Specs | Channels | 2 (focus and iris), expandable to 3rd zoom channel | | Ports | 1 x 12-pin Hirose for ENG demands
1 x 9-pin LEMO serial port for camera start/stop control
1 x 5-pin LEMO 10-30V power input and camera start/stop control
2 x 7-pin LEMO digital motor interface 1 x BNC for 430MHz antenna | | Antennas | 1 x Integrated 2.4 GHz
1 x BNC 430 MHz | | Weight | 0.6 lb / 262 g |
