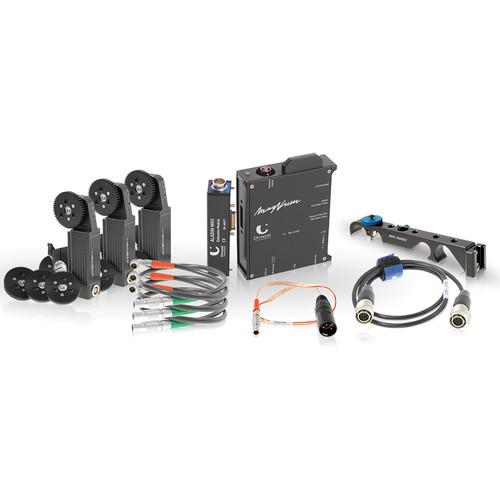

Product description Chrosziel's MagNum 300 is a 3-channel lens control system that can precisely actuate up to three digital motors. The MagNum 300 is similar to the MagNum 200 system, but includes the MagNum extension module which enables control of a third motor. This MagNum kit is comprised of a 2-channel motor controller with a third-channel extension, three digital motors with cables, mounting hardware, and cabling to connect to power and VTR/talkback, and a protective carrying hard-case. To control your studio lenses, separately available wired demand controls are required. See below for more information on the items included in this system. - MagNum 200 2-Channel Wireless Lens Control Receiver With dual outputs, the Chrozsiel MagNum 200 Dual-Channel Wireless Lens Control Receiver can drive up to two motors that connect via 7-pin LEMO. The receiver is capable of calibrating motors to the lens without the aid of the transmitter. When connected to a camera via the serial output, start/stop can be remotely controlled from the transmitter. The MagNum 200 system can operate on 2.4GHz and 430MHz frequencies for ensuring the greatest possible working distance and reliability. The 2.4GHz antenna is built-in and a BNC 430MHz antenna is included. The the receiver can be used in a wired/studio configuration drive motors with input from ENG demand controls. Using an Aladin extension modules, which are mountable to the receiver body, the MagNum system can control up to four motors in total.
- MagNum Extension Module Attaching the Chrosziel MagNum Extension Module to the MagNum 200 Receiver expands the MagNum system to be a fully functional 3-axis lens control solution for focus iris and zoom. The Extension Module has a 7-pin LEMO connection for a digital motor and a 12-pin Hirose connection for connection to ENG cameras for iris control and VTR/talkback control.
- 12-Pin Hirose Aladin Lens Port to Camera Lens Cable Use the Chrosziel 12-Pin Hirose Aladin Lens Port to Camera Lens Cable to connect the Aladin interface module to a camera lens servo.
- Hed
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum 300 3-Channel Broadcast Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum 200 2-Channel Wireless Lens Control Receiver
| Channels | 2 (focus and iris), expandable to 3rd zoom channel | | Ports | 1 x 12-pin Hirose for ENG demands
1 x 9-pin LEMO serial port for camera start/stop control
1 x 5-pin LEMO 10-30V power input and camera start/stop control
2 x 7-pin LEMO digital motor interface 1 x BNC for 430MHz antenna | | Antennas | 1 x Integrated 2.4 GHz
1 x BNC 430 MHz | | Weight | 0.6 lb / 262 g | - 12-Pin Hirose Aladin Lens Port to Camera Lens Cable
| Connector 1 | 12-pin Hirose | | Connector 2 | 12-pin Hirose | | Length | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 7.45 x 5.15 x 0.95" | - Hed
