User Manual for Chrosziel MagNum 300 3-Channel Broadcast Lens Control System Click to enlarge the picture
Contents of the user manual for the Chrosziel MagNum 300 3-Channel Broadcast Lens
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
 |
User manual for the Chrosziel MagNum 300 3-Channel Broadcast Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|

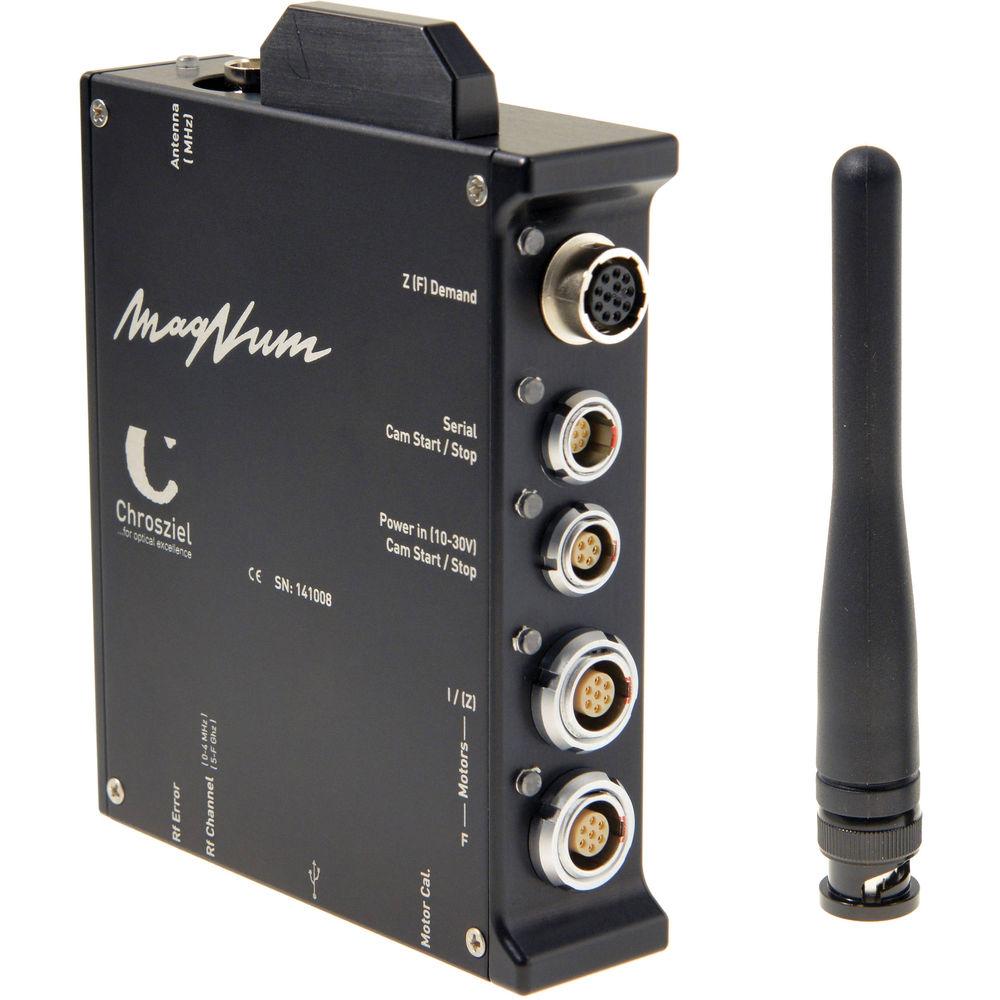

Product description Chrosziel's MagNum 300 is a 3-channel lens control system that can precisely actuate up to three digital motors. The MagNum 300 is similar to the MagNum 200 system, but includes the MagNum extension module which enables control of a third motor. This MagNum kit is comprised of a 2-channel motor controller with a third-channel extension, three digital motors with cables, mounting hardware, and cabling to connect to power and VTR/talkback, and a protective carrying hard-case. To control your studio lenses, separately available wired demand controls are required. See below for more information on the items included in this system. - MagNum 200 2-Channel Wireless Lens Control Receiver With dual outputs, the Chrozsiel MagNum 200 Dual-Channel Wireless Lens Control Receiver can drive up to two motors that connect via 7-pin LEMO. The receiver is capable of calibrating motors to the lens without the aid of the transmitter. When connected to a camera via the serial output, start/stop can be remotely controlled from the transmitter. The MagNum 200 system can operate on 2.4GHz and 430MHz frequencies for ensuring the greatest possible working distance and reliability. The 2.4GHz antenna is built-in and a BNC 430MHz antenna is included. The the receiver can be used in a wired/studio configuration drive motors with input from ENG demand controls. Using an Aladin extension modules, which are mountable to the receiver body, the MagNum system can control up to four motors in total.
- MagNum Extension Module Attaching the Chrosziel MagNum Extension Module to the MagNum 200 Receiver expands the MagNum system to be a fully functional 3-axis lens control solution for focus iris and zoom. The Extension Module has a 7-pin LEMO connection for a digital motor and a 12-pin Hirose connection for connection to ENG cameras for iris control and VTR/talkback control.

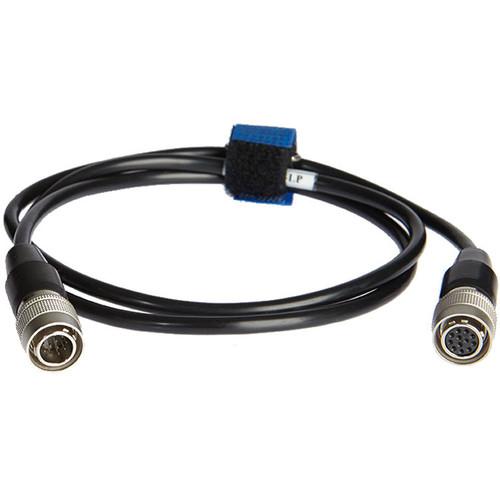

- 12-Pin Hirose Aladin Lens Port to Camera Lens Cable Use the Chrosziel 12-Pin Hirose Aladin Lens Port to Camera Lens Cable to connect the Aladin interface module to a camera lens servo.

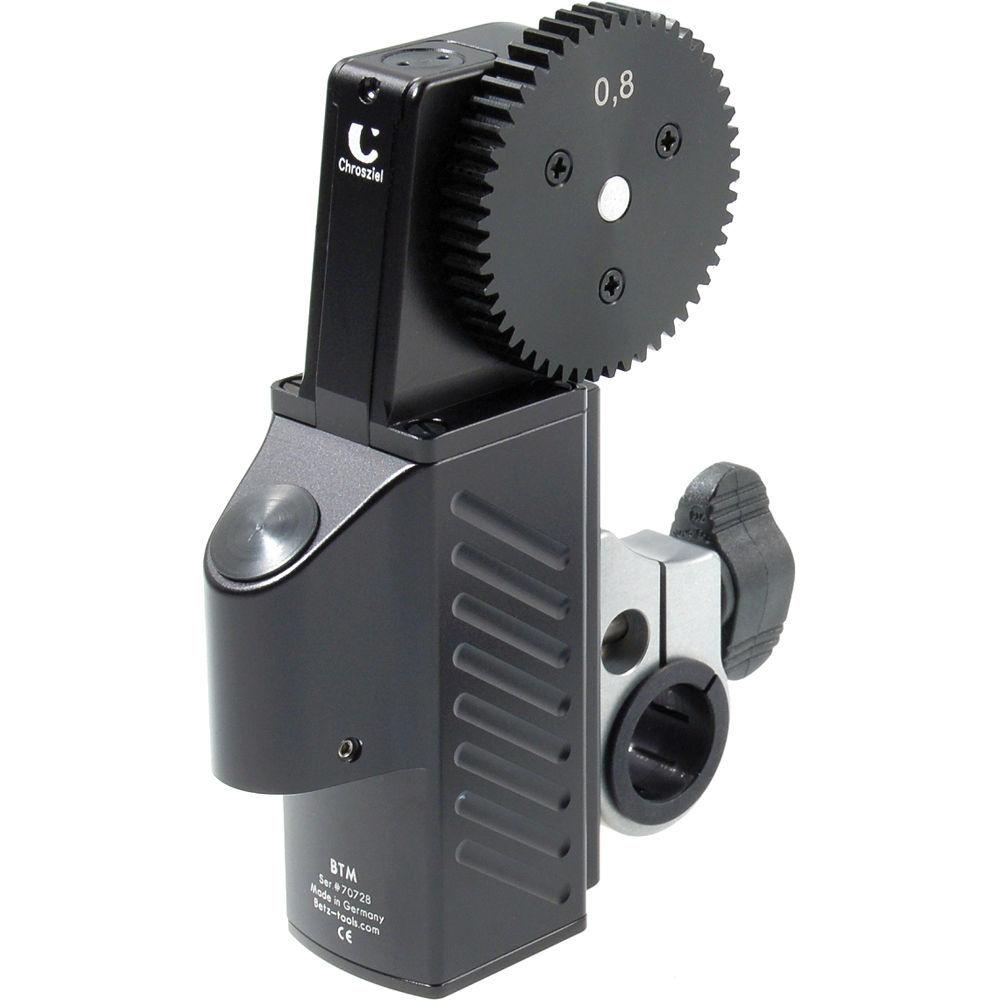

- BTM Digital Motor with 0.8 Gear The BTM Digital Motor from Chrosziel comes complete with a digital encoder, a gear module 0.8 (cine), and a bracket for mounting to 19mm and insert for 15mm rods.
- 7-Pin LEMO Digital Motor Cable for AL2/Magnum (23") Connect a motor to your Chrosziel Aladin or Magnum wireless follow focus receiver with the MODT60 7-Pin LEMO Motor Cable. The motor cable is compatible with Heden M26VE, BTM, Scorpio SB92, and Preston DM2 digital motors.

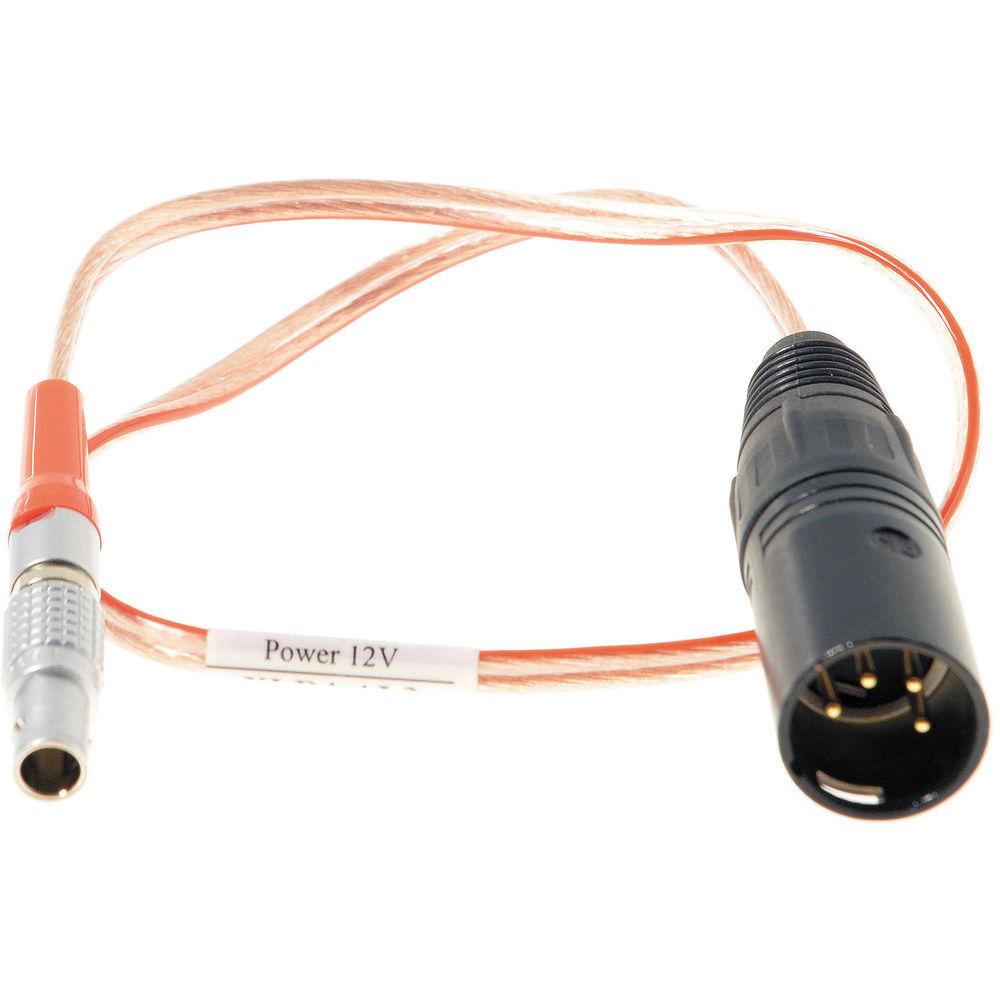

- XLR 4-Pin Male to MagNum Lemo 5-Pin 12V Power Cable The XLR 4-Pin Male to MagNum Lemo 5-Pin 12V Power Cable from Chrosziel is designed for use with the MagNum camera and lens remote control. The XLR 4-pin Male connects to the MagNum Power Lemo 5-pin.

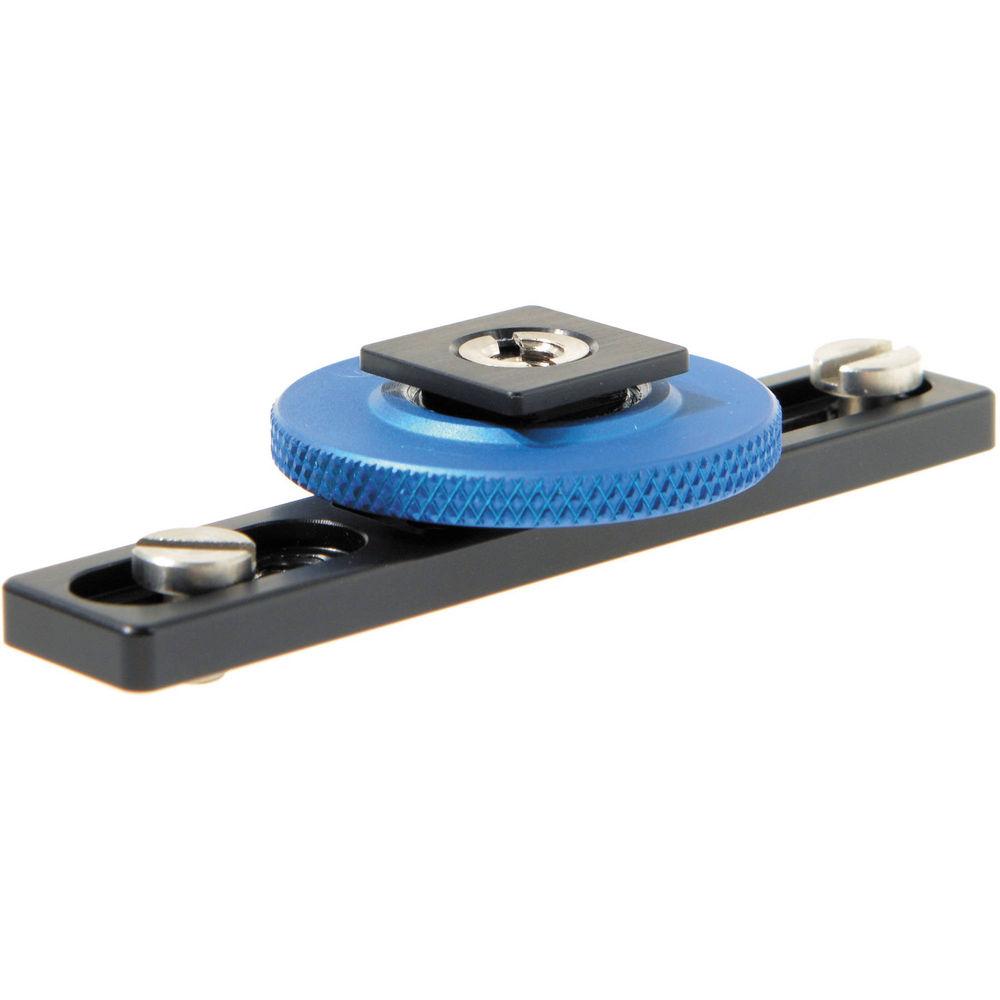

- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.

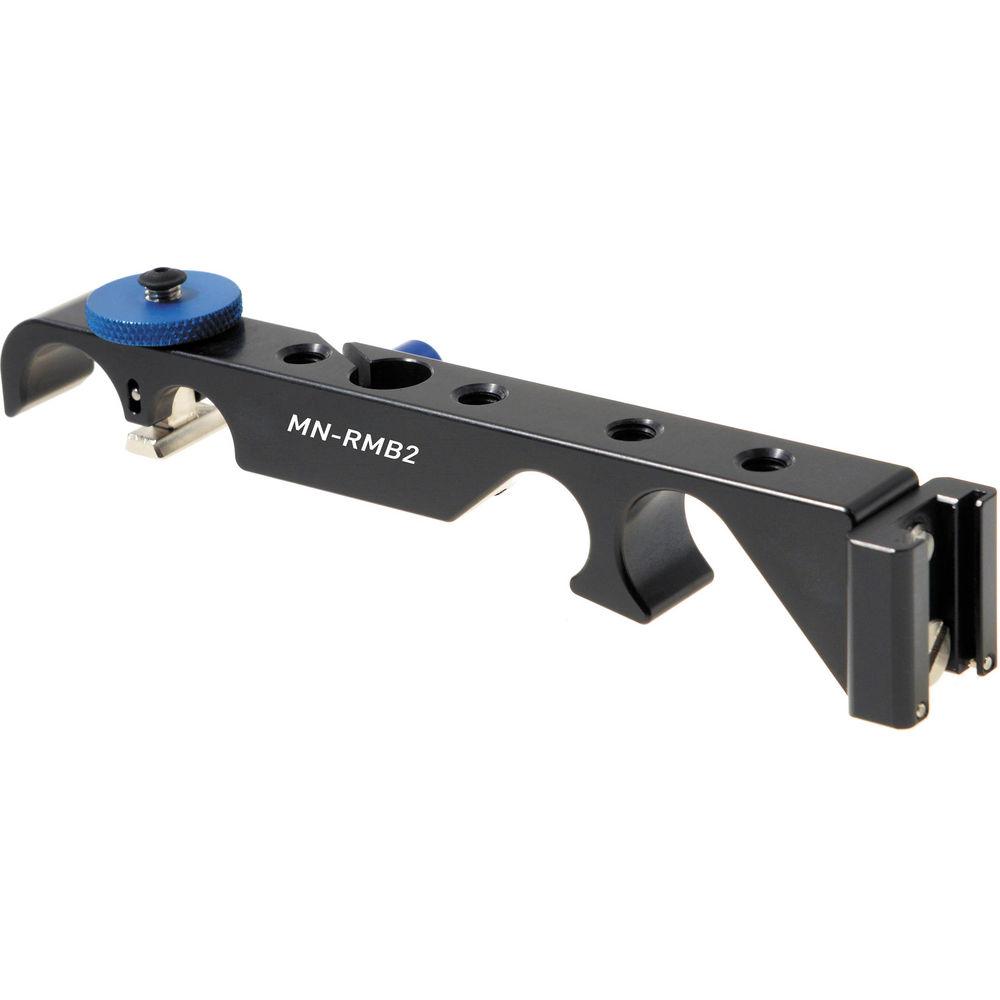

- MN-RMB2 MagNum QuickFit Rod Mount The Chrosziel MN-RMB2 MagNum QuickFit Rod Mount is designed for use with the MagNum receiver with shoe adapter. The MN-RMB2 is an accessory bridge for 15mm LWS (light weight support) and 19mm rods. It includes a cold shoe which allows you to mount the receiver in front of or behind the camera body to keep the camera package cleanly set up and balanced. The MN-RMB2 features a cold shoe for lateral attachment of devices.

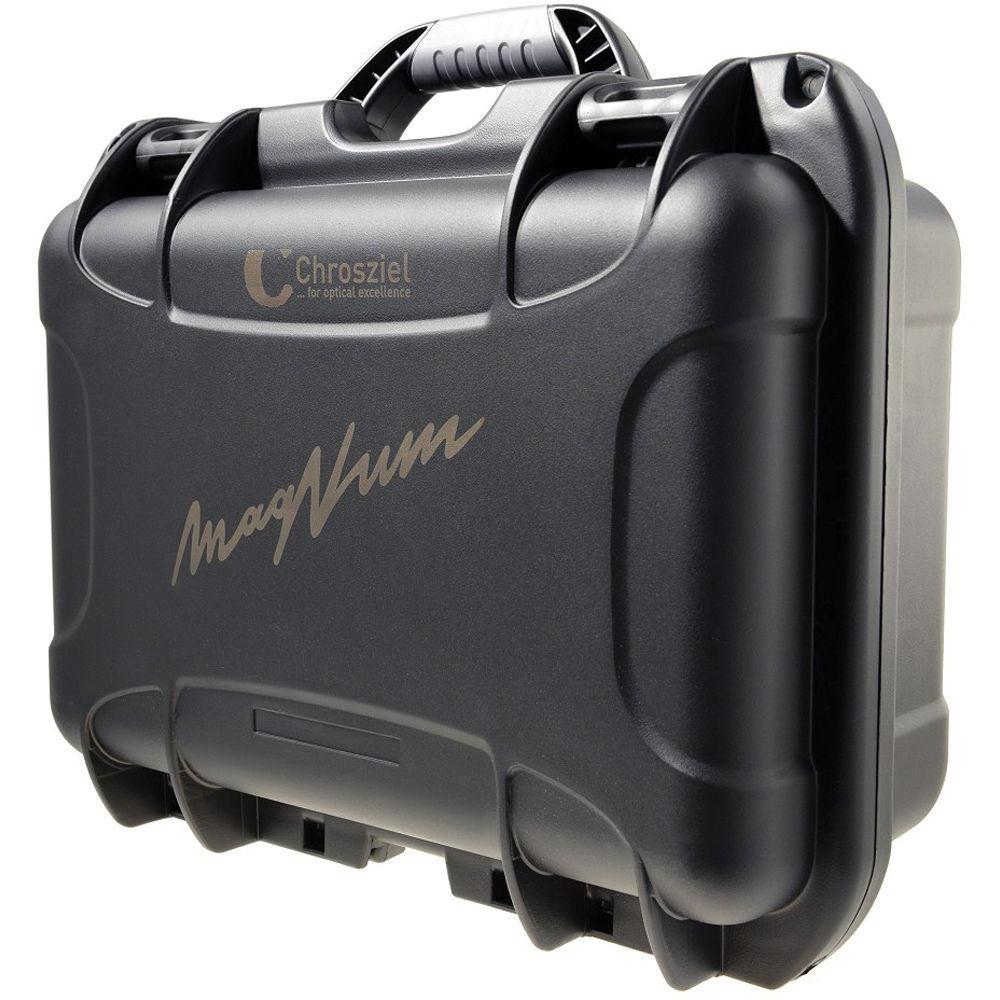

- Case with Insert for MagNum Lens Control Unit This Chrosziel Case is a hard case with a protective foam insert for the MagNum lens control. It is designed to fit the unit along with a motor, all motor cables, and a D-Tap power cable.

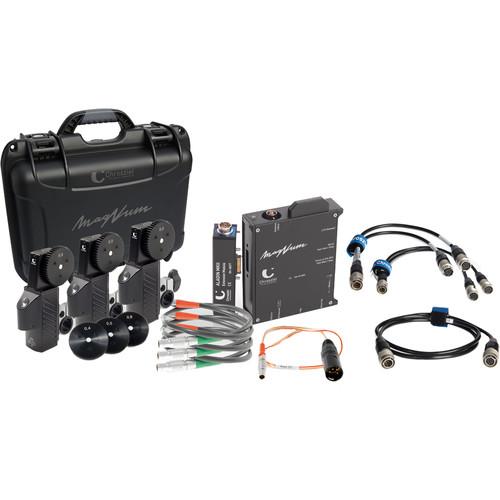

In the Box Bundle Items MagNum 200 2-Channel Wireless Lens Control Receiver uzxbewsvvbvqvtwvycxqyx MagNum Extension Module 12-Pin Hirose Aladin Lens Port to Camera Lens Cable 3 x BTM Digital Motor with 0.8 Gear 3 x 7-Pin LEMO Digital Motor Cable for AL2/Magnum (23") XLR 4-Pin Male to MagNum Lemo 5-Pin 12V Power Cable MN-RMB1 Mounting Bracket for MagNum Receiver MN-RMB2 MagNum QuickFit Rod Mount Case with Insert for MagNum Lens Control Unit Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum 300 3-Channel Broadcast Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum 200 2-Channel Wireless Lens Control Receiver
| Channels | 2 (focus and iris), expandable to 3rd zoom channel | | Ports | 1 x 12-pin Hirose for ENG demands
1 x 9-pin LEMO serial port for camera start/stop control
1 x 5-pin LEMO 10-30V power input and camera start/stop control
2 x 7-pin LEMO digital motor interface 1 x BNC for 430MHz antenna | | Antennas | 1 x Integrated 2.4 GHz
1 x BNC 430 MHz | | Weight | 0.6 lb / 262 g | - 12-Pin Hirose Aladin Lens Port to Camera Lens Cable
| Connector 1 | 12-pin Hirose | | Connector 2 | 12-pin Hirose | | Length | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 7.45 x 5.15 x 0.95" | - 7-Pin LEMO Digital Motor Cable for AL2/Magnum (23")
| Connector 1 | 7-pin LEMO | | Connector 2 | Angled 7-pin LEMO | | Length | 23" / 60cm | | | | Box Dimensions (LxWxH) | 6.5 x 6.0 x 0.4" | - XLR 4-Pin Male to MagNum Lemo 5-Pin 12V Power Cable
| Connector 1 | XLR 4-pin male | | Connector 2 | MagNum Lemo 5-pin | | Length | 23.6" (0.6 m) | | Weight | 2.8 oz (79.4 g) | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - MN-RMB2 MagNum QuickFit Rod Mount
| Compatibility | 15 mm and 19 mm rods | | Weight | 6.35 oz (0.18 kg) | | | | Box Dimensions (LxWxH) | 5.7 x 3.1 x 0.4" | - Case with Insert for MagNum Lens Control Unit
| Dimensions | 15.4 x 12.2 x 6.7" / 39 x 31 x 17 cm | | Weight | 5.2 lb / 2.35 kg | - MagNum Extension Module
- BTM Digital Motor with 0.8 Gear
