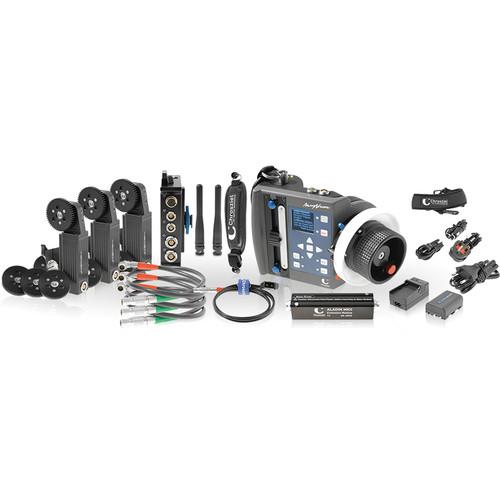

Product description Chrosziel's MagNum 300 is a 3-channel lens control system that can precisely actuate up to three digital motors. The MagNum 300 is similar to the MagNum 200 system, but includes the MagNum extension module which enables control of a third motor. This MagNum kit is comprised of a wireless handheld controller with a battery and a charger, a 2-channel receiver with a third channel extension, three Heden digital motors with cables, a d-tap power cable, and a protective carrying hard-case. See below for more information on the items included in this system. - MagNum 200 2-Channel Wireless Lens Control Hand Unit Chrosziel's MagNum 200 2-Channel Hand Unit for the MagNum wireless lens control system can remotely control focus and iris. Focus is controlled with a fluid-dampened hand wheel. Hard stops can be set along the focus rotation for focus marks. Iris is controlled with a linear slider on an aluminum scale. Compact in size, the transmitter has a rounded handle with a finger grip on the rear so you can hold it securely while operating. The transmitter houses an internal 2.4 GHz antenna and a BNC spigot that will accept an external 434 MHz antenna. To avoid issues with radio interference, there is an integrated spectrum analyzer that can determine the best frequency for transmission. Menu navigation is done by way of an easy-to-read OLED display and membrane directional keys. Included with this transmitter is a BNC antenna for 430 MHz operation, and a hand strap.
- MagNum 200 2-Channel Wireless Lens Control Receiver With dual outputs, the Chrozsiel MagNum 200 Dual-Channel Wireless Lens Control Receiver can drive up to two motors that connect via 7-pin LEMO. The receiver is capable of calibrating motors to the lens without the aid of the transmitter. When connected to a camera via the serial output, start/stop can be remotely controlled from the transmitter. The MagNum 200 system can operate on 2.4GHz and 430MHz frequencies for ensuring the greatest possible working distance and reliability. The 2.4GHz antenna is built-in and a BNC 430MHz antenna is included. The the receiver can be used in a wired/studio configuration drive motors with input from ENG demand controls. Using an Aladin extension modules, which are mountable to the receiver body, the MagNum system can control up to four motors in total.
- MagNum Extension Module Attaching the Chrosziel MagNum Extension Module to the MagNum 200 Receiver expands the MagNum system to be a fully functional 3-axis lens control solution for focus iris and zoom. The Extension Module has a 7-pin LEMO connection for a digital motor and a 12-pin Hirose connection for connection to ENG cameras for iris control and VTR/talkback control.
- MN-BAT MagNum Remote Control Battery The MN-BAT MagNum Remote Control Battery is a rechargeable Li-Ion battery for the MagNum wireless lens control unit and is recharged by the MN-CH battery charger (not included).
- Also compatible with Sony NP-FM50/55 cameras
- MN-CH MagNum Battery Charger The Chrosziel MN-CH MagNum Battery Charger is a charger for the MF-50 batteries used with the MagNum wireless lens control. The charger can be used worldwide on any power source, as well as the 12 VDC car cigarette lighter outlet. The MN-CH includes cables for US, UK, Europe, and car outlets.
- Padded Neck Strap for Lens Control Transmitters (Black) The Chrosziel Padded Neck Strap is an elastic strap with the Chrosziel logo designed for your LCS transmitter. It offers maximum comfort at minimum weight while carrying your transmitter.
- Hed
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum 300 3-Channel Wireless Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum 200 2-Channel Wireless Lens Control Hand Unit
| Channels | 2 (focus and iris) | | Battery | Sony NP-FM50 type | | Antennas | 1 x Integrated 2.4 GHz
1 x BNC 430 MHz | | Weight | 1.27 lb / 577 kg | - MagNum 200 2-Channel Wireless Lens Control Receiver
| Channels | 2 (focus and iris), expandable to 3rd zoom channel | | Ports | 1 x 12-pin Hirose for ENG demands
1 x 9-pin LEMO serial port for camera start/stop control
1 x 5-pin LEMO 10-30V power input and camera start/stop control
2 x 7-pin LEMO digital motor interface 1 x BNC for 430MHz antenna | | Antennas | 1 x Integrated 2.4 GHz
1 x BNC 430 MHz | | Weight | 0.6 lb / 262 g | - MN-BAT MagNum Remote Control Battery
| Chemistry | Lithium-ion | | Compatibility | Sony NP-FM50/55 | | Voltage | 7.2 VDC | | Weight | 2.5 oz (70 g) | | | | Box Dimensions (LxWxH) | 2.3 x 1.8 x 0.4" | - MN-CH MagNum Battery Charger
| Compatibility | Type FM50/55 rechargeable batteries | | Power Input | 100 - 240 VAC, 50/60 Hz | | Power Output | 12 VDC | | Weight | 17.6 oz (0.5 kg) | | | | Box Dimensions (LxWxH) | 7.7 x 4.7 x 3.2" | - Hed
