Product description The Chrosziel MagNum Mini Kit combines the MagNum Mini focus control system with additional accessories, including a motor cable and hard carry case. The hard case fits the MagNum, cables, optional motor, and other accessories. Add a compatible Chrosziel or third-party motor and achieve fast and accurate wireless control from up to 328' away. The MagNum Mini is a compact system consisting of the MagNum Mini single-channel receiver and MagNum MN-100T transmitter hand unit. Thanks to the small form factor of the receiver, it integrates well into gimbal, handheld, drone, and Steadicam applications. Although the receiver is compact, it has a power booster that enhances motor drive. - MagNum Mini Single-Channel Wireless Focus Control The Chrosziel MagNum Mini is a compact focus control system highly suited for gimbal, handheld, drone, and Steadicam applications. Included are the MagNum Mini wireless receiver and MN-100T MagNum Transmitter Hand Unit. The system is compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor, and it features a wireless range of up to 328' line of sight. The receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. It has a compact housing yet still packs the punch to provide fast and accurate control.
- MagNum Mini Receiver
-
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
- 100T MagNum Mini Hand Unit
-
- Run start/stop key
- High-contrast multicolor OLED display
- Four assignable user keys with recall
- Ergonomic design
- Left-handed mode
- D-Tap Power Cable for MagNum The D-Tap Power Cable for MagNum from Chrosziel is a power cable designed for use with the MagNum camera and lens remote control. It will also work with the Aladin II and AL2-INTF systems. Plug the D-Tap end into the power source and the 5-pin LEMO end into the receiver for powering.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- Case with Insert for MagNum Lens Control Unit This Chrosziel Case is a hard case with a protective foam insert for the MagNum lens control. It is designed to fit the unit along with a motor, all motor cables, and a D-Tap power cable.

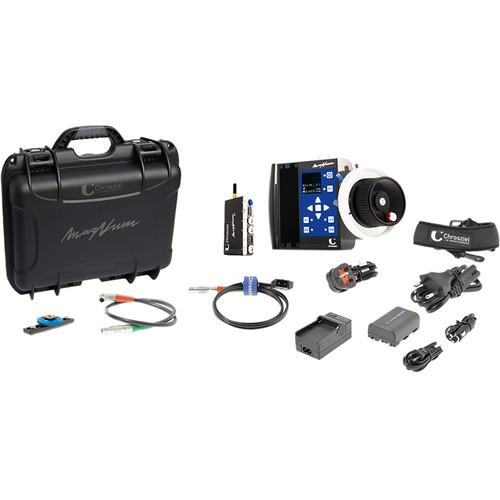

In the Box Bundle Items MagNum Mini Single-Channel Wireless Focus Control rsdzzxztqvzsqbxawbrsqsc - MagNum Mini Single-Channel Wireless Focus Control Receiver
- MagNum 100 Single-Channel Transmitter Hand Unit
- MN-BAT MagNum Remote Control Battery
- MN-CH MagNum Battery Charger
- Padded Neck Strap for Lens Control Transmitters (Black)
D-Tap Power Cable for MagNum MN-RMB1 Mounting Bracket for MagNum Receiver Case with Insert for MagNum Lens Control Unit
Also Includes - MOTD60-S MagNum Mini Motor Cable (24")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum Mini Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum Mini Single-Channel Wireless Focus Control
| | | Connectors | 1 x LEMO 0B 7-Pin (Motor)
1 x LEMO 0B 5-Pin (Power with Run/Stop)
1 x LEMO 0B 9-Pin (Run/Stop)
1 x USB | | Mount Types | 4 x 1/4"-20 Threaded Female | | Status LEDs | Motor, Power, Run/Stop, USB, RF Signal | | RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F | | Transmission Distance | Up to 328' / 100 m | | Power | 10-30 V, 2 A Max | | Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm | | Weight | 4.2 oz / 120 g | | | | Connectors | 1 x LEMO 2-Pin (for Optional LED Gooseneck)
1 x USB | | Display | 128 x 128 Resolution OLED | | Power | 9 V, 100 mA Max | | Battery Type | 7.5 V, Sony FM50/55 Li-Ion Rechargeable | | Mount Types | 5 x 1/4"-20 Threaded Female | | Dimensions | 7 x 5.9 x 4.5" / 18 x 15 x 11.5 cm | | Weight | 18.3 oz / 520 g | - D-Tap Power Cable for MagNum
| Compatibility | MagNum, Aladin MRKII/AL2-INTF | | Connector 1 | D-Tap | | Connector 2 | LEMO 0B 5-pin | | Length | 23.6" / 60 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 6.1 x 5.2 x 0.7" | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - Case with Insert for MagNum Lens Control Unit
| Dimensions | 15.4 x 12.2 x 6.7" / 39 x 31 x 17 cm | | Weight | 5.2 lb / 2.35 kg |
