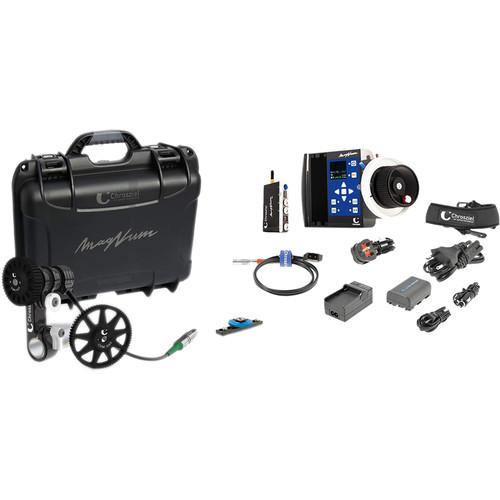

User Manual for Chrosziel MagNum Mini Kit with CDM-100S Motor Click to enlarge the picture
Contents of the user manual for the Chrosziel MagNum Mini Kit with CDM-100S
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel MagNum Mini Kit with CDM-100S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel MagNum Mini Kit with CDM-100S Motor is a single-channel wireless focus control system suited for handheld, gimbal, drone, Steadicam, and most other applications. The kit includes the MagNum receiver, CDM-100S 15/19mm rod-mount digital lens motor, transmitter hand unit, power/mounting accessories, and a hard carry case measuring just above 15 x 12".
The receiver offers 11 selectable 2.4 GHz RF channels and up to 330' RF transmission (depending on the environment). In a highly compact housing, it features one-channel focus control with a power booster for enhanced motor drive, auto motor calibration for cine lenses (manual for photo lenses), and LEMO start/stop input ports.
The transmitter hand unit provides four assignable user keys with recall and a record start/stop key. A high-contrast multicolor OLED display on the transmitter indicates status and other settings, while ergonomic hand/finger supports on the left and a large handwheel on the right allow you to dial in precise focus adjustments. The handwheel operates with stepless adjustable dampening while also offering two freely adjustable mechanical end stops and a wheel lock. - MagNum Mini Single-Channel Wireless Focus Control Receiver The Chrosziel MagNum Mini Receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. The MagNum Mini Receiver has a compact design suited for gimbal, handheld, drone, and Steadicam applications, yet it still has the punch to provide fast and accurate adjustments. It can be controlled by the optional MN-100T, MN-150T, or MN-200T MagNum Transmitter Hand Unit from up to 328' away. Together the receiver and hand unit are compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor.
- Key Features
-
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
- MagNum 100 Single-Channel Transmitter Hand Unit The Chrosziel MagNum 100 Single-Channel Transmitter Hand Unit is a 2.4 GHz wireless transmitter for the MagNum system. It features an ergonomically shaped handgrip and finger rest for comfortable operation, menu-guided intuitive handling through membrane keys, and a color OLED display. For focus control, a fluid-dampened hand wheel is provided, which spreads the focus range of any lens to one full turn of the wheel. Five 1/4"-20 mounting holes on the hand unit let you mount it to tripods stands or even attach an external monitor.
- CDM-100S Digital Motor with Small LEMO Connector Designed for gimbal and drone setups, Chrosziel's CDM-100S Digital Motor is small at only 19mm in diameter and features an integrated 27.6" LEMO 7-pin 0B cable for connecting to 3rd party systems, such as those from FREEFLY, Redrock, and more. Since this motor utilizes a horizontal design and an integrated cable, it can be kept to a low profile when size and weight, or lack thereof, are of prime importance. This motor includes a 19mm clamp with a 15mm adapter for LWS compatibility and two MOD 0.8 gears; one 1.6" and one 2.4" in diameter to compensate for recessed lens control rings.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- MN-BAT MagNum Remote Control Battery The MN-BAT MagNum Remote Control Battery is a rechargeable Li-Ion battery for the MagNum wireless lens control unit and is recharged by the MN-CH battery charger (not included).
- Also compatible with Sony NP-FM50/55 cameras
- D-Tap Power Cable for MagNum The D-Tap Power Cable for MagNum from Chrosziel is a power cable designed for use with the MagNum camera and lens remote control. It will also work with the Aladin II and AL2-INTF systems. Plug the D-Tap end into the power source and the 5-pin LEMO end into the receiver for powering.
- Case with Insert for MagNum Lens Control Unit This Chrosziel Case is a hard case with a protective foam insert for the MagNum lens control. It is designed to fit the unit along with a motor, all motor cables, and a D-Tap power cable.
In the Box Bundle Items MagNum Mini Single-Channel Wireless Focus Control Receiver - Angled Antenna for ALADIN and DigiFox Receivers
MagNum 100 Single-Channel Transmitter Hand Unit CDM-100S Digital Motor with Small LEMO Connector - EU15-19 Universal Rod Clamp for CDM-100 Motor
- 0.8 MOD Pitch Gear Drive for CDM-100 Digital Motor (40mm)
- 0.8 MOD Pitch Gear Drive for CDM-100 Digital Motor (60mm)
MN-RMB1 Mounting Bracket for MagNum Receiver MN-BAT MagNum Remote Control Battery D-Tap Power Cable for MagNum Case with Insert for MagNum Lens Control Unit
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum Mini Kit with CDM-100S Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum Mini Single-Channel Wireless Focus Control Receiver
| Connectors | 1 x LEMO 0B 7-Pin (Motor)
1 x LEMO 0B 5-Pin (Power with Run/Stop)
1 x LEMO 0B 9-Pin (Run/Stop)
1 x USB | | Mount Types | 4 x 1/4"-20 Threaded Female | | Status LEDs | Motor, Power, Run/Stop, USB, RF Signal | | RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F | | Transmission Distance | Up to 328' / 100 m | | Power | 10-30 V, 2 A Max | | Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm | | Weight | 4.2 oz / 120 g | - MagNum 100 Single-Channel Transmitter Hand Unit
| Channels | 1 | | Frequency | 2.4 GHz | | Antenna | Internal | - CDM-100S Digital Motor with Small LEMO Connector
| Connector | 1 x LEMO 7-pin 0B | | Cable Length | 27.6" / 700 mm | | Voltage | Max 24 V | | Torque | Max 0.5 Nm | | Dimensions | Length: 2.4" / 62 mm
Diameter: 0.75" / 19 mm (main body only, no gear) | | Weight | 4.4 oz / 126 g (including clamp and cable) | | | | Box Dimensions (LxWxH) | 7.7 x 4.6 x 2.4" | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - MN-BAT MagNum Remote Control Battery
| Chemistry | Lithium-ion | | Compatibility | Sony NP-FM50/55 | | Voltage | 7.2 VDC | | Weight | 2.5 oz (70 g) | | | | Box Dimensions (LxWxH) | 2.3 x 1.8 x 0.4" | - D-Tap Power Cable for MagNum
| Compatibility | MagNum, Aladin MRKII/AL2-INTF | | Connector 1 | D-Tap | | Connector 2 | LEMO 0B 5-pin | | Length | 23.6" / 60 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 6.1 x 5.2 x 0.7" | - Case with Insert for MagNum Lens Control Unit
| Dimensions | 15.4 x 12.2 x 6.7" / 39 x 31 x 17 cm | | Weight | 5.2 lb / 2.35 kg |
