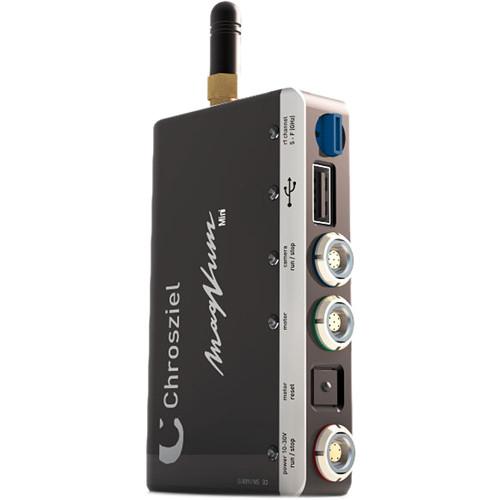

User Manual for Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver Click to enlarge the picture
Contents of the user manual for the Chrosziel MagNum Mini Single-Channel Wireless Focus
- Product category: Wireless Lens Control Accessories Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Accessories
|
User manual for the Chrosziel MagNum Mini Single-Channel Wireless Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel MagNum Mini Receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. The MagNum Mini Receiver has a compact design suited for gimbal, handheld, drone, and Steadicam applications, yet it still has the punch to provide fast and accurate adjustments. It can be controlled by the optional MN-100T, MN-150T, or MN-200T MagNum Transmitter Hand Unit from up to 328' away. Together the receiver and hand unit are compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor. - Key Features
-
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
In the Box Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver Angled Antenna for ALADIN and DigiFox Receivers ystxrtyctvtcvbfxcbarbdcyyu Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel MN-MINI-R Specs | Connectors | 1 x LEMO 0B 7-Pin (Motor)
1 x LEMO 0B 5-Pin (Power with Run/Stop)
1 x LEMO 0B 9-Pin (Run/Stop)
1 x USB | | Mount Types | 4 x 1/4"-20 Threaded Female | | Status LEDs | Motor, Power, Run/Stop, USB, RF Signal | | RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F | | Transmission Distance | Up to 328' / 100 m | | Power | 10-30 V, 2 A Max | | Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm | | Weight | 4.2 oz / 120 g |
