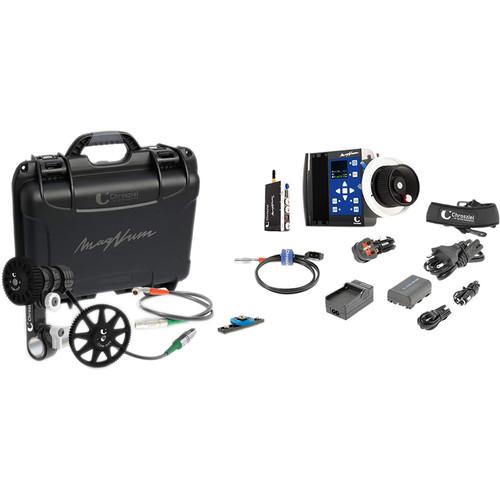

User Manual for Chrosziel MagNum Mini Superior Kit with CDM-100S Motor Click to enlarge the picture
Contents of the user manual for the Chrosziel MagNum Mini Superior Kit with
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel MagNum Mini Superior Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel MagNum Mini Superior Kit with CDM-100S Motor combines the MagNum Mini Superior focus control system with additional accessories and the Chrosziel CDM-100S 15/19mm rod-mount motor. The additional accessories include a hard carry case that fits the MagNum, motor, cables, and other accessories.
The MagNum Mini Superior is a compact system consisting of the MagNum Mini single-channel receiver and MagNum MN-150T transmitter hand unit. Thanks to the small form factor of the receiver, it integrates well into gimbal, handheld, drone, and Steadicam applications. Although the receiver is compact, it has a power booster that enhances motor drive and provides fast and accurate control from up to 328' away. The CDM-100S motor features an integrated motor cable, so you're set to go right out of the box. - MagNum Mini Superior Single-Channel Wireless Focus Control The Chrosziel MagNum Mini Superior is a compact focus control system highly suited for gimbal, handheld, drone, and Steadicam applications. Included are the MagNum Mini wireless receiver and MN-150T MagNum Transmitter Hand Unit. The system is compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor, and it features a wireless range of up to 328' line of sight. The receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. It has a compact housing yet still packs the punch to provide fast and accurate control.
- MagNum Mini Receiver
-
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
- 150T MagNum Mini Hand Unit
-
- Run start/stop key
- High-contrast multicolor OLED display
- Four assignable user keys with recall
- DMX signal input
- Two freely adjustable mechanical end stops
- Stepless adjustable dampening of the handwheel
- Wheel lock
- Ergonomic design
- Left-handed mode
- D-Tap Power Cable for MagNum The D-Tap Power Cable for MagNum from Chrosziel is a power cable designed for use with the MagNum camera and lens remote control. It will also work with the Aladin II and AL2-INTF systems. Plug the D-Tap end into the power source and the 5-pin LEMO end into the receiver for powering.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- Case with Insert for MagNum Lens Control Unit This Chrosziel Case is a hard case with a protective foam insert for the MagNum lens control. It is designed to fit the unit along with a motor, all motor cables, and a D-Tap power cable.
- CDM-100S Digital Motor with Small LEMO Connector Designed for gimbal and drone setups, Chrosziel's CDM-100S Digital Motor is small at only 19mm in diameter and features an integrated 27.6" LEMO 7-pin 0B cable for connecting to 3rd party systems, such as those from FREEFLY, Redrock, and more. Since this motor utilizes a horizontal design and an integrated cable, it can be kept to a low profile when size and weight, or lack thereof, are of prime importance. This motor includes a 19mm clamp with a 15mm adapter for LWS compatibility and two MOD 0.8 gears; one 1.6" and one 2.4" in diameter to compensate for recessed lens control rings.
In the Box Bundle Items MagNum Mini Superior Single-Channel Wireless Focus Control ystxrtyctvtcvbfxcbarbdcyyu - MagNum Mini Single-Channel Wireless Focus Control Receiver
- MN-150 MagNum Extendable Transmitter
- MN-BAT MagNum Remote Control Battery
- MN-CH MagNum Battery Charger
- Padded Neck Strap for Lens Control Transmitters (Black)
D-Tap Power Cable for MagNum MN-RMB1 Mounting Bracket for MagNum Receiver MN-RMB1 Mounting Bracket for MagNum Receiver Case with Insert for MagNum Lens Control Unit CDM-100S Digital Motor with Small LEMO Connector - EU15-19 Universal Rod Clamp for CDM-100 Motor
- 0.8 MOD Pitch Gear Drive for CDM-100 Digital Motor (40mm)
- 0.8 MOD Pitch Gear Drive for CDM-100 Digital Motor (60mm)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum Mini Superior Kit with CDM-100S Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum Mini Superior Single-Channel Wireless Focus Control
| | | Connectors | 1 x LEMO 0B 7-Pin (Motor)
1 x LEMO 0B 5-Pin (Power with Run/Stop)
1 x LEMO 0B 9-Pin (Run/Stop)
1 x USB | | Mount Types | 4 x 1/4"-20 Threaded Female | | Status LEDs | Motor, Power, Run/Stop, USB, RF Signal | | RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F | | Transmission Distance | Up to 328' / 100 m | | Power | 10-30 V, 2 A Max | | Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm | | Weight | 4.2 oz / 120 g | | | | Connectors | 1 x LEMO 2-Pin (for Optional LED Gooseneck)
1 x USB | | Display | 128 x 128 Resolution OLED | | Power | 9 V, 100 mA Max | | Battery Type | 7.5 V, Sony FM50/55 Li-Ion Rechargeable | | Mount Types | 5 x 1/4"-20 Threaded Female | | Dimensions | 7 x 5.9 x 4.5" / 18 x 15 x 11.5 cm | | Weight | 18.3 oz / 520 g | - D-Tap Power Cable for MagNum
| Compatibility | MagNum, Aladin MRKII/AL2-INTF | | Connector 1 | D-Tap | | Connector 2 | LEMO 0B 5-pin | | Length | 23.6" / 60 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 6.1 x 5.2 x 0.7" | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - Case with Insert for MagNum Lens Control Unit
| Dimensions | 15.4 x 12.2 x 6.7" / 39 x 31 x 17 cm | | Weight | 5.2 lb / 2.35 kg | - CDM-100S Digital Motor with Small LEMO Connector
| Connector | 1 x LEMO 7-pin 0B | | Cable Length | 27.6" / 700 mm | | Voltage | Max 24 V | | Torque | Max 0.5 Nm | | Dimensions | Length: 2.4" / 62 mm
Diameter: 0.75" / 19 mm (main body only, no gear) | | Weight | 4.4 oz / 126 g (including clamp and cable) | | | | Box Dimensions (LxWxH) | 7.7 x 4.6 x 2.4" |
