User Manual for Chrosziel MagNum Mini Superior Kit with Heden Motor Click to enlarge the picture
Contents of the user manual for the Chrosziel MagNum Mini Superior Kit with
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel MagNum Mini Superior Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|

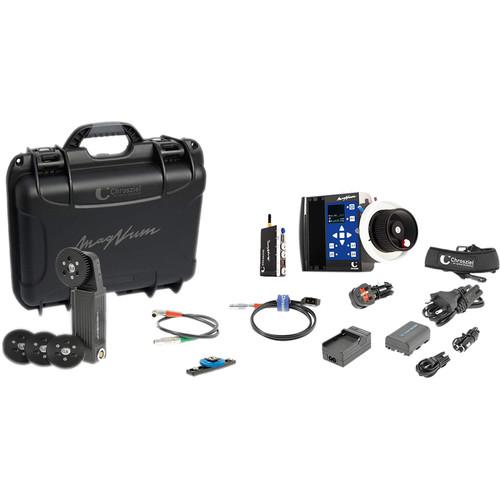

Product description The Chrosziel MagNum Mini Superior Kit with Heden Motor combines the MagNum Mini Superior focus control system with additional accessories and the Heden M26VE 15/19mm rod-mount motor. The additional accessories include a hard carry case that fits the MagNum, motor, cables, and other accessories. A motor cable is also supplied for connecting the motor to the MagNum Mini.
The MagNum Mini Superior is a compact system consisting of the MagNum Mini single-channel receiver and MagNum MN-150T transmitter hand unit. Thanks to the small form factor of the receiver, it integrates well into gimbal, handheld, drone, and Steadicam applications. Although the receiver is compact, it has a power booster that enhances motor drive and provides fast and accurate control from up to 328' away. - MagNum Mini Superior Single-Channel Wireless Focus Control The Chrosziel MagNum Mini Superior is a compact focus control system highly suited for gimbal, handheld, drone, and Steadicam applications. Included are the MagNum Mini wireless receiver and MN-150T MagNum Transmitter Hand Unit. The system is compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor, and it features a wireless range of up to 328' line of sight. The receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. It has a compact housing yet still packs the punch to provide fast and accurate control.
- MagNum Mini Receiver
-
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
- 150T MagNum Mini Hand Unit
-
- Run start/stop key
- High-contrast multicolor OLED display
- Four assignable user keys with recall
- DMX signal input
- Two freely adjustable mechanical end stops
- Stepless adjustable dampening of the handwheel
- Wheel lock
- Ergonomic design
- Left-handed mode
- D-Tap Power Cable for MagNum The D-Tap Power Cable for MagNum from Chrosziel is a power cable designed for use with the MagNum camera and lens remote control. It will also work with the Aladin II and AL2-INTF systems. Plug the D-Tap end into the power source and the 5-pin LEMO end into the receiver for powering.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- Case with Insert for MagNum Lens Control Unit This Chrosziel Case is a hard case with a protective foam insert for the MagNum lens control. It is designed to fit the unit along with a motor, all motor cables, and a D-Tap power cable.
- Hed
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum Mini Superior Kit with Heden Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum Mini Superior Single-Channel Wireless Focus Control
| | | Connectors | 1 x LEMO 0B 7-Pin (Motor)
1 x LEMO 0B 5-Pin (Power with Run/Stop)
1 x LEMO 0B 9-Pin (Run/Stop)
1 x USB | | Mount Types | 4 x 1/4"-20 Threaded Female | | Status LEDs | Motor, Power, Run/Stop, USB, RF Signal | | RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F | | Transmission Distance | Up to 328' / 100 m | | Power | 10-30 V, 2 A Max | | Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm | | Weight | 4.2 oz / 120 g | | | | Connectors | 1 x LEMO 2-Pin (for Optional LED Gooseneck)
1 x USB | | Display | 128 x 128 Resolution OLED | | Power | 9 V, 100 mA Max | | Battery Type | 7.5 V, Sony FM50/55 Li-Ion Rechargeable | | Mount Types | 5 x 1/4"-20 Threaded Female | | Dimensions | 7 x 5.9 x 4.5" / 18 x 15 x 11.5 cm | | Weight | 18.3 oz / 520 g | - D-Tap Power Cable for MagNum
| Compatibility | MagNum, Aladin MRKII/AL2-INTF | | Connector 1 | D-Tap | | Connector 2 | LEMO 0B 5-pin | | Length | 23.6" / 60 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 6.1 x 5.2 x 0.7" | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - Case with Insert for MagNum Lens Control Unit
| Dimensions | 15.4 x 12.2 x 6.7" / 39 x 31 x 17 cm | | Weight | 5.2 lb / 2.35 kg | - Hed
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
