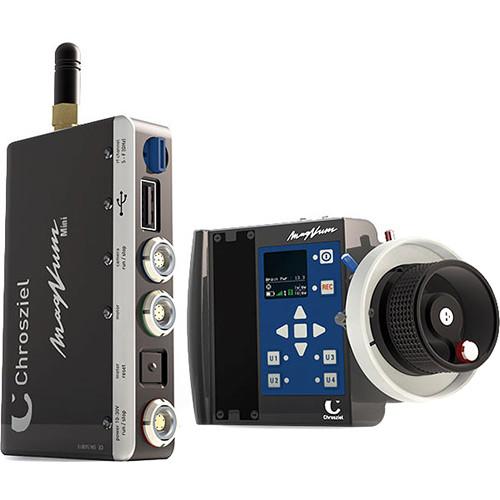

User Manual for Chrosziel MagNum Mini Superior Single-Channel Wireless Focus Control Click to enlarge the picture
Contents of the user manual for the Chrosziel MagNum Mini Superior Single-Channel Wireless
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel MagNum Mini Superior Single-Channel Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel MagNum Mini Superior is a compact focus control system highly suited for gimbal, handheld, drone, and Steadicam applications. Included are the MagNum Mini wireless receiver and MN-150T MagNum Transmitter Hand Unit. The system is compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor, and it features a wireless range of up to 328' line of sight. The receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. It has a compact housing yet still packs the punch to provide fast and accurate control. - MagNum Mini Receiver
-
- 11 selectable 2.4 GHz RF channels
- Start/stop control for most common camera models
- 1-channel focus control with power booster
- Fast auto motor calibration (manual mode for photo lenses)
- Motor stays calibrated even in case of power loss
- Firmware updates via USB port
- 150T MagNum Mini Hand Unit
-
- Run start/stop key
- High-contrast multicolor OLED display
- Four assignable user keys with recall
- DMX signal input
- Two freely adjustable mechanical end stops
- Stepless adjustable dampening of the handwheel
- Wheel lock
- Ergonomic design
- Left-handed mode
In the Box Chrosziel MagNum Mini Superior Single-Channel Wireless Focus Control MagNum Mini Single-Channel Wireless Focus Control Receiver MN-150 MagNum Extendable Transmitter MN-BAT MagNum Remote Control Battery MN-CH MagNum Battery Charger Padded Neck Strap for Lens Control Transmitters (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MagNum Mini Superior Single-Channel Wireless Focus Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel Magnum Specs | | | Connectors | 1 x LEMO 0B 7-Pin (Motor)
1 x LEMO 0B 5-Pin (Power with Run/Stop)
1 x LEMO 0B 9-Pin (Run/Stop)
1 x USB | | Mount Types | 4 x 1/4"-20 Threaded Female | | Status LEDs | Motor, Power, Run/Stop, USB, RF Signal | | RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F | | Transmission Distance | Up to 328' / 100 m | | Power | 10-30 V, 2 A Max | | Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm | | Weight | 4.2 oz / 120 g | | | | Connectors | 1 x LEMO 2-Pin (for Optional LED Gooseneck)
1 x USB | | Display | 128 x 128 Resolution OLED | | Power | 9 V, 100 mA Max | | Battery Type | 7.5 V, Sony FM50/55 Li-Ion Rechargeable | | Mount Types | 5 x 1/4"-20 Threaded Female | | Dimensions | 7 x 5.9 x 4.5" / 18 x 15 x 11.5 cm | | Weight | 18.3 oz / 520 g |
