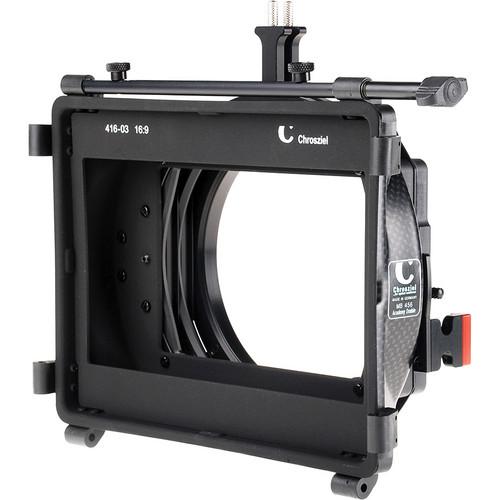

User Manual for Chrosziel Matte Box 456-20 Academy Click to enlarge the picture
Contents of the user manual for the Chrosziel Matte Box 456-20 Academy
- Product category: Matte Boxes & Sunshades Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Matte Boxes & Sunshades
|
User manual for the Chrosziel Matte Box 456-20 Academy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel Matte Box 456-20 Academy (2 Filter Holders) consists of a 456-R20 matte box, French flag, a filter stage for two individually rotating filter holders, two 4 x 5.65"/5 x 5" filter holders, a 130mm clamp-on rear plate, and a bracket for 15mm lightweight support rods. It is ideal for use with handheld and studio production cameras.The 456-R20 Matte Box offers a wide angle (16:9/4:3) housing for lenses as wide as 12mm (35mm Academy) and eliminates the effects of vignetting. Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders, the matte box provides sufficient space for adjusting the position of filters.Provided with a French flag, the Matte Box 456-20 Academy controls the angle of light and eliminates lens glare and flare. It can be coupled with optional side wings for accurate light adjustment. The kit includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods (optional).With optional bridgeplate adapters, you can interface the kit with 15 or 19mm bridgeplate rods. An optional swing-away bracket, attached to the back of the matte box housing, allows for quick and efficient lens changes. - Consists of a 450W-R20 matte box that offers a wide angle (16:9/4:3) housing for lens as wide as 12mm (35mm Academy) and eliminates the effects of vignetting
- Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders
- Provides sufficient space for adjusting the position of filters
- French flag controls the angle of light, eliminates lens glare and flare, and can be coupled with optional side wings for accurate light adjustment
- Includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods
- Can be interfaced with 15 or 19mm bridgeplate rods using optional bridgeplate adapters
- Optional swing-away bracket attached to the back of the matte box housing allows for quick and efficient lens change
In the Box Chrosziel Matte Box 456-20 Academy (2 Filter Holders) 402-26 Foldable French Flag ecsfrqavrrtcbzfczeyd Filter Stage for Two Rotating Filter Holders 2 x 4 x 5.65"/5 x 5" Combination Filter Holder (510-01) 130mm Diameter Rear Plate Bracket for 15mm Lightweight Support Rods Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Matte Box 456-20 Academy in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 456-20 Specs | Focal Length | 12mm (35mm Academy)
5.2mm (2/3")
2.6mm (1/3")
(maximum focal length) | | Format | 16:9, 4:3 | | Components | Insert Masks: Included
Filter Sizes: 5 x 5" and 4 x 5.65"
Rotating Filter Stages: 2
Rear Plate: 130 mm Diameter
Rod Support: 15 mm
Clamp Support: Yes
Swing-Away: Optional
French Flag: Yes
Side Wings: Optional | | | | Package Weight | 2.16 lb | | Box Dimensions (LxWxH) | 16.35 x 13.65 x 3.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
