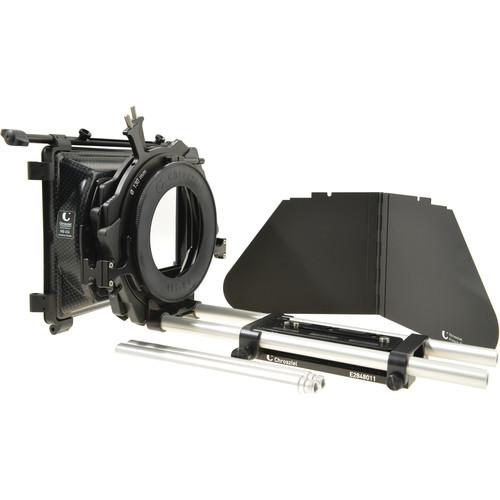

Product description This Chrosziel Matte Box and Baseplate Kit is an expandable studio rig for Canon EOS C Series camcorders. Included is a 15mm LWS baseplate which is height adjusted for C series camcorders so it can fit properly with the 456-20 Matte Box. The matte box includes a rubber donut insert to take a variety of stills and cine lenses, as well as a top flag to prevent ghosting and lens flares. While functional on its own, this rig can serve as a jumping-off point to mounting other optional accessories such as follow focuses, lens supports, handles, and shoulder mounts, to create your own rig that fits your workflow. - Matte Box 456-20 Academy (2 Filter Holders) The Chrosziel Matte Box 456-20 Academy (2 Filter Holders) consists of a 456-R20 matte box, French flag, a filter stage for two individually rotating filter holders, two 4 x 5.65"/5 x 5" filter holders, a 130mm clamp-on rear plate, and a bracket for 15mm lightweight support rods. It is ideal for use with handheld and studio production cameras.The 456-R20 Matte Box offers a wide angle (16:9/4:3) housing for lenses as wide as 12mm (35mm Academy) and eliminates the effects of vignetting. Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders, the matte box provides sufficient space for adjusting the position of filters.Provided with a French flag, the Matte Box 456-20 Academy controls the angle of light and eliminates lens glare and flare. It can be coupled with optional side wings for accurate light adjustment. The kit includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods (optional).With optional bridgeplate adapters, you can interface the kit with 15 or 19mm bridgeplate rods. An optional swing-away bracket, attached to the back of the matte box housing, allows for quick and efficient lens changes.
- Consists of a 450W-R20 matte box that offers a wide angle (16:9/4:3) housing for lens as wide as 12mm (35mm Academy) and eliminates the effects of vignetting
- Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders
- Provides sufficient space for adjusting the position of filters
- French flag controls the angle of light, eliminates lens glare and flare, and can be coupled with optional side wings for accurate light adjustment
- Includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods
- Can be interfaced with 15 or 19mm bridgeplate rods using optional bridgeplate adapters
- Optional swing-away bracket attached to the back of the matte box housing allows for quick and efficient lens change
- C-411-68 Flexi Insert Ring (for 130mm Clamp) The Chrosziel C-411-68 Flexi Insert Ring (for 130mm Clamp) is a light-prevention ring that seamlessly fits into the 130mm clamp of the 450W-20 and 456-20/456-30 rod-mounted matte boxes and covers lenses with diameters ranging from 95-125mm.
- LWS 15 HD Baseplate with 15mm Rods for Canon EOS C100/300/500 The LWS 15 HD Baseplate with 15mm Rods for Canon EOS C100/300/500 from Chrosziel is a 15mm rod camera support plate designed for use with the Canon EOS C100/300/500. It features dual rod clamps and includes a pair of 15mm rods 12.2" (310mm) in length. The rods have threading for adding extension rods. UPC: 605228109438
- 15mm Pair of Extension Rods (7.5") Chrosziel's 15mm Pair of Extension Rods (7.5") can be used to add range to any 15mm support rig. These high-strength aluminum rods allow for larger matteboxes and additional accessories, such as lights or follow focus, to be used on-camera.
In the Box Bundle Items Matte Box 456-20 Academy (2 Filter Holders) turuvzqzzzubvfwsttuvrussvtdtbudxby - 402-26 Foldable French Flag
- Filter Stage for Two Rotating Filter Holders
- 2 x 4 x 5.65"/5 x 5" Combination Filter Holder (510-01)
- 130mm Diameter Rear Plate
- Bracket for 15mm Lightweight Support Rods
C-411-68 Flexi Insert Ring (for 130mm Clamp) turuvzqzzzubvfwsttuvrussvtdtbudxby LWS 15 HD Baseplate with 15mm Rods for Canon EOS C100/300/500 15mm Pair of Extension Rods (7.5") turuvzqzzzubvfwsttuvrussvtdtbudxby Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Matte Box and Baseplate Kit for Canon EOS C Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Matte Box 456-20 Academy (2 Filter Holders)
| Focal Length | 12mm (35mm Academy)
5.2mm (2/3")
2.6mm (1/3")
(maximum focal length) | | Format | 16:9, 4:3 | | Components | Insert Masks: Included
Filter Sizes: 5 x 5" and 4 x 5.65"
Rotating Filter Stages: 2
Rear Plate: 130 mm Diameter
Rod Support: 15 mm
Clamp Support: Yes
Swing-Away: Optional
French Flag: Yes
Side Wings: Optional | | | | Box Dimensions (LxWxH) | 16.35 x 13.65 x 3.8" | - C-411-68 Flexi Insert Ring (for 130mm Clamp)
| | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 0.3" | - LWS 15 HD Baseplate with 15mm Rods for Canon EOS C100/300/500
| | | Box Dimensions (LxWxH) | 11.6 x 5.2 x 1.5" | - 15mm Pair of Extension Rods (7.5")
| Diameter | 15mm | | Length | 7.5" (190mm) | | | | Box Dimensions (LxWxH) | 9.5 x 1.0 x 1.0" |
