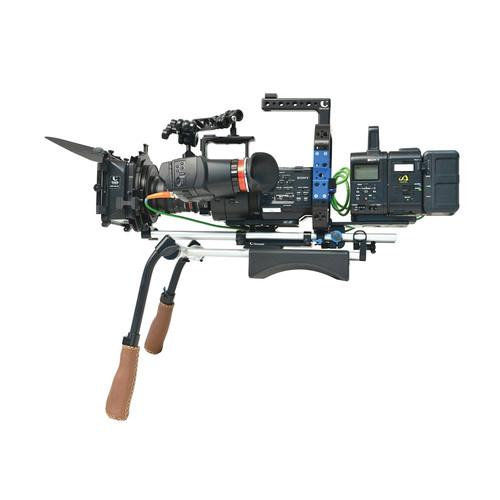

User Manual for Chrosziel Matte Box MB450 Cage Recorder Kit for Sony NEX-FS700 Camera

• Product category: Camcorder Supports & Rigs Chrosziel
• Brand: Chrosziel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Chrosziel Camcorder Supports & Rigs

Product description

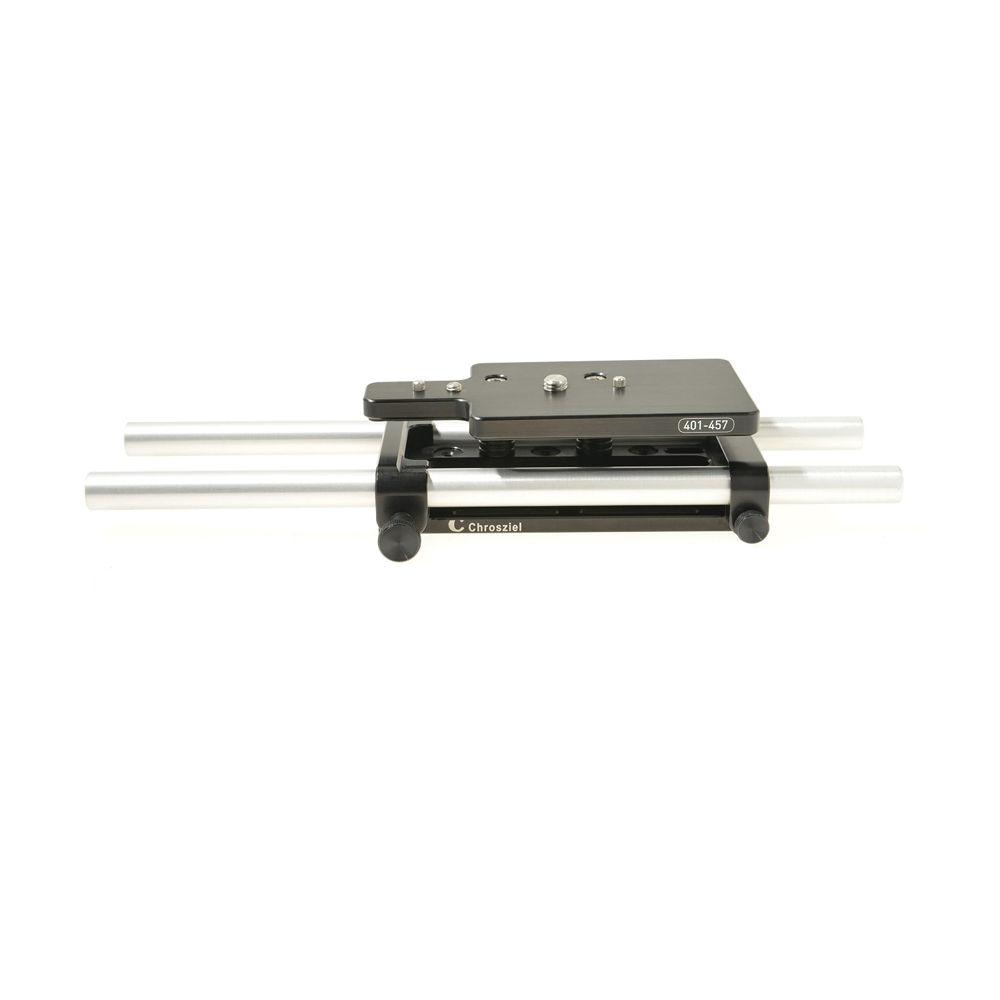

• Lightweight Support for Sony NEX-FS700 This Lightweight Support by Chrosziel is custom designed for the Sony the NEX-FS700 camera. The lightweight support comes with two 12" rods with a diameter of 15mm. It features double rod guidance and clamps.

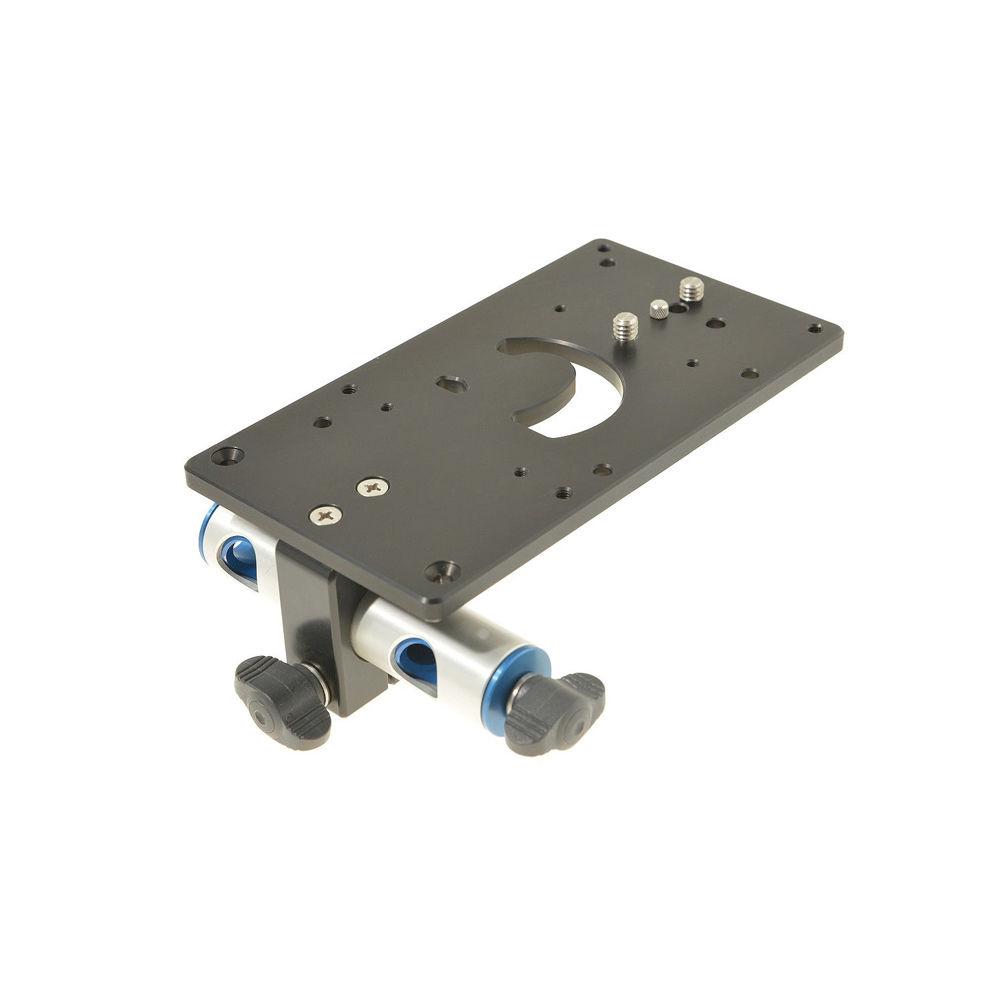

• 15mm Battery Mounting Plate The Battery Mounting Plate (15mm) from Chrosziel is an adjustable angle mounting plate for battery holders; it fits on 15mm rods. This universal plate has holes and threads for Anton/Bauer Gold Mount, IDX V-Plate, and PAG-Lok battery mounts. The mounting plate can also fit Sony's recorder FS-700.

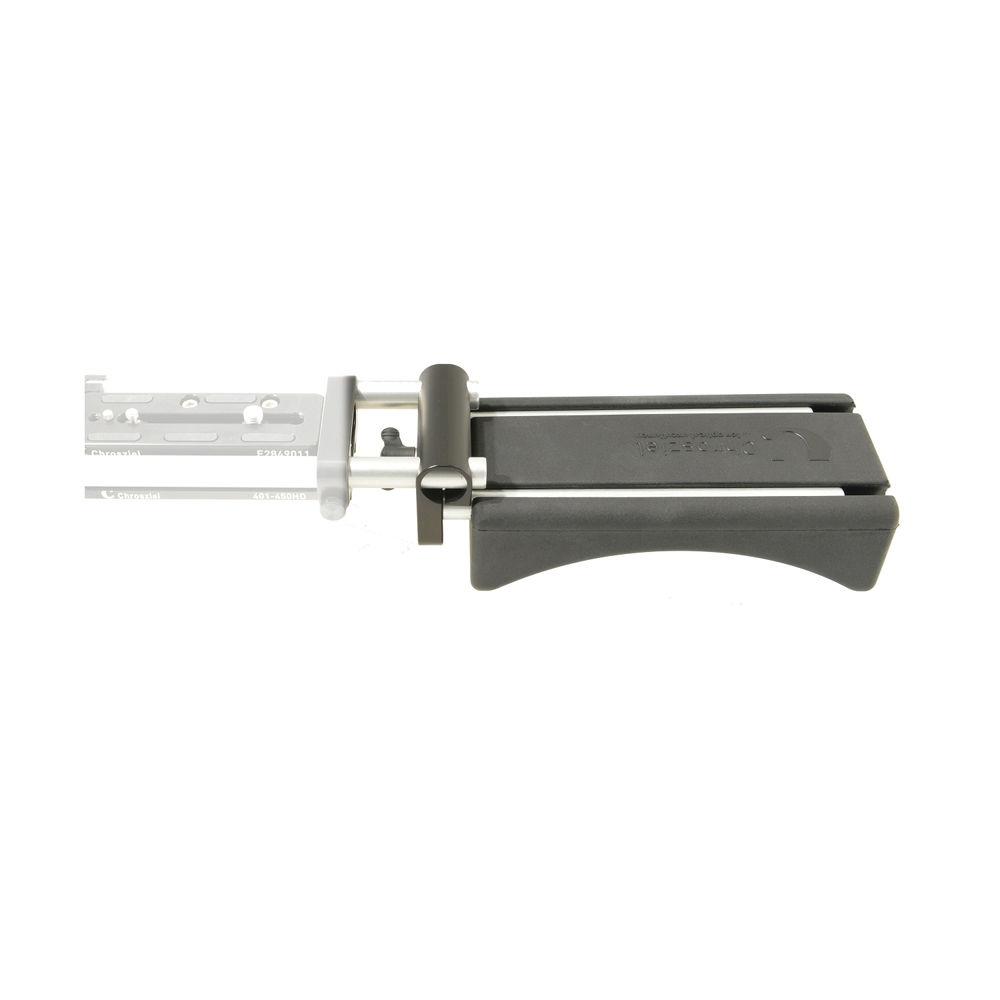

• MultiPad 15 Straight Shoulder Pad The MultiPad 15 Straight Shoulder Pad from Chrosziel is a cushioned shoulder pad for use with 15mm rod support systems. It consists of a rod bracket with 15mm rods, 7.4" (190mm) in length, which the shoulder pad slides on to. The rod bracket attaches to 15mm rods, letting you place the shoulder pad behind or underneath your camera.
• 15mm Pair of Extension Rods (7.5") Chrosziel's 15mm Pair of Extension Rods (7.5") can be used to add range to any 15mm support rig. These high-strength aluminum rods allow for larger matteboxes and additional accessories, such as lights or follow focus, to be used on-camera.

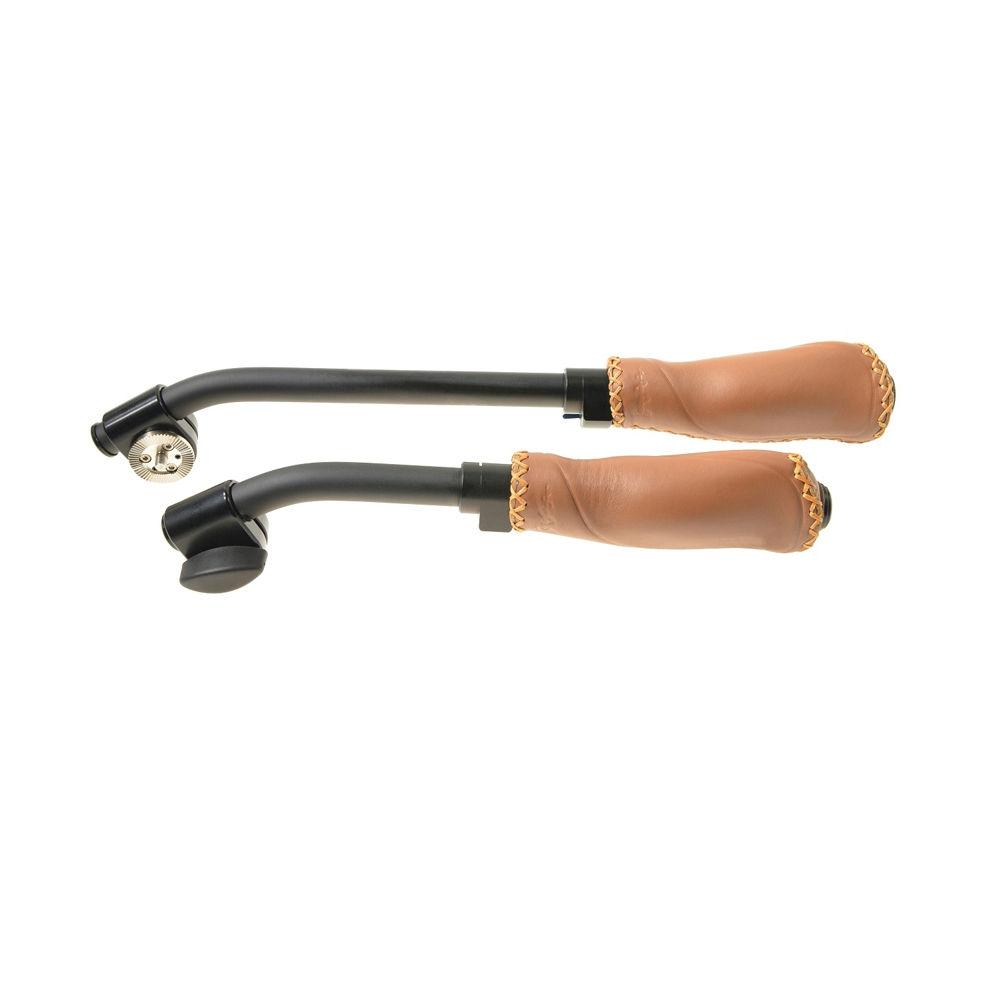

• Leather Handle Set for Camera and Support (Pair) The pair of Leather Handles for Camera and Support from Chrosziel are retractable and swiveling handles. Both units can attach to all cameras and supports with the industry standard rosettes with Hirth-spacing and center M6 screw. The hand piece position may be varied between 240 to 400mm on the shaft with a diameter of 18mm. After taking off the cap on the rosette end you can turn the rosette around for left or right hand use. The set is factory assembled with right and left handle configuration.
  • Ability to change the side of the crank rod for right hand and left hand use

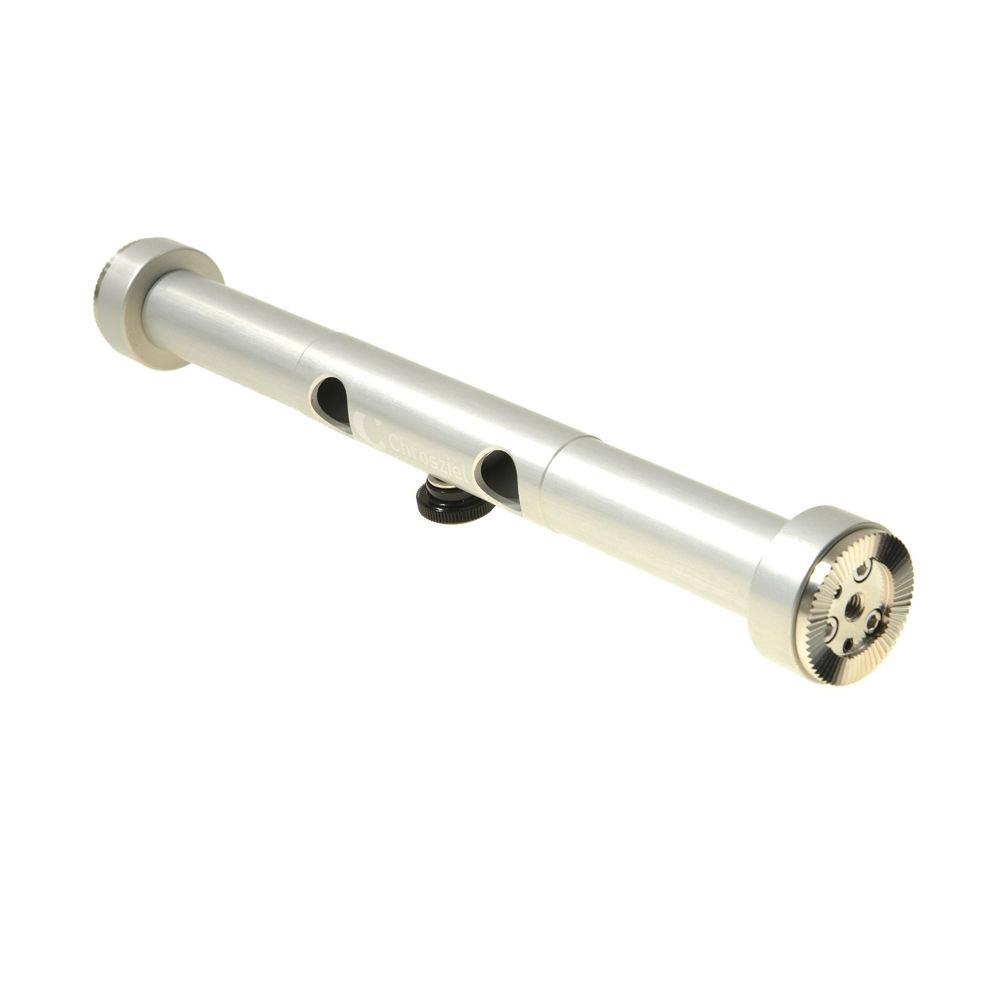

• Dual Rosette Bar for 15mm Rods The Dual Rosette Bar for 15mm Rods from Chrosziel is a bar with Hirth rosettes at both ends for the use with handles or other accessories.

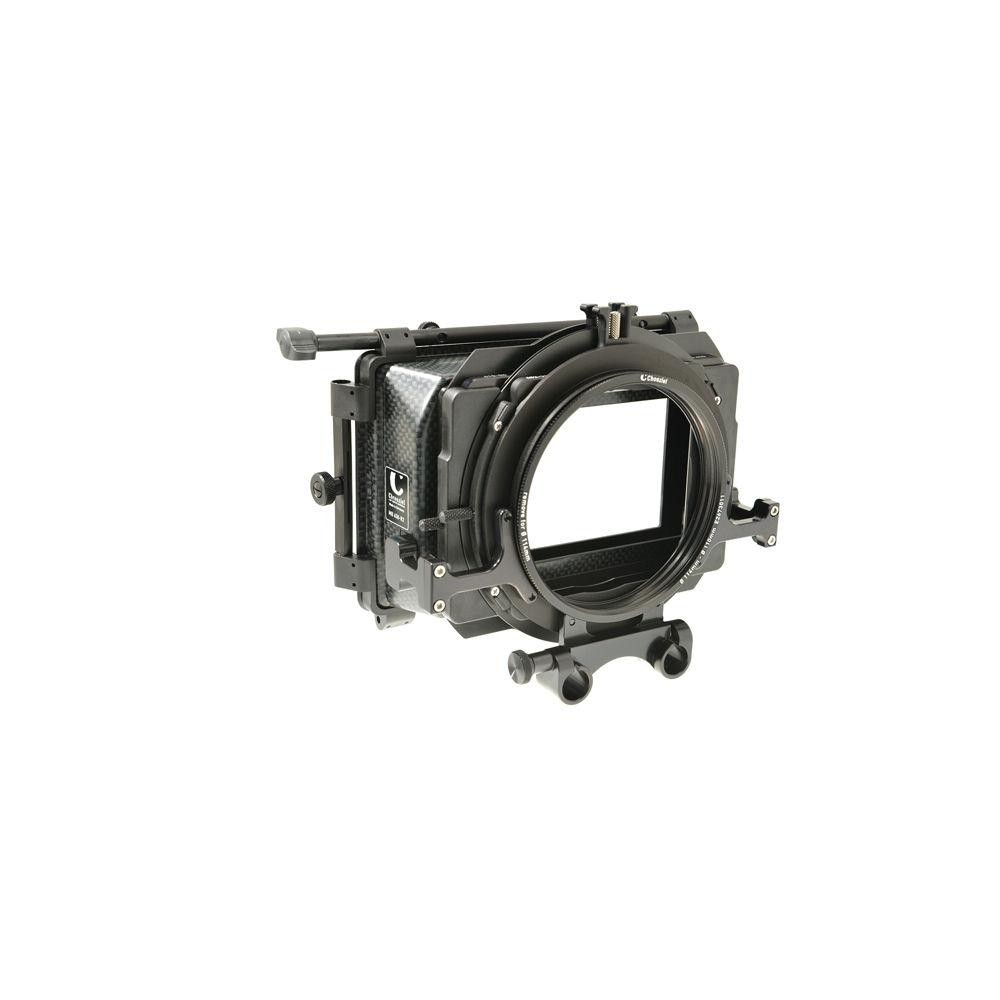

• MB 450R2 Matte Box Lightweight, robust, and ready for production, Chrosziel's MB 450R2 Matte Box can complement a wide range of cameras, from smaller camcorders or mirrorless cameras, up to larger cinema cameras and ENG camcorders with an outer lens diameter of up to 114mm (lenses with a diameter smaller than 110mm may require additional accessories for full compatibility). With the included top flag and 16:9 mask, glare from outside the frame can be effectively controlled for improved contrast and reduced ghosting in the recorded image. Further control can be achieved through separately available side and bottom flags. Insert your favorite filters into the available stages for further creative control. The rear stage accepts 4x4" filters only, while the front stage will accept 4x4 as well as larger 4x5.65" filters. Both stages rotate, enabling the use and control of polarizing as well as graduated filters. For further possibilities, the MB 450R2 can be upgraded in the future with a separately available third rotating filter stage. To use this matte box on your camera, the camera must be mounted on a separately available 15mm LWS baseplate. Fit the matte box on the rods until it covers the lens front. Rod-mounted matte boxes are preferred over clamp-on matte boxes in many production situations as they are always properly aligned with the image horizon.

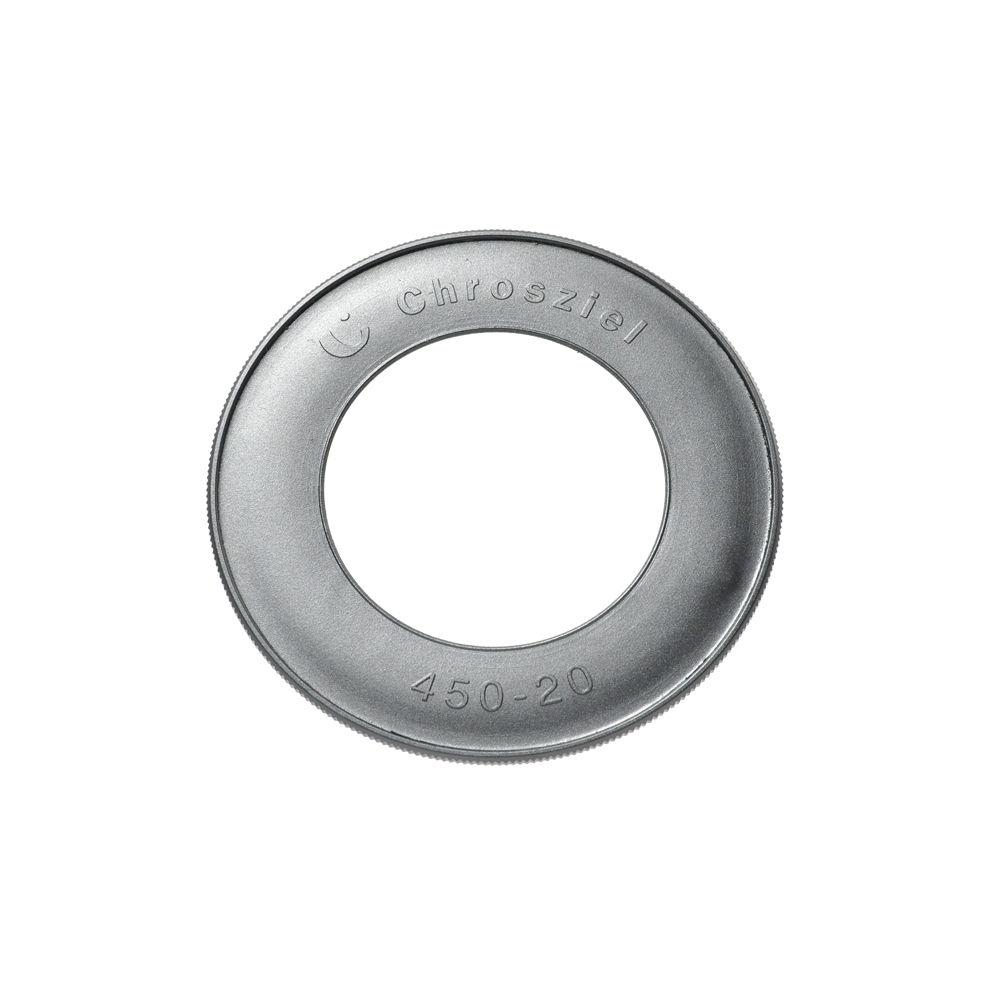

• Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) The Chrosziel Flexi-Ring Flexible Step-Down Ring is a 110 to 75-98mm adjustable step-down ring. The ring is designed to work with the MB-450 matte box series and will fit a variety of wide angle attachment lenses.
  • Compatible with MB-450 matte box system for wide angle attachment lenses between 75-98mm.
  • Flexible material makes it easily adjustable.
• CustomCage Kit for Sony FS700 The CustomCage Kit for Sony FS700 by Chrosziel consists of a 700-401-36 15mm accessory bridge with double sided rod clamping, four 700-00-03 corners, two 700-00-07 red locking bars, two 700-00-05 blue locking bars, a 700-00-02 carrying handle with short 3/8" screw, a set M4 mounting screws, and a 700-00-12 flash shoe. The CustomeCage can be mounted on the LWS 401-457 mounting plate.

  The Chrosziel CustomCage system is unique in that it can grow with you as you obtain larger or smaller cameras. This unique system features color coded locking bars that are available in three different lengths. Each color represents a specific length, so you can make the cage large or small, square or rectangular, tall or wide. With the optional 700-00-10 corner rosettes, you can add any handle or accessory with an ARRI type rosette. The 700-401-36 accessory bridge allows you to add 15mm LWS rods to the top or sides of the CustomCage. The cold shoe adapter, 700-00-12, is available to mount lights and other cold shoe mount accessories anywhere around the perimeter of the CustomCage.

  The Chrosziel CustomCage system is compatible with most other brands of camera LWS bases and accepts any manufacturers 15mm rods. You can mount any camera directly to the included CustomCage base if you don't need 15mm rods to mount matte boxes and other rod-mounted accessories.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• MultiPad 15 Padding

• Rod Bracket with 15mm Rods (7.5")

• Limited 1-Year Warranty

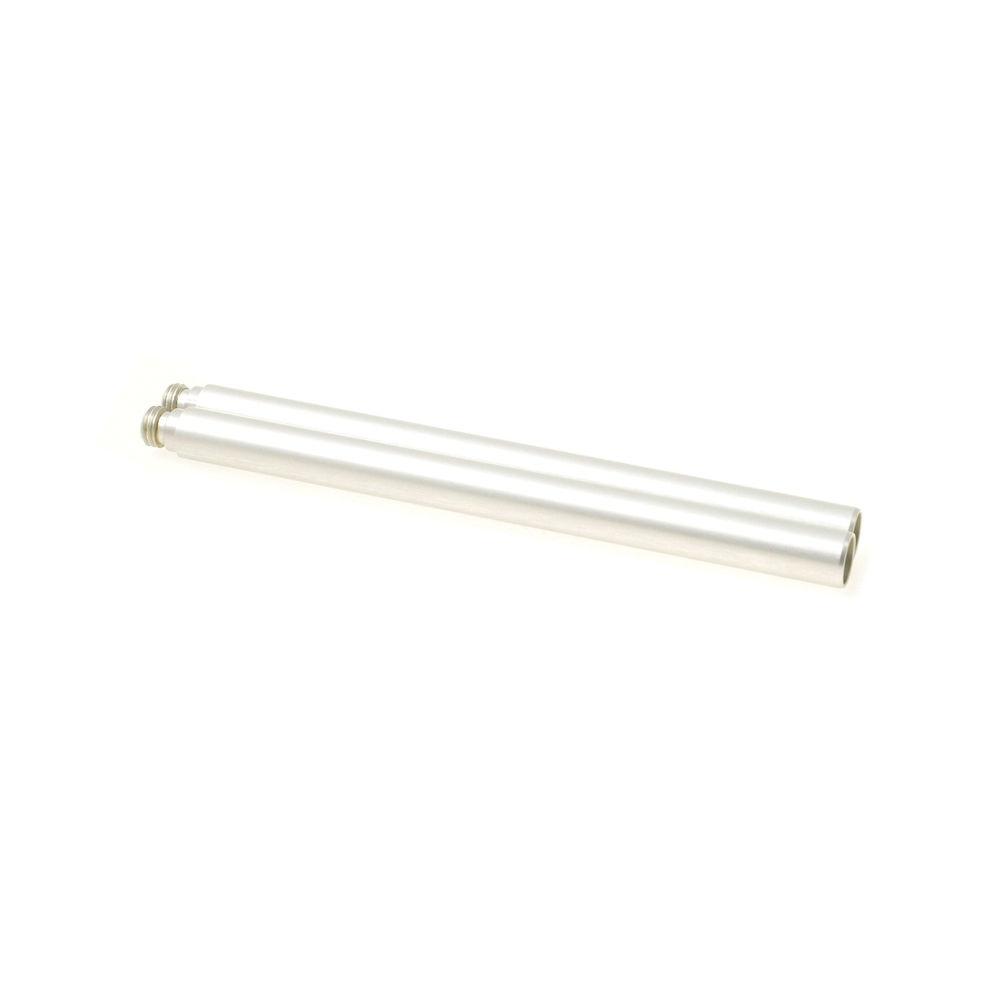

• 2 x 15mm Rods

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 16:9 Insert Mask

• 450-11 Top French Flag for MB-450 Matte Box

• 410-04 4x5.65 Filter Holder

• 410-04 4x5.65 Filter Holder - Horizontal

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 15mm Accessory Bridge for CustomCage

4 x
• Corner for CustomCage

• 1.4" Locking Bars for CustomCage (Red, 1 Pair)

• 2.75" Locking Bars for CustomCage (Blue, 1 Pair)

• Carrying Handle for CustomCage

• Flash Shoe for CustomCage

• Set of M4 Mounting Screw

• Limited 1-Year Warranty
