Product description

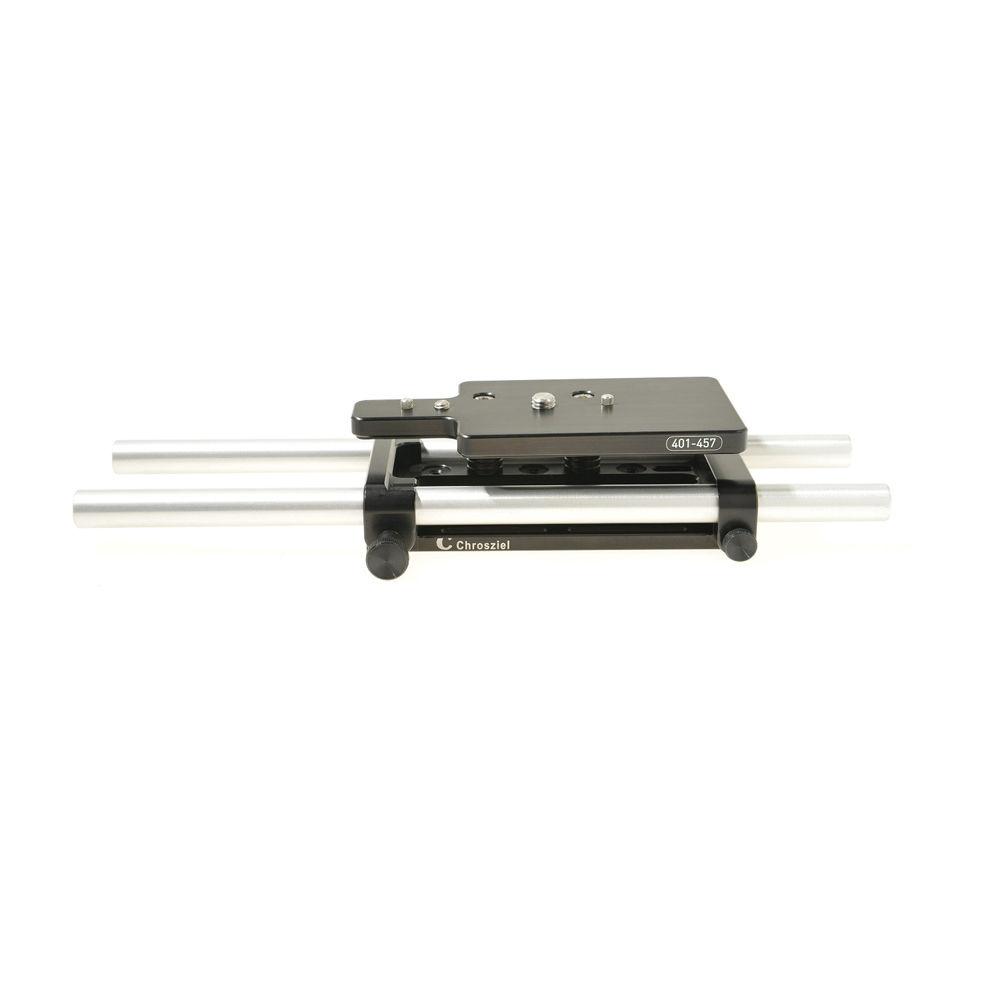

• Lightweight Support for Sony NEX-FS700 This Lightweight Support by Chrosziel is custom designed for the Sony the NEX-FS700 camera. The lightweight support comes with two 12" rods with a diameter of 15mm. It features double rod guidance and clamps.

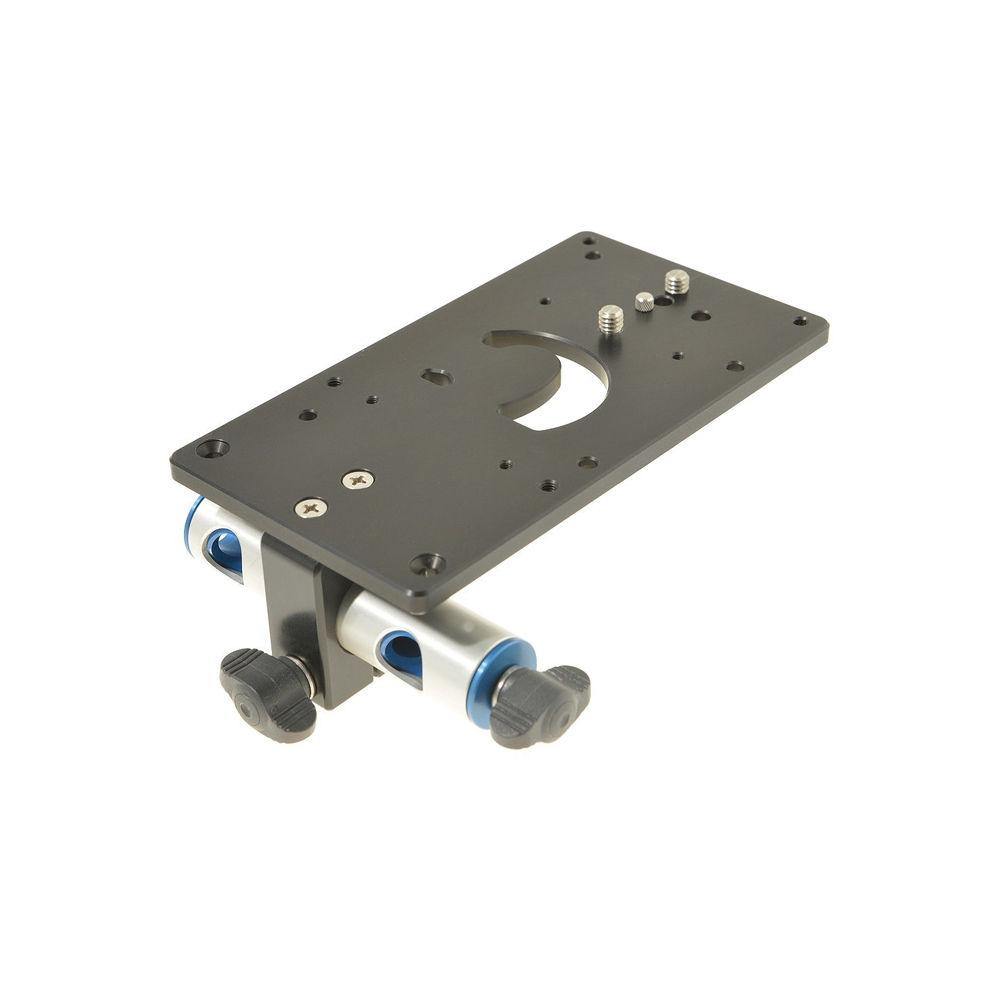

• 15mm Battery Mounting Plate The Battery Mounting Plate (15mm) from Chrosziel is an adjustable angle mounting plate for battery holders; it fits on 15mm rods. This universal plate has holes and threads for Anton/Bauer Gold Mount, IDX V-Plate, and PAG-Lok battery mounts. The mounting plate can also fit Sony's recorder FS-700.

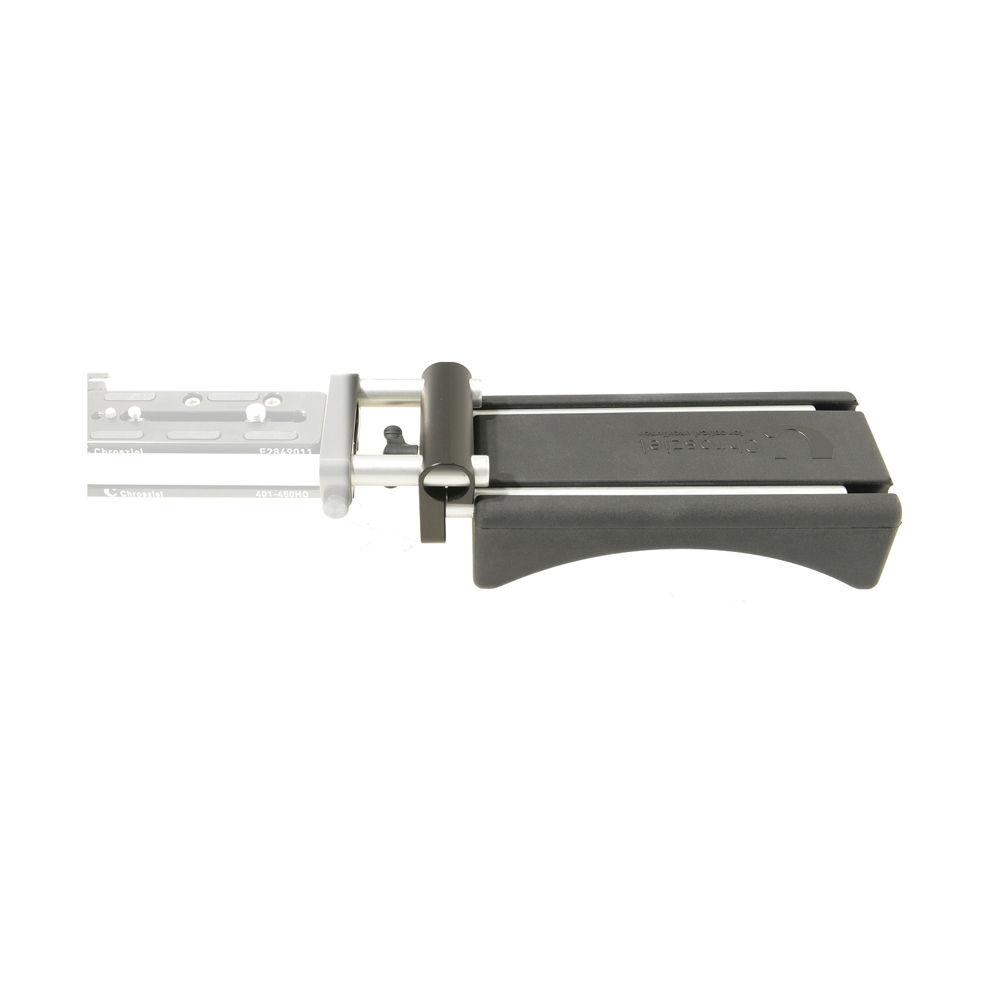

• MultiPad 15 Straight Shoulder Pad The MultiPad 15 Straight Shoulder Pad from Chrosziel is a cushioned shoulder pad for use with 15mm rod support systems. It consists of a rod bracket with 15mm rods, 7.4" (190mm) in length, which the shoulder pad slides on to. The rod bracket attaches to 15mm rods, letting you place the shoulder pad behind or underneath your camera.
• 15mm Pair of Extension Rods (7.5") Chrosziel's 15mm Pair of Extension Rods (7.5") can be used to add range to any 15mm support rig. These high-strength aluminum rods allow for larger matteboxes and additional accessories, such as lights or follow focus, to be used on-camera.

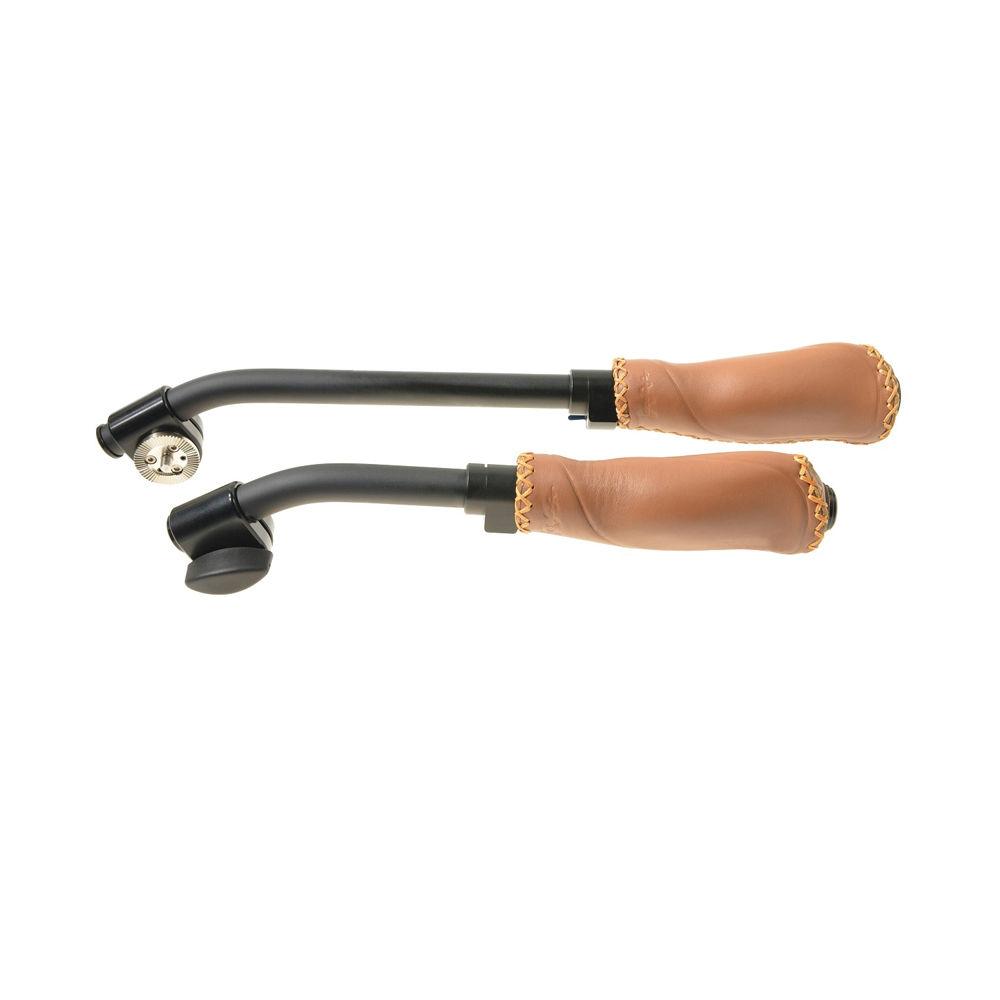

• Leather Handle Set for Camera and Support (Pair) The pair of Leather Handles for Camera and Support from Chrosziel are retractable and swiveling handles. Both units can attach to all cameras and supports with the industry standard rosettes with Hirth-spacing and center M6 screw. The hand piece position may be varied between 240 to 400mm on the shaft with a diameter of 18mm. After taking off the cap on the rosette end you can turn the rosette around for left or right hand use. The set is factory assembled with right and left handle configuration.
  • Ability to change the side of the crank rod for right hand and left hand use

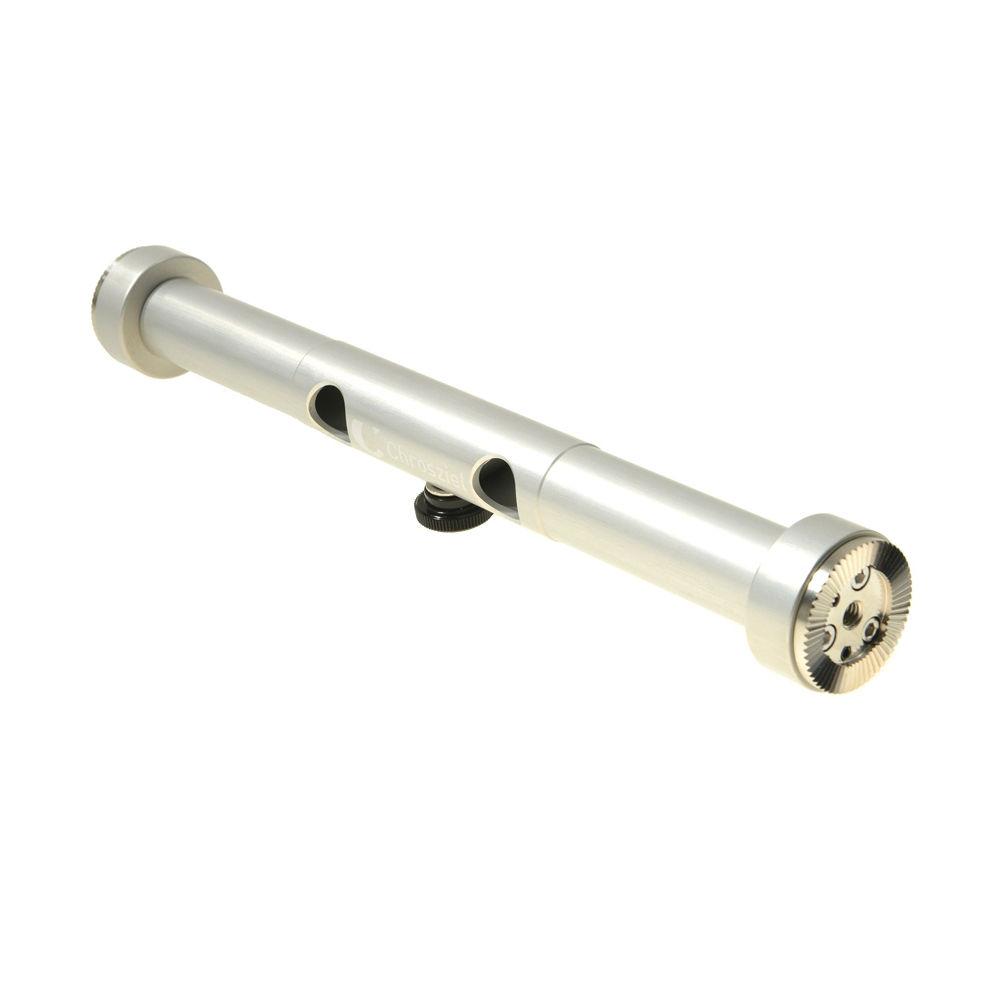

• Dual Rosette Bar for 15mm Rods The Dual Rosette Bar for 15mm Rods from Chrosziel is a bar with Hirth rosettes at both ends for the use with handles or other accessories.

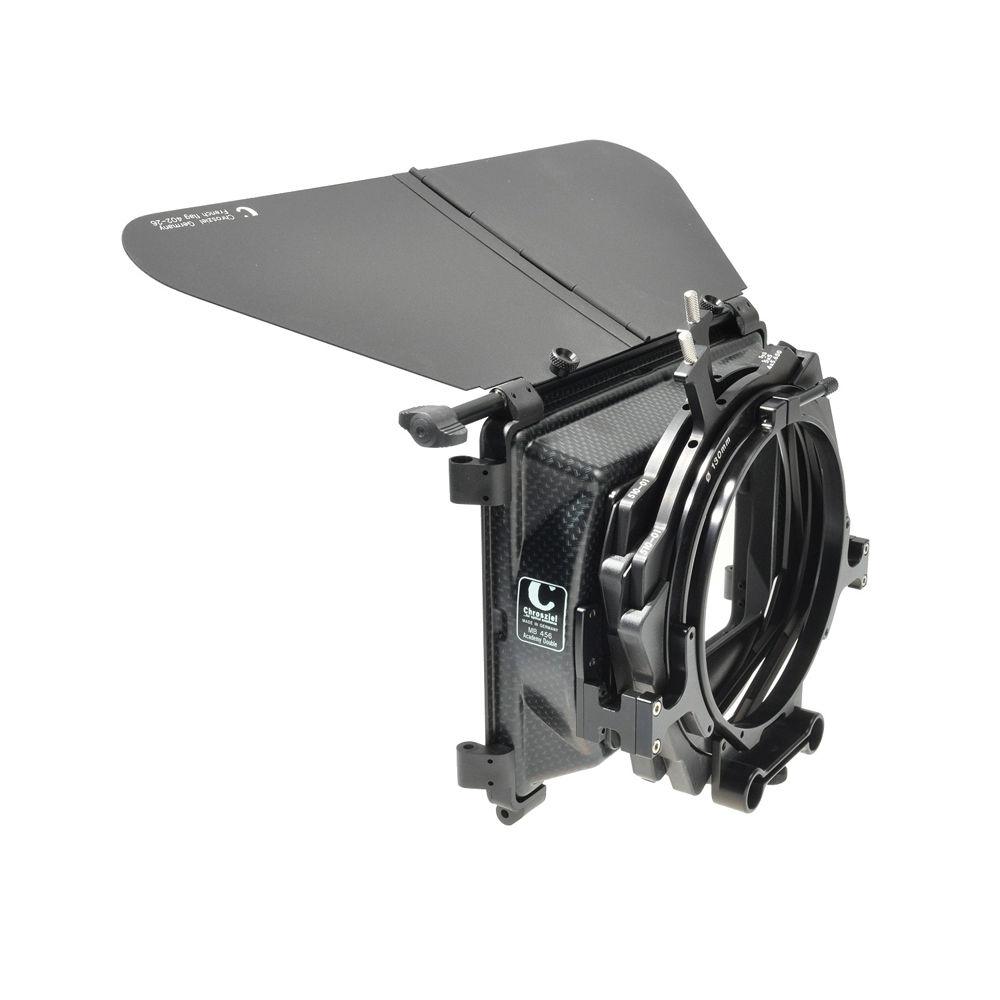

• Matte Box 456-20 Academy (2 Filter Holders) The Chrosziel Matte Box 456-20 Academy (2 Filter Holders) consists of a 456-R20 matte box, French flag, a filter stage for two individually rotating filter holders, two 4 x 5.65"/5 x 5" filter holders, a 130mm clamp-on rear plate, and a bracket for 15mm lightweight support rods. It is ideal for use with handheld and studio production cameras.The 456-R20 Matte Box offers a wide angle (16:9/4:3) housing for lenses as wide as 12mm (35mm Academy) and eliminates the effects of vignetting. Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders, the matte box provides sufficient space for adjusting the position of filters.Provided with a French flag, the Matte Box 456-20 Academy controls the angle of light and eliminates lens glare and flare. It can be coupled with optional side wings for accurate light adjustment. The kit includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods (optional).With optional bridgeplate adapters, you can interface the kit with 15 or 19mm bridgeplate rods. An optional swing-away bracket, attached to the back of the matte box housing, allows for quick and efficient lens changes.
  • Consists of a 450W-R20 matte box that offers a wide angle (16:9/4:3) housing for lens as wide as 12mm (35mm Academy) and eliminates the effects of vignetting
  • Equipped with a filter stage for two independently rotating 4 x 5.65"/5 x 5" filter holders
  • Provides sufficient space for adjusting the position of filters
  • French flag controls the angle of light, eliminates lens glare and flare, and can be coupled with optional side wings for accurate light adjustment
  • Includes a 130mm clamp-on rear plate and a bracket for use with 15mm lightweight support rods
  • Can be interfaced with 15 or 19mm bridgeplate rods using optional bridgeplate adapters
  • Optional swing-away bracket attached to the back of the matte box housing allows for quick and efficient lens change

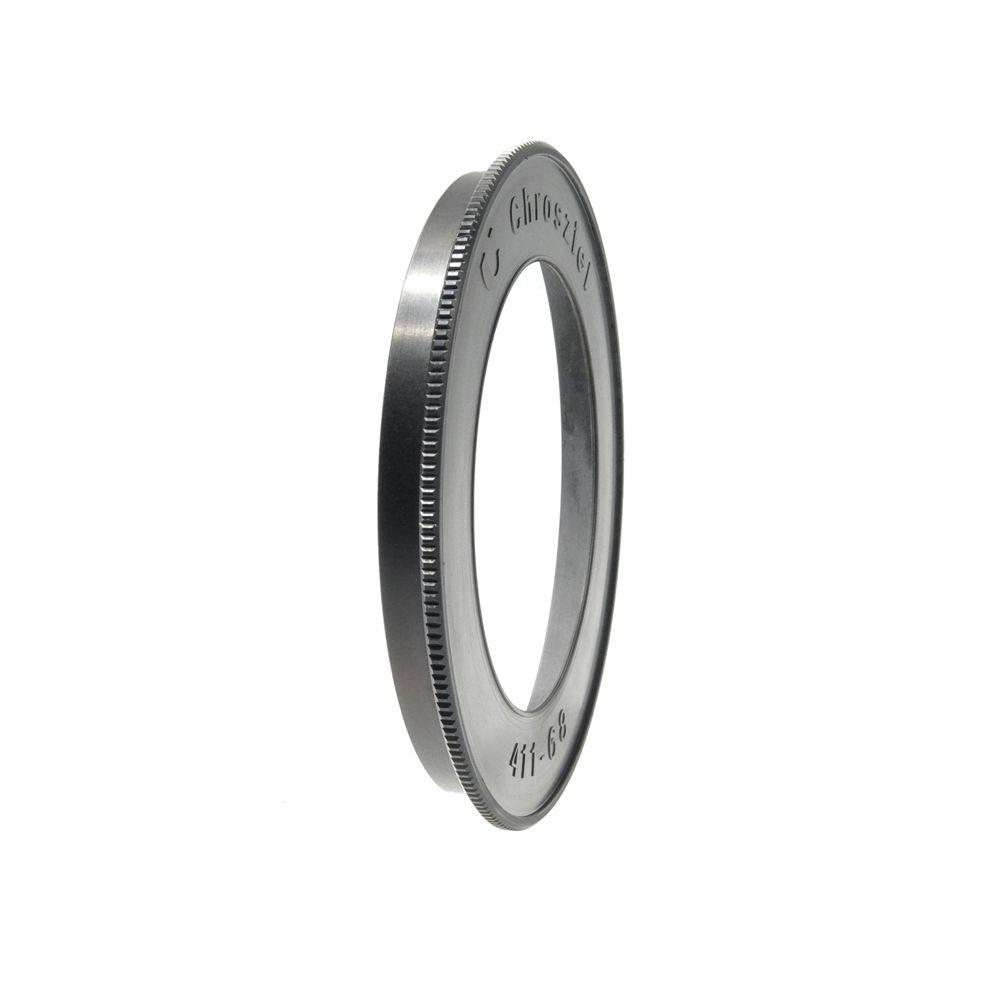

• C-411-68 Flexi Insert Ring (for 130mm Clamp) The Chrosziel C-411-68 Flexi Insert Ring (for 130mm Clamp) is a light-prevention ring that seamlessly fits into the 130mm clamp of the 450W-20 and 456-20/456-30 rod-mounted matte boxes and covers lenses with diameters ranging from 95-125mm.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• MultiPad 15 Padding

• Rod Bracket with 15mm Rods (7.5")

• Limited 1-Year Warranty

• 2 x 15mm Rods

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 402-26 Foldable French Flag

• Filter Stage for Two Rotating Filter Holders

• 2 x 4 x 5.65"/5 x 5" Combination Filter Holder (510-01)

• 130mm Diameter Rear Plate

• Bracket for 15mm Lightweight Support Rods

• Limited 1-Year Warranty

• 1 Year Warranty
