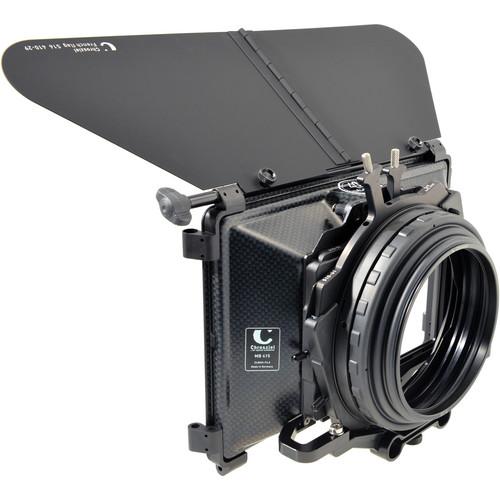

User Manual for Chrosziel MB 415 Compact Wide Angle MatteBox for 15mm Support with 114mm Bellows Click to enlarge the picture
Contents of the user manual for the Chrosziel MB 415 Compact Wide Angle
- Product category: Matte Boxes & Sunshades Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Matte Boxes & Sunshades
|
User manual for the Chrosziel MB 415 Compact Wide Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The MB 415 Compact Wide Angle Mattebox for 15mm Support Systems from Chrosziel includes a double filter stage for filters up to 5.65 x 5.65" and 5 x 6” vertical. Both filters can be moved and fixed in any vertical position, the second filter stage is rotatable 360° or up to 240º (depending on the filter used).For optimum use of the picture angle, the first filter stage is equipped with a multi format filter holder for 4 x 4 and 4 x 5.65” filters, the second stage has a multi format filter holder for 5 x 5 and 4 x 5.65” filters. Using 4 x 5.65” filters in the front stage and 5 x 5" in the second, allows you to make full use of the wide angle format for any position of the rotating stage. For even more flexibility while using graduation filters, insert 5 x 6” filters in the first stage (filter-holder 510-02).A third stage is included inside the rubber bellows for round filters with 138mm of diameter. The MB 415 mattebox mounts on 15mm lightweight supports and has a 114mm ring. A 15 inch (39cm) wide, foldable french flag is included. Side wings (sold separately) can be used optionally. For maximum stray light reduction, use mattes. In the Box Chrosziel MB 415 Compact Wide Angle MatteBox for 15mm Support with 114mm Bellows French Flag 114mm End Ring Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MB 415 Compact Wide Angle MatteBox for 15mm Support with 114mm Bellows in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 415-02F114 Specs | Focal Length | Maximum Wide Angle: S16 6 mm / S35 11 mm / Still 16 mm / SD 3.9 mm / HD 4.3 mm | | Filter | Number / Rotating: 2+1 / 1 | | Filter Size | 4 x 4, 4 x 5.65 + 5 x 5, 4 x 5.65" | | Diameter | Connecting: 4.4" (114.0 mm)
Rod: 15 mm | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.7 x 9.4 x 4.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
