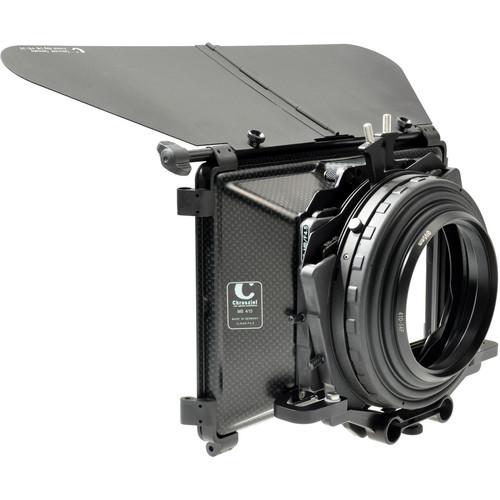

User Manual for Chrosziel MB 415 Wide Angle Matte Box Click to enlarge the picture
Contents of the user manual for the Chrosziel MB 415 Wide Angle Matte
- Product category: Matte Boxes & Sunshades Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Matte Boxes & Sunshades
|
User manual for the Chrosziel MB 415 Wide Angle Matte contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The Chrosziel MB 415 Wide Angle Matte Box mounts on 15mm support rods and includes a top mounted French flag and two filter stages. Both filters can be rotated and fixed in any vertical position. The second stage rotates up to 360°, depending on the size of the filter. Two multi-format filter-holder are also included, one for 4 x 4" or 4 x 5.65" and second for 5 x 5" or 4 x 5.65" filters. A third stage inside the rubber bellows accepts round filters with a 138mm diameter.
A matte box helps control light and provides an efficient means for deploying and adjusting filters. Chrosziel's MB 415 matte box accommodates lenses with a front side diameter of 95mm. This model can be upgraded with any number of accessories, including adjustable side flags and alternate bellows for connecting 100mm or 110mm diameters (sold separately). - Key Features
-
- Accommodates wide angle lenses up to 10mm on Super 35mm format sensors
- Standard bracket for mounting onto 15mm rod support systems
- Two rotating filter stages and a third for 138mm round filters
- Two multi-format filter holders (4x4" or 4x5.65" and 5x5" or 4x5.65")
- A French flag and hinges for additional flags
- Rubber bellows for 95mm front side lens diameters
In the Box Chrosziel MB 415 Wide Angle Matte Box Multi-Format Filter Holder (4x4" or 4x5.65") Multi-Format Filter Holder (5x5" or 4x5.65") French Flag Bracket for 15mm Rod Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MB 415 Wide Angle Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel 415-02F Specs | Lens Fit and Mount | Rubber bellows for lenses with 95mm front side diameter
Bracket for mounting onto 15mm rod support systems | | Filter Stages | 5.65 x 5.65 or 5x6" vertical, rotating (x2)
138mm diameter round, fixed (x1) | | Filter Sizes | 4 x 4", 4 x 5.65", 5 x 5, 5 x 6" | | Max Wide Angle Focal Length | 6mm on Super 16mm format
10mm on Super 35mm format | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 12.6 x 9.4 x 4.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
