Product description

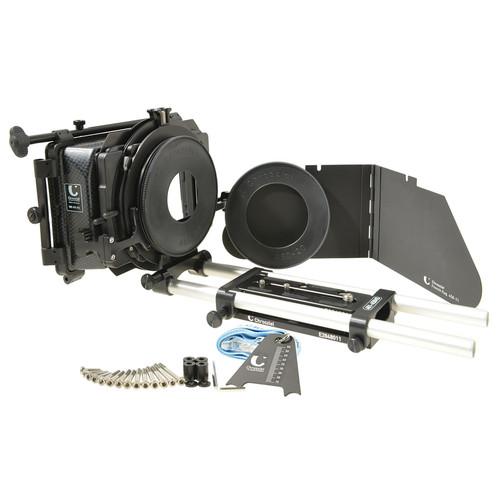

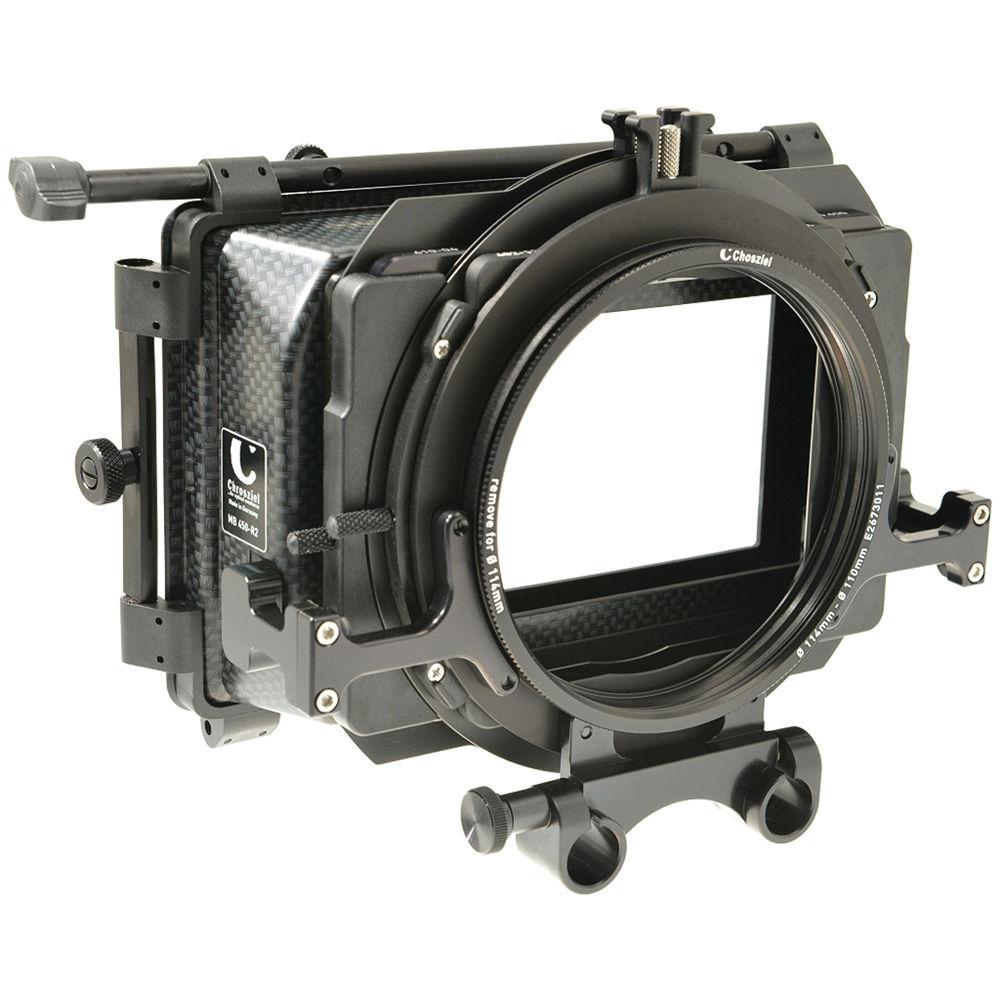

• MB 450R2 Matte Box Lightweight, robust, and ready for production, Chrosziel's MB 450R2 Matte Box can complement a wide range of cameras, from smaller camcorders or mirrorless cameras, up to larger cinema cameras and ENG camcorders with an outer lens diameter of up to 114mm (lenses with a diameter smaller than 110mm may require additional accessories for full compatibility). With the included top flag and 16:9 mask, glare from outside the frame can be effectively controlled for improved contrast and reduced ghosting in the recorded image. Further control can be achieved through separately available side and bottom flags. Insert your favorite filters into the available stages for further creative control. The rear stage accepts 4x4" filters only, while the front stage will accept 4x4 as well as larger 4x5.65" filters. Both stages rotate, enabling the use and control of polarizing as well as graduated filters. For further possibilities, the MB 450R2 can be upgraded in the future with a separately available third rotating filter stage. To use this matte box on your camera, the camera must be mounted on a separately available 15mm LWS baseplate. Fit the matte box on the rods until it covers the lens front. Rod-mounted matte boxes are preferred over clamp-on matte boxes in many production situations as they are always properly aligned with the image horizon.

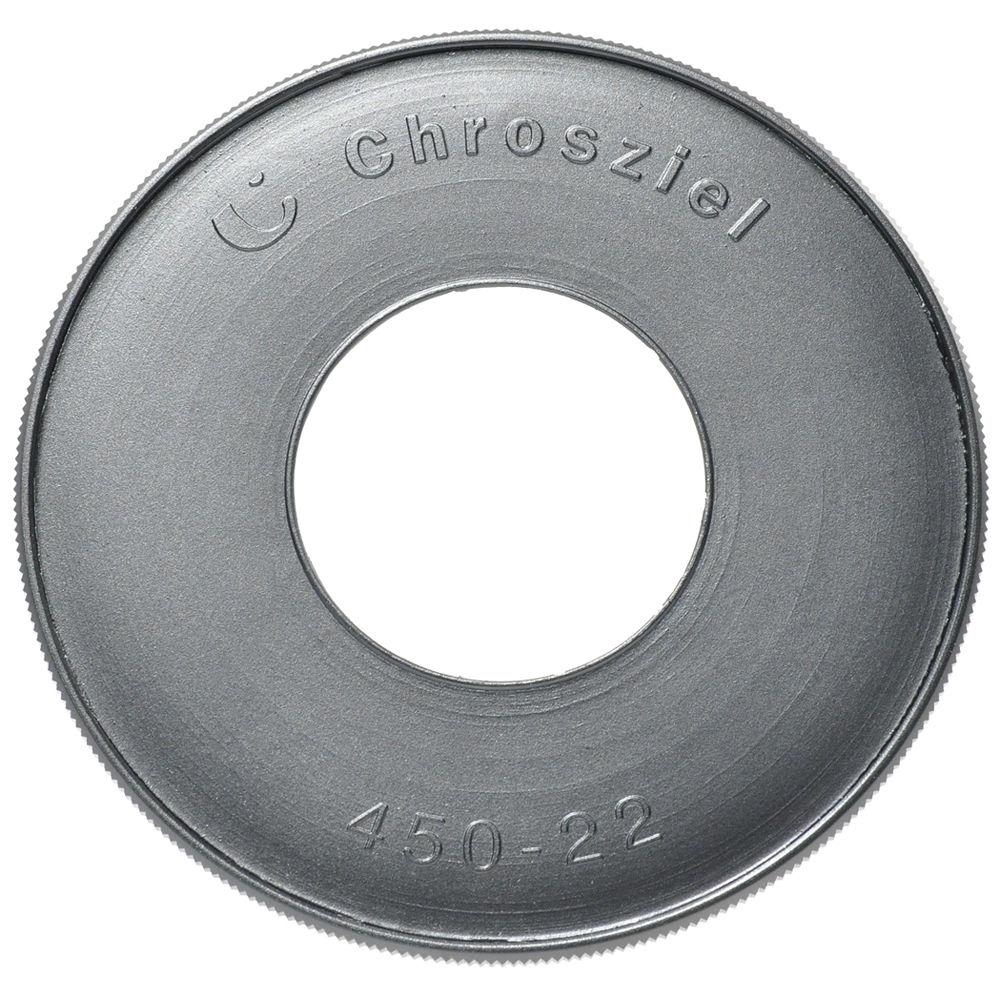

• Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) The Chrosziel Flexi-Ring Flexible Step-Down Ring is a 110 to 75-98mm adjustable step-down ring. The ring is designed to work with the MB-450 matte box series and will fit a variety of wide angle attachment lenses.
  • Compatible with MB-450 matte box system for wide angle attachment lenses between 75-98mm.
  • Flexible material makes it easily adjustable.
• Flex-Ring Flexible Step-Down Ring (110 to 50-85mm) The Chrosziel Flexi-Ring Flexible Step-Down Ring is a 110 to 50-85mm adjustable step-down ring. The ring is designed to work with the MB-450 matte box series and will fit a variety of wide angle attachment lenses.
  • Compatible with MB-450 matte box system for wide angle attachment lenses between 50-85mm.
  • Flexible material makes it easily adjustable.

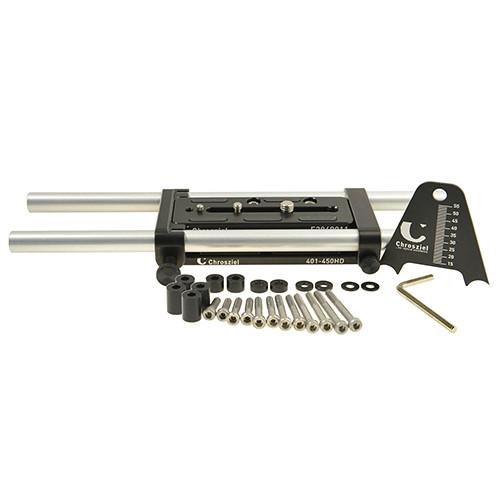

• LWS 15 HD Universal Baseplate with 12" Rods The LWS 15 HD Universal Baseplate with 12" Rods from Chrosziel is a universal 15mm rod support plate featuring a pair of 15mm rod clamps and 12" rods. The plate is adjustable for any camera with an optical height between 26.5 and 72.5mm. Optical height is the distance between lens center and camera bottom. Height is adjusted using the included 1, 2, 4, 8, and 16mm spacer pairs. Also included is a set of screws, a guide with camera height reference marks, and an Allen wrench.

• 16:9 Insert Mask

• 450-11 Top French Flag for MB-450 Matte Box

• 410-04 4x5.65 Filter Holder

• 410-04 4x5.65 Filter Holder - Horizontal

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 15mm Rod (12")

• 2 x 1mm Spacer

• 2 x 2mm Spacer

• 2 x 4mm Spacer

• 2 x 8mm Spacer

• 4 x 16mm Spacer

• Set of Screws

• Camera Height Reference Guide

• Allen Wrench

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MB 450R2 Matte Box

  Lens Fit and Mount	114mm outer diameter lens clamp
  Type	15mm LWS
  Filter Type	1 x 4x5.65" 1 x 4x4"
  Total Filter Stages	2
  Rotating Stages	2
  Max Wide Angle Focal Length	1/3" HD Chip: 3.1mm 1/2" XDCAM Chip: 4mm

  Box Dimensions (LxWxH)	13.5 x 8.9 x 6.25"

• Flex-Ring Flexible Step-Down Ring (110 to 75-98mm)

  Front Lens Diameter	110mm
  Rear Mount	75-98mm

  Box Dimensions (LxWxH)	5.6 x 4.7 x 0.6"

• Flex-Ring Flexible Step-Down Ring (110 to 50-85mm)

  Front Lens Diameter	110mm
  Rear Mount	50-85mm

  Box Dimensions (LxWxH)	4.7 x 4.7 x 0.45"

• LWS 15 HD Universal Baseplate with 12" Rods

  Box Dimensions (LxWxH)	11.1 x 3.5 x 1.6"
