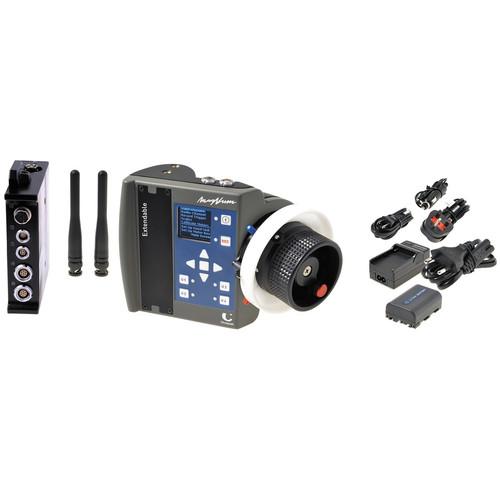

User Manual for Chrosziel MN-150 MagNum Extendable Wireless Lens Control System Click to enlarge the picture
Contents of the user manual for the Chrosziel MN-150 MagNum Extendable Wireless Lens
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel MN-150 MagNum Extendable Wireless Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The MN-150 MagNum Extendable Wireless Lens Control System from Chrosziel combines a receiver and a handheld transmitter unit for remote control of focus and camera record start/stop. The single channel system operates at either the 2.4GHz or 430MHz frequency bands, offering five selectable channels in the 430 MHz band, and eleven channels in the 2.4GHz frequency band for interference-free operation. The receiver has ports that accept optional lens control cables, camera start/stop cables, and power cables. The system is compatible with optional motors with gears. An optional upgrade kit is available to convert the MN-150T single-channel transmitter to a MN-200T dual-channel transmitter, with expanded features such as remote iris control.
The hand unit features an ergonomically shaped handgrip and finger rest for comfortable operation, menu-guided intuitive handling through membrane keys, and a color OLED display. For focus control, a fluid-dampened hand wheel is provided, which spreads the focus range of any lens to one full turn of the wheel. Focus marks can be made on the marking disc, with two freely adjustable end stops also available. Five 1/4"-20 mounting holes on the hand unit let you mount it to tripods stands, or even attach monitors. It is powered using Sony NP-FM50 type batteries. Included with the MN-150 system is a Sony NP-FM50 type battery, battery charger, and two antennas for 430 MHz-band use. -
- Compact-sized transmitter and receiver
- Dual-band system offering five channels in the 430 MHz frequency band, and eleven channels in the 2.4GHz frequency band
- Spectrum analyzer for identifying the best transmission channel
- Ergonomically designed handgrip and finger rest
- Symmetrical design for left- or right-handed users
- Menu-guided intuitive handling through membrane keys and color OLED display
- Four freely assignable hotkeys
- Optional lens calibration through receiver
- Fluid dampened hand wheel
- Two freely adjustable end stops on the hand wheel
- Magnifier function for "near" and "remote", allowing to spread the range around the nearest or the indefinite lens setting without losing the option to move to the other end stop
- Spreading of any lens range at one turn of the hand wheel
- Electronic "Hold" to capture settings and keep them
- Indicator LED for all functions on the receiver
- Record/Start/Stop signal for the camera
- Adjustable motor power
- USB port
- Battery level indicator for camera and hand unit (transmitter)
- Five 1/4"-20 threads on the hand unit (transmitter)
- Rechargeable Sony NP-FM50 lithium-ion battery and charger included
- Two MHz band antennas
- Optional upgrade kit to convert the single-channel MN-150T transmitter to a dual-channel MN-200T transmitter
In the Box Chrosziel MN-150 MagNum Extendable Wireless Lens Control System MN-150T Operating Unit / Transmitter MN-200R Motor Control Unit / Receiver 2 x Antennas MN-BAT MagNum Remote Control Battery zscrzxbvwcdyx MN-CH MagNum Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MN-150 MagNum Extendable Wireless Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel MN-150 Specs | Channels | 1 | | Battery | Sony NP-FM50 type lithium-ion | | Receiver | 2.4 GHz | | Antennas | 2 x BNC (FANT), 434 MHz | | Weight | Transmitter: 1.27 lb (577 kg)
Receiver: 0.58 lb (262 g) |
