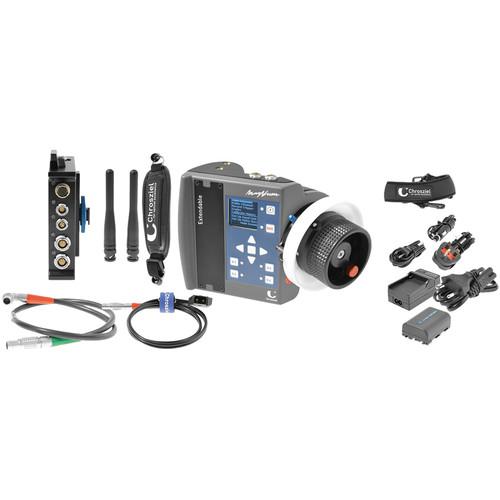

User Manual for Chrosziel MN-150 MagNum Extendable Wireless Lens Control System Click to enlarge the picture
Contents of the user manual for the Chrosziel MN-150 MagNum Extendable Wireless Lens
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel MN-150 MagNum Extendable Wireless Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description Remotely control your lens's focus with Chrosziel's MN-150 MagNum Extendable Wireless Lens Control System. This system includes Chrosziel's upgradeable MagNum transmitter and receiver as well as the necessary power and cabling accessories to use the unit right out of the box. The only thing you need to add is a motor. The MagNum unit is compatible with motors that use a 7-pin LEMO interface. For easy operation, calibration is automatic with lenses that have hard stops. If you use stills lenses that don't have stops at close focus and infinity, a special calibration mode allows you to manually calibrate the focusing distance. To adjust the settings on the MagNum, an OLED screen and directional buttons provide an intuitive interface. Record start/stop can be controlled from the hand unit if the camera is connected to the receiver. The hand unit is upgradeable for a second degree of lens control. The upgrade kit is separately available and adds a sliding control and a marking stripe to the left side of the transmitter. - Ergonomic Handheld Transmitter
- Compact in size, the transmitter has a rounded handle with a finger grip on the rear so you can hold it securely while operating. The transmitter houses an internal 2.4 GHz antenna and has a BNC spigot that will accept an external 434 MHz antenna. The focus knob has a brake and adjustable hard-stops for repeatable focus pulls. The hand unit has an integrated spectrum analyzer that can determine the best frequency for transmission.
- Dual-Channel Receiver
- With dual outputs, the receiver can drive up to two motors that connect via 7-pin LEMO. The receiver is capable of calibrating motors to the lens without the aid of the transmitter. When connected to a camera via the serial output, start/stop can be remotely controlled from the transmitter.
- Hardware Upgradeable
- A separately available upgrade module can be installed for controlling a second lens parameter. When installed, the hand controller will gain a sliding adjustment encoder with a marking stripe that can be operated with your left hand.
In the Box Chrosziel MN-150 MagNum Extendable Wireless Lens Control System (No Motor) 2 x Antenna MN-BAT MagNum Remote Control Battery MN-CH MagNum Battery Charger Padded Neck Strap for Lens Control Transmitters (Black) 7-Pin LEMO Digital Motor Cable for AL2/Magnum (23") D-Tap Power Cable for MagNum MN-RMB1 Mounting Bracket for MagNum Receiver Case with Insert for MagNum Lens Control Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MN-150 MagNum Extendable Wireless Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel MN-150KIT-0 Specs | Channels | 1 (supports 2 channels with upgrade) | | Battery | Sony NP-FM50 type lithium-ion | | Receiver | 2.4 GHz | | Antennas | 2 x BNC (FANT), 434 MHz | | Weight | Transmitter: 1.27 lb / 577 g
Receiver: 0.58 lb / 262 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
