User Manual for Chrosziel MN-300 MagNum 3-Axis Wireless Lens Control System with Betz Motors Click to enlarge the picture
Contents of the user manual for the Chrosziel MN-300 MagNum 3-Axis Wireless Lens
- Product category: Wireless Lens Control Systems Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Wireless Lens Control Systems
|
User manual for the Chrosziel MN-300 MagNum 3-Axis Wireless Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|

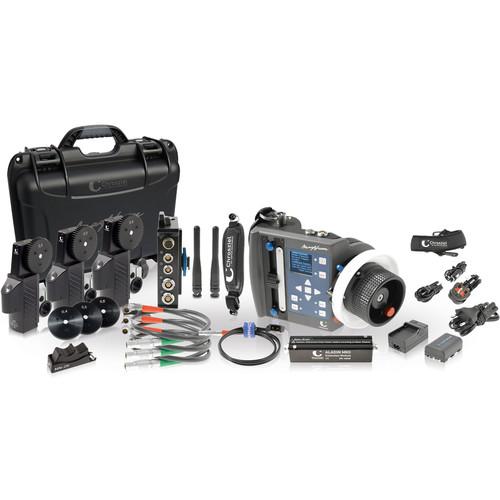

Product description Wirelessly control your lens with precision using the Chrosziel MN-300 MagNum 3-Axis Wireless Lens Control System. This version of the kit comes with 3 Betz digital motors for interfacing with your lens of choice. Your motors connect to the included receiver and extension module using the included cabling. A battery, antennas, and straps for the hand unit are also included. The zoom rocker fixes to the rear of the hand unit enabling smooth and ergonomic control of the zoom axis. For transport and storage, the kit fits nicely into the included hard case. See below for more information on the individual items in this kit. - MagNum 200 2-Channel Wireless Lens Control Hand Unit Chrosziel's MagNum 200 2-Channel Hand Unit for the MagNum wireless lens control system can remotely control focus and iris. Focus is controlled with a fluid-dampened hand wheel. Hard stops can be set along the focus rotation for focus marks. Iris is controlled with a linear slider on an aluminum scale. Compact in size, the transmitter has a rounded handle with a finger grip on the rear so you can hold it securely while operating. The transmitter houses an internal 2.4 GHz antenna and a BNC spigot that will accept an external 434 MHz antenna. To avoid issues with radio interference, there is an integrated spectrum analyzer that can determine the best frequency for transmission. Menu navigation is done by way of an easy-to-read OLED display and membrane directional keys. Included with this transmitter is a BNC antenna for 430 MHz operation, and a hand strap.
- MagNum 200 2-Channel Wireless Lens Control Receiver With dual outputs, the Chrozsiel MagNum 200 Dual-Channel Wireless Lens Control Receiver can drive up to two motors that connect via 7-pin LEMO. The receiver is capable of calibrating motors to the lens without the aid of the transmitter. When connected to a camera via the serial output, start/stop can be remotely controlled from the transmitter. The MagNum 200 system can operate on 2.4GHz and 430MHz frequencies for ensuring the greatest possible working distance and reliability. The 2.4GHz antenna is built-in and a BNC 430MHz antenna is included. The the receiver can be used in a wired/studio configuration drive motors with input from ENG demand controls. Using an Aladin extension modules, which are mountable to the receiver body, the MagNum system can control up to four motors in total.
- MagNum Extension Module Attaching the Chrosziel MagNum Extension Module to the MagNum 200 Receiver expands the MagNum system to be a fully functional 3-axis lens control solution for focus iris and zoom. The Extension Module has a 7-pin LEMO connection for a digital motor and a 12-pin Hirose connection for connection to ENG cameras for iris control and VTR/talkback control.
- Zoom Rocker for MagNum MN-200/150 The Zoom Rocker from Chrosziel is designed for use with the MagNum MN-150T Extendable Transmitter or the MN-200T Extendable Transmitter with antenna. It includes a personal code to activate the zoom software module.
- Compatibility
- MagNum MN-150T Extendable Transmitter (2016 or later models)
MagNum MN-200T Extendable Transmitter with antenna (2016 or later models) - MN-BAT MagNum Remote Control Battery The MN-BAT MagNum Remote Control Battery is a rechargeable Li-Ion battery for the MagNum wireless lens control unit and is recharged by the MN-CH battery charger (not included).
- Also compatible with Sony NP-FM50/55 cameras
- MN-CH MagNum Battery Charger The Chrosziel MN-CH MagNum Battery Charger is a charger for the MF-50 batteries used with the MagNum wireless lens control. The charger can be used worldwide on any power source, as well as the 12 VDC car cigarette lighter outlet. The MN-CH includes cables for US, UK, Europe, and car outlets.
- Padded Neck Strap for Lens Control Transmitters (Black) The Chrosziel Padded Neck Strap is an elastic strap with the Chrosziel logo designed for your LCS transmitter. It offers maximum comfort at minimum weight while carrying your transmitter.
- BTM Digital Motor with 0.8 Gear The BTM Digital Motor from Chrosziel comes complete with a digital encoder, a gear module 0.8 (cine), and a bracket for mounting to 19mm and insert for 15mm rods.
- 7-Pin LEMO Digital Motor Cable for AL2/Magnum (23") Connect a motor to your Chrosziel Aladin or Magnum wireless follow focus receiver with the MODT60 7-Pin LEMO Motor Cable. The motor cable is compatible with Heden M26VE, BTM, Scorpio SB92, and Preston DM2 digital motors.
- D-Tap Power Cable for MagNum The D-Tap Power Cable for MagNum from Chrosziel is a power cable designed for use with the MagNum camera and lens remote control. It will also work with the Aladin II and AL2-INTF systems. Plug the D-Tap end into the power source and the 5-pin LEMO end into the receiver for powering.
- MN-RMB1 Mounting Bracket for MagNum Receiver The Chrosziel MN-RMB1 Mounting Bracket for MagNum Receiver is designed to attach a MagNum receiver onto a camera's cold or hot shoe. It is compatible with MN-100R and MN-200R MagNum receivers. The bracket is attached to the receiver via 2 locking screws.
- Case with Insert for MagNum Lens Control Unit This Chrosziel Case is a hard case with a protective foam insert for the MagNum lens control. It is designed to fit the unit along with a motor, all motor cables, and a D-Tap power cable.
In the Box Bundle Items MagNum 200 2-Channel Wireless Lens Control Hand Unit ebzyxzeabesqbcbsudvwvcftzfxfyrwb MagNum 200 2-Channel Wireless Lens Control Receiver MagNum Extension Module Zoom Rocker for MagNum MN-200/150 MN-BAT MagNum Remote Control Battery MN-CH MagNum Battery Charger Padded Neck Strap for Lens Control Transmitters (Black) 3 x BTM Digital Motor with 0.8 Gear ebzyxzeabesqbcbsudvwvcftzfxfyrwb 3 x 7-Pin LEMO Digital Motor Cable for AL2/Magnum (23") D-Tap Power Cable for MagNum MN-RMB1 Mounting Bracket for MagNum Receiver Case with Insert for MagNum Lens Control Unit Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel MN-300 MagNum 3-Axis Wireless Lens Control System with Betz Motors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MagNum 200 2-Channel Wireless Lens Control Hand Unit
| Channels | 2 (focus and iris) | | Battery | Sony NP-FM50 type | | Antennas | 1 x Integrated 2.4 GHz
1 x BNC 430 MHz | | Weight | 1.27 lb / 577 kg | - MagNum 200 2-Channel Wireless Lens Control Receiver
| Channels | 2 (focus and iris), expandable to 3rd zoom channel | | Ports | 1 x 12-pin Hirose for ENG demands
1 x 9-pin LEMO serial port for camera start/stop control
1 x 5-pin LEMO 10-30V power input and camera start/stop control
2 x 7-pin LEMO digital motor interface 1 x BNC for 430MHz antenna | | Antennas | 1 x Integrated 2.4 GHz
1 x BNC 430 MHz | | Weight | 0.6 lb / 262 g | - Zoom Rocker for MagNum MN-200/150
- MN-BAT MagNum Remote Control Battery
| Chemistry | Lithium-ion | | Compatibility | Sony NP-FM50/55 | | Voltage | 7.2 VDC | | Weight | 2.5 oz (70 g) | | | | Box Dimensions (LxWxH) | 2.3 x 1.8 x 0.4" | - MN-CH MagNum Battery Charger
| Compatibility | Type FM50/55 rechargeable batteries | | Power Input | 100 - 240 VAC, 50/60 Hz | | Power Output | 12 VDC | | Weight | 17.6 oz (0.5 kg) | | | | Box Dimensions (LxWxH) | 7.7 x 4.7 x 3.2" | - 7-Pin LEMO Digital Motor Cable for AL2/Magnum (23")
| Connector 1 | 7-pin LEMO | | Connector 2 | Angled 7-pin LEMO | | Length | 23" / 60cm | | | | Box Dimensions (LxWxH) | 6.5 x 6.0 x 0.4" | - D-Tap Power Cable for MagNum
| Compatibility | MagNum, Aladin MRKII/AL2-INTF | | Connector 1 | D-Tap | | Connector 2 | LEMO 0B 5-pin | | Length | 23.6" / 60 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 6.1 x 5.2 x 0.7" | - MN-RMB1 Mounting Bracket for MagNum Receiver
| Compatibility | MagNum MN-100R and MN-200R receivers | | Weight | 1.4 oz (40 g) | - Case with Insert for MagNum Lens Control Unit
| Dimensions | 15.4 x 12.2 x 6.7" / 39 x 31 x 17 cm | | Weight | 5.2 lb / 2.35 kg | - MagNum Extension Module
- Padded Neck Strap for Lens Control Transmitters (Black)
- BTM Digital Motor with 0.8 Gear
