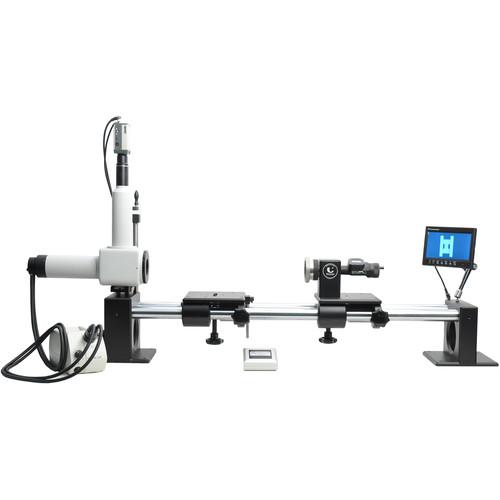

User Manual for Chrosziel Universal CamCollimator Mk III 45S Click to enlarge the picture
Contents of the user manual for the Chrosziel Universal CamCollimator Mk III 45S
- Product category: Lens Accessories Chrosziel
- Brand: Chrosziel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chrosziel Lens Accessories
|
User manual for the Chrosziel Universal CamCollimator Mk III 45S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chrosziel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chrosziel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chrosziel product will considerably shorten its lifespan!
|
Product description The compact Chrosziel Universal CamCollimator is a lens testing instrument (LTI) designed to calibrate cine-style lenses. Suited for daily use by both rental houses and lens service centers, this electronic collimator provides objective, precise measurements. Use it to optically align both your prime and zoom lenses, helping to produce consistently sharp images. The Universal CamCollimator measures a compact 3.3' in length and features the Mk III 45S micrometer with 0.001 mm accuracy. Components include stainless steel rods, a 110-250V power supply, an LCD display, and a lens/camera support that swivels and slides for easy adjustments. The Universal CamCollimator's bright LED light source features adjustable intensity, white and green color-selection, and a fiber optic cable. Note: The corresponding mounts, measuring blocks, attachments and/or beam converters for your specific lens/camera are NOT included and must be ordered separately. - Features
-
- Precise, repeatable solution for measuring the contact point of lenses at infinity
- For cine video/film lenses and cameras
- Adjustable lens/camera mount swivels and slides
- Mk III 45S micrometer with 0.001 mm accuracy
- C-mount black-and-white CCD camera
- Color LCD display included
- Bright LED light source has selectable white and green options
In the Box Chrosziel Universal CamCollimator Mk III 45S (110-250V) B&W CCD Camera (C-Mount) LED Light Source Camera/Lens Platform LCD Display Monitor Plane Glass with Case Eyepiece Power Supply 110-250 V, 50-60 Hz Power Supply, 90-260 V, 47-63 Hz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Universal CamCollimator Mk III 45S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChrosziel C-LCC Specs | Reading Accuracy | 0.001 mm | | Focal Length Range | 6-300 mm | | Rail Length | 3.3' / 1 m | | Power Supply | Light Source: 90-260 V, 47-63 Hz
Camera/Monitor: 110-250 V, 50-60 Hz | | Weight | Not specified by manufacturer |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
