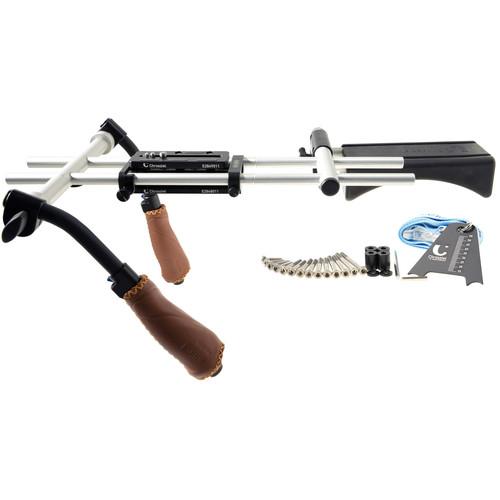

Product description Take your DSLR or camcorder shoulder-mounted with the Chrosziel Universal Shoulder Mount Kit. This shoulder rig is based on the Chrosziel HD Universal 15mm Lightweight System (LWS) Baseplate which can be adapted to fit most camcorders and DSLRs with the included tools and screw set. The shoulder pad locks onto 15mm rods and is offset to keep the rig comfortable. Rounding out the rig is a pair of leather handgrips, which attach to the main rig with a 15mm rosette bar. - LWS 15 HD Universal Baseplate with 12" Rods The LWS 15 HD Universal Baseplate with 12" Rods from Chrosziel is a universal 15mm rod support plate featuring a pair of 15mm rod clamps and 12" rods. The plate is adjustable for any camera with an optical height between 26.5 and 72.5mm. Optical height is the distance between lens center and camera bottom. Height is adjusted using the included 1, 2, 4, 8, and 16mm spacer pairs. Also included is a set of screws, a guide with camera height reference marks, and an Allen wrench.
- 15mm Pair of Extension Rods (7.5") Chrosziel's 15mm Pair of Extension Rods (7.5") can be used to add range to any 15mm support rig. These high-strength aluminum rods allow for larger matteboxes and additional accessories, such as lights or follow focus, to be used on-camera.
- Leather Handle Set for Camera and Support (Pair) The pair of Leather Handles for Camera and Support from Chrosziel are retractable and swiveling handles. Both units can attach to all cameras and supports with the industry standard rosettes with Hirth-spacing and center M6 screw. The hand piece position may be varied between 240 to 400mm on the shaft with a diameter of 18mm. After taking off the cap on the rosette end you can turn the rosette around for left or right hand use. The set is factory assembled with right and left handle configuration.
- Ability to change the side of the crank rod for right hand and left hand use
- Dual Rosette Bar for 15mm Rods The Dual Rosette Bar for 15mm Rods from Chrosziel is a bar with Hirth rosettes at both ends for the use with handles or other accessories.
- MultiPad 15 Adjustable Shoulder Pad The Chrosziel MultiPad 15 Adjustable Shoulder Pad complete with MultiPad 15 Straight and Side Lock is designed for use with 15mm diameter rods. The pad mounts under the camera, behind or sideways for cameras with viewfinder in the body.
In the Box Bundle Items LWS 15 HD Universal Baseplate with 12" Rods tcrrydfwsabxztcqzezvtqccazf - Camera Height Reference Guide
15mm Pair of Extension Rods (7.5") Leather Handle Set for Camera and Support (Pair) Dual Rosette Bar for 15mm Rods MultiPad 15 Adjustable Shoulder Pad tcrrydfwsabxztcqzezvtqccazf - MultiPad 15 Straight Lock
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chrosziel Universal Shoulder Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LWS 15 HD Universal Baseplate with 12" Rods
| | | Box Dimensions (LxWxH) | 11.1 x 3.5 x 1.6" | - 15mm Pair of Extension Rods (7.5")
| Diameter | 15mm | | Length | 7.5" (190mm) | | | | Box Dimensions (LxWxH) | 9.5 x 1.0 x 1.0" | - Leather Handle Set for Camera and Support (Pair)
| Weight | 13.1 oz (371.4 g) per handle | - Dual Rosette Bar for 15mm Rods
| Length | 9.8" (250 mm) | | Maximum Diameter | 1.3" (34 mm) at the rosettes | | Weight | 9.2 oz / 260.9 g | - MultiPad 15 Adjustable Shoulder Pad
| Fits On | 15mm diameter rods | | | | Box Dimensions (LxWxH) | 10.0 x 6.1 x 2.9" |
