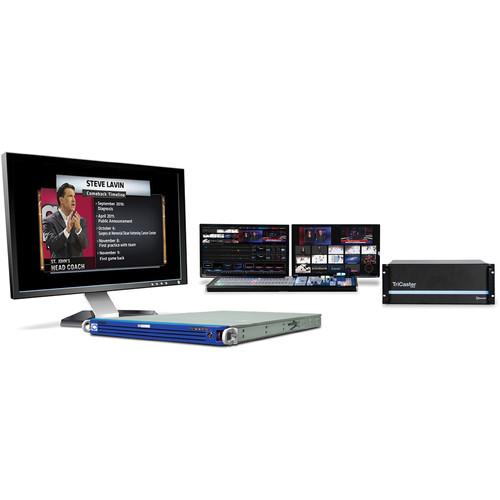

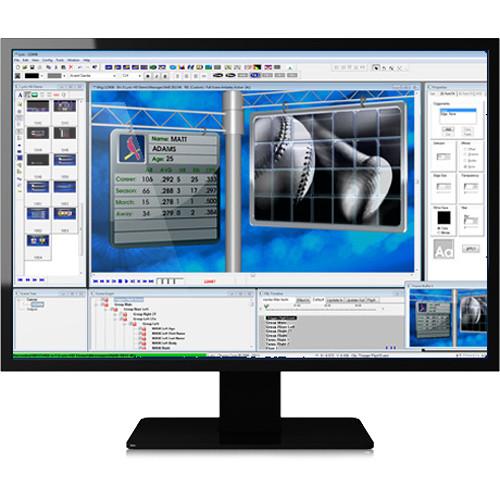

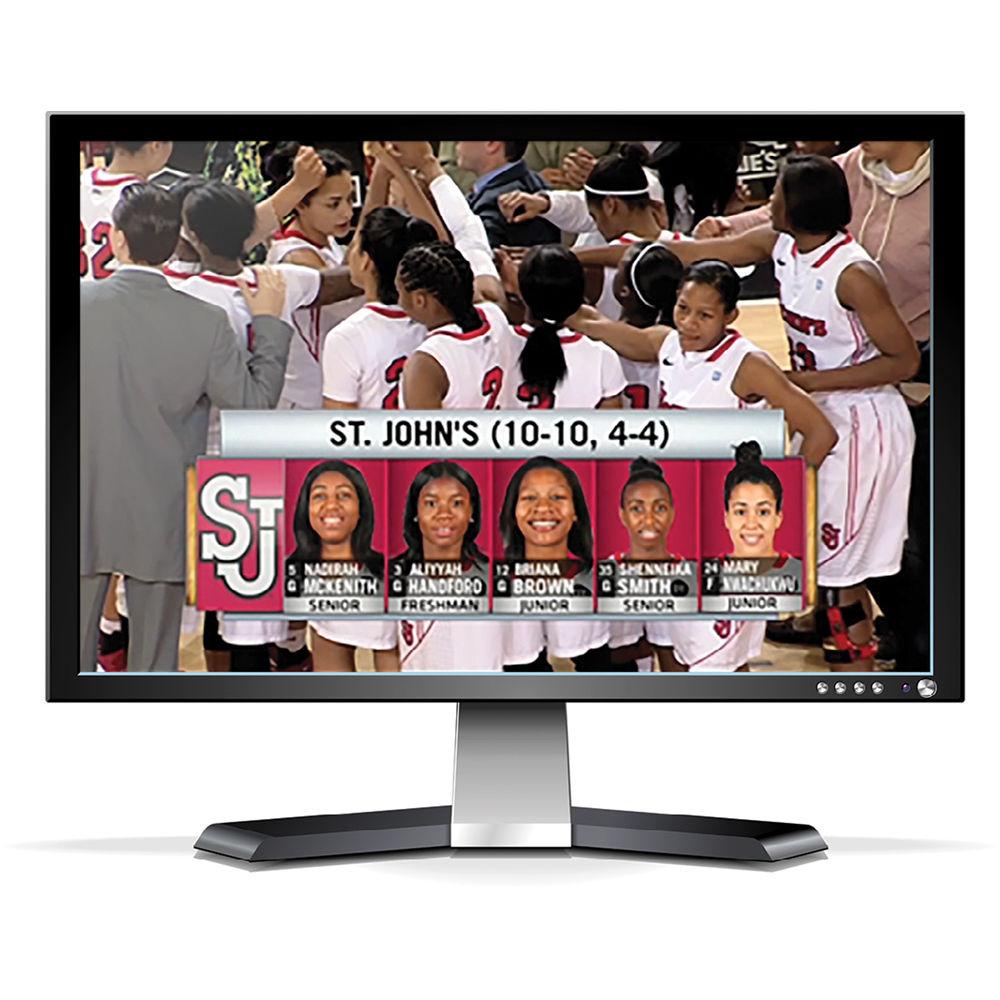

Product description The 1 RU LyricIP from ChyronHego is a single-channel HD/SD 2D and 3D character and graphics generator designed to be used with the NewTek TriCaster integrated live production system. It provides an HD or SD full-motion channel of graphics that streams directly into the TriCaster over a network connection without tying up any of the video inputs. A second channel is available separately.
This generator features four 3.5" hot-swappable SATA drive bays and includes a 200GB SSD. It also has a DVI-I, a DisplayPort, a serial port, two USB 2.0 ports, two USB 3.0 ports, and a Gigabit Ethernet port. Two 500W redundant AC-DC high-efficiency power supplies are included. Please note that traditional ChyronHego graphics system options such as eFX Clips, DVE, and Second Video Input do not apply to LyricIP, as there is no eFX frame buffer in the system. - Graphics stream directly into the TriCaster over a network connection leaving video inputs available for cameras and other external sources
- You can access Lyric PRO features including full-motion graphics, 3D animations, and transitions
- Optimal size and weight for remote production applications when rack space is in demand
- Two-channel system (single-channel standard; second channel optional) frees up to four SDI TriCaster inputs

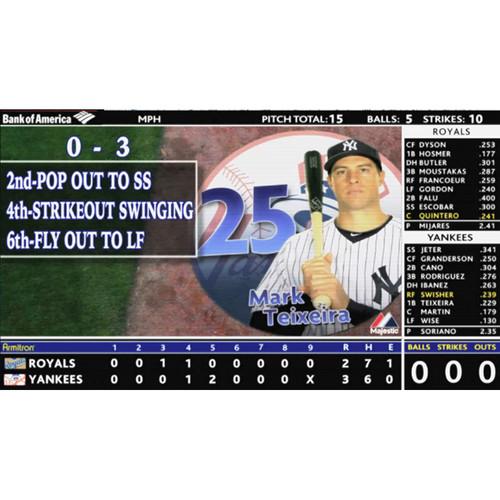

- Sports Scoreboards TV feed option allows you to access live in-game scoring data from Daktronics, Whiteway, Fairplay, and OES
- Timeline audio playout support is provided via a USB audio adapter (available separately) patched into the NewTek TriCaster audio input
- LyricIP is supported on all HD TriCaster systems using TriCaster software revision 5b or greater
- Additional storage drives available separately
Table of Contents
|
Upload User Manual
Have you got an user manual for the ChyronHego LyricIP with Lyric PRO & 200GB SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChyronHego 7A00445 Specs | System Configuration | Microsoft Windows 7 Ultimate 64-Bit O/S
Quad-Core Intel Xeon Processor
4 GB Dual-Channel 1600 MHz RAM
NVIDIA Quadro 4000 Professional
Series Graphics Accelerator Card | | Power | 2 x 500 W Redundant AC-DC High-Efficiency Power Supply | | Storage | 4 X 3.5" Hot-Swappable SATA Drive Bays
1 X 200 GB Solid State Drive | | Connectors | 1 x DVI-1
1 x DisplayPort
1 x Serial Port
2 x USB 2.0, On Rear
2 x USB 3.0, On Rear
2 x RJ45 Gigabit Ethernet | | Chassis | 1 RU | | Dimensions | 1.7 x 17.2 x 25.6" / 4.3 x 43.7 x 65 cm | | Weight | 26 lb / 11.8 kg |
