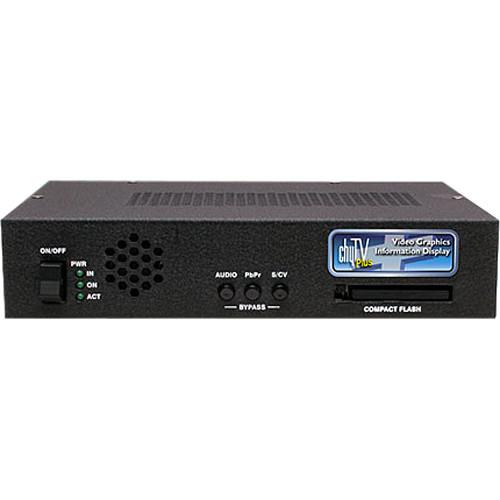

User Manual for ChyTV 7A00268 ChyAlert Plus Video Signage System with Software Click to enlarge the picture
Contents of the user manual for the ChyTV 7A00268 ChyAlert Plus Video Signage
- Product category: Emergency & Security Alert Systems ChyTV
- Brand: ChyTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ChyTV Emergency & Security Alert Systems
|
User manual for the ChyTV 7A00268 ChyAlert Plus Video Signage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ChyTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ChyTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ChyTV product will considerably shorten its lifespan!
|
Product description The 7A00268 ChyAlert Plus Video Signage System with Software (NTSC) from ChyTV is a professional system that permits you to display any type of multimedia message anywhere there is a television. This system is part of a next generation evolution in digital signage, allowing organizations full control over important messages and information that needs to be distributed to their target audience. This solution is ideal for promotional, entertainment, and emergency broadcasts, among many other applications. This unit is a software-hardware combination package, consisting of the ChyTV Plus system and ChyAlert software, combined to offer a more comprehensive solution.
This system includes all the base functionality of the ChyTV system (and is compatible with those units), but also offers a number of other functions aimed at bringing more professionalism to your broadcasts. This unit includes standard S-Video and component video inputs and outputs, serial and GPI control interfaces, and both Ethernet and USB connectivity. These added options enable more flexible system integration and enhanced video capabilities.
Standard functionality in this unit also allows you to intuitively and dynamically create, manage, schedule, and distribute content. Squeeze back the external video source, superimpose graphics over the full screen, or run full-screen messages. Create and manage multimedia messages in real time that incorporate video, graphic, text, and audio elements. This system comes standard with ChyAlert software, a package that provides you with advanced security and networking options, among other features. Also included are templates for your messages, although the system also permits you to use your favorite third party software, such as Microsoft PowerPoint. Moreover, Compact Flash slot makes uploading and backing up your data an easy task. - Promotional, Entertainment, Emergency Broadcasts & More
- This system is designed to transmit multimedia messages for promotional, entertainment, or emergency use, among many other applications.
- Content Creation
- This system makes it easy to incorporate video, audio, text, and graphics into a single multimedia message, whether you use the included software or a third party application.
- Scale
- This system is well suited to broadcasts to a single television or a mass audience.
In the Box ChyTV 7A00268 ChyAlert Plus Video Signage System with Software (NTSC) Video Graphics System Software One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ChyTV 7A00268 ChyAlert Plus Video Signage System with Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChyTV 7A00268 Specs | Video Inputs/Outputs | (1) Composite (BNC) input
(1) S-Video (4-pin, Y/C) input
(1) YUV/RGsB (3 BNC) input
(1) Composite (BNC) output
(1) S-Video (4-pin, Y/C) output
(1) YUV/RGsB (3 BNC) output
Format 75 ohms,1 volt p-p, 525 (NTSC) | | Audio Inputs/Outputs | (1) (R/L) Analog stereo input
(1) (R/L) Analog stereo output
RCA
Low impedance
Unbalanced stereo | | Format | PAL | | Clip Splitting | (1) front external slot Compact Flash slot supports 32MB to 2GB+ | | Interface | USB 1.1
10/100 BaseT Ethernet
Serial RS-232, 9 pin D
GPI 8 programmable, 9 pin D | | Dimensions (HxWxD) | 1-3/4 x 8-1/2 x6-1/4" | | Power | 110-220 VAC to 5VDC PSU | | Weight | 4 lbs / 1.81kg | | | | Package Weight | 6.14 lb | | Box Dimensions (LxWxH) | 13.35 x 9.6 x 4.1" |
