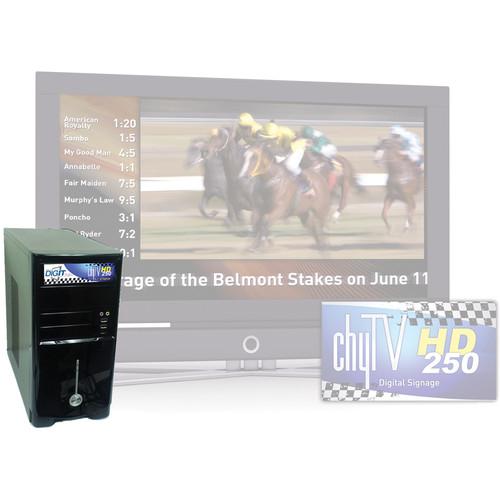

Product description The HD 250 Video Graphics Display System from ChyTV is a high definition dynamic digital signage system with HD video squeeze, HD clip playout, and layered 3D graphics. It comes in a desktop chassis and gives you full control over each element, letting you squeeze and position live HD input within your content differently from page to page. You can have a full motion HD clip as a background with layered graphics, text, and animations on top, along with a live HD video window of any size and position, or a variety of other arrangements. Ideal for any large-sized digital signage setup, ChyTV HD 250 utilizes ChyTV Tools utilities to manage the projects and is compatible with existing ChyTV units.
The ChyTV HD 250 features an internal MPEG clip player and has the ability to either manipulate the video clip in a window that is surrounded by graphics and text, or superimpose the message over the video background. In addition, full screen graphics can be displayed with dynamic text, logos, and animations. A versatile playlist scheduler allows for dynamic programming. The supplied ChyTV Tools user interface allows for direct control of the ChyTV HD 250; alternatively, multiple ChyTV HD 250s can be added to the ChyTV.net server for automatic remote content updates.
The ChyTV system is easy to configure in a display system or integrate into an existing HD video infrastructure. The graphic and text information, coupled with programmable audio clips, may be displayed on a single TV screen or broadcast throughout the facility.
Standard format animations can be imported from various file types such as MPEG clips, GIF, AVI, TGA sequences, etc. All graphic pages can then be scheduled from a simple, intuitive scheduling interface for either automatic looping or date/time playout. This self-contained device is virtually virus-proof, requires no external computer connection, and ensures reliability & ease of use. - Live HD input (various HD video formats)
- Layered page elements include live video, clips, text, graphics, and backgrounds
- Full-screen HD clips as animated backgrounds overlaid with dynamic text and graphics
- Dynamic real-time 3D text and graphics
- Landscape and portrait display modes
- Squeeze and position live video and clip player windows, including dynamic transitions
- Dynamic broadcast quality effects such as text pushes, fades, and crawls
- Animated text, graphics, and logos using GIF, TGA, MPEG, and more
- Multiple text and graphic zones may be independently sized and positioned
- Page scheduling, including looping durations, or specific day, date, and time control
- External data interfaces for real-time data updates such as news, sports, stock, and weather
- Interfaces with multiple peripheral devices including RFID, touchscreen, contact closure switches, serial control, and more
In the Box ChyTV HD 250 Video Graphics Display System (Desktop Chassis) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ChyTV HD 250 Video Graphics Display System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChyTV 7A00344 Specs | Video Outputs | Digital: HDMI, DVI
Analog: HD WXVGA Outputs not available simultaneously | | Software | ChyTV Author:
WYSIWYG content authoring and management tool. Supports the following formats:
Fonts: Any TrueType and OpenType
Images: PNG, JPG, GIF, TIFF, TGA, BMP
Video: MPG2, MPG4, MOV, AVI, QuickTime
ChyTV Tools:
User interface for control and content management
ChyTV Elements:
Page Creation and Template add-in for PowerPoint (included)
ChyTV Dynamo
Animation and Image conversion tool | | Video Formats | Digital:
3G/HD/SD-SDI, SMPTE 259/292/296/424, HDMI v1.3, 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p50/60
Analog:
Composite/S-Video (Y/C): NTSC, NTSCJ, PAL 12-bit
A/D:
SD Component: SMPTE/EBU N10, Betacam 525 line, Betacam 525J,
HD Component: YPbPr 12-bit A/D | | Resolution | 525 / 625 / 720p / 1080i /1080p / 1080psf | | Interfaces | USB 2.0
Ethernet 10/100/1000 BaseT (RJ-45) | | Audio Input | 1 x Line in
1 x Mic in | | Audio Format | Low impedance, unbalanced stereo | | Audio Output | 1 x 3.5 mm Mini stereo plug
1 x SPDIF
1 x Line out | | Power Supply | ATX 12 VDC
585 W | | Dimensions | 15.3 x 6.9 x 14.0" (38.7 x 17.5 x 35.6 cm) | | Weight | 15.5 lb (7 kg) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 17.5 x 15.5 x 8.75" |
