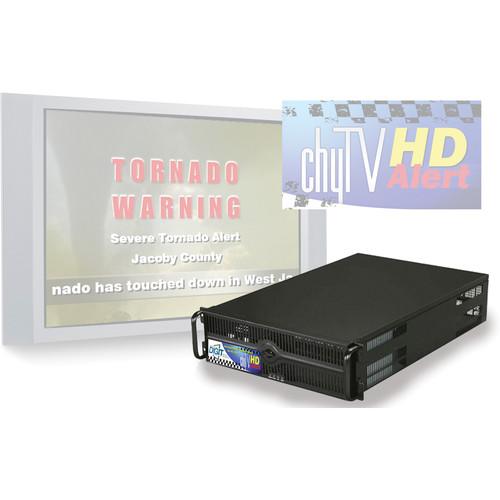

User Manual for ChyTV High-Definition Alert Graphics System Click to enlarge the picture
Contents of the user manual for the ChyTV High-Definition Alert Graphics System
- Product category: Emergency & Security Alert Systems ChyTV
- Brand: ChyTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ChyTV Emergency & Security Alert Systems
|
User manual for the ChyTV High-Definition Alert Graphics System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ChyTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ChyTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ChyTV product will considerably shorten its lifespan!
|
Product description The tower-chassis High-Definition Alert Graphics System from ChyTV is a high-definition alert graphics system with HD analog & HD-SDI video overlay, crawls, and remote alert generation. Ideal for PEG Channel (Public, Education, Government) emergency notification, the ChyTV HD Alert is a broadcast-quality graphics system designed to enable deployment of simple and efficient custom emergency alert information. The HD Alert System lets you pass through your normal programming while monitoring for external text-file based emergency information. If a designated text file shows up in a 'watched' folder, the ChyTV HD Alert system grabs the text information from the file, displays an appropriate overlay graphic on top of the live programming, and displays the text information in the file using high quality broadcast effects such as crawls, pushes, fades, etc. When the text file goes away, the alert message goes away. The alert can easily be generated remotely by any authority and requires no graphics/operational skills or training.
This HD Alert Graphics System supports a variety of video input / output standards, including HD-SDI, HDMI, analog component, S-Video, composite video, channels of AES/EBU audio, and four channels of balanced analog audio in and out. You also get a down-converted SD output. Standard format animations can be imported from various file types such as MPEG clips, GIF, AVI, TGA sequences, etc. All graphic pages can then be scheduled from a simple, intuitive scheduling interface for either automatic looping or date/time playout. This self-contained device is virtually virus-proof, requires no external computer connection, and ensures reliability & ease of use. Applications of the Alert Graphics System include local community, town meeting & public service announcements; local weather updates; community advertising; agendas & minutes; and emergency alerts. - Initiate remote alerts from anywhere including remote office or even home
- Live full-screen HD input with text and graphic overlay
- Various HD video formats including HD-SDI
- Layered page elements include live video, clips, text, graphics, and backgrounds
- Full-screen HD clips as animated backgrounds overlaid with dynamic text and graphics
- Dynamic real-time 3D text and graphics
- Squeeze and position clip player windows, including dynamic transitions
- Dynamic broadcast quality effects such as text pushes, fades, and crawls
- Animated text, graphics, and logos using GIF, TGA, MPEG, and more
- Multiple text and graphic zones may be independently sized and positioned
- Page scheduling, including looping durations or specific day, date, and time control
- External data interfaces for real-time data updates such as news, sports, stock, and weather
- Interfaces with a variety of peripheral devices including RFIDs, touch screens, contact closure switches, serial control devices, and more
In the Box ChyTV High-Definition Alert Graphics System (Tower Chassis) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ChyTV High-Definition Alert Graphics System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChyTV 7A00346 Specs | Video Inputs | Digital: HDMI, HD/SD-SDI
Analog: Composite, HD/SD Component via breakout cable | | Video Outputs | Digital: HDMI, HD/SD-SDI
Analog: Composite, HD/SD Component via breakout cable Outputs not available simultaneously | | Resolution | 525 / 625 / 720p / 1080i | | Software | ChyTV Author:
WYSIWYG content authoring and management tool. Supports the following formats:
Fonts: Any TrueType and OpenType
Images: PNG, JPG, GIF, TIFF, TGA, BMP
Video: MPG2, MPG4, MOV, AVI, QuickTime
ChyTV Tools:
User interface for control and content management
ChyTV Elements:
Page creation and template add-in for PowerPoint (included)
ChyTV Dynamo
Animation and image conversion tool for ChyTV flipbooks and logos (optional)
Supports: TIF, TGA, JPG, and PNG image sequences | | Interfaces | USB 2.0
USB 3.0
Ethernet 10/100/1000 BaseT (RJ-45) | | Audio Input | 1 x HDMI, Embedded
1 x Line-in | | Audio Output | 1 x HDMI Embedded
1 x Line-out | | Power Supply | ATX 12 VDC
585 W | | Dimensions | 15.25 x 6.90 x 14.00" (38.7 x 17.5 x 35.6 cm) | | Weight | 15.5 lb (7.0 kg) | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 36.0 x 21.5 x 11.0" |
