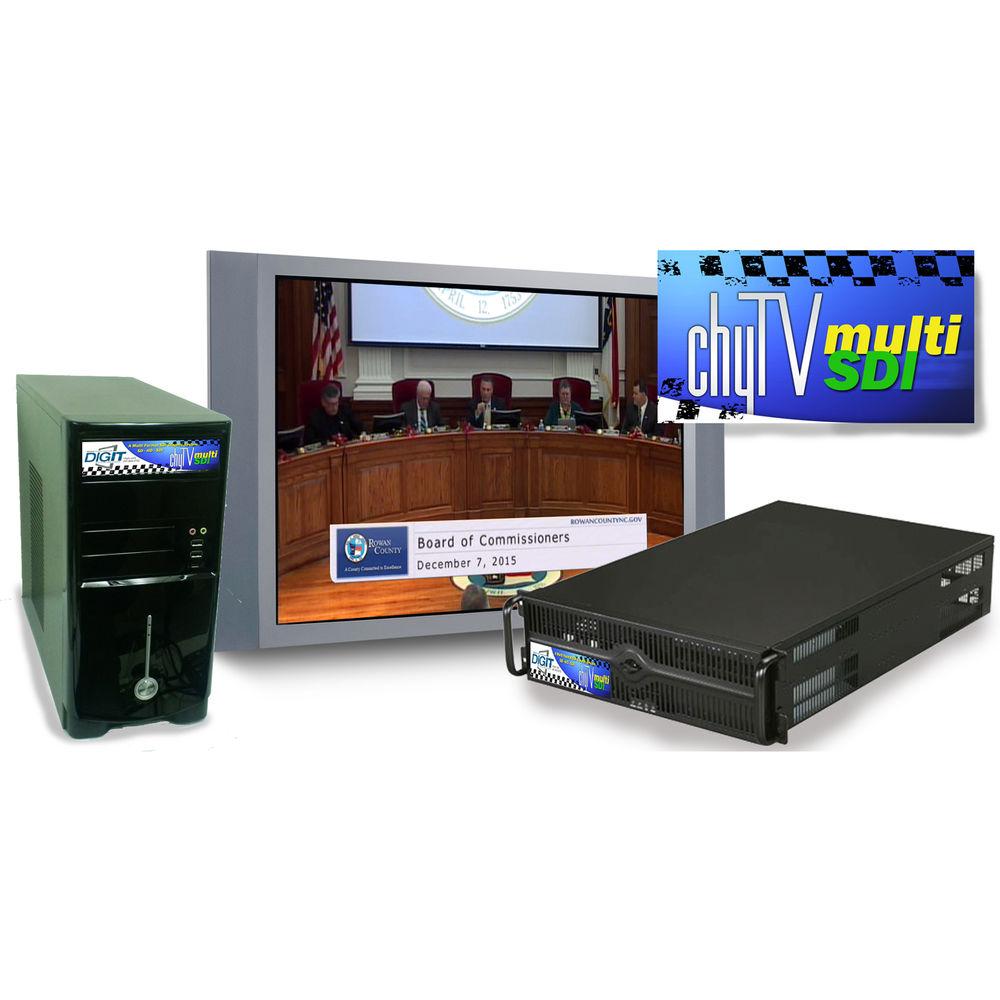

Product description The tower Multi-SDI Video Graphics Display System from ChyTV is designed for local cable channels, communities, municipalities, PEG, and other television and video distribution networks. In addition to SD-SDI input and output, the system supports HD-SDI input and output with graphic overlay on top of live video, giving facilities an upgrade path to transition from SD to HD. Additionally, full-screen graphics can be displayed with dynamic text, logos, and animations. A versatile playlist scheduler allows for dynamic programming. The supplied ChyTV Tools user interface software allows for direct control of single or multiple systems.
Featuring an internal MPEG clip player, the device has the ability to manipulate the video clip either in a window that is surrounded by graphics and text or to superimpose the message over the video background. Professional Crawl overlays are broadcast-quality, smooth, and easily modified. Multiple Crawls can display simultaneously and can include graphics and logos. - Live full-screen SD-SDI / HD-SDI input with text and graphic overlay
- Layered page elements include live video, clips, text, graphics, and backgrounds
- Full-screen SD/HD clips as animated backgrounds overlaid with dynamic text and graphics
- Dynamic real-time 3D text and graphics
- Squeeze and position clip player windows, including dynamic transitions
- Dynamic broadcast-quality effects such as text pushes, fades, and crawls
- Animated text, graphics, and logos using GIF, TGA, and MPEG
- Multiple text and graphic zones may be independently sized and positioned
- Page scheduling, including looping durations or specific day, date, and time control
- External data interfaces for real-time data updates such as news, sports, stock, and weather
- Interfaces with a variety of peripheral devices including RFID, touchscreen, contact-closure switches, and serial control
- Suitable for local community announcements, local weather, lower-third titling, community advertising, town meeting announcements, agendas and minutes, public service announcements, and emergency alerts
In the Box ChyTV Multi-SDI Video Graphics Display System (Tower Chassis) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ChyTV Multi-SDI Video Graphics Display System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChyTV 7A00348 Specs | Digital Video Outputs | HD HDMI
HD/SD-SDI (BNC) | | Digital Video Inputs | HD HDMI
HD/SD-SDI (BNC) | | Video Formats | 1080i, 720p, 625, 525 | | Audio Outputs | 1 x HDMI
1 x Line | | Audio Input | 1 x HDMI
1 x Line | | Interfaces | USB 2.0
USB 3.0
RJ45 10/100/1000-BaseT, Ethernet | | Power Supply | ATX12V 585 W | | Dimensions | 15.3 x 6.9 x 14.0" / 38.7 x 17.5 x 35.6 cm | | Weight | 15.5 lb / 7 kg |
