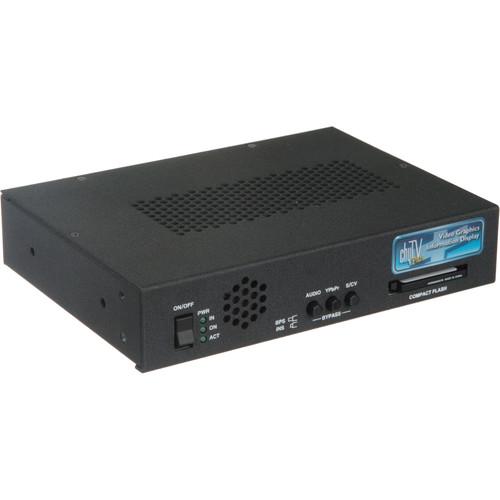

User Manual for ChyTV Plus Video Information Display Unit Click to enlarge the picture
Contents of the user manual for the ChyTV Plus Video Information Display Unit
- Product category: Character Generators & Graphic Solutions Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Character Generators & Graphic Solutions
|
User manual for the ChyTV Plus Video Information Display Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Chyron ChyTV Plus Video Information Display Unit (Ethernet/NTSC) from Chyron is a video display unit that accepts a video signal and allows you to add dynamic broadcast quality effects, such as text pushes, fades, and crawls, among many other options and effects. It will work with component, composite, and S-video feeds. It can also manage analog audio feeds.
This unit can be controlled via Ethernet, RS-232, and GPI. It has a storage capacity of 4GB. - Broadcast Quality Video Effects
- This video display unit accepts a video signal and allows you to add dynamic broadcast quality effects, such as text pushes, fades, and crawls, among many other options and effects.
- Audio
- This unit will support audio inputs and outputs with the videos signals.
- Control
- This unit can be controlled via Ethernet, RS-232, and GPI. It has a storage capacity of 4GB.
- Storage Capacity
- It has a storage capacity of 4GB.
In the Box ChyTV Plus Video Information Display Unit (Ethernet/NTSC) Video Display Unit One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ChyTV Plus Video Information Display Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChyTV CHYTV PLUS Specs | Video | Input
x1 composite(BNC)
x1 S-Video (4-pin, Y/C)
x1 YUV/RGsB(3 BNC) Output
x1 composite (BNC)
x1 S-Video (4-pin, Y/C)
x1 YUV/RGsB (3 BNC) | | Audio | Playback
Inputs: x1 R/L Analog stereo
Outputs x1 R/L Analog Stereo
Type: RCA
Format: low impedance, unbalanced stereo Recording
Inputs: x1 R/L Analog stereo
Outputs: x1 R/L Analog Stereo
Type: RCA
Format: low impedance, unbalanced stereo | | Standard | Ethernet / NTSC | | Control | Ethernet 10/100 BaseT
RS-232, 9 pin D
GPI - 8 programmable, 9 pin D | | Storage | 4GB | | Dimensions (HxWxD) | 1-3/4 x 8-1/2 x 6-3/16" | | Weight | 4 lbs | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 13.3 x 9.5 x 4.15" |
