Product description - Wireless Prime 4 in 1 Wireless Video Transmission System on Set
- Rowing Coastal ChampionshipsWireless Prime 2 in 1 and 4 in 1 Wireless Video Transmission Broadcast

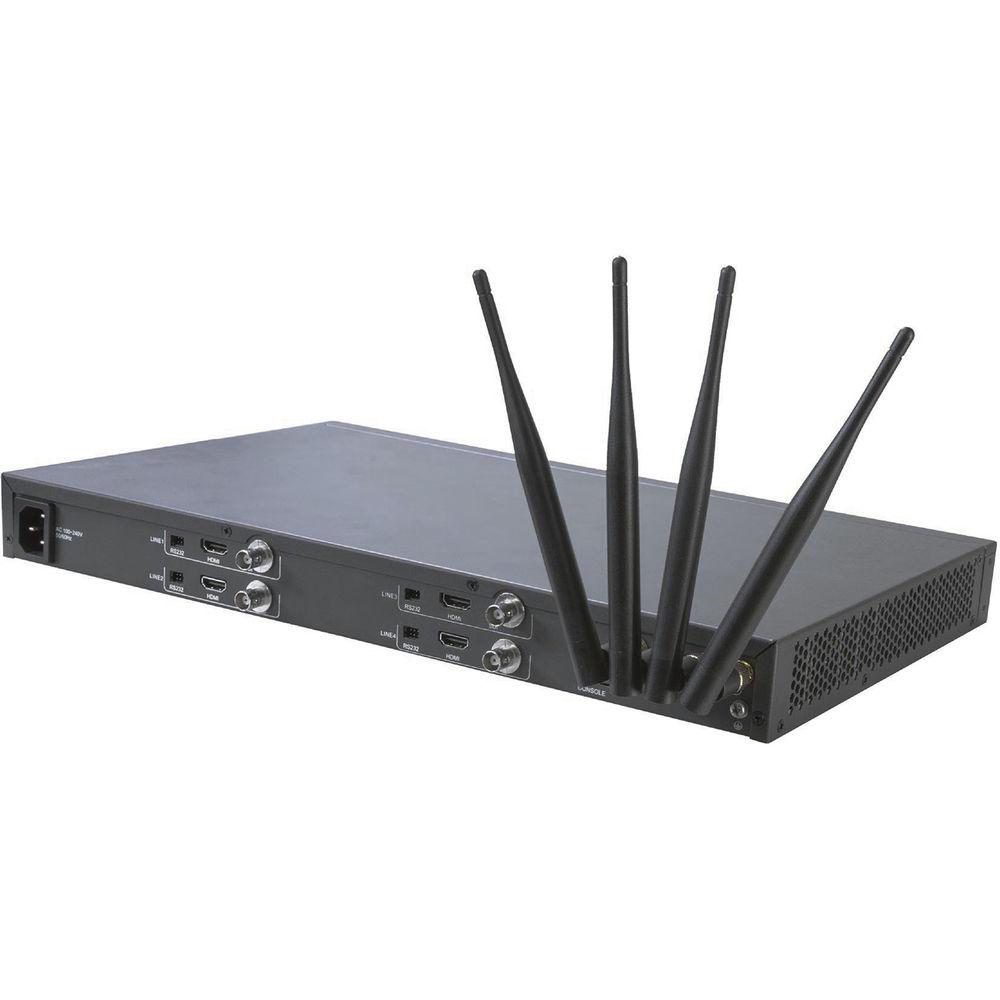

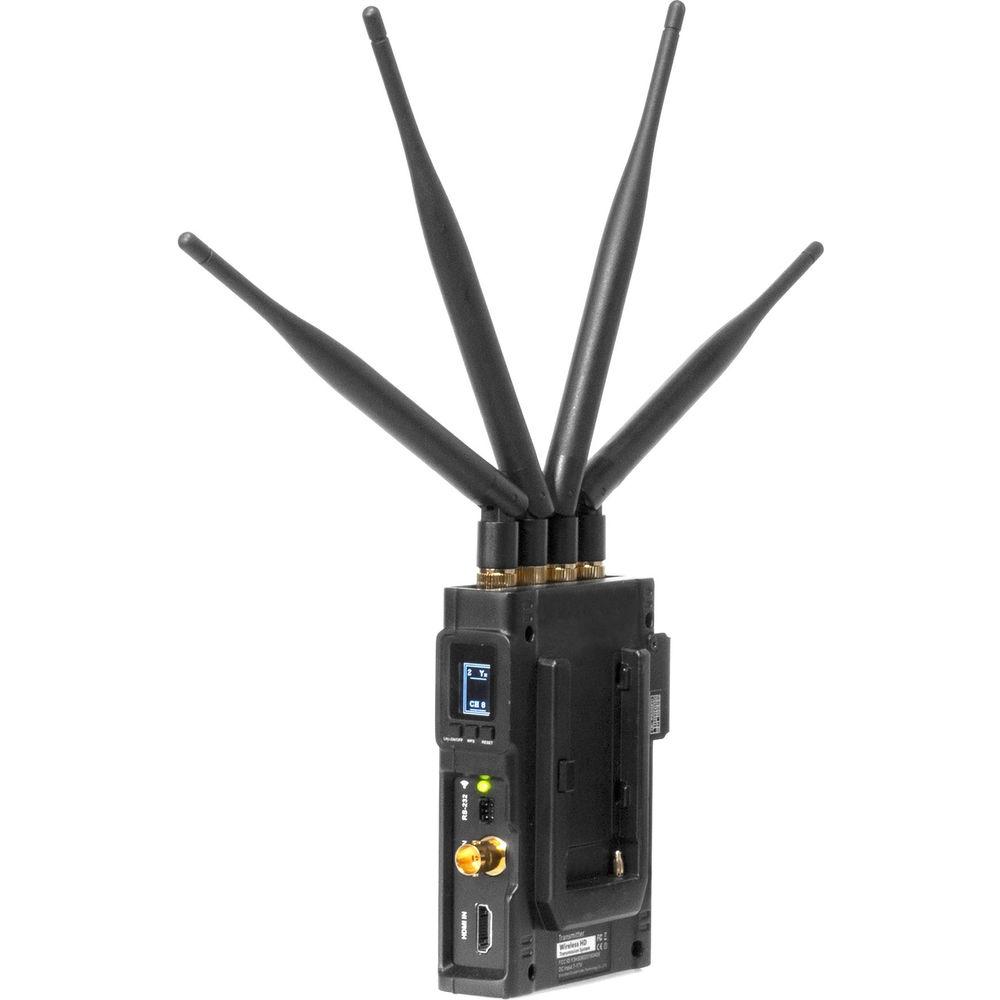

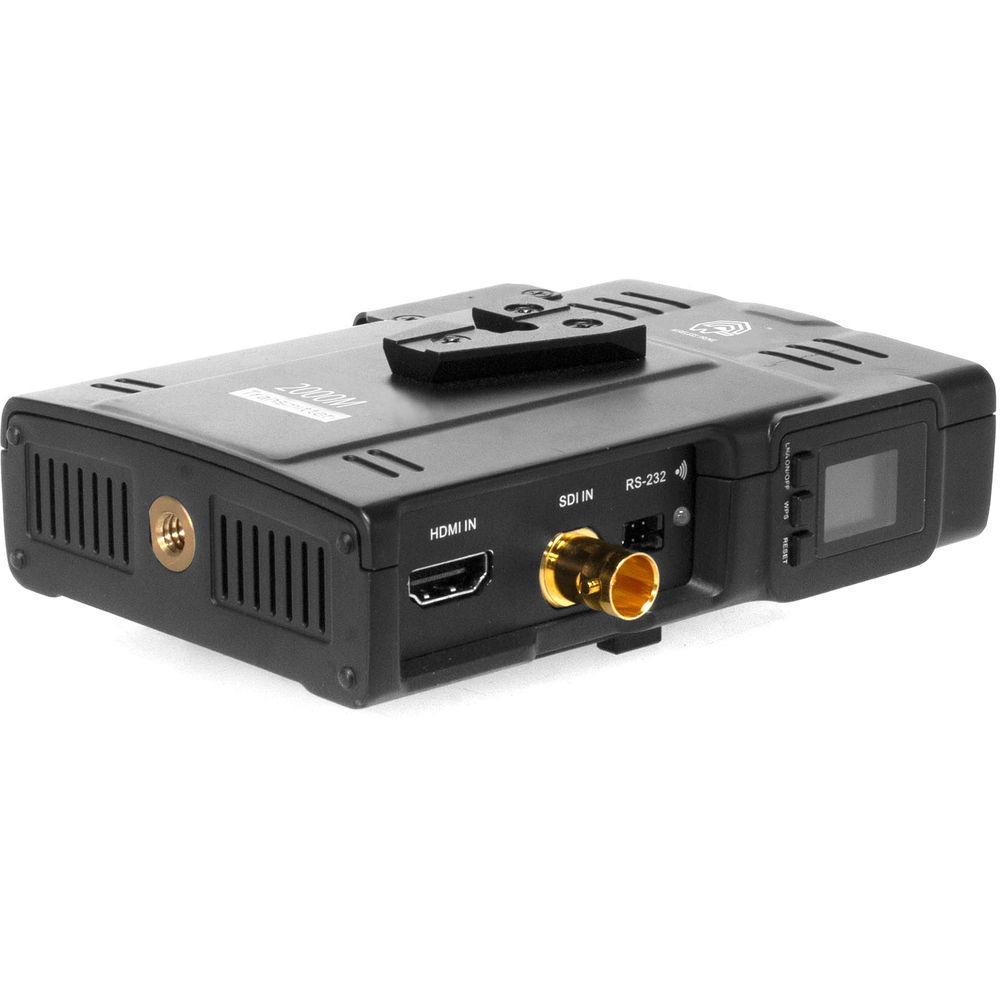

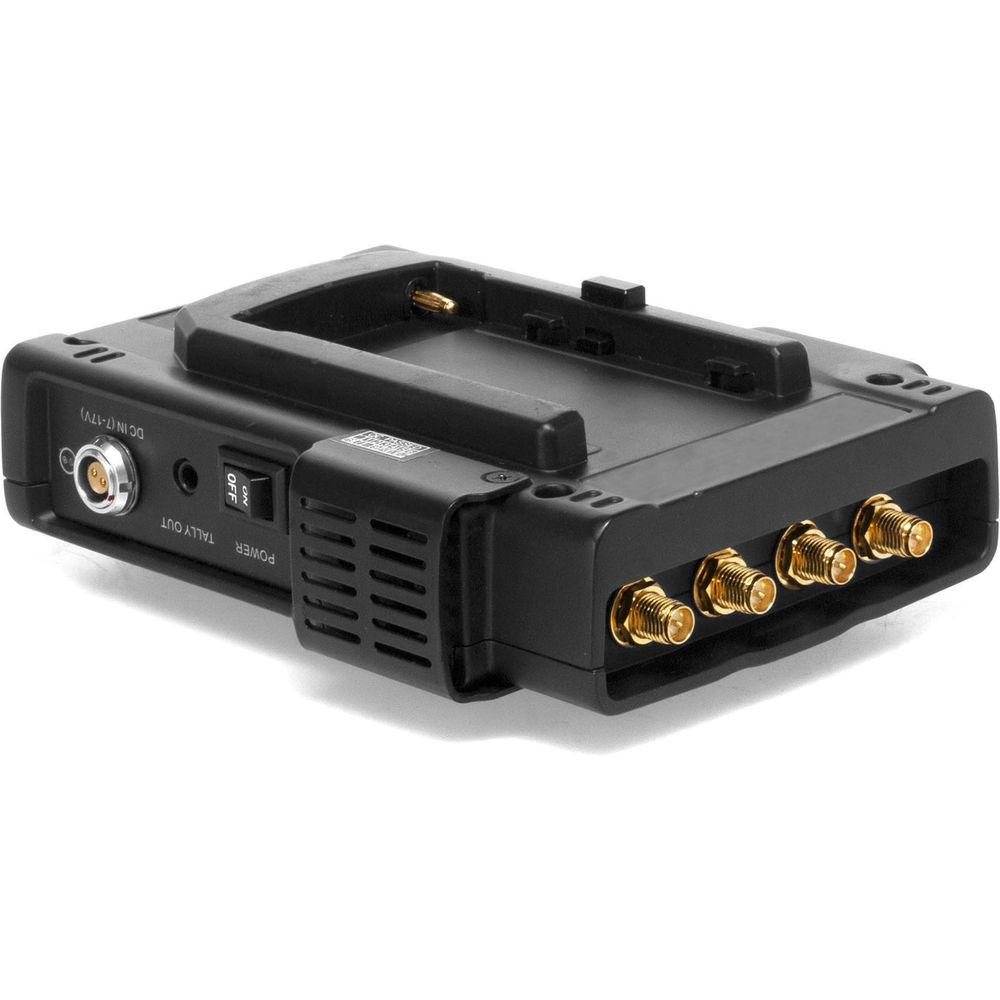

Transmit uncompressed, 10-bit 4:2:2, 1080p60 video up to 1640' at schools, events, houses of worship, or weddings with the CINEGEARS 2000M-R Wireless 4 x 1 SDI and HDMI Video Transmission Kit. The kit includes four transmitters and one rackmount receiver. Each transmitter features one HDMI and one 3G-SDI input, and the receiver features four HDMI and four 3G-SDI outputs. The 2000M-R system also supports tally functionality via its RS-232 ports.
Your HDMI or SDI signal is carried with a low-latency rate of less than 60 ms over the license-free 5 GHz frequency band. Each transmitter can send 8 Mb/s video from up to 1640' away or 15 Mb/s video from up to 984' away. The set is also capable of HDMI-SDI cross-conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Each transmitter includes a LEMO to D-Tap cable, and they are powered by separately available AC sources or D-Tap batteries. The receiver is powered by a standard AC power plug, which is included. - Each transmitter sends uncompressed, 8-bit, 1080p60 video over a 5G wireless network at 8 Mb/s from up to 1640' away
- Suitable for video capture and transmission at weddings, houses of worship, schools, or outdoor events
- One rackmount receiver and four portable transmitters are included; each unit utilizes four antennas
- Support for 3G-SDI and HDMI input and output, and HDMI-SDI cross-conversion is supported

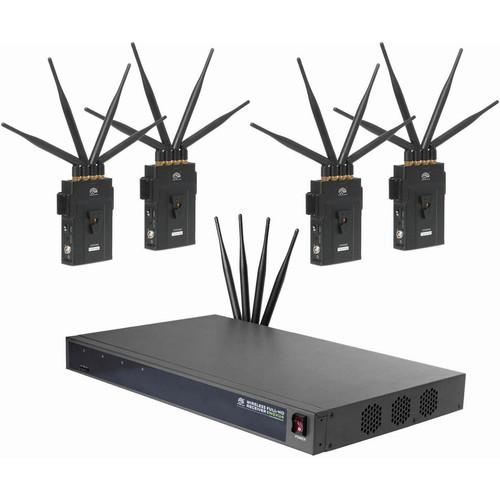

UPC: 610877598045 In the Box CINEGEARS 2000M-R Wireless 4 x 1 SDI and HDMI Video Transmission Kit 4 x Four In One 2000M-R Full-Hd Wireless Video Transmission Rack Mount Transmitter (2.4G) Four In One 2000M-R Full-Hd Wireless Video Transmission Rack Mount Receiver (2.4G) 20 x Antennas 4 x LEMO to D-Tap Cables Receiver Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS 2000M-R Wireless 4 x 1 SDI and HDMI Video Transmission Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Four in One Specs | | | Maximum Resolution | 1080p60, 10-Bit 4:2:2 Color | | Antenna Ports | 4 x 4 MIMO, 5 dBi (Each Unit) | | Transmission Power | 17 dBm | | Frequency Range | 5.1 to 5.8 GHz | | Latency | 60 ms | | Transmission Rates | Up to 984' / 300 m: 15 Mb/s
Up to 1640' / 500 m: 8 Mb/s | | Input | 1 x HDMI 1.4
2 x 3G-SDI
1 x RS-232 (Tally) | | Audio Format | PCM, MPEG-2 | | Voltage | 12 VDC, 2 A
7 to 30 V | | Power Consumption | 12 W | | Working Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 176°F /-20 to 80°C | | Dimensions | 5.4 x 4.2 x 1.2" / 13.6 x 10.6 x 3.1 cm (Each Unit) | | Weight | 14 oz / 400 g | | | | Maximum Resolution | 1080p60, 10-Bit 4:2:2 Color | | Antenna Ports | 4 x 4 MIMO, 5 dBi | | Receiver Sensitivity | -70 dB | | Frequency Range | 5.1 to 5.8 GHz | | Channel Bandwidth | 40 MHz | | Wireless Protocols | 802.11n | | Latency | 60 ms | | Transmission Rates | Up to 984' / 300 m: 15 Mb/s
Up to 1640' / 500 m: 8 Mb/s | | Input/Output | 4 x HDMI 1.4
4 x 3G-SDI
4 x RS-232 (Tally) | | Audio Formats | PCM, MPEG-2 | | Voltage Range | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 20 W | | Working Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 176°F /-20 to 80°C | | Dimensions | 17.1 x 10.2 x 1.8" / 43.5 x 26 x 4.5 cm (1 RU) | | Weight | 3.4 lb / 1.5 kg | | | | Package Weight | 0.01 lb | | Box Dimensions (LxWxH) | 13.6 x 11.1 x 0.8" |
