User Manual for CINEGEARS 4 x 4 All-Wheel Drive X Gimbal Car Click to enlarge the picture
Contents of the user manual for the CINEGEARS 4 x 4 All-Wheel Drive
- Product category: Stabilizers & Gimbals CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Stabilizers & Gimbals
 |
User manual for the CINEGEARS 4 x 4 All-Wheel Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description CINEGEARS Adds New X and VR Cube RC Gimbal Cars to Production Lineup Read More - Cinegears New Gimbal Car 2019 Line Up
- RC Gimbal Cars by Cinegears (Brand New 2018 Models!)

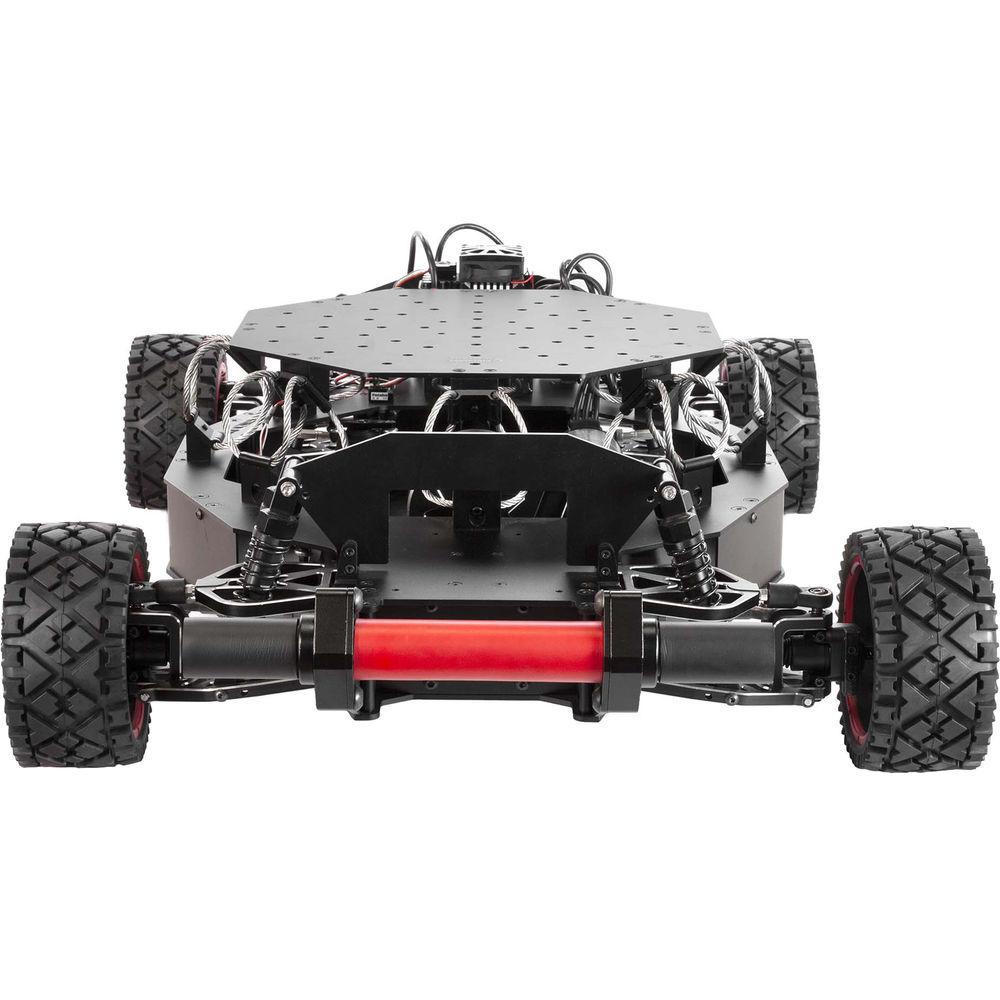

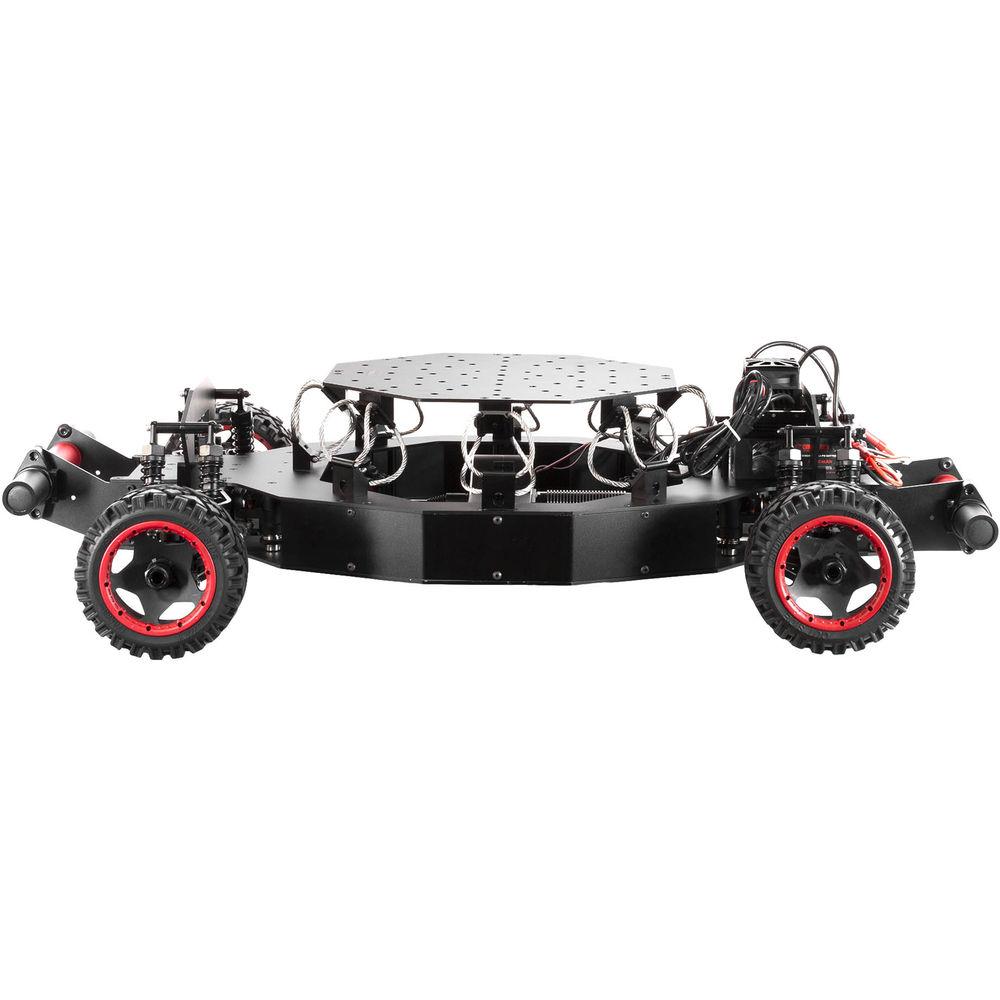

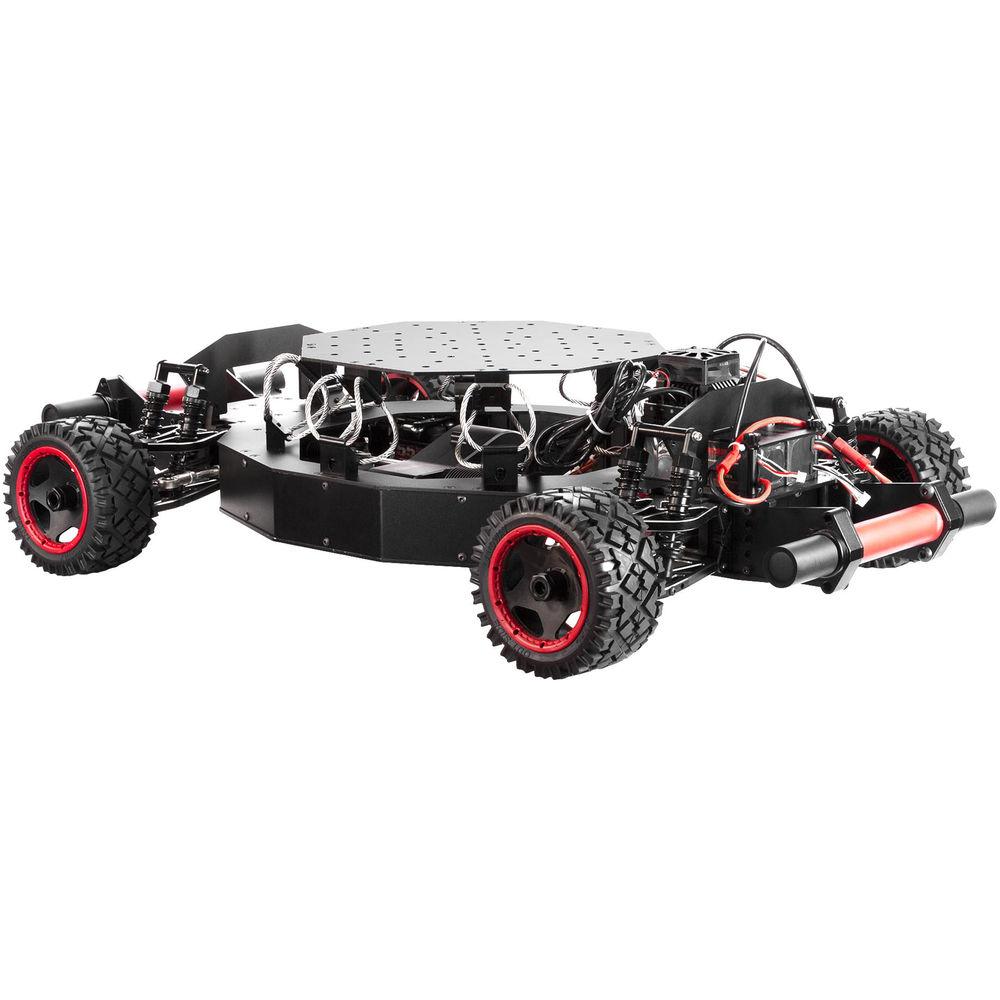

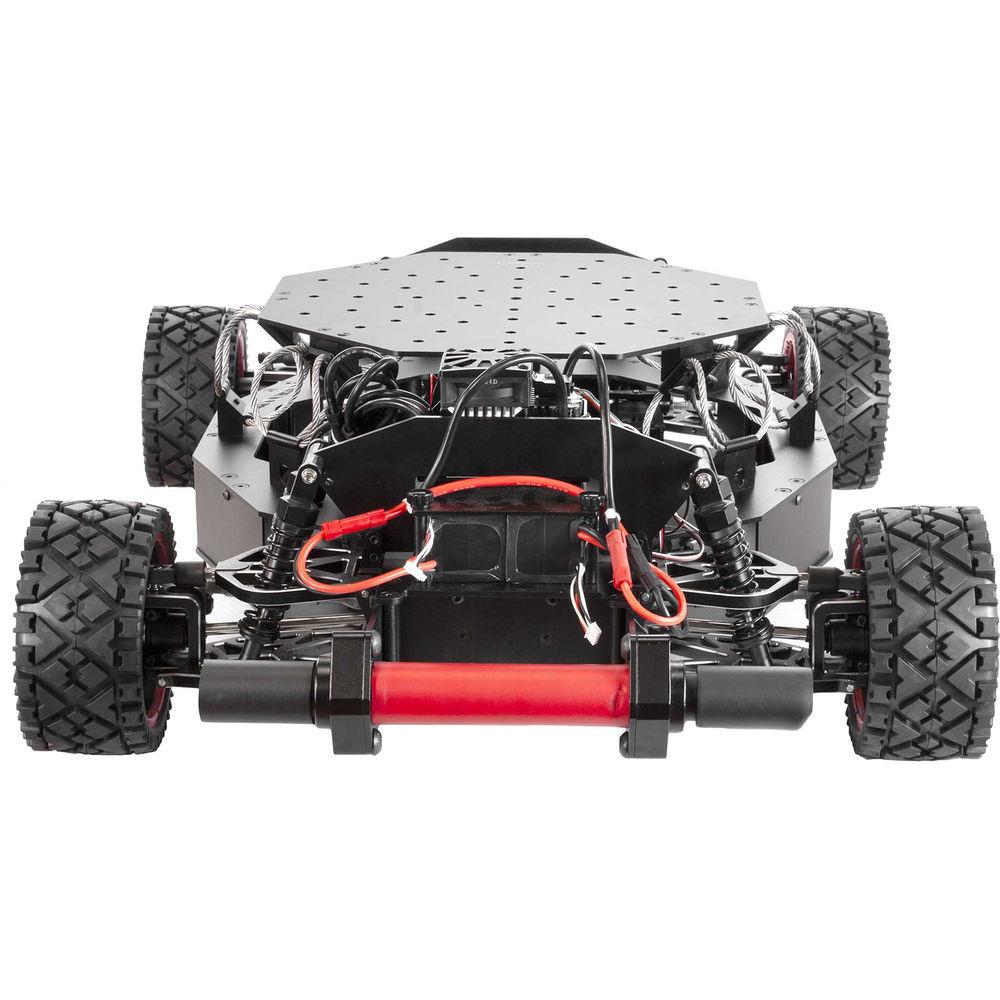

Speed into areas where a drone can't travel with the 4 x 4 All-Wheel Drive X Gimbal Car from CINEGEARS and capture professional, gimbal-stabilized footage. Along with four-wheel drive, a 23" wheel spread, and a maximum payload up to 66 lb, the X gimbal car utilizes electric steering and braking via its 2.4 GHz controller to capture smooth shots in challenging locations. The car utilizes four treaded tracks to navigate rough terrain, and the 3-point suspension system helps disperse weight and keep your payload steady at a top speed of 50 mph.

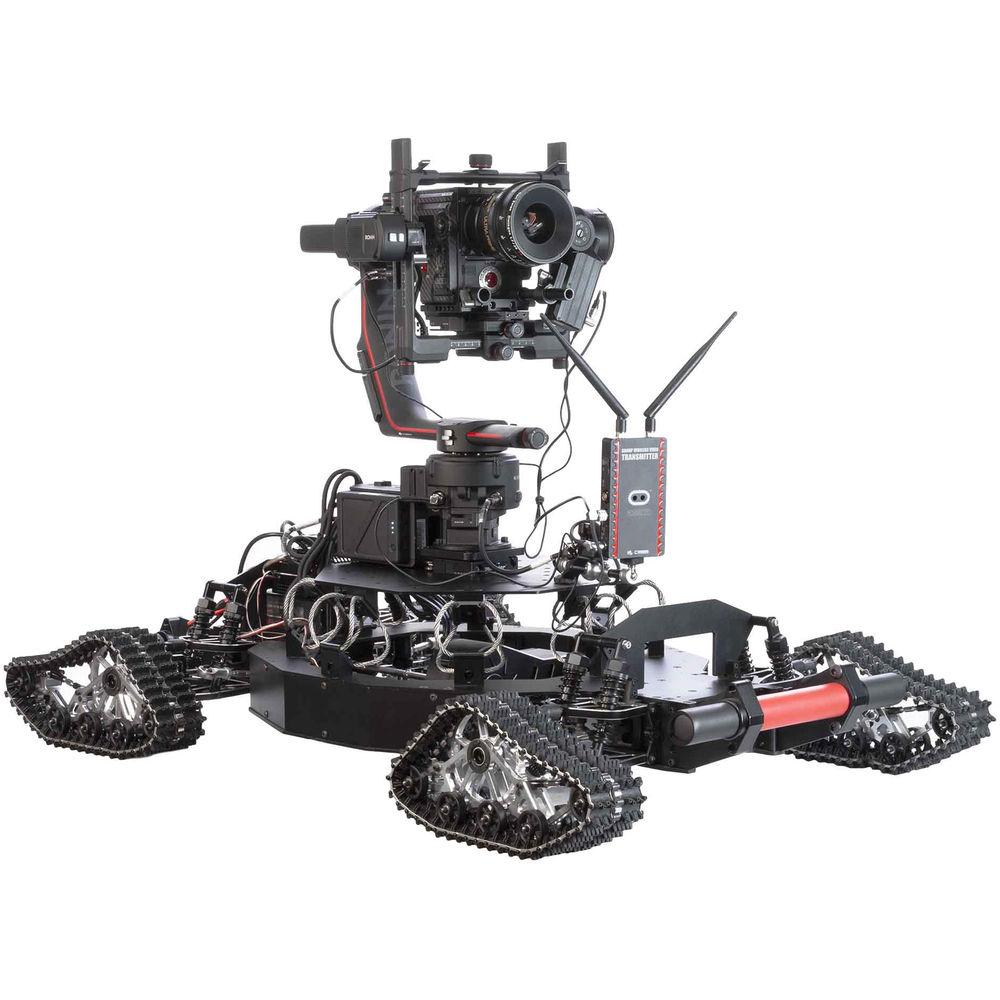

The X gimbal car includes a built-in DJI Ronin gimbal mount adapter to combine the flexibility of a professional gimbal with the sturdiness of the aluminum body. A separately available MōVI adapter plate can be purchased to utilize a MōVI gimbal and its accessories.

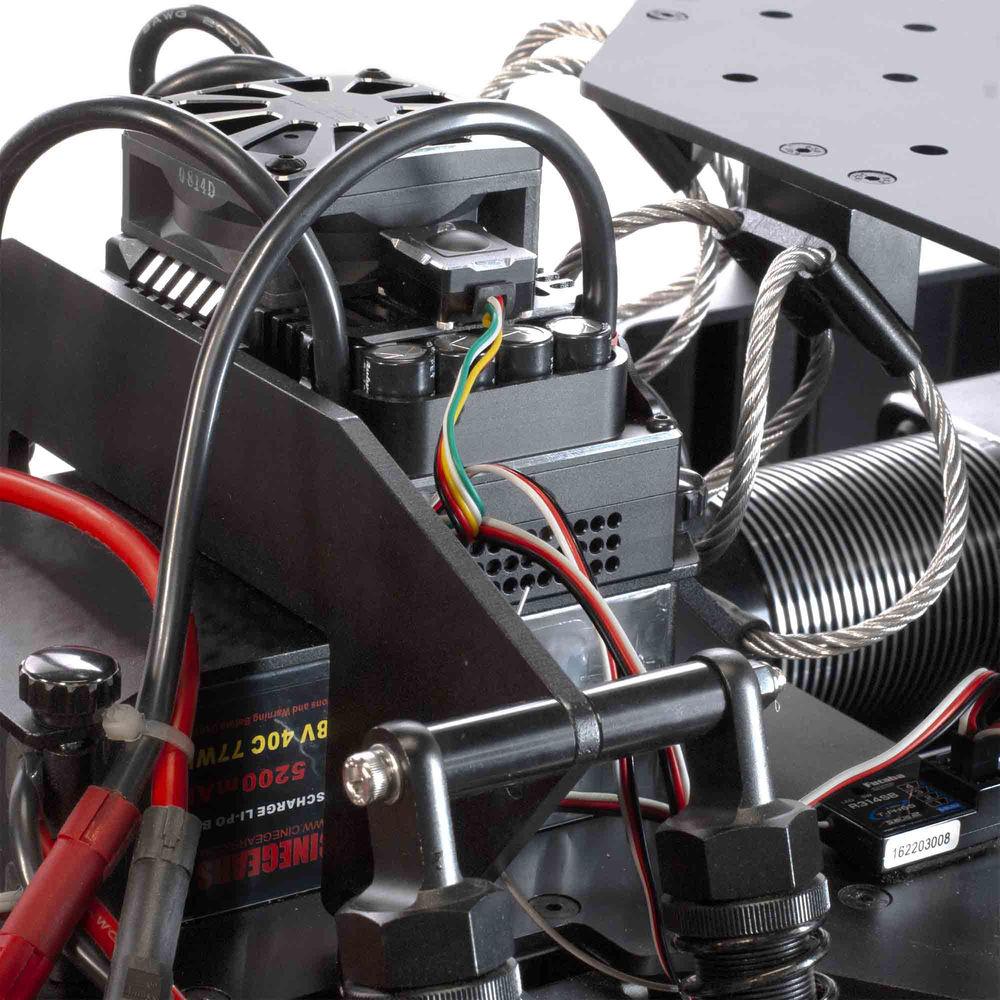

The car is powered with the two included 14.8V, 77Wh 4S batteries, and using separately available dual 4S Li-ion batteries or batteries in 6S or 8S configurations with up to 28V output can provide up to 24 hours of battery life. The brushless 960Kv motor and transmission are rated waterproof and dustproof, and a top cheese plate is provided to attach additional accessories to your gimbal. - Waterproof and dustproof motor and transmission system
- Powered by two included 14.8V, 77Wh, 4S LiPo batteries
- Three-point suspension system including built-in heavy-duty stabilization platform
- Hydraulic spring dampener absorbs low-frequency vibrations while wide rope dampener absorbs high-frequency vibrations
- Aluminum body is resistant to warping due to stress, temperature, and other environmental factors

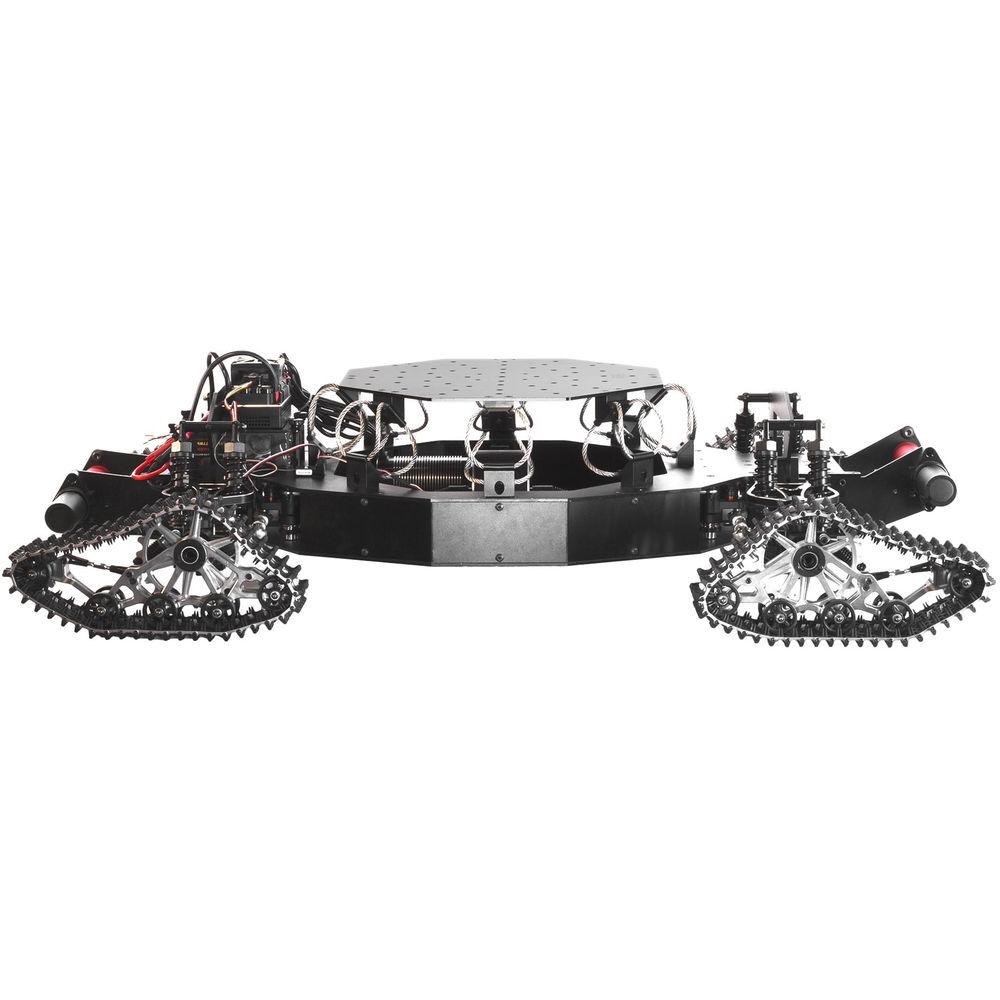

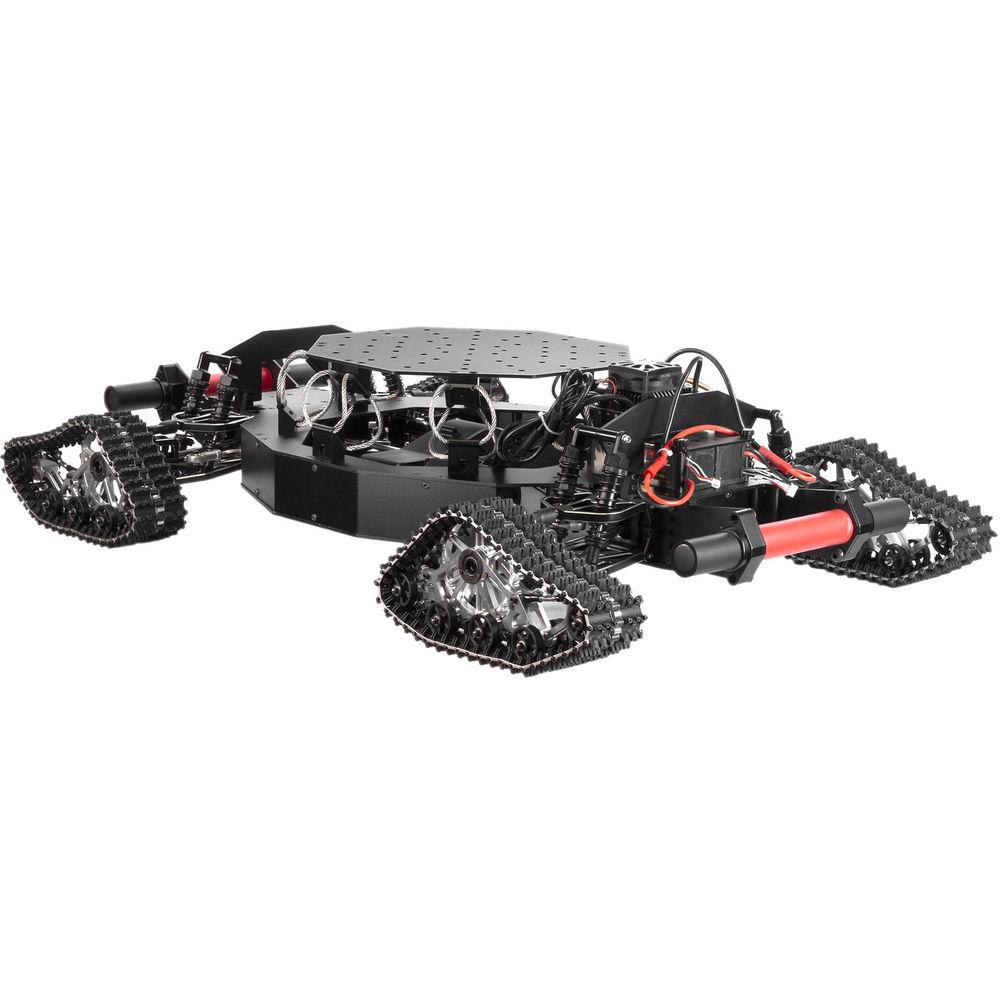

- Four included treads disperse weight to keep the gimbal car balanced on rough terrain
- 2.4 GHz remote control range of up to 6.2 miles
- Quick release mount for DJI Ronin gimbals included
- Compatible with MōVI gimbals (MōVI plate available separately)
- Up to 24 hours of battery life with recommended battery options and settings such as 6S, 8S, or dual 4S Li-ion batteries with 28V maximum power output
UPC: 794604459516 In the Box CINEGEARS 4 x 4 All-Wheel Drive X Gimbal Car 4 x Wheels (6.7 x 3.1") 4 x Rover Tread DJI Ronin Mounting Adapter Controller 2 x 14.8V 77Wh 4S LiPo Battery Limited 3-Year Warranty Limited 5-Year Power Train Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS 4 x 4 All-Wheel Drive X Gimbal Car in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS CI3094 Specs | Material of Construction | Aluminum | | Maximum Load Capacity | 66.1 lb / 30 kg | | Maximum Speed | 50 mph / 80 kmh | | Wi-Fi | Band: 2.4 GHz
Range: 3.1 to 6.2 miles / 5 to 10 km | | Battery | 2 x 14.8V, 77 Wh 4S LiPo Batteries | | Servo | Steering: 26 lb / 12 kg | | Torque Constant | 960 Kv, 200 ESC | | Dimensions | Car: 26.7 x 43.3" / 68 x 110 cm
Top Platform: 15.4 x 15.4" / 39 x 39 cm
Wheel Axle Spread: 23.2" / 59 cm | | Weight | 59.5 lb / 27 kg | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 44.1 x 31.25 x 16.0" |
