User Manual for CINEGEARS 6 x 6 All-Wheel Drive Gimbal Car Click to enlarge the picture
Contents of the user manual for the CINEGEARS 6 x 6 All-Wheel Drive
- Product category: Stabilizers & Gimbals CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Stabilizers & Gimbals
 |
User manual for the CINEGEARS 6 x 6 All-Wheel Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Cinegears New Gimbal Car 2019 Line Up
- RC Gimbal Cars by Cinegears (Brand New 2018 Models!)

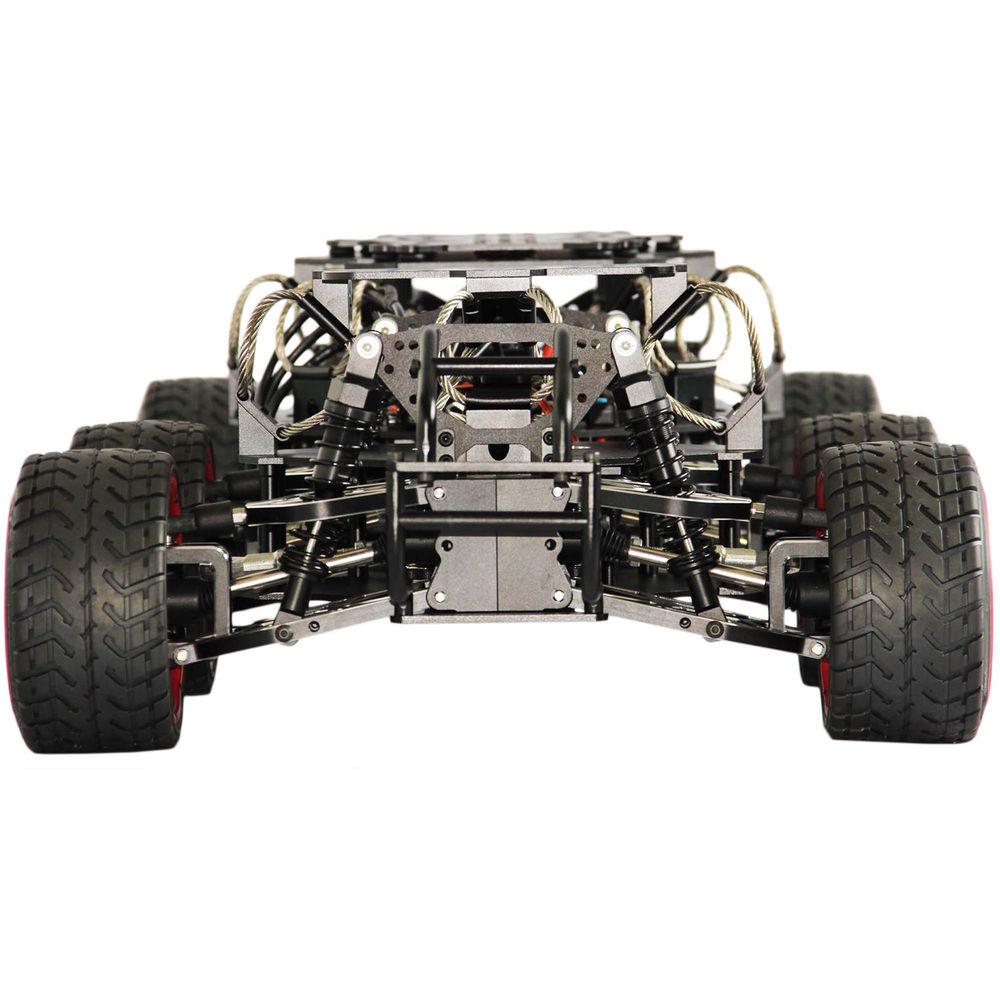

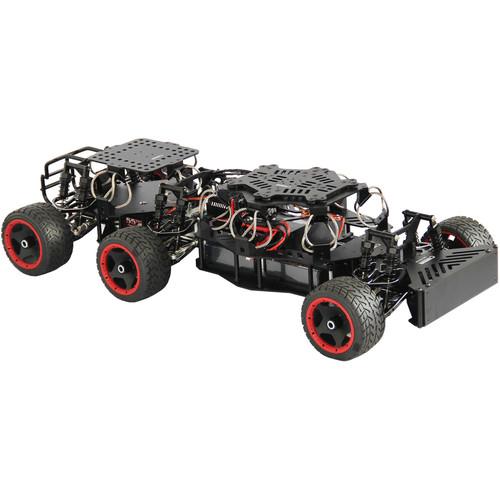

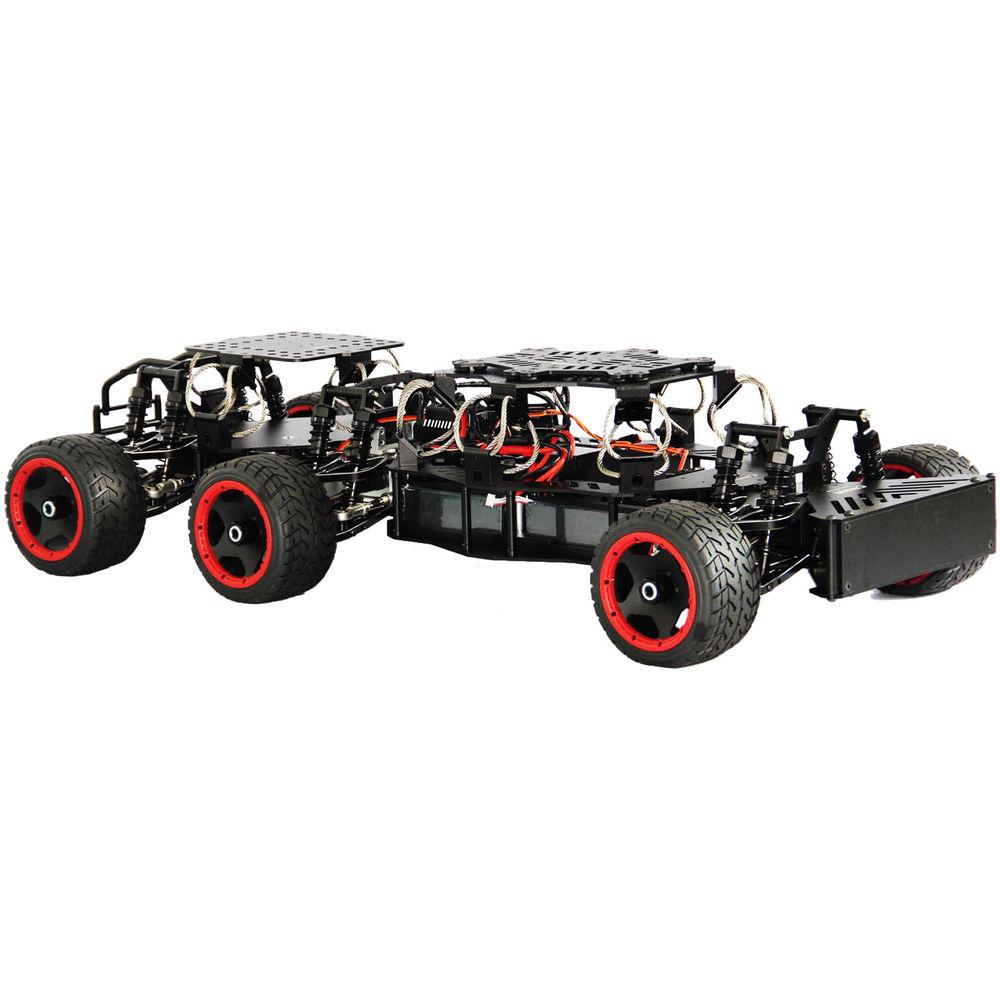

Speed into areas where a drone can't travel with the 6 x 6 All-Wheel Drive Gimbal Car from Cinegears and capture professional, gimbal-stabilized footage. Along with 6-wheel drive, a top speed of 50 mph, 3-point suspension, a wide wheel spread, and a maximum payload up to 65 lb between both platforms, the gimbal car utilizes electric steering and braking via its 2.4 GHz controller to capture smooth shots in challenging locations.

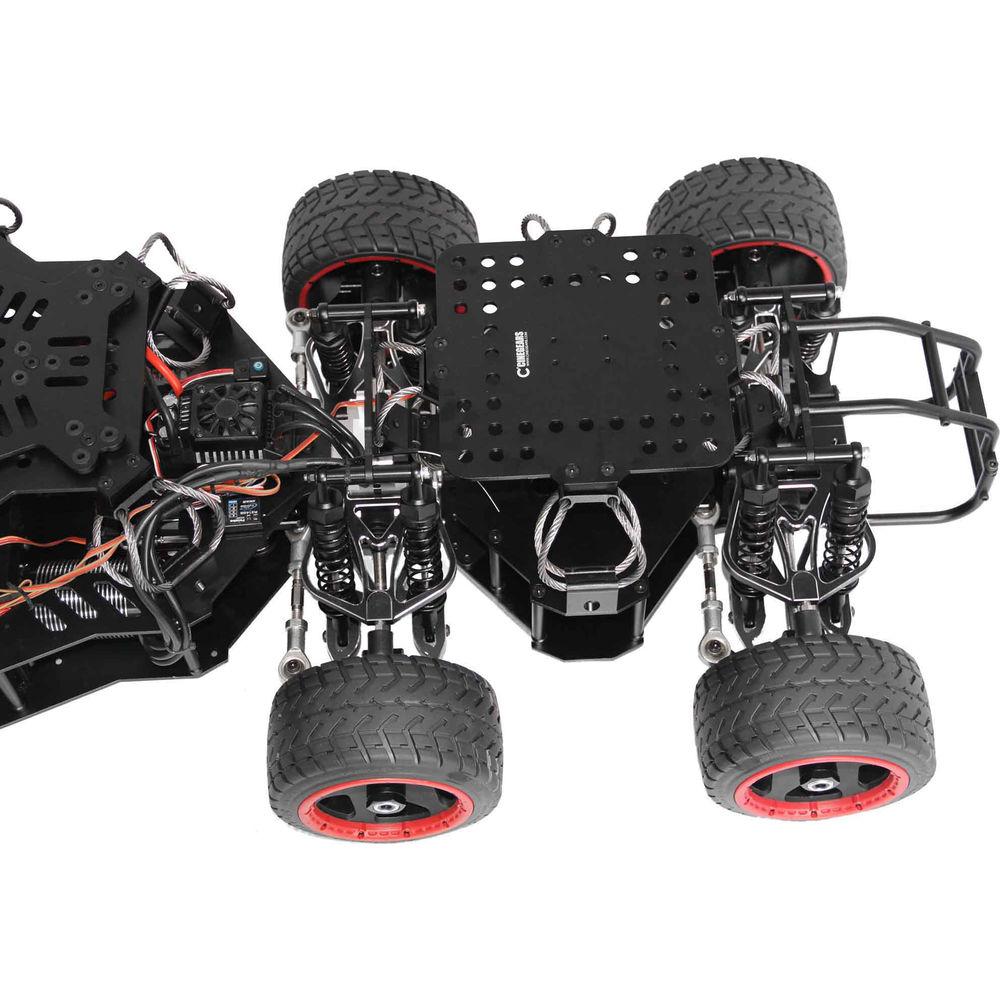

The gimbal car includes a top cheese plate to attach accessories, and a second cheese plate above the rear two wheels allows you to mount additional accessories. A built-in DJI Ronin gimbal mount adapter is included to combine the flexibility of a professional gimbal with the sturdiness of the aluminum alloy and carbon fiber car body. A separately available MōVI adapter plate can be purchased to utilize a MōVI gimbal and its accessories.
The car can be powered with the included dual 77Wh 14.8V 4S LiPo batteries or in separately available 6S or 8S battery configurations to provide up to 24 hours of battery life. The brushless 960 Kv motor and transmission are rated waterproof and dustproof. - Waterproof and dustproof motor and transmission system
- Powered by two included 77Wh 4S LiPo batteries, 14.8V maximum power output each

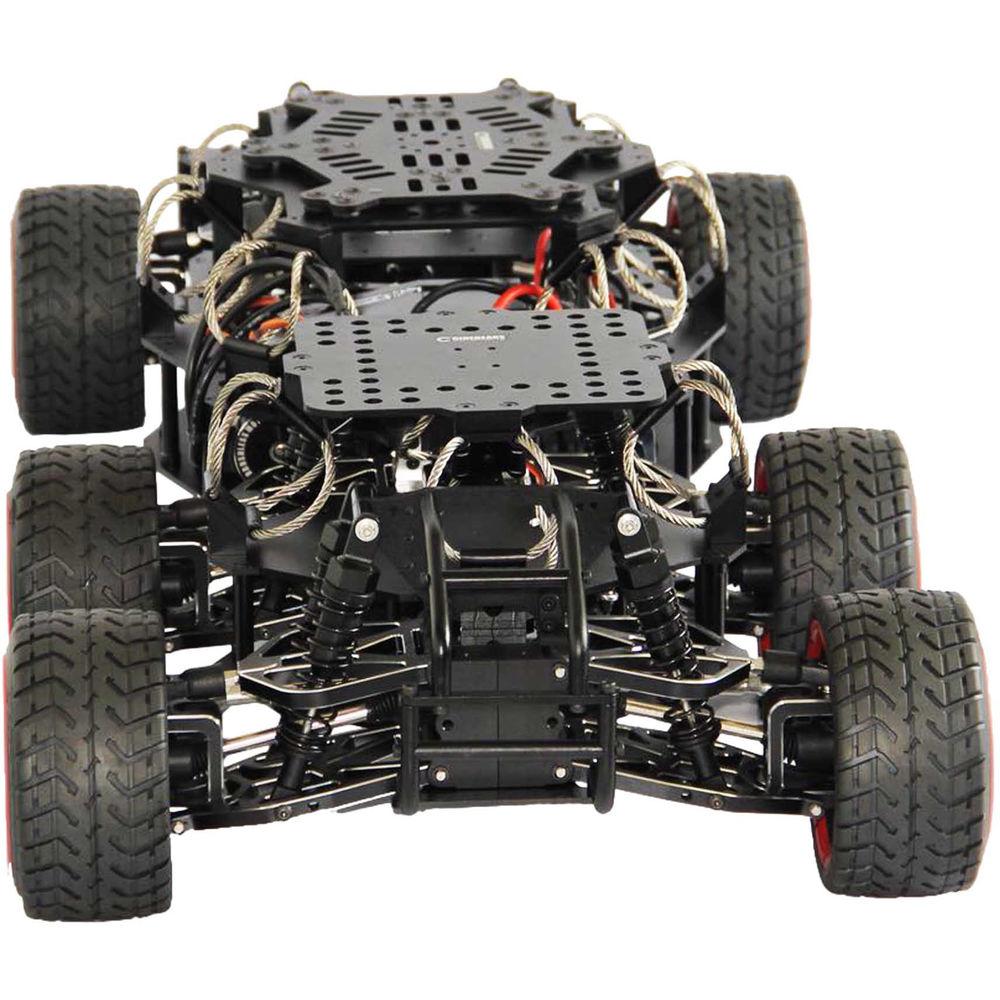

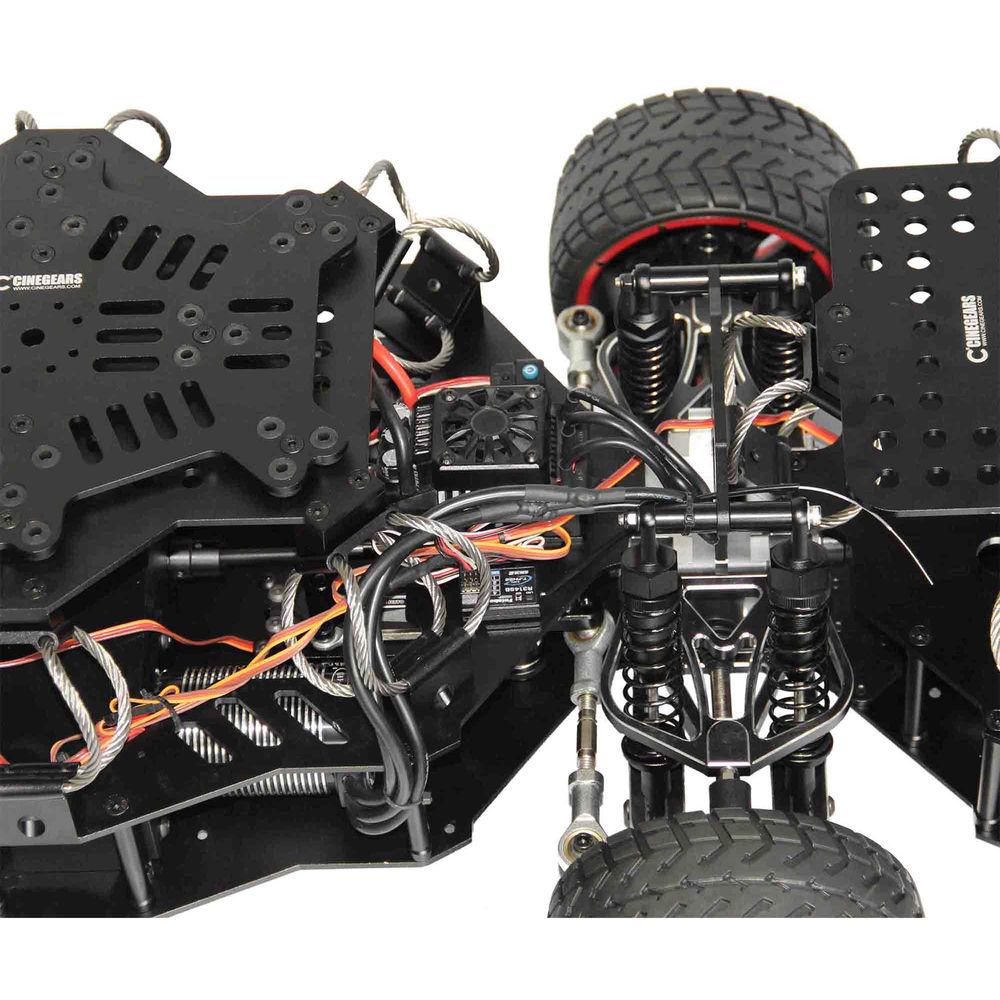

- Three-point suspension system including built-in heavy-duty stabilization platform
- Hydraulic spring dampener absorbs low-frequency vibrations while wide rope dampener absorbs high-frequency vibrations
- Aluminum alloy body with carbon fiber top section is resilient to warping due to stress, temperature, and other environmental factors
- Heavy-duty wheel rim with separate tire tread and inner tube
- 2.4 GHz remote control range of up to 6.2 miles
- Quick release mount for DJI Ronin gimbals included
- Compatible with MōVI gimbals (MōVI plate available separately)
- Up to 24 hours of battery life with recommended battery options and settings
UPC: 610877597666 In the Box CINEGEARS 6 x 6 All-Wheel Drive Gimbal Car Controller 6 x Wheel (6.7 x 3.1") 2 x 14.8V 77Wh 4S LiPo Battery Mounting Adapter for DJI Ronin Limited 3-Year Warranty (Car) Limited 5-Year Warranty (Power Train) Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS 6 x 6 All-Wheel Drive Gimbal Car in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6X6 Gimbal Car Specs | Material of Construction | Main Body: Aluminum
Top Section: Carbon Fiber | | Motor Configuration | Brushless 960 Kv, 200 ESC | | Mechanical | Electric Steering and Braking
Steering Servo: 77 lb / 35 kg | | Wireless Remote | Frequency: 2.4 GHz
Range: Up to 6.2 Miles / 10 km | | Power Output | 14.8 V (Each Battery) | | Battery | 2 x 77Wh 4S LiPo Batteries (Included)
6S and 8S LiPo Configurations Supported
Up to 24 Hours of Battery Life | | Speed | 50 mph / 80 km/h (Maximum) | | Max Load | 65 lb / 29.5 kg (Total When Distributed between the Two Platforms) | | Dimensions (W x L) | Car: 19 x 29" / 48 x 73.5 cm
Top Platform: 8.2 x 8.2" / 21 x 21 cm
Wheel Axle Spread: 23.2" / 59 cm
Wheels: 6.7 x 3.1" / 17 x 8 cm | | Weight | Less than 26.4 lb / 12 kg |
