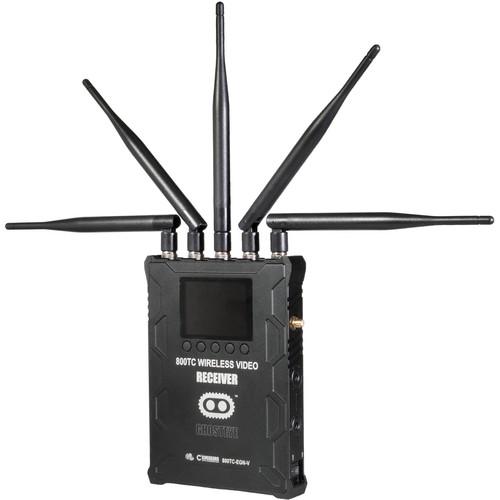

User Manual for CINEGEARS 800TC ENG Ghost Eye Wireless HD SDI Video Receiver Click to enlarge the picture
Contents of the user manual for the CINEGEARS 800TC ENG Ghost Eye Wireless
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
|
User manual for the CINEGEARS 800TC ENG Ghost Eye Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description Equipped with tally and talk-back functionalities, the 800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount) from CINEGEARS is suitable for use in broadcasting. The tally light on the 800TC transmitter indicates when the camera is on the air, while the talkback feature on the receiver end allows the director to give heads up to the camera operator. Combined with a video splitter, the 800TC ENG transmitter can be used to trigger the record function on an external recorder on the receiver's end. -
- Wireless HD video and audio transmission over 2500'
- Supports resolution up to 1920 x 1080 at 60 fps with 10-bit 4:2:2 color
- HDMI/SDI cross-conversion with SDI loop-out
- Supports timecode
- Supports Start/Stop functionality
- Low latency at <1 ms
- Four transmission channels to an unlimited number of Ghost-Eye receivers
- Full cross-compatibility with other Ghost-Eye models
- Customizable encryption
- Auto-relink once transmitter is back within range
UPC: 612520356705 In the Box CINEGEARS 800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount) 5-Pin to XLR Connector 5 x Extended High-Range Antenna Standard Antenna Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS 800TC ENG Ghost Eye Wireless HD SDI Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Frequency Range | 5.1-5.9 GHz
2.4-2.483 GHz with ISM band | | Modulation / Bandwidth | OFDM / 40 MHz for video
GFSK / 1 MHz for intercom system | | Video Format Support | 1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60 | | Audio Formats Supported | PCM, DTS-HD, Dolby TrueHD | | Time Code | SMPTE-12M | | Transmission Range | Line of Sight: 2500' (762 m) | | Transmitter/Receiver Antenna | 5 x External antennas 5G
External antenna 2G | | Receiving Sensitivity | -70 dBm | | Interface | SDI dual output
HDMI output
Mini USB
LEMO power input
Antenna RPSMA socket
Power On/Off, 3.5 mm HP/MIC socket
3.5 mm TALLY socket
LEMO 6 needle | | Mounting | 1/4" hot-shoe | | OLED | Channel info
Signal strength
Power info
TALLY indicator | | Power Source | 9 to 18 VDC
V-Mount battery | | Power Consumption | 7.5 to 8.5 W | | Temperature | Operating: 14 to 112°F (-10 to 50°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions | 6.7 x 4.8 x 1" (169.5 x 122 x 25.2 mm) | | Weight | With Antenna: 28.2 oz (800 g) |
