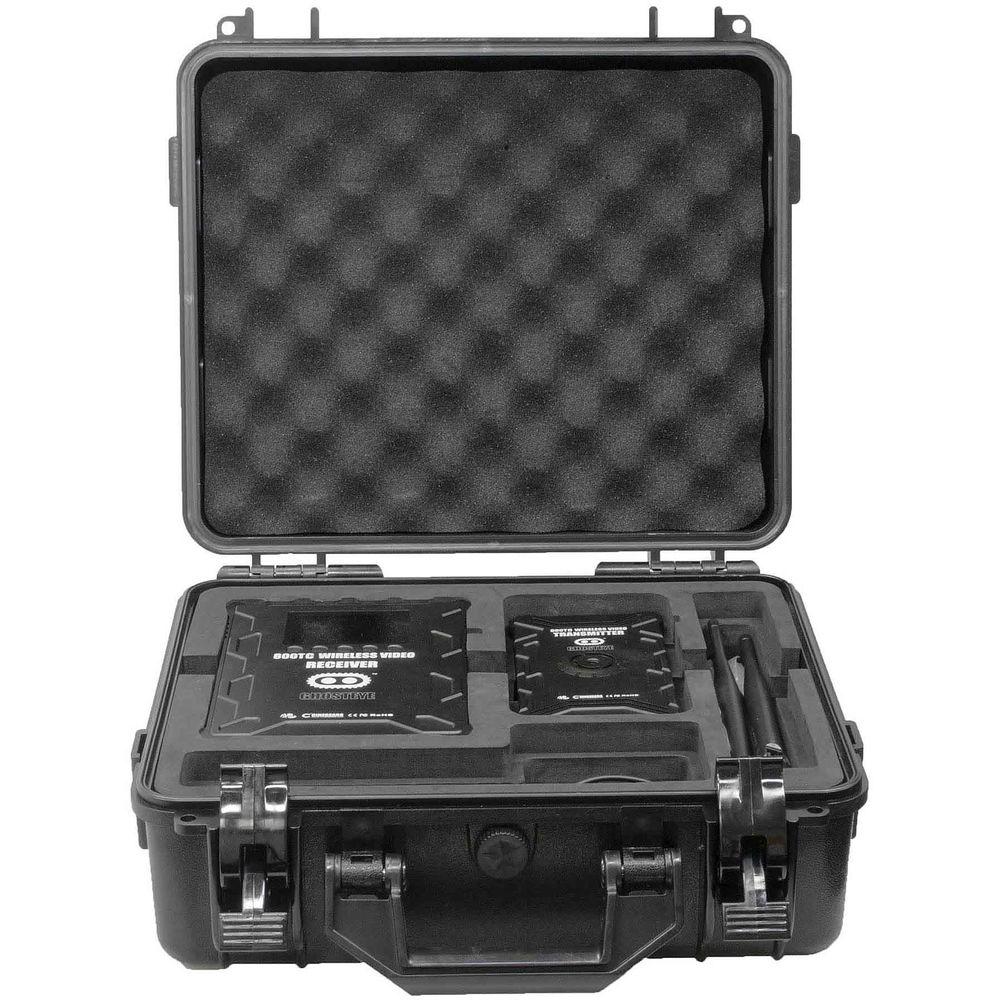

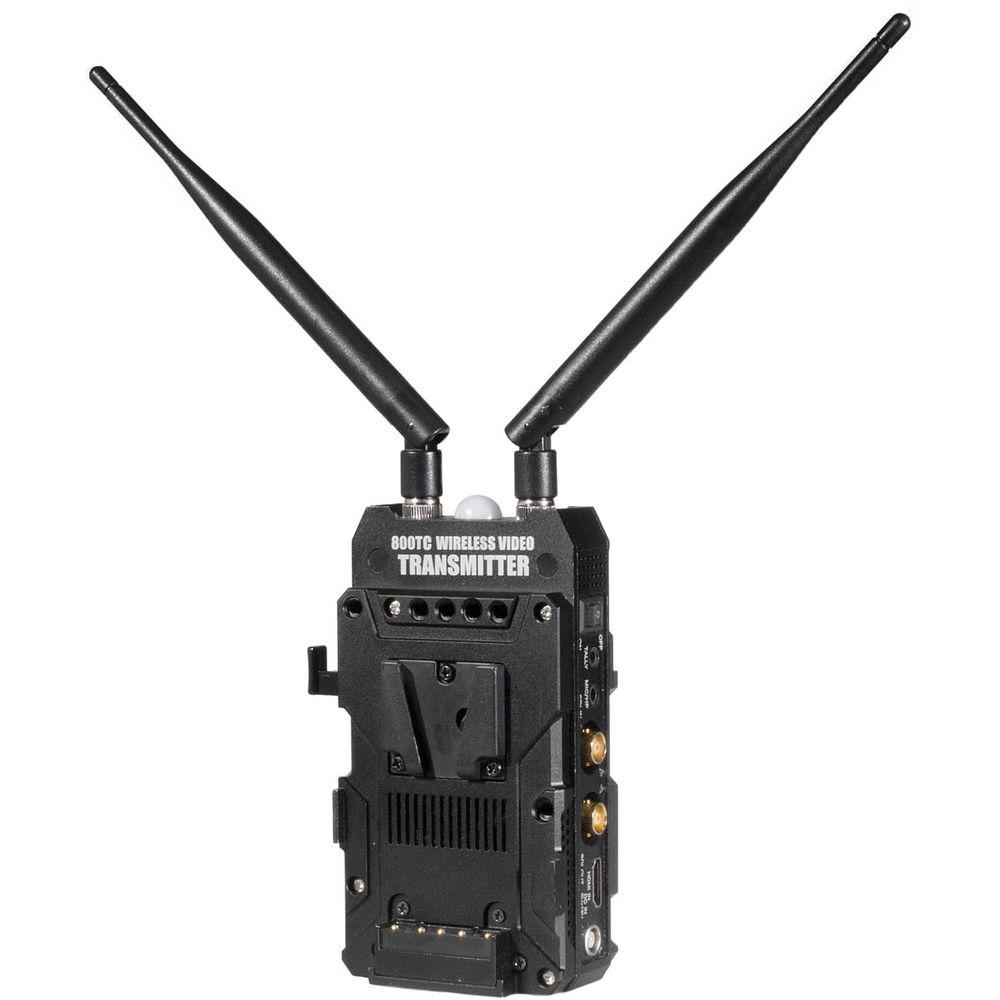

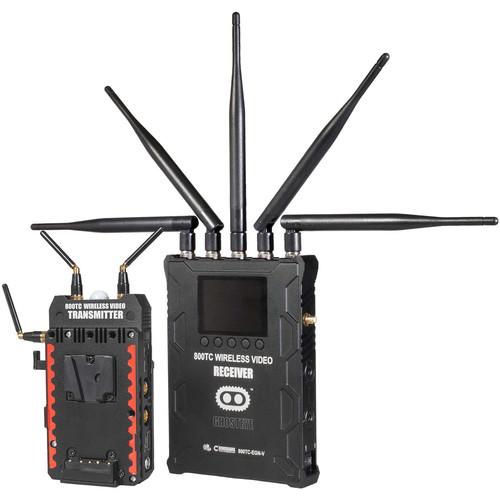

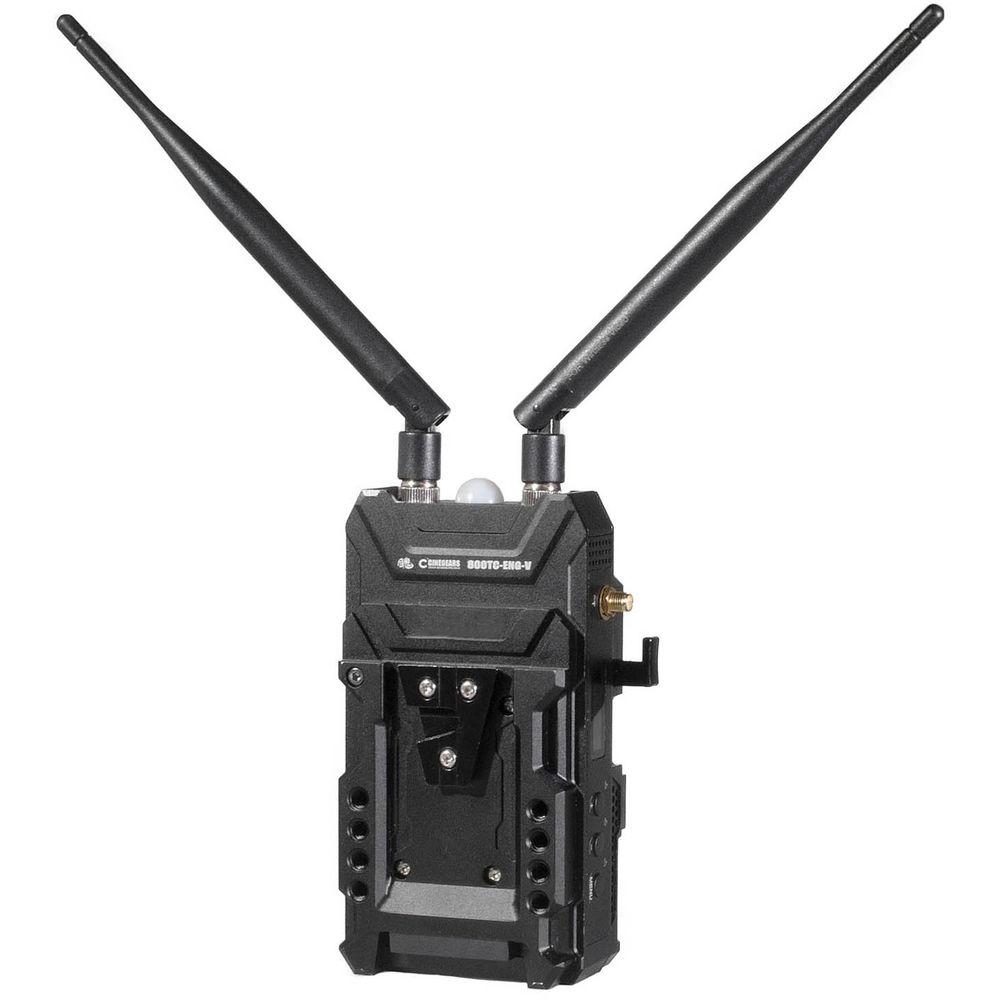

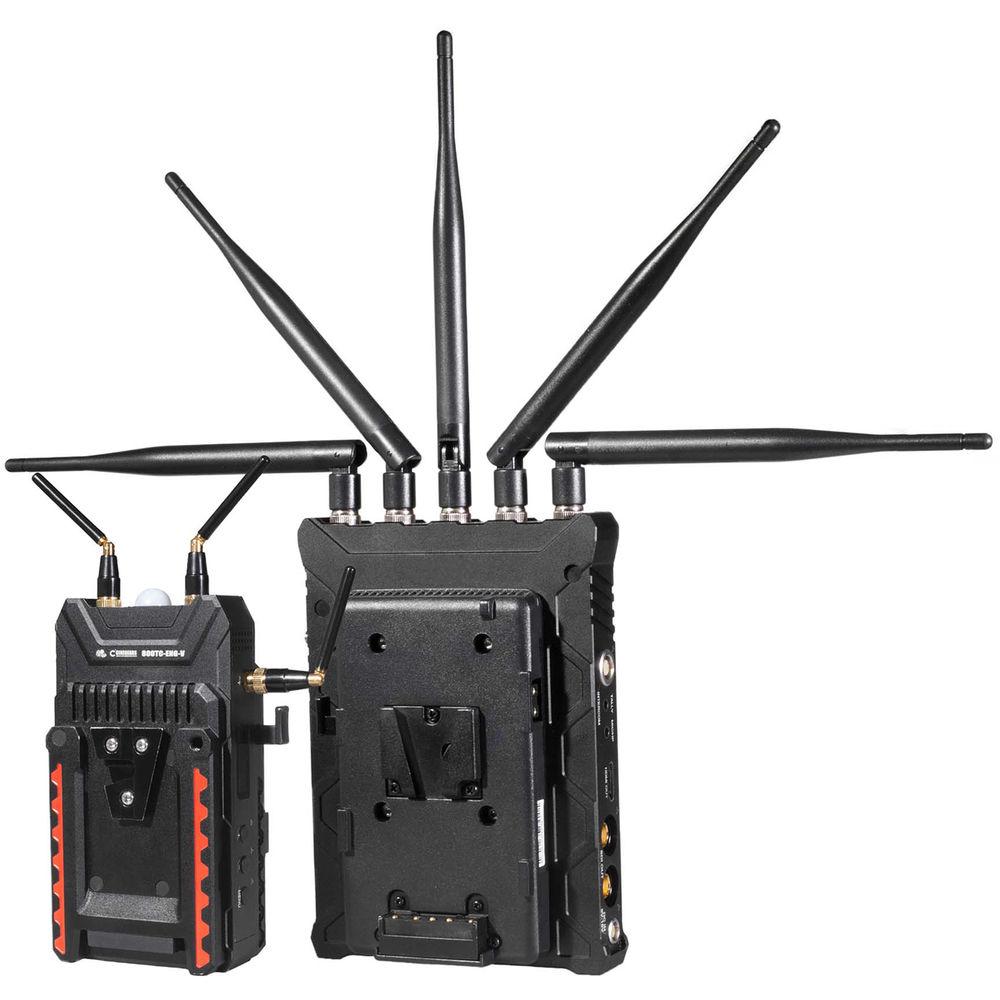

Product description The 800TC ENG Ghost Eye Wireless HD SDI Video Transmission Kit (V-Mount) from CINEGEARS includes a 800TC ENG (V-Mount) transmitter, a 800TC ENG (V-Mount) receiver, and a waterproof foam case. - 800TC ENG Ghost Eye Wireless HD SDI Video Transmitter (V-Mount) Equipped with tally and talk-back functionalities, the 800TC ENG Ghost Eye Wireless HD SDI Video Transmitter (V-Mount) from CINEGEARS is suitable for use in broadcasting. The tally light on the 800TC transmitter indicates when the camera is on the air, while the talkback feature on the receiver end allows the director to give heads up to the camera operator. Combined with a video splitter, the 800TC ENG transmitter can be used to trigger the record function on an external recorder on the receiver's end.
-
- Wireless HD video and audio transmission over 2500'
- Supports resolution up to 1920 x 1080 at 60 fps with 10-bit 4:2:2 color
- HDMI/SDI cross-conversion with SDI loop-out
- Supports timecode
- Supports Start/Stop functionality
- Low latency at <1 ms
- Four transmission channels to an unlimited number of Ghost-Eye receivers
- Full cross-compatibility with other Ghost-Eye models
- Customizable encryption
- Auto-relink once transmitter is back within range

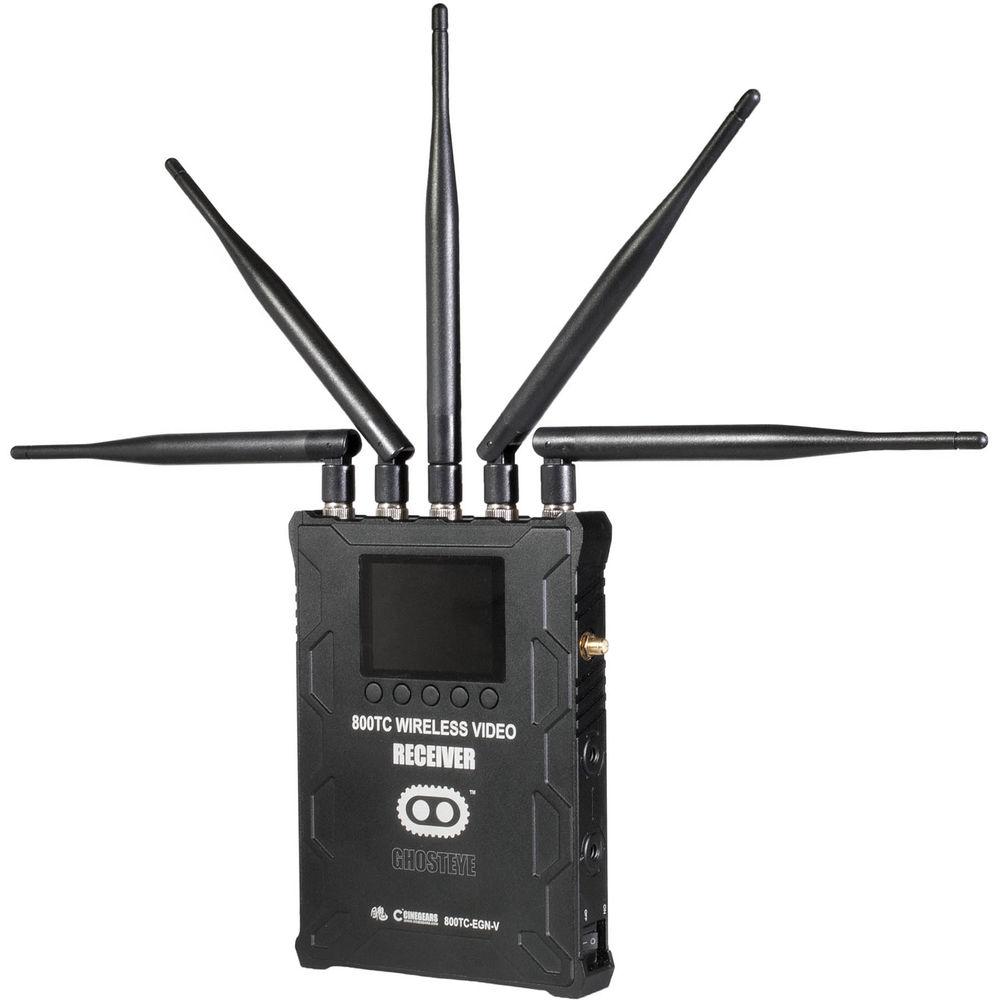

UPC: 612520356712 - 800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount) Equipped with tally and talk-back functionalities, the 800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount) from CINEGEARS is suitable for use in broadcasting. The tally light on the 800TC transmitter indicates when the camera is on the air, while the talkback feature on the receiver end allows the director to give heads up to the camera operator. Combined with a video splitter, the 800TC ENG transmitter can be used to trigger the record function on an external recorder on the receiver's end.
-
- Wireless HD video and audio transmission over 2500'
- Supports resolution up to 1920 x 1080 at 60 fps with 10-bit 4:2:2 color
- HDMI/SDI cross-conversion with SDI loop-out
- Supports timecode
- Supports Start/Stop functionality
- Low latency at <1 ms
- Four transmission channels to an unlimited number of Ghost-Eye receivers
- Full cross-compatibility with other Ghost-Eye models
- Customizable encryption
- Auto-relink once transmitter is back within range
UPC: 612520356705 In the Box Bundle Items 800TC ENG Ghost Eye Wireless HD SDI Video Transmitter (V-Mount) zwxrtyccyrrqstsrxuqydrezuad - 2 x Extended High-Range Antenna

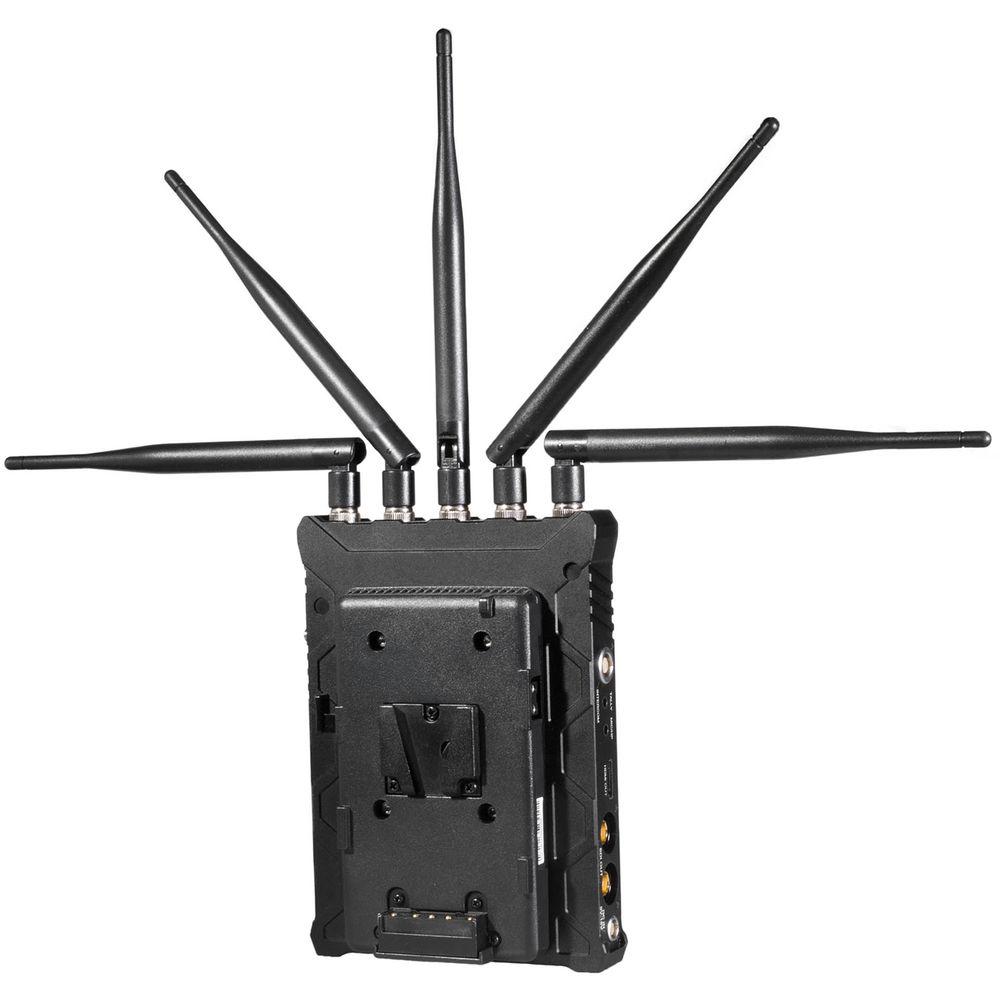

800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount) - 5 x Extended High-Range Antenna
Also Includes User Manual PDF 7.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS 800TC ENG Ghost Eye Wireless HD SDI Video Transmission Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 800TC ENG Ghost Eye Wireless HD SDI Video Transmitter (V-Mount)
| Frequency Range | 5.1-5.9 GHz
2.4-2.483 GHz with ISM band | | Modulation / Bandwidth | OFDM / 40 MHz for video
GFSK / 1 MHz for intercom system | | Video Format Support | 1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60

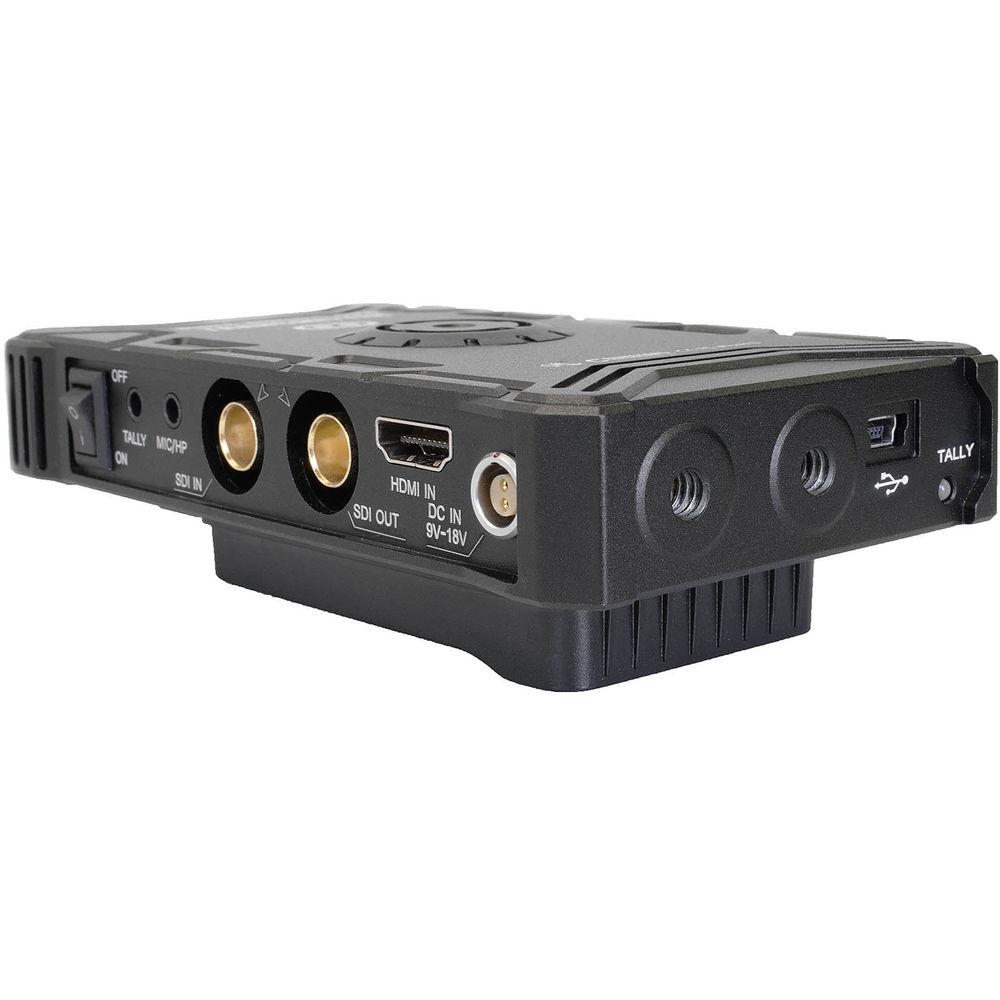

720p 50/59.94/60 | | Audio Formats Supported | PCM, DTS-HD, Dolby TrueHD | | Time Code | SMPTE-12M | | Transmission Range | Line of Sight: 2500' (762 m) | | Transmitter/Receiver Antenna | 2 x External antennas 5G
External antenna 2.4G | | Receiving Sensitivity | 18 dBm | | Interface | HDMI input
SDI input
SDI loop output
Mini USB
LEMO power input
Antenna RPSMA socket

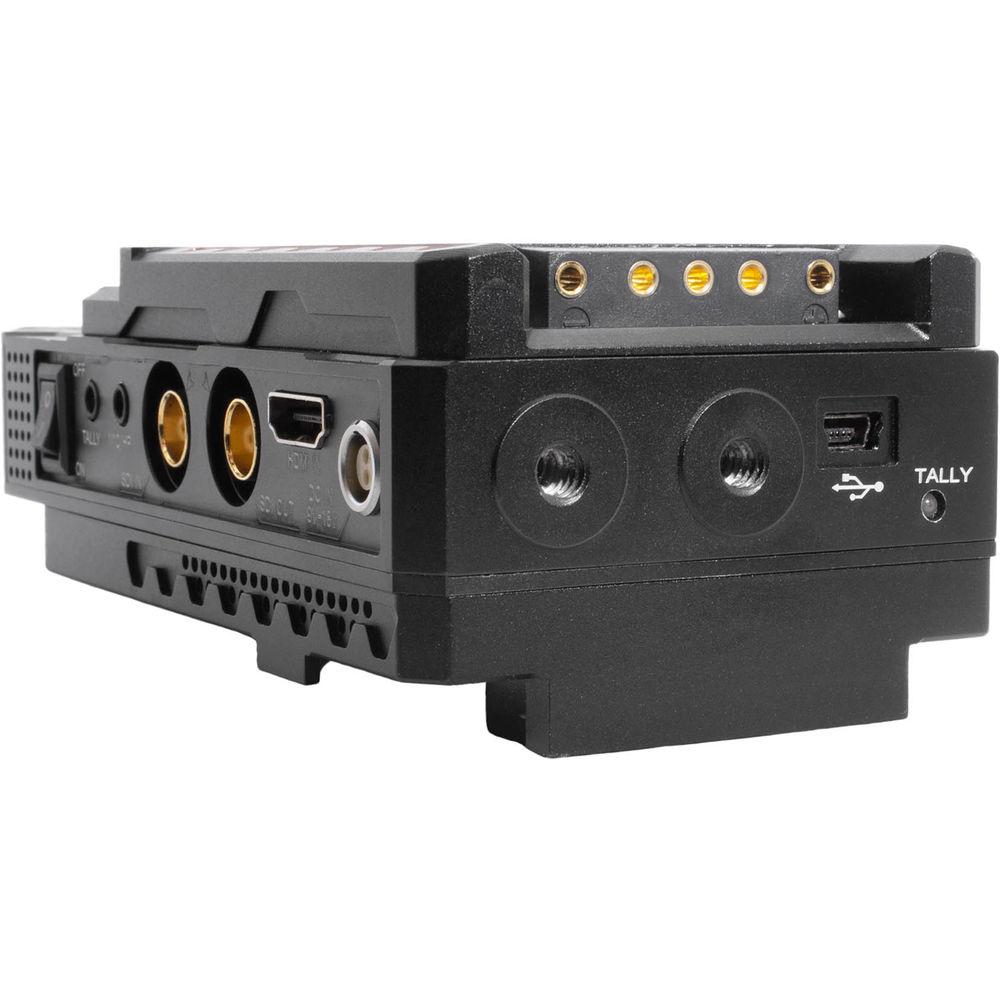

Power On/Off, 3.5 mm HP/MIC socket TALLY output for wrist | | Mounting | 1/4" hot-shoe | | OLED | Channel info, video status, battery capacity, status menu, audio volume | | Power Source | 9 to 18 VDC
V-Mount battery | | Power Consumption | 7.5 to 8.5 W | | Temperature | Operating: 14 to 112°F (-10 to 50°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions | 5.6 x 3 x 1" (142.5 x 76 x 24.3 mm) | | Weight | With Antenna: 14.1 oz (400 g) | - 800TC ENG Ghost Eye Wireless HD SDI Video Receiver (V-Mount)
| Frequency Range | 5.1-5.9 GHz
2.4-2.483 GHz with ISM band | | Modulation / Bandwidth | OFDM / 40 MHz for video
GFSK / 1 MHz for intercom system | | Video Format Support | 1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60 | | Audio Formats Supported | PCM, DTS-HD, Dolby TrueHD | | Time Code | SMPTE-12M | | Transmission Range | Line of Sight: 2500' (762 m) | | Transmitter/Receiver Antenna | 5 x External antennas 5G
External antenna 2G | | Receiving Sensitivity | -70 dBm | | Interface | SDI dual output
HDMI output

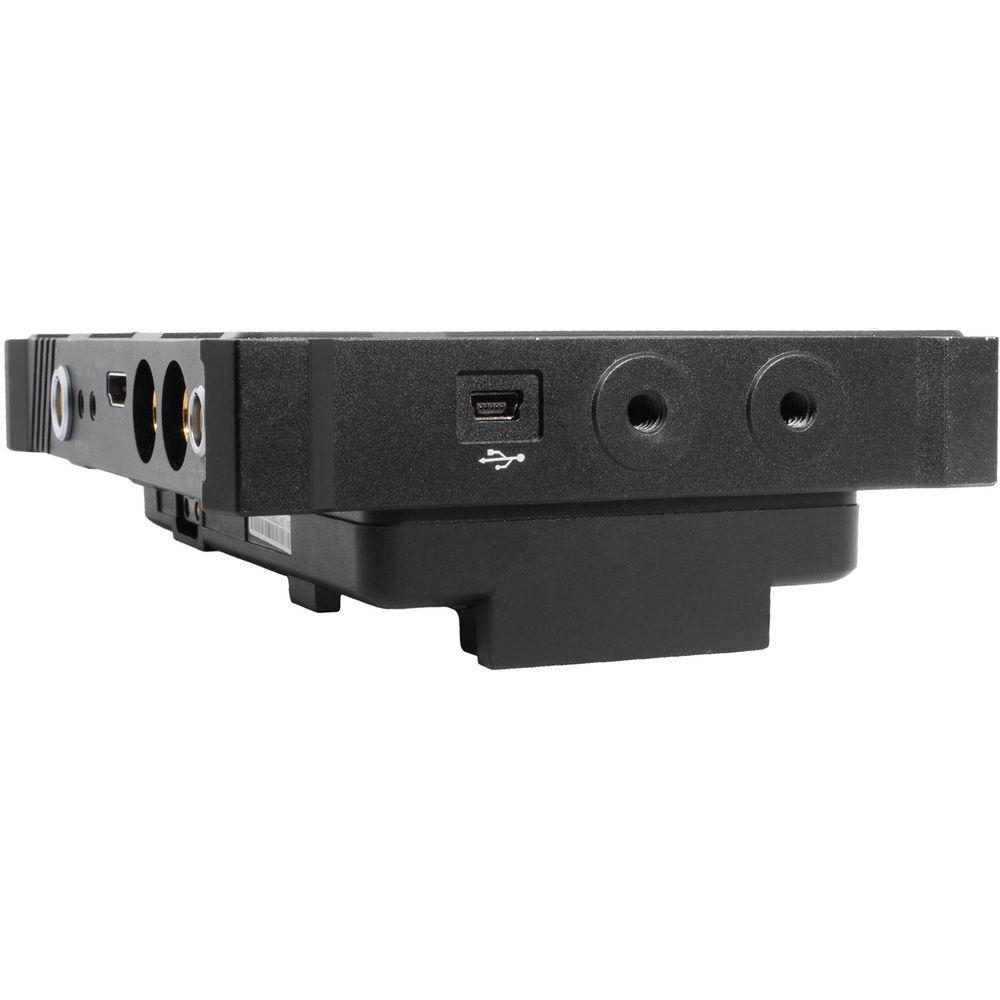

Mini USB
LEMO power input
Antenna RPSMA socket
Power On/Off, 3.5 mm HP/MIC socket
3.5 mm TALLY socket
LEMO 6 needle | | Mounting | 1/4" hot-shoe | | OLED | Channel info
Signal strength
Power info
TALLY indicator | | Power Source | 9 to 18 VDC
V-Mount battery | | Power Consumption | 7.5 to 8.5 W | | Temperature | Operating: 14 to 112°F (-10 to 50°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions | 6.7 x 4.8 x 1" (169.5 x 122 x 25.2 mm) | | Weight | With Antenna: 28.2 oz (800 g) |
