Product description

• Single-Axis Extreme Motor
  • Single Axis Standard Wireless Follow Focus Kit Operations Guide
  • Wireless Follow Focus Manual Setup Guidance
  • Wireless Follow Focus Motor Maintenance Tips
  • Wireless Follow Focus Infinite Focus Lens Setup by IPG Rentals
  • Single Axis Wireless Follow Focus Setup Review BY James Healey

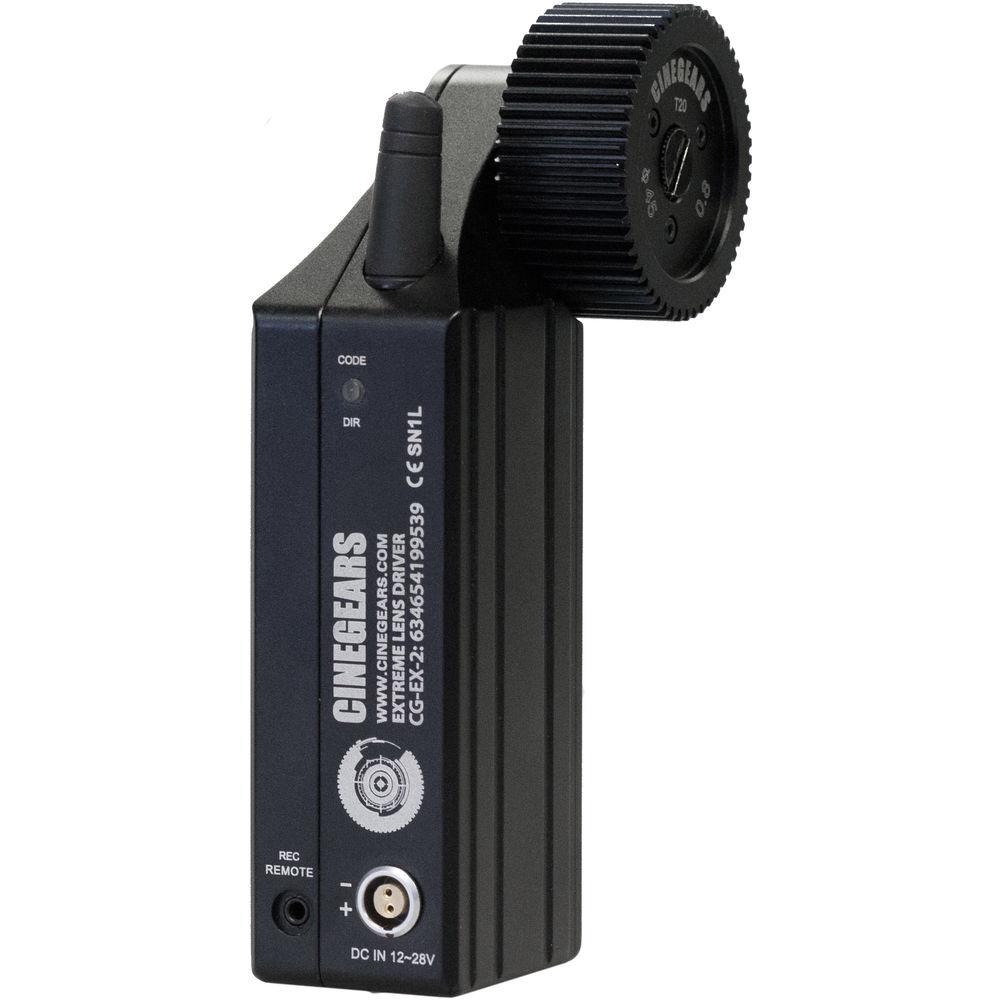

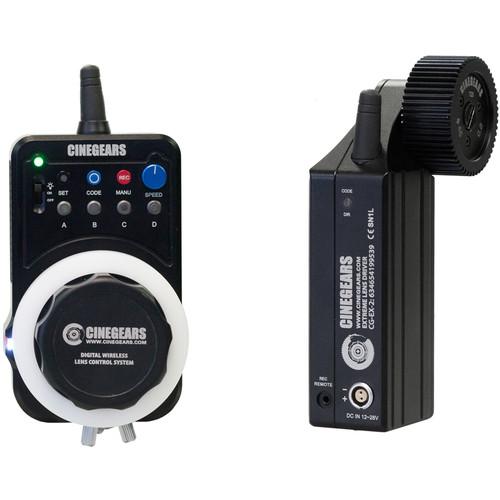

  The CINEGEARS Single-Axis Extreme Motor provides precise repeatable control of your focus, zoom, or iris ring, and it provides twice the torque as the Single-Axis motor and is suitable for use with prime lenses and even stiff zooms. It is compatible with an optional CINEGEARS controller, Single, Multi, Rocker, or Espresso, and ships with an interchangeable cine-style 0.8 MOD drive gear. It requires an optional power cable and rod clamp, which are available separately. You may use this motor to drive the focus, zoom, or iris gear ring on your lens. Once mounted, the lens motor will calibrate itself to your lens in a simple process. You can also manually remap your lens with the optional hand controller, and program multiple stops along the lens, simulating either hard stops, or focus positions. The motor direction is electronically reversible if you need to change the orientation of your motor, or are working with a lens that focuses in the opposite direction to standard cine lenses. The motor incorporates a LEMO jack for power and a LANC jack for camera start / stop.
  Wireless Control
  • The motor incorporates a wireless receiver that allows you to control it via your CINEGEARS Single-Axis Wireless Controller. An optional LANC cable / remote trigger is required for camera start / stop. An optional 2-pin LEMO cable is required to provide power to the motor.
  Metal Drive Gear
  • The included aluminum 0.8 MOD gear fits cine-style lens gears. The gear is removable, so you can swap it out for optional gears for video lenses and non-standard lens gears. The gear's motor facing surface is made from chrome-plated stainless steel, which matches the facing surface of the motor drive.
  Motor Function
  • The motor will calibrate itself to your lens and also allows you to remap the lens to your controller. You can program multiple stop points, especially useful when working with infinitely rotating lenses, or if you wish the set specific focus points on an optional focus hand-wheel.
  Reversible
  • The motor drive is reversible, which allows you to use lenses that focus in the opposite direction from standard without having to add a physical reversing gear.
  UPC: 743724114485

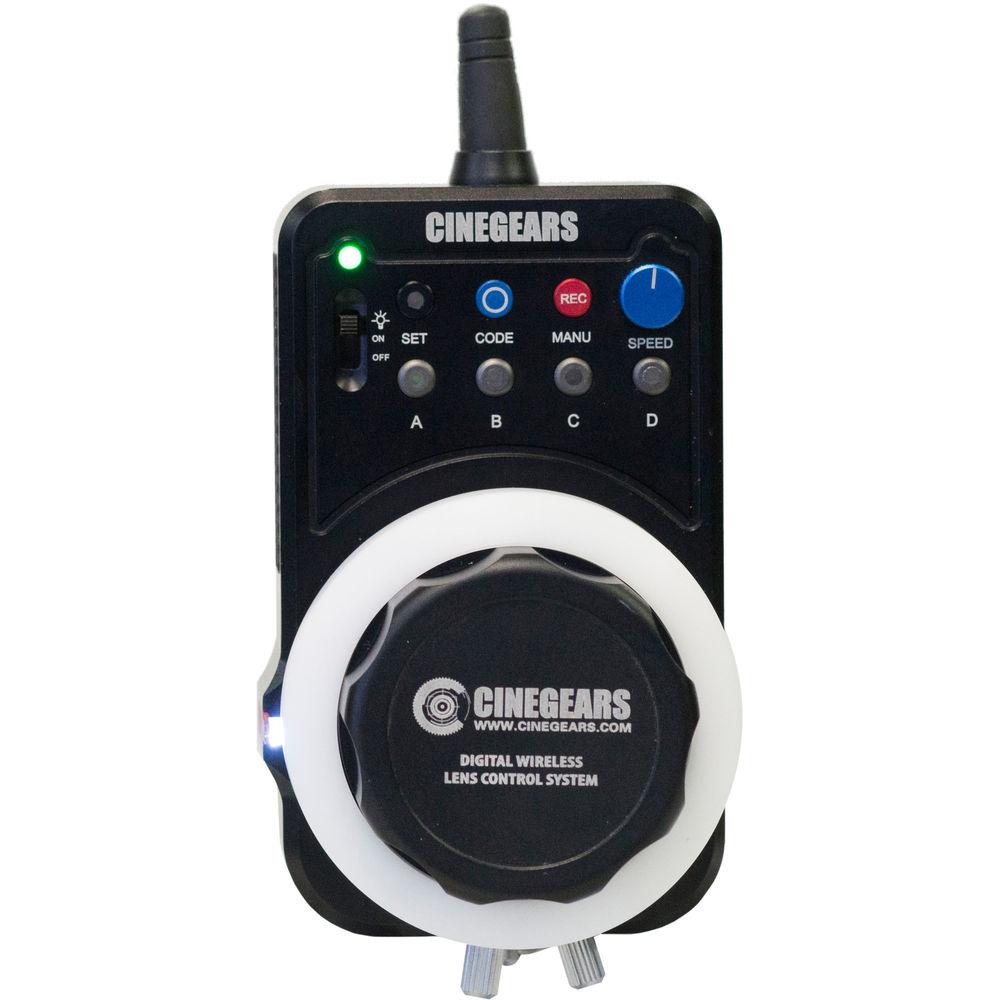

• Single Axis Wireless Express Plus Controller The CINEGEARS Single Axis Wireless Express Plus Controller is a wireless follow focus controller that easily pairs with a CINEGEARS wireless motor. You can use the controller for focus, zoom, or iris. The controller operates on a frequency of 433 MHz, providing a range of up to 320' line of sight. The wireless controller and optional motor combination provide simple auto lens calibration and manual lens remapping for easy lens changes.

  The Express Plus Controller features a removable marking disc, a side mounted index marker with an illuminating LED for pulling focus in dim lighting conditions, and allows you to program up to four stop / positions. Adjustable physical hard stops on the controller are useful when working with lenses that do not have physical hard stops. You can adjust the transition speed for programmed presets, and with optional cables connected to your motor, you can control start/ stop for ARRI, RED, Sony, and Canon professional camcorders. LED indicator lights show you the status of the controller.
  • The wireless controller features an internal LiPo battery that can run the controller for approximately 20 hours on a single charge. You can operate the controller while simultaneously charging it. Charging is via a mini USB connector, and it supports input voltage range of 12 to 30 VDC.
  • The controller supports auto-calibration, manual calibration, and lens remapping.
  • After calibration, the end stops are automatically slightly shortened, preventing you from pinning the lens.
  • You can program focus pre-sets into the controller and then transition between the focus points at the push of a button with adjustable transition speed.
  • Manual calibration allows you to set close and far distance stops when using an infinitely rotating lens
  • The Express Plus Controller features adjustable hard stops that you can use to match the end stops of your calibrated lens. You can also adjust the stops to reflect the positions of the start and stop of your focus pull, so you can pull focus without looking at the controller.
  • The Express Plus Controller features a built-in LED that illuminates the area of the removable marking disk around the index mark, allowing you to more easily see your marks in dim or dark conditions.
  UPC: 743724113983
• 2" Rod Bracket for Lens Control Motors (15mm) The CINEGEARS 2" Rod Bracket for Lens Control Motors mounts on a 15mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris. It features a spring-loaded locking lever that allows you to tighten the bracket on the clamp, while at the same time securing the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 15mm clamp is designed to work specifically with 15mm support rods.
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114089
• 2" Rod Bracket for Lens Control Motors (19mm) The CINEGEARS 2" Rod Bracket for Lens Control Motors mounts on a 19mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris. It features a spring-loaded locking lever that allows you to tighten the bracket on the clamp, while at the same time securing the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 19mm clamp is designed to work specifically with 19mm support rods.
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114102
• 3.1" Rod Bracket for Lens Control Motors (15mm) The CINEGEARS 3.1" Rod Bracket for Lens Control Motors mounts on a 15mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris ring. It features two spring-loaded locking levers; one that allows you to tighten the bracket on the rod, and a second locking lever that secures the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 15mm clamp is designed to work specifically with 15mm support rods
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114096
• Magnetic Beveled Marking Disc for Express Controller The CINEGEARS Magnetic Beveled Marking Disc for Express Controller is specifically made to work with a CINEGEARS Express controller, and only the Express controller. It magnetically mounts on the controller and incorporates a slot for a corresponding index pin, which prevents the marking disk from spinning on the controller, ensuring your marks stay accurate. The disk is made to be used with either dry or wet erase marker for easy cleaning and re-marking. UPC: 743724114058
• 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0) The CINEGEARS 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors features 4 lightweight plastic gears that allow you to drive most geared cine or ENG-style lenses. The gears can replace the original aluminum drive gears for CINEGEARS lens motors, providing a cost effective solution to handle surprises in the field.

  Each gear is only 38mm in diameter, and features a captive mounting screw. The smaller diameter of the replacement gear, as compared to the standard drive gears, may provide smoother movement as you drive the lens with your motor. Each gear is labeled allowing you to easily select the right gear for your lens. The gear marked 0.8 is for cine-style lenses. Gears marked 0.5 and 0.6 are standard for ENG-style lenses. UPC: 743724114126
• Motor Gear Re-Locator The CINEGEARS Motor Gear Re-Locator consists of a chrome plated stainless steel spacer that allows you to position your drive gears about 0.5" from the normal gear location when using your CINEGEARS motors. The spacer is made of the same material, chrome-plated stainless steel, as the inside of the CINEGEARS metal gear to prevent gear stripping. Included with the gear spacer is an attachment screw, which is needed to attach your drive gear to your motor with the spacer in place. UPC: 743724114072
• Single Axis Wireless Motor Power Cable The CINEGEARS Single Axis Wireless Motor Power Cable provides power to your motor from an optional power source outfitted with a D-tap connector. The cable features a D-tap connector on one end and a 2-pin LEMO connector on the other. The cable features plastic insulation, and it can handle from 12 to 28 VDC.
  • Approximately 44" long
  • LEMO connector prevents polarity reversal when use with CINEGEARS motor.
  UPC: 743724113969
• Hard Case with Foam Inserts for Single-Axis Kit The CINEGEARS Hard Case with Foam Inserts for Single-Axis Kit is a waterproof case that provides protection to your equipment from damage from falls and impact. The custom cut foam interior allows you to keep the components of your single axis wireless kit snug and secure during transport and storage. UPC: 743724114720

• Lens Drive Gear

• Limited 1-Year Warranty

• Limited 3-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1_Year Warranty

• Limited 1-Year North American Warranty

• Thumb Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Single-Axis Extreme Motor

  Material of Construction	Black anodized CNC machined aluminum and steel alloy
  Maximum Peak Torque	1.7 Nm
  Maximum Speed	2.8 rev/sec
  Connectors	1 x 2-pin LEMO jack 1 x LANC jack
  Power Input	12 to 28 VDC
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 122°F / -20 to 50°C
  Dimensions	5.5 x 1.3 x 2.0" / 14.0 x 3.2 x 5.1 cm
  Weight	1.1 lb / 500 g

  Box Dimensions (LxWxH)	5.6 x 3.9 x 1.4"

• Single Axis Wireless Express Plus Controller

  Material of Construction	Aluminum and steel alloy
  Construction	CNC machined, black anodized coating
  Frequency	433 MHz (RF)
  Battery	LiPo
  Charging Voltage	Input: 12 to 30 VDC
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 122°F / -20 to 50°C
  Dimensions	5.8 x 2.8 x 2.8" / 14.6 x 7.0 x 7.0 cm
  Weight	Approximately 1.0 lb / 0.5 kg

  Box Dimensions (LxWxH)	4.2 x 3.2 x 2.1"

• 2" Rod Bracket for Lens Control Motors (15mm)

  Material of Construction	Hard anodized aluminum Steel slide
  Length	2" / 5 cm
  Rod Clamp Type	15mm

  Box Dimensions (LxWxH)	4.0 x 2.05 x 0.65"

• 2" Rod Bracket for Lens Control Motors (19mm)

  Material of Construction	Hard anodized aluminum Steel slide
  Length	2" / 5 cm
  Rod Clamp Type	19mm

  Box Dimensions (LxWxH)	3.95 x 1.95 x 1.15"

• 3.1" Rod Bracket for Lens Control Motors (15mm)

  Material of Construction	Hard anodized aluminum Steel slide
  Length	3.1" / 8 cm
  Rod Clamp Type	15mm

  Box Dimensions (LxWxH)	2.992 x 1.024 x 0.551"

• Magnetic Beveled Marking Disc for Express Controller

  Material of Construction	PVC
  Dimensions	Internal Diameter: 2.4" / 6.0 cm External Diameter: 2.8" / 7.0 cm Height: 0.5" / 1.2 cm
  Weight	1.1 oz / 30.0 g

  Box Dimensions (LxWxH)	2.7 x 2.6 x 0.8"

• 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0)

  Gear Standard	Gear 1 MOD: 0.5 Gear 2 MOD: 0.6 Gear 3 MOD: 0.8 Pitch: 32 Gear 4 MOD: 1.0
  Diameter	1.5" / 38 mm

  Box Dimensions (LxWxH)	3.1 x 3.1 x 0.3"

• Motor Gear Re-Locator

  Material of Construction	Chrome plated stainless steel
  Width	0.5" / 12.7 mm

• Single Axis Wireless Motor Power Cable

  Connector 1	P-Tap/D-Tap
  Connector 2	2-pin LEMO
  Length	44" / 113 cm
  Weight	1.1 oz / 30 g

  Box Dimensions (LxWxH)	4.65 x 2.4 x 1.5"

• Hard Case with Foam Inserts for Single-Axis Kit

  Material of Construction	PVC
  Dimensions	10.8 x 8.9 x 5.1" / 27.5 x 22.5 x 13.0 cm
  Weight	3.5 lb / 1.6 kg
