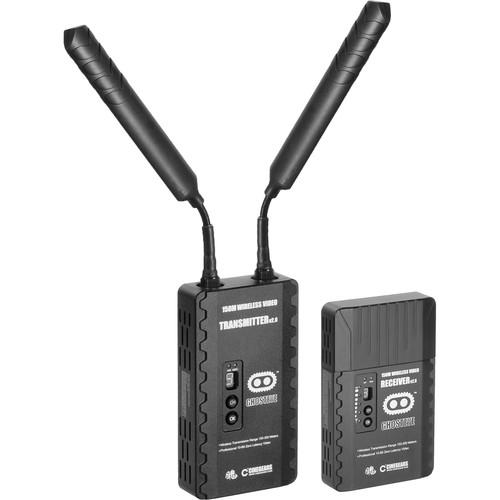

Product description The Cinegears Ghost-Eye 150M V2 Transmitter and Receiver Set enables you to transmit up to 1080p60 uncompressed HD video and audio at distances up to 492', an increase roughly double that of the original 150M set. This Ghost-Eye set features both HDMI and 3G-SDI inputs and outputs, 10-bit 4:2:2 video, and the simultaneous use of up to four of ten frequencies. A multicasting function enables you to use one 150M transmitter to send your video feed to up to four receivers (additional receivers not included). Additional features of the Ghost-Eye 150M V2 set include HDMI to SDI cross conversion, AES encryption, and 5 GHz Wi-Fi compatibility. Cross-compatibility with Ghost-Eye 100M/300M/400M units means you can mix and match components.
The 150M V2 transmitter and receiver can each be powered by one NP-F970 L-Series type battery, or via their standard 2-pin LEMO power plugs. Two antennas are included with the transmitter; the receiver has a built-in directional antenna. A hard-shell case with dedicated foam cutouts is included with the Ghost-Eye 150M V2 set. - Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 (L-Series Plate)
- Uwe Boll Raw and Ghost Eye, Rampage 3
- Cinegears Ghost Eye Wireless Video Transmission Channels Setting for Multiple Receivers
- Cinegears Wireless Video System Ghost Eye 150m
- CINEGEARS Wireless Video 150M and Blackmagic Micro Studio Camera 4K
Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 985 ft with the CINEGEARS Ghost-Eye Transmitter 150M V2. It safely supports up to four receivers (sold separately) simultaneously on each channel; moreover, it's cross-compatible with all other Ghost-Eye versions (100M, 150M, etc.), so you can connect to longer/shorter range receivers if you'd like.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1ms in the license-free 5 GHz frequency band. A minimum range of 492 ft (150 m) line-of-sight is ensured, while the maximum range is 985 ft line-of-sight. (It has even been successfully tested at much longer distances in open spaces.) The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the receiver end or vice-versa.
Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1ms of the obstacle being removed - auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the transmitter include AES-128 signal encryption and plug-and-play installation.

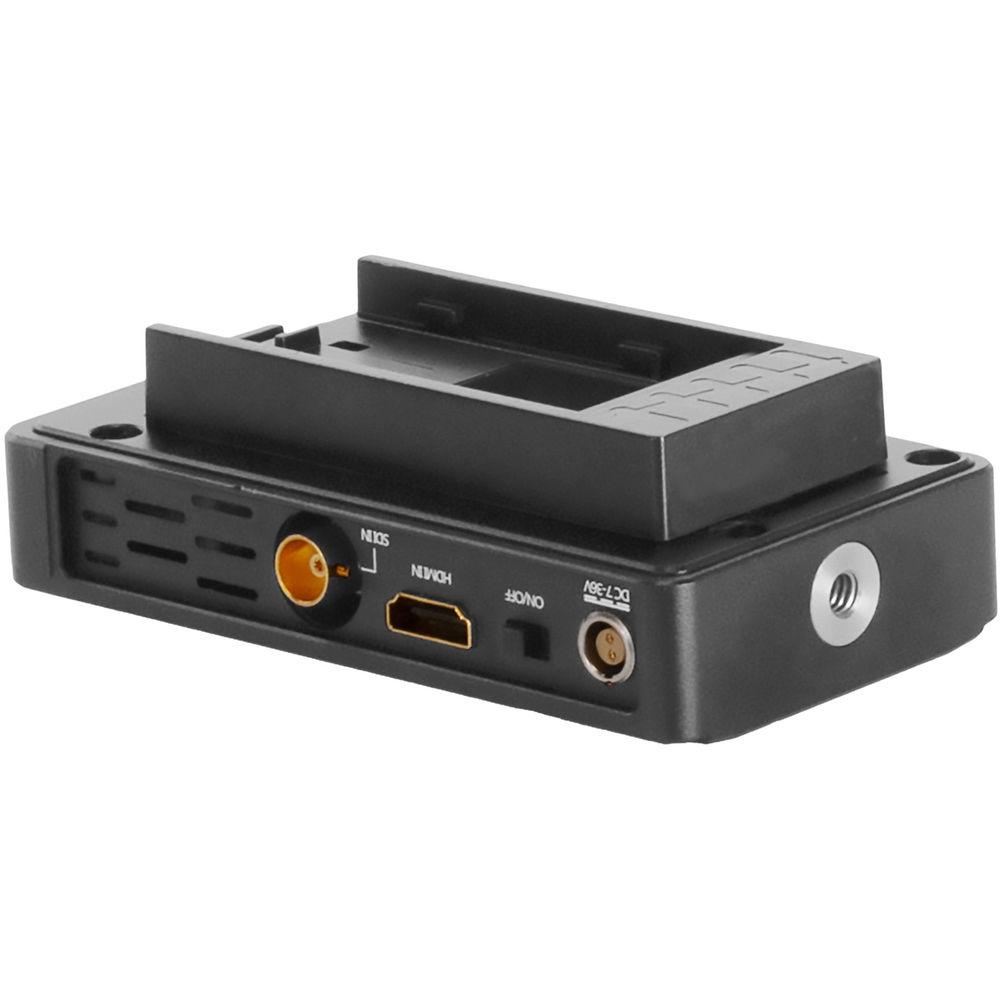

The 150M transmitter comes with two paddle antennas and a Sony L-Series battery plate. Batteries are sold separately. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 985 ft
- Compatible with any Ghost Eye receiver (100M, 150M, etc.)
- Supports 4 receivers simultaneously on each channel
- Less than 1ms of latency
- Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
- 492 ft (150m) line-of-sight to 985 ft max transmission distance
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES-128 signal encryption
- Plug-and-play installation
- Includes two paddle antennas
- Sony F970 L-Series battery plate
UPC: 714983522281 - Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 (L-Series Plate) The CINEGEARS Ghost-Eye Receiver 150M V2 pairs with any Ghost-Eye transmitter (100M, 150M, etc.) and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 985 ft with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band and ensures a minimum distance of 492 ft (150m) line-of-sight (from a 150M or higher transmitter), while the maximum distance is 985 ft (longer distances have successfully been tested in open spaces).
The receiver features both HDMI and SDI outputs and is capable of cross conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed — auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the receiver include AES-128 signal encryption and plug-and-play installation.
The 150M receiver has built-in antennas and a Sony L-Series battery plate. Batteries are sold separately. - Key Features
-
- Pairs with any Ghost-Eye transmitter (100M, 150M, etc.)
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 985 ft
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
- 492 ft line-of-sight, to 985 ft max transmission distance
- HDMI and SDI outputs with cross conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES-128 signal encryption
- Plug-and-play installation
- Built-in antennas
- Sony L-Series battery plate
UPC: 714983522274 - Heavy Duty Steel Ball Joint Articulated Arm

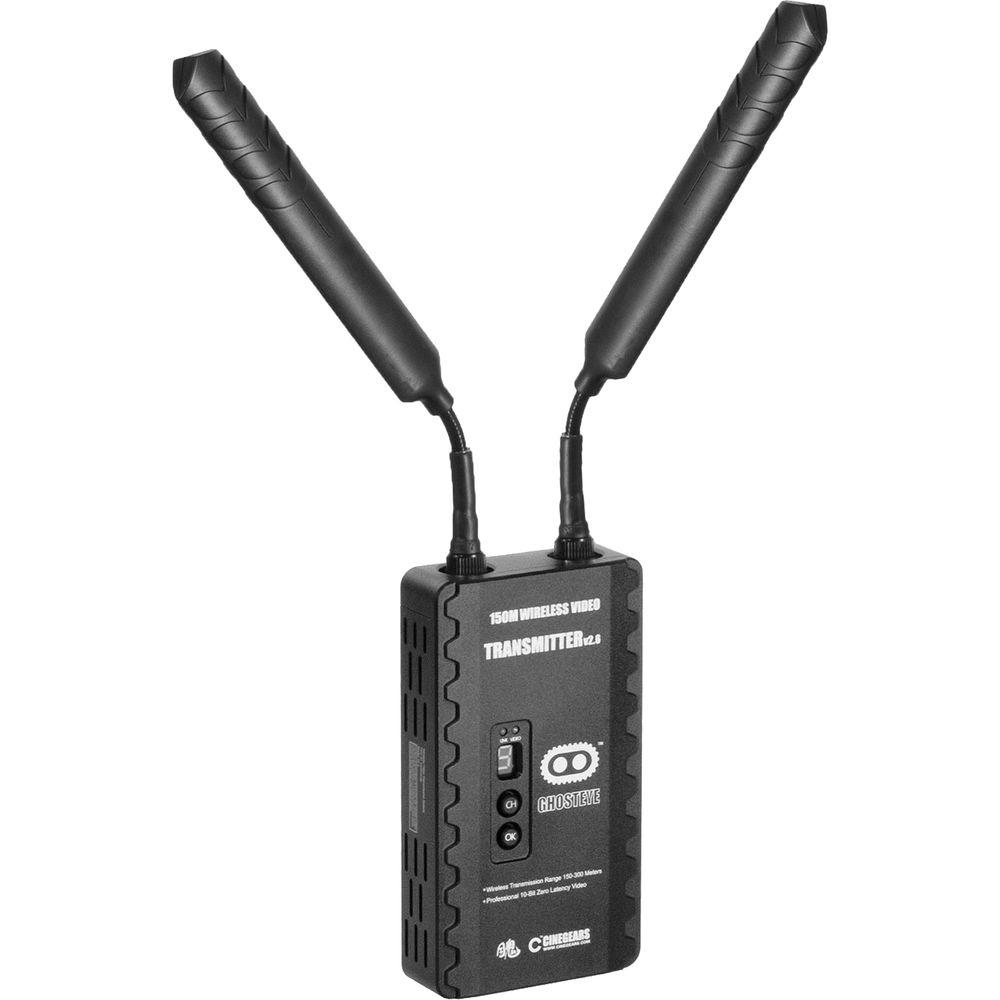

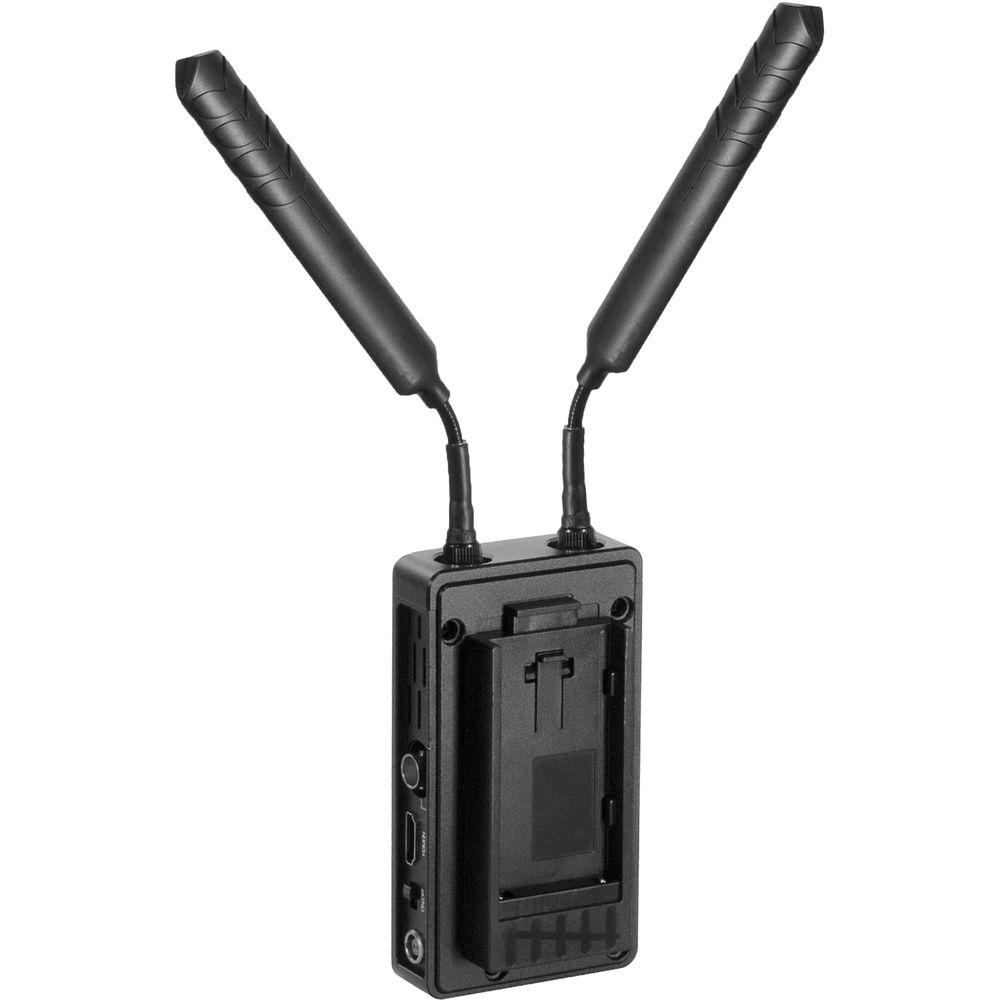

In the Box Bundle Items Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 (L-Series Plate) tsqewbqs 2 x - Paddle Antenna for Ghost-Eye 150M & 300M Wireless Video Transmission Systems

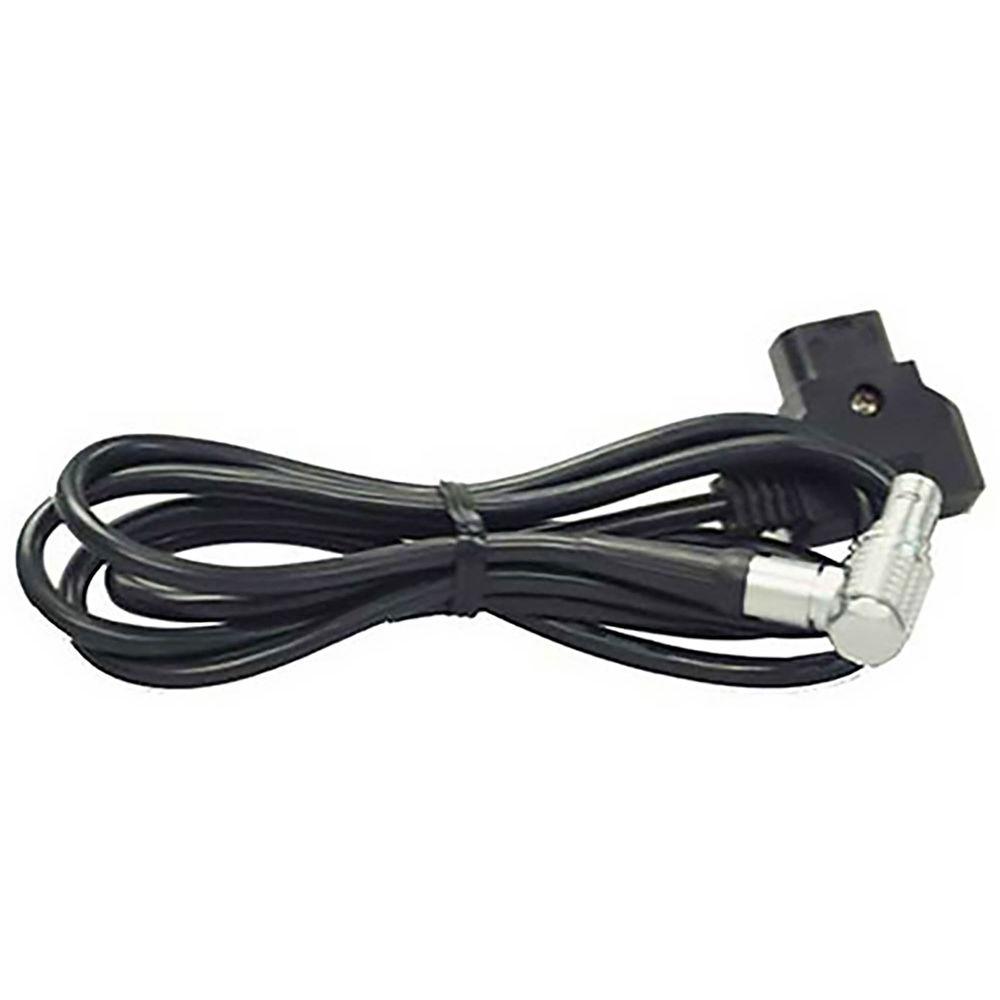

- 2-Pin LEMO to D-Tap Cable
Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 (L-Series Plate) - 2-Pin LEMO to D-Tap Cable

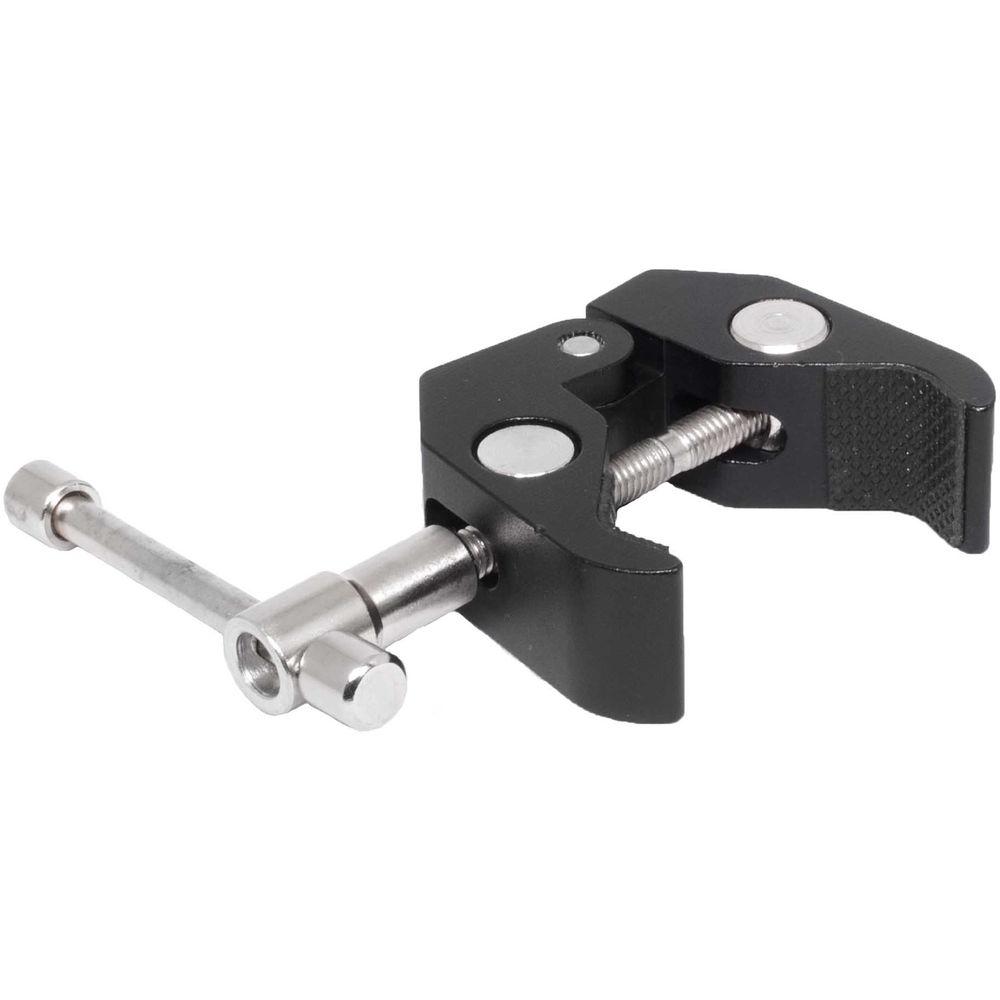

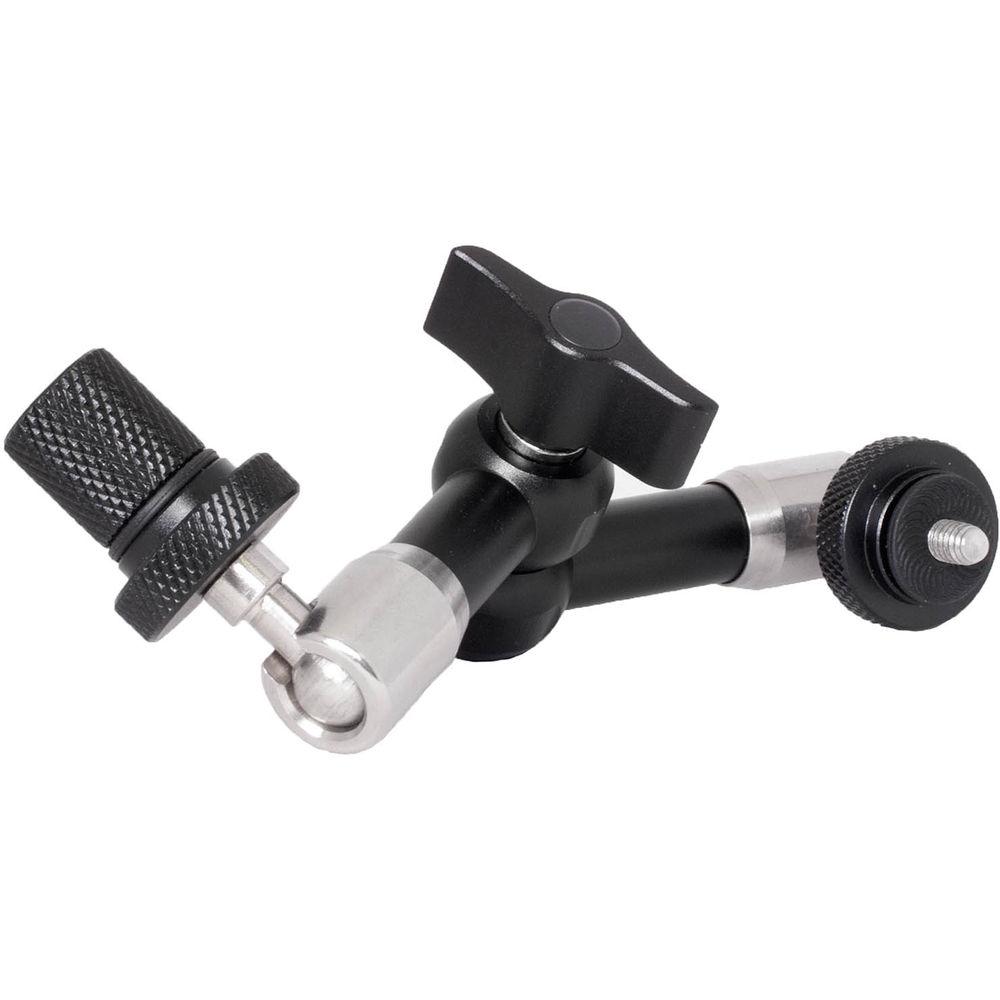

Heavy Duty Steel Ball Joint Articulated Arm tsqewbqs
Also Includes - Waterproof Hard Case
- Limited 3-Year Warranty
Guides & Manuals tsqewbqs Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 150M V2 Wireless HDMI 3G-SDI Transmission Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye 150M V2 Wireless HDMI 3G-SDI Transmission Kit can be downloaded in PDF format at the link stated below.
Technical parameters - Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 (L-Series Plate)
| Interface | Input:
1 x SDI BNC, female
1 x HDMI Type A, female
2 x antenna ports (PR-SMA male) | | Transmission Distance | 985 ft (300 m) line-of-sight
492 ft (150 m) minimum line-of-sight ensured | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Audio Input Format | SDI embedded 2-channel 24-bit/48 kHz | | Frequency Band | 5.1 to 5.9 GHz | | Modulation Mode | OFDM 16QAM | | Transmission Power | <18 dBm | | Occupied Bandwidth | 40 MHz | | Encryption | AES-128 | | Housing | Plastic | | Power | Input Voltage Range: 6.5 to 16.8 VDC
Consumption: 5.5 W | | Compliance | FCC, CE, RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm) | | Weight | 0.6 lb (270 g) | | | | Box Dimensions (LxWxH) | 4.9 x 4.9 x 2.1" | - Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 (L-Series Plate)
| Interface | Output:
1 x SDI BNC, female
1 x HDMI Type-A, female
1 x SDI, loop-through out | | Transmission Distance | 985 ft (300 m) line-of-sight
492 ft (150 m) minimum line-of-sight ensured | | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type-A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Audio Output Format | SDI-embedded 2-channel 24-bit/48 kHz | | Frequency Band | 5.1 - 5.9 GHz | | Modulation Mode | OFDM 16-QAM | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 40 MHz | | Encryption | AES-128 | | Housing | Plastic | | Power | Input Voltage Range: 6.5 - 16.8 VDC
Consumption: 6.5 W | | Compliance | FCC, CE, RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 6 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm) | | Weight | 0.8 lb (355 g) | | | | Box Dimensions (LxWxH) | 6.3 x 3.7 x 1.4" | - Heavy Duty Steel Ball Joint Articulated Arm
