Product description

The Cinegears Ghost-Eye 150M V2 Transmitter and Receiver Set enables you to transmit up to 1080p60 uncompressed HD video and audio at distances up to 492', an increase roughly double that of the original 150M set. This Ghost-Eye set features both HDMI and 3G-SDI inputs and outputs, 10-bit 4:2:2 video, and the simultaneous use of up to four of ten frequencies. A multicasting function enables you to use one 150M transmitter to send your video feed to up to four receivers (additional receivers not included). Additional features of the Ghost-Eye 150M V2 set include HDMI to SDI cross conversion, AES encryption, and 5 GHz Wi-Fi compatibility. Cross-compatibility with Ghost-Eye 100M/300M/400M units means you can mix and match components.

The 150M V2 transmitter and receiver can each be powered by one NP-F970 L-Series type battery, or via their standard 2-pin LEMO power plugs. Two antennas are included with the transmitter; the receiver has a built-in directional antenna. A hard-shell case with dedicated foam cutouts is included with the Ghost-Eye 150M V2 set. In the Box CINEGEARS Ghost-Eye 150M V2 Wireless HDMI/3G-SDI Transmission Kit (984')

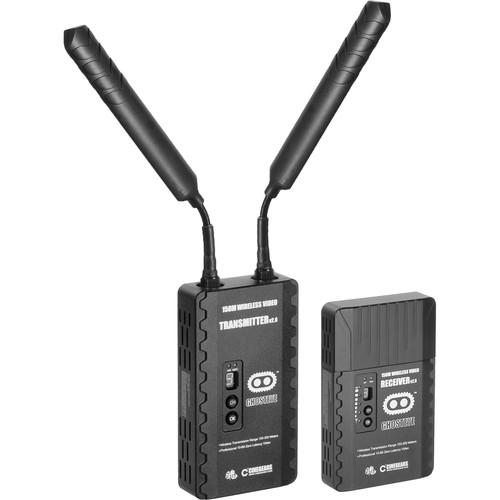

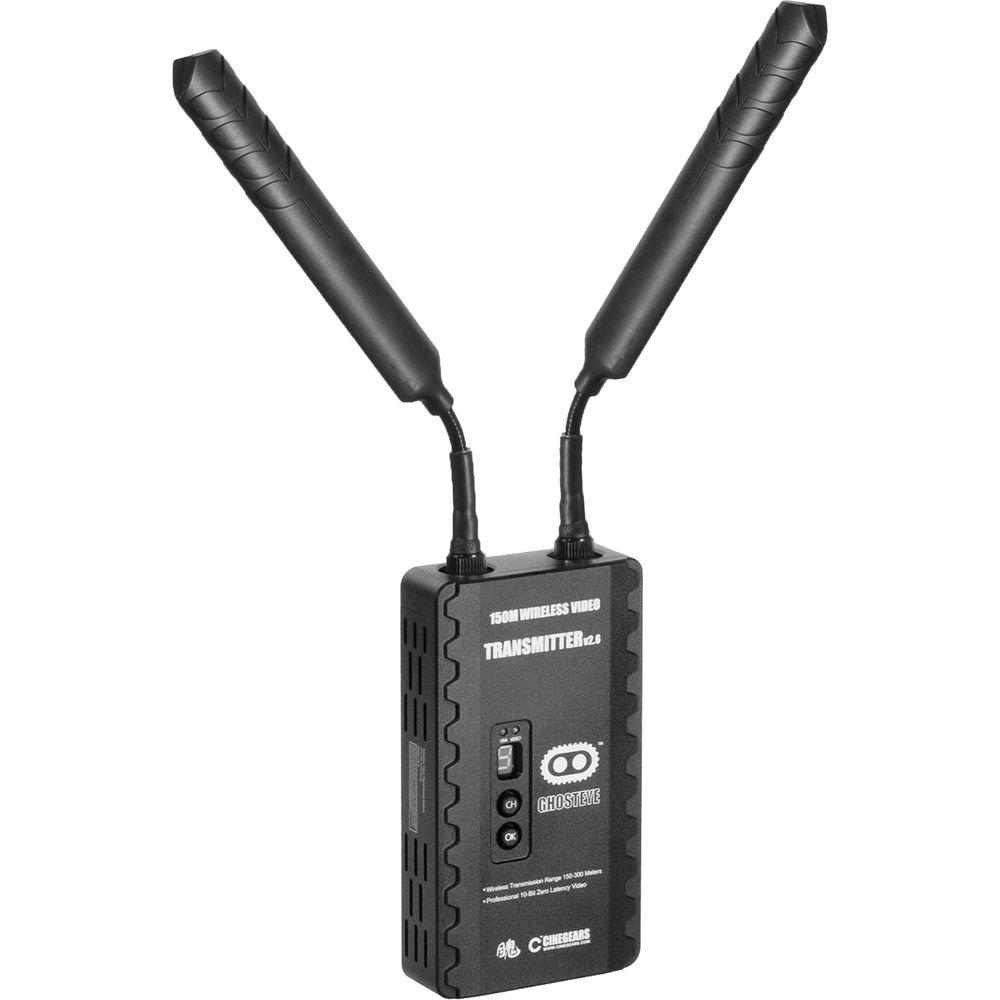

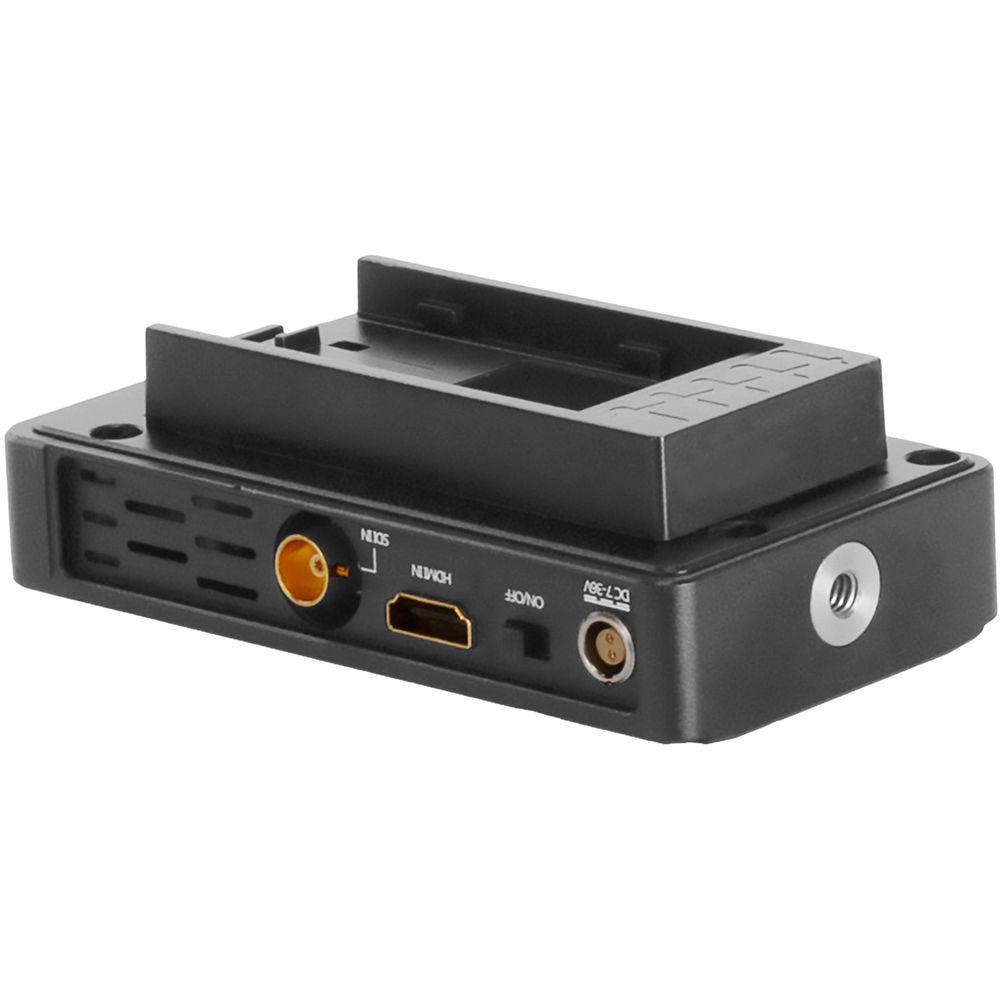

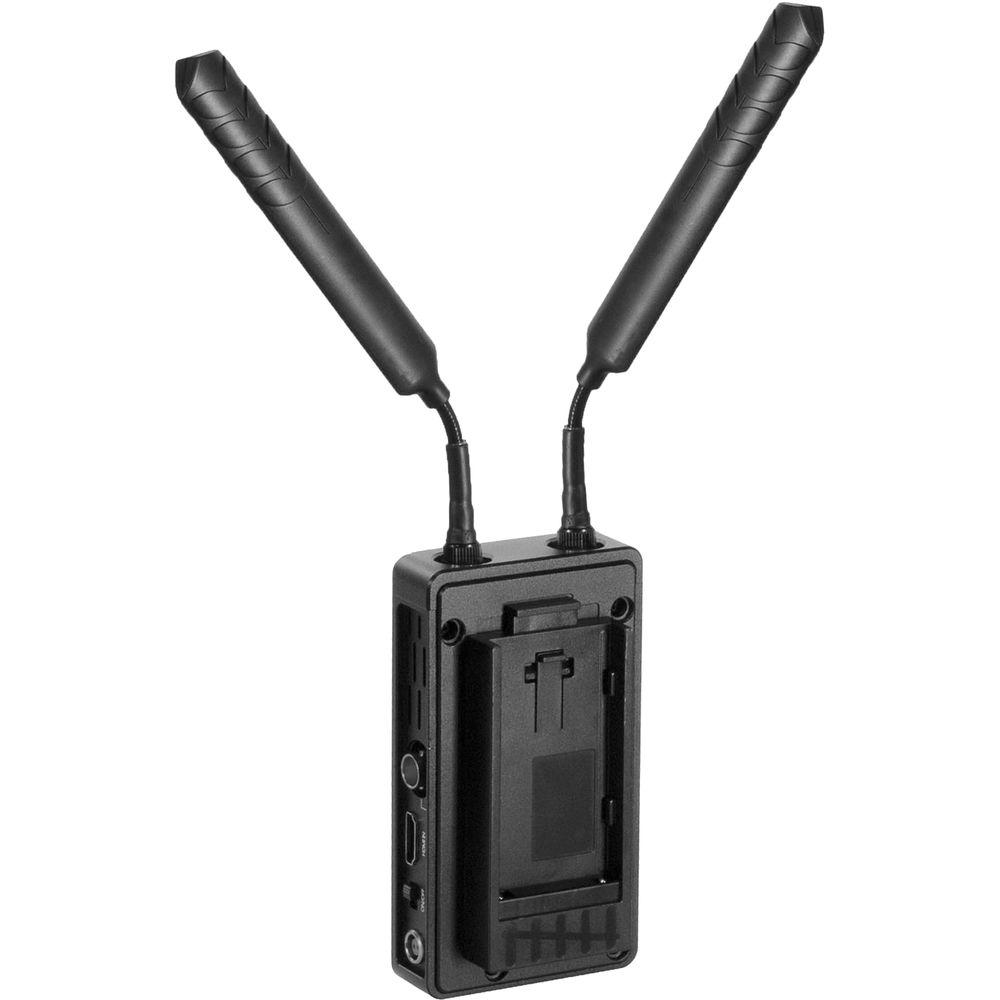

  • Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 (L-Series Plate)
  • Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 (L-Series Plate)

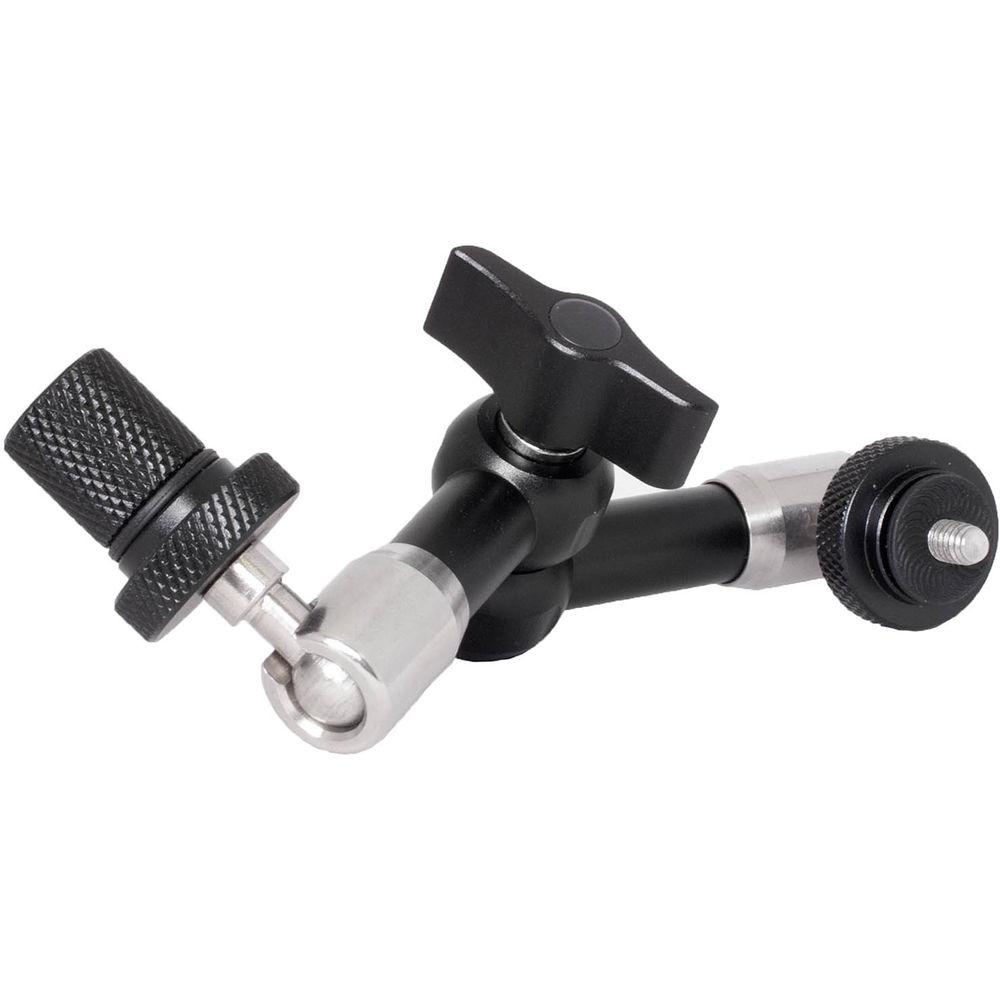

  • Heavy Duty Steel Ball Joint Articulated Arm
  • Waterproof Hard Case
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CINEGEARS Ghost-Eye 150M V2 Wireless HDMI 3G-SDI Transmission Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Interface Transmitter:
    1 x SDI, BNC
    1 x HDMI Type A, Female
    2 x Antenna, PF-SMA, Male
    DC Input

    Receiver:
    1 x SDI, BNC
    1 x HDMI Type A, Female
    DC Input
    Power Supply Input Range Transmitter:
    6.5-16.8 VDC

    Receiver:
    6.5-16.8 VDC
    Maximum Transmission Distance 984' / 300 m
    Power Consumption Transmitter:
    <5.5 W

    Receiver:
    <6.5 W
    Video Input Format Transmitter:
    3G-SDI, HD-SDI (Auto/Manual):
    1080p: 60/59.94/50/30/29.9/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i
    525i

    HDMI Type A:
    1080p: 60/59.94/50/30/29.9/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i
    525i

    SMPTE:
    259/274/292/296/372/424/425

    Receiver:
    3G-SDI, HD-SDI (Auto/Manual):
    1080p: 60/59.94/50/30/29.9/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i:
    525i:

    HDMI Type A:
    1080p: 60/59.94/50/30/29.9/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i
    525i

    SMPTE:
    259/274/292/296/372/424/425
    Output Video Format Transmitter:
    N/A

    Receiver:
    3G-SDI, HD-SDI (Auto/Manual):
    1080p: 60/59.94/50/30/29.9/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i
    525i

    HDMI Type A:
    1080p: 60/59.94/50/30/29.9/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i
    525i

    SMPTE:
    259/274/292/296/372/424/425
    Video Processing Transmitter Color Depth:
    8-Bit, 10-Bit, (4:0:0 / 4:2:2 / 4:4:4)

    Receiver Color Depth:
    8-Bit, 10-Bit, (4:0:0 / 4:2:2 / 4:4:4)
    Audio Input Format Transmitter:
    SDI-Embedded 2-Channel, 24-Bit/48 kHz

    Receiver:
    N/A
    Output Audio Format Transmitter:
    N/A

    Receiver:
    SDI-Embedded 2-Channel, 24-Bit/48 kHz
    Signal Indicator Transmitter:
    Power: Green
    Video: Yellow

    Receiver:
    Power: Green
    Wireless RSSI: Blue (4 x LEDs)
    Power/Video: Yellow
    Frequency Band Transmitter:
    5.1-5.9 GHz

    Receiver:
    5.1-5.9 GHz
    Modulation Mode Transmitter:
    OFDM 16QAM

    Receiver:
    OFDM 16QAM
    Transmission Power Transmitter:
    <18 dBm

    Receiver:
    N/A
    Receiver Sensitivity Transmitter:
    N/A

    Receiver:
    -75 dBm
    Occupied Bandwidth Transmitter:
    40 MHz

    Receiver:
    40 MHz
    Time Code Every 10 seconds
    Operating Temperature Range Transmitter:
    32 to 104°F / 0 to 40°C

    Receiver:
    32 to 104°F / 0 to 40°C
    Storage Temperature Range Transmitter:
    -4 to 140°F / -20 to 60°C

    Receiver:
    -4 to 140°F / -20 to 60°C
    Dimensions (LxWxH) Without Antennas:
    Transmitter:
    4.5 x 2.6 x 0.9" / 115 x 67 x 23 mm

    Receiver:
    6.0 x 3.7 x 0.9" / 152 x 95 x 23 mm
    Total Weight Transmitter:
    9.5 oz / 207 g

    Receiver:
    12.5 oz / 355 g
    Package Weight 6.0 lb
