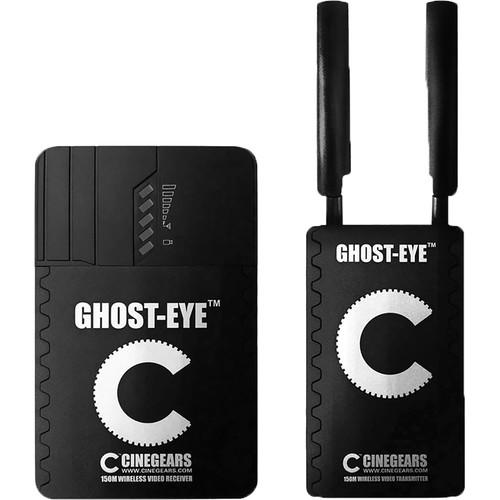

The Cinegears Ghost-Eye 150M Transmitter and Receiver Set enables you to transmit up to 1080p60 uncompressed HD video and audio at distances up to 492'. This Ghost-Eye set features both HDMI and 3G-SDI inputs and outputs, 10-bit 4:2:2 video, and the simultaneous use of up to four of ten frequencies. A multicasting function enables you to use one 150M transmitter to send your video feed to up to four receivers (additional receivers not included). Additional features of the Ghost-Eye 150M set include HDMI to SDI cross conversion and AES encryption. Cross-compatibility with Ghost-Eye 100M/300M/400M units means you can mix and match components.The 150M transmitter and receiver can each be powered by one NP-F970 L-Series type battery, or via their standard 2-pin LEMO power plugs. Two paddle antennas are included with the transmitter; the receiver has a built-in directional antenna. A hard-shell case with dedicated foam cutouts is included with the Ghost-Eye 150M set.
Maximum Range
Transmits uncompressed HD video and audio in a range up to 492'
Multicasting Function
Use one transmitter to link to up to four receivers
Interface

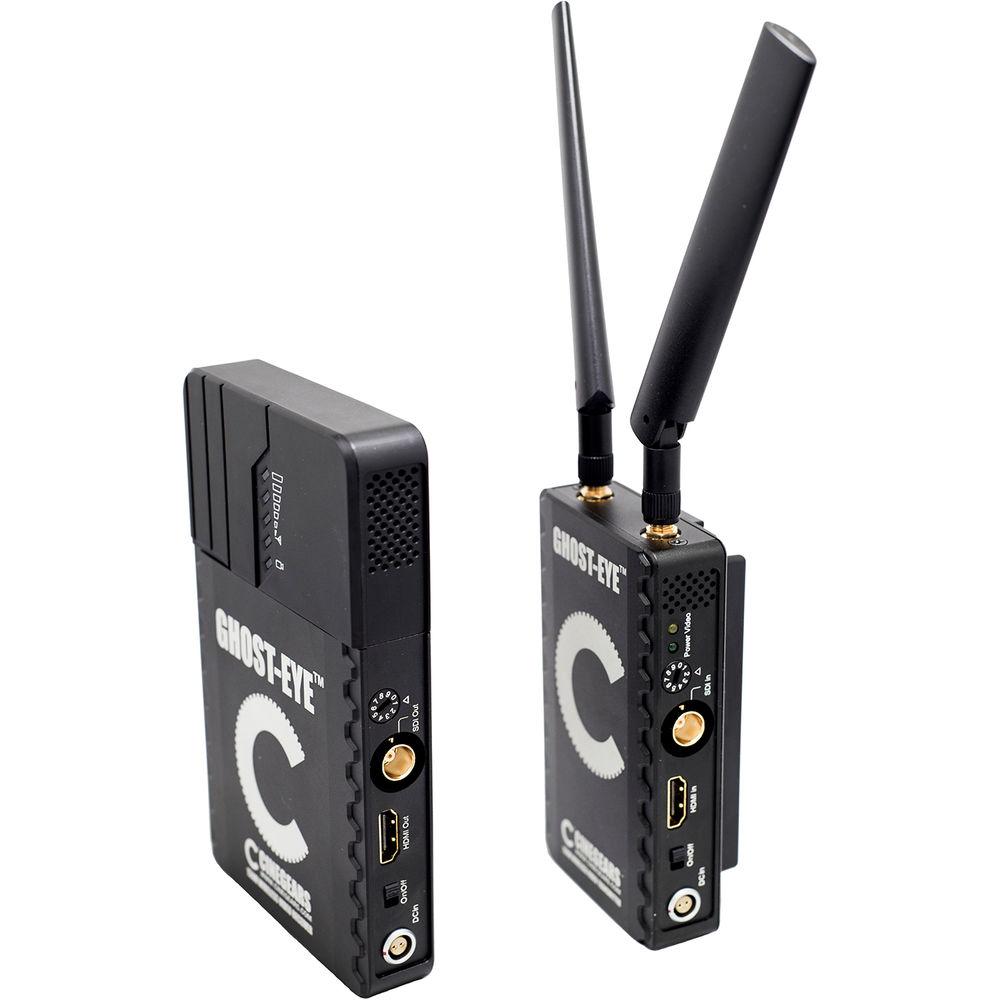

The transmitter and receiver each have one HDMI and one SDI (BNC) input and output
Power
The transmitter and receiver can each be powered using an NP-F970 L-Series type battery, or through their 2-pin LEMO connectors
Cross Conversion
Send SDI and receive via HDMI, or vice versa
Latency and Other Features
Latency rate of under <1 ms, AES encryption, and timecode support
Cross-Compatibility
Ghost-Eye 100M, 300M, and 400M units
UPC: 731236162391 In the Box CINEGEARS Ghost-Eye 150M Wireless HDMI/3G-SDI Transmission Kit (492')
Ghost-Eye 150m Wireless HDMI & SDI Video Transmitter (492') dzvxxvvxvfatdcbqyvet
Ghost-Eye 150m Wireless HDMI & SDI Video Receiver (492')
2 x Paddle Antennas
2 x 2-Pin LEMO Power Cable for Ghost-Eye 150M Transmission Kit
2 x 15mm to 27mm Adjustable Bracket for Ghost-Eye Wireless Units

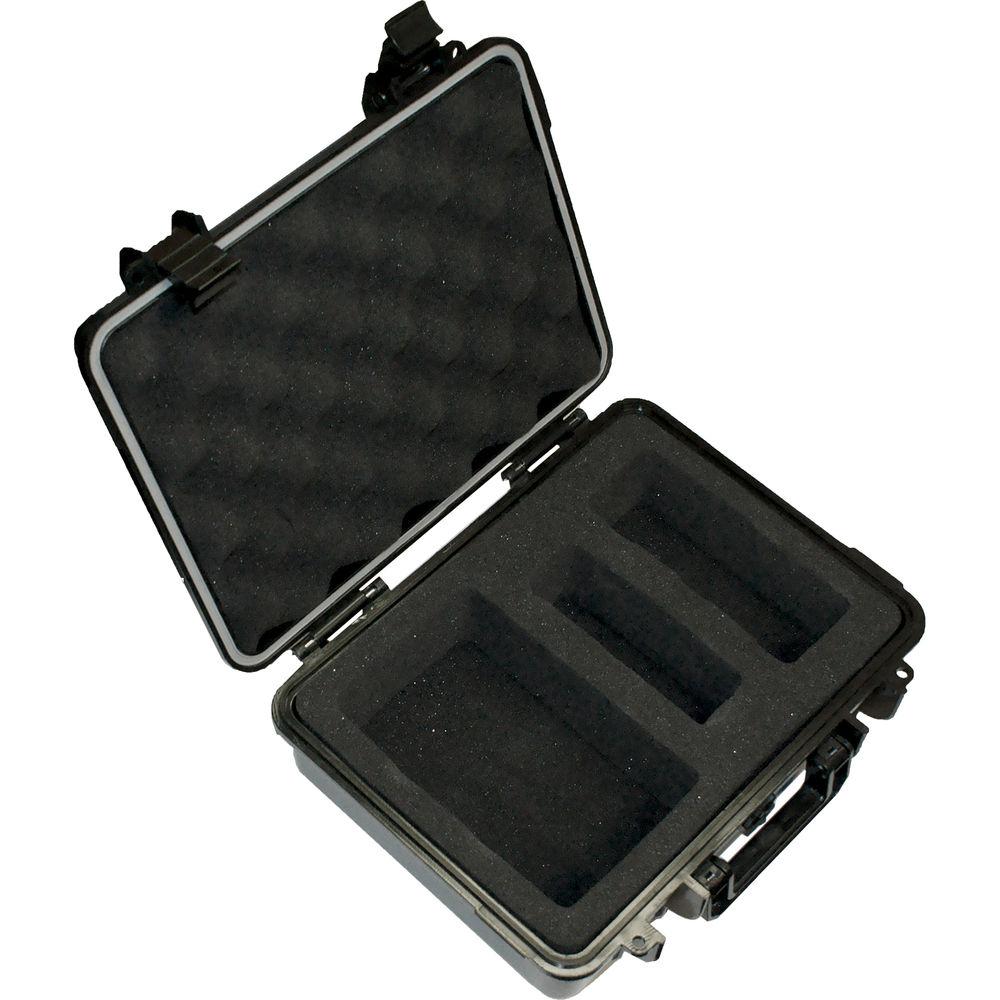

Waterproof Foamed Case for Ghost-Eye 150M Wireless Transmission Kit
Limited 3-Year Warranty (In North America)
Table of Contents
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 150M Wireless HDMI 3G-SDI Transmission Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
CINEGEARS Ghost-Eye Specs
Interface
Transmitter: 1 x SDI, BNC 1 x HDMI Type A, female 2 x Antenna, PF-SMA, male DC input
Receiver: 1 x SDI, BNC 1 x HDMI Type A, female DC input
Receiver: Power: Green Wireless RSSI: Blue (4 x LEDs) Power/Video: Yellow
Frequency Band
Transmitter: 5.1-5.9 GHz
Receiver: 5.1-5.9 GHz
Modulation Mode
Transmitter: OFDM 16QAM
Receiver: OFDM 16QAM
Transmission Power
Transmitter: <18 dBm
Receiver: N/A
Receiver Sensitivity
Transmitter: N/A
Receiver: -75 dBm
Occupied Bandwidth
Transmitter: 40 MHz
Receiver: 40 MHz
Timecode
Every 10 seconds
Operating Temperature Range
Transmitter: 32 to 104°F (0 to 40°C)
Receiver: 32 to 104°F (0 to 40°C)
Storage Temperature Range
Transmitter: -4 to 140°F (-20 to 60°C)
Receiver: -4 to 140°F (-20 to 60°C)
Dimensions (LxWxH)
Without Antennas: Transmitter: 4.5 x 2.6 x 0.9" (115 x 67 x 23 mm)
Receiver: 6.0 x 3.7 x 0.9" (152 x 95 x 23 mm)
Total Weight
Transmitter: 9.5 oz (207 g)
Receiver: 12.5 oz (355 g)
Package Weight
5.7 lb
Box Dimensions (LxWxH)
11.6 x 9.4 x 4.1"
Rating
100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
