User Manual for CINEGEARS Ghost-Eye 300M V2 3G HD SD-SDI & HDMI Wireless Video Receiver Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye 300M V2 3G HD
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
|
User manual for the CINEGEARS Ghost-Eye 300M V2 3G HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

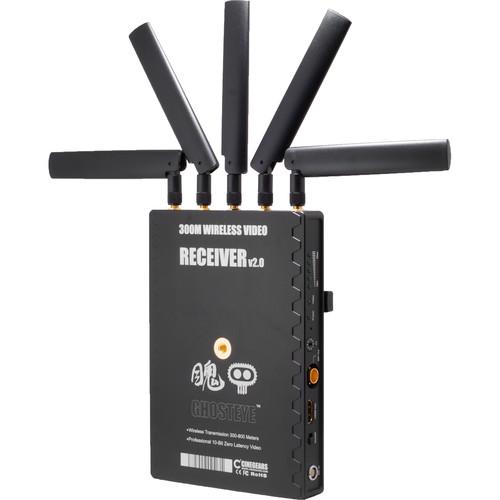

Product description The Ghost-Eye 300M V2 3G/HD/SD-SDI & HDMI Wireless Video Receiver from CINEGEARS receives uncompressed 10-bit HD video and audio from up to 2297' line-of-sight. With both 3G and HDMI inputs and outputs, using frequencies between 5.1 to 5.9 GHz as needed (up to eight simultaneously), you can utilize the video transmission for professional applications. This unit can be arranged in point-to-point and point-to-multipoint networks, and supports up to eight receivers. - Compatibility
- Cross-compatible with Ghost-Eye 100M, 150M, 300M, and 400M transmitters and receivers
- 5 GHz ISM band wireless HD video transmission up to 2297' depending on line-of-sight
- 3G/HD/SD-SDI input and output
- High-quality picture with very low latency (<1 ms)
- Supports up to 3D 1080p60 resolution, HDMI/HD-SD/3G-SDI 4:2:2, 10-bit color depth
- Signal status indicators for power, video, and receiver RSS
- AES-128/256 encryption with air interface HD video data stream
- Supports multiple-channel switching and broadcast mode for one transmitter to multiple receivers
- HDMI 1.3 with EDID support
- Supports a wide-range power voltage input, suitable for most kinds of camera batteries
- Compatible with V-mount, Gold mount, or 1/4"-20 bolt mount battery plates
- Plug-and-play hardware design without need for software
- Supports all input and output ports with ±8kV ESD protection level (HBM, contact discharge)
UPC: 714983522229 In the Box CINEGEARS Ghost-Eye 300M V2 3G/HD/SD-SDI & HDMI Wireless Video Receiver 5 x Paddle Antenna for Ghost-Eye 150M & 300M Wireless Video Transmission Systems ebqqdysfatszrfateaff Four-Pin LEMO to D-Tap Power Cable for 300M Ghost-Eye System (2') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 300M V2 3G HD SD-SDI & HDMI Wireless Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6-305 Specs | Frequency Band | 5.1 to 5.9 GHz (Configurable with China, North American, Europe, etc.) | | Transmission Range | 2297' / 700 m | | Interface | 1 x SDI/BNC Output (Female)
1 x HDMI Type A Output (Female)
5 x Antenna Port (RP-SMA, Male)
1 x DC Input (4-pin LEMO, Female) | | Video Input Formats | 3G/HD/SD-SDI (Auto/Manual-Selected):
1080p 23.98/24/25/29.9/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
625i
525i
HDMI Type A:
1080p 23.98/24/25/29.9/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
625i
525i
SMPTE: 259/274/292/296/372/424/425 | | Video Output Formats | 3G/HD/SD-SDI (Auto/Manual-Selected):
1080p 23.98/24/25/29.9/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
625i
525i
HDMI Type A:
1080p 23.98/24/25/29.9/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
625i
525i
SMPTE: 259/274/292/296/372/424/425 | | Color Depth Supported | Video Processing Color Depth: 8-Bit (4:0:0), 10-Bit (4:2:2) | | Output Audio Format | SDI-Embedded, 4-Channel 24-Bit / 48 kHz | | Signal Indicator | Power: Green
Wireless RSSI: Blue (4 LEDs)
Power/Video: Yellow | | Modulation Mode | OFDM 16-QAM | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 20/40 MHz | | Time Code | Every 10 Sec | | Encryption | AES-128/256 | | Power Supply | 6.5 to 16.8 VDC | | Power Consumption | <6 W | | Compliance | FCC, CE, RoHS | | Temperature Range | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C | | Dimensions | 6.3 x 4.3 x 0.98" / 160 x 110 x 25 mm | | Weight | 19 oz / 540 g |
