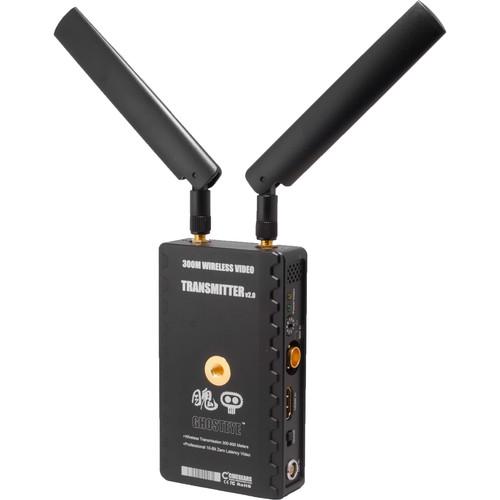

Product description The Ghost-Eye 300M V2 Wireless HD & SDI Video Transmitter from Cinegears transmits uncompressed 10-bit HD video and audio up to a distance of 2297' (line of sight). With both 3G and HDMI inputs and outputs, using frequencies between 5.1 to 5.9 GHz as needed (up to eight simultaneously), you can utilize the video transmission for professional applications. This unit can be arranged in point-to-point and point-to-multi-point networks and supports up to eight receivers. - Compatibility
- Cross-compatible with Ghost-Eye 100M, 150M, 300M, and 400M receivers
- 5 GHz ISM band wireless HD video transmission up to 2297' depending on line-of-sight
- 3G/HD/SD-SDI input and output
- High-quality picture with very low latency (<1 ms)
- Supports up to 3D 1080p/60 Hz resolution, HDMI/HD-SD/3G-SDI 4:2:2, 10-bit color depth
- Signal status indicators for power, video, and receiver RSS
- AES-128/256 encryption with air interface HD video data stream
- Supports multiple channel switching and broadcast mode for one transmitter to multiple receivers
- HDMI 1.3 with EDID support
- Supports a wide-range power voltage input, suitable for most kinds of camera batteries
- Compatible with V-Mount, Gold mount (Anton Bauer), or 1/4" bolt mount battery plates
- Plug-and-play hardware design without need for software
- Supports all input and output ports with ±8kV ESD protection level (HBM, contact discharge)
UPC: 714983522236 In the Box CINEGEARS Ghost-Eye 300M V2 Wireless HD & SDI Video Transmitter 2 x Paddle Antenna for Ghost-Eye 150M & 300M Wireless Video Transmission Systems Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 300M V2 Wireless HD & SDI Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6-304 Specs | Frequency Band | 5.1 to 5.9 GHz (Configurable with China, North American, Europe, etc.) | | Transmission Range | 2297' (700 m) | | Interface | 1 x SDI output (BNC female)
1 x HDMI output (Type A female)
2 x Antenna port (PR-SMA male)
1 x DC input (4-pin LEMO female) | | Video Input Formats | 3G/HD/SD-SDI (Auto/Manual-Selected): 525i
625i
720p 50/59.94/60
1080i 50/59.94/60
1080p23.98/24/25/29.9/30/50/59.94/60
HDMI Type A:
525i
625i
720p 50/59.94/60
1080i 50/59.94/60
1080p23.98/24/25/29.9/30/50/59.94/60
SMPTE: 259/274/292/296/372/424/425 | | Color Depth Supported | Video Processing Color Depth: 8-bit (4:0:0), 10-bit (4:2:2) | | Output Audio Format | SDI-embedded, 4-channel 24-bit / 48 kHz | | Signal Indicator | Power: Green
Video: Yellow | | Modulation Mode | OFDM 16QAM | | Transmission Power | <21 dBm | | Occupied Bandwidth | 20 / 40 MHz | | Time Code | Every 10 sec | | Encryption | AES-128/256 | | Power Supply | 6.5 to 16.8 VDC | | Power Consumption | <6.5 W | | Compliance | FCC, CE, RoHS | | Temperature Range | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Dimensions | 4.7 x 2.8 x 0.98" (120 x 70 x 25 mm) without antennas | | Weight | 13.4 oz (380 g) |
