User Manual for CINEGEARS Ghost-Eye 400M V2 Wireless HDMI SDI Receiver Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye 400M V2 Wireless HDMI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye 400M V2 Wireless HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Ghost-Eye Wireless Video Transmission 1KM Range Test
- Ghost-Eye Wireless Video Transmission 400M
- Uwe Boll Raw and Cinegears Ghost-Eye Wireless Video Transmission, Rampage 3

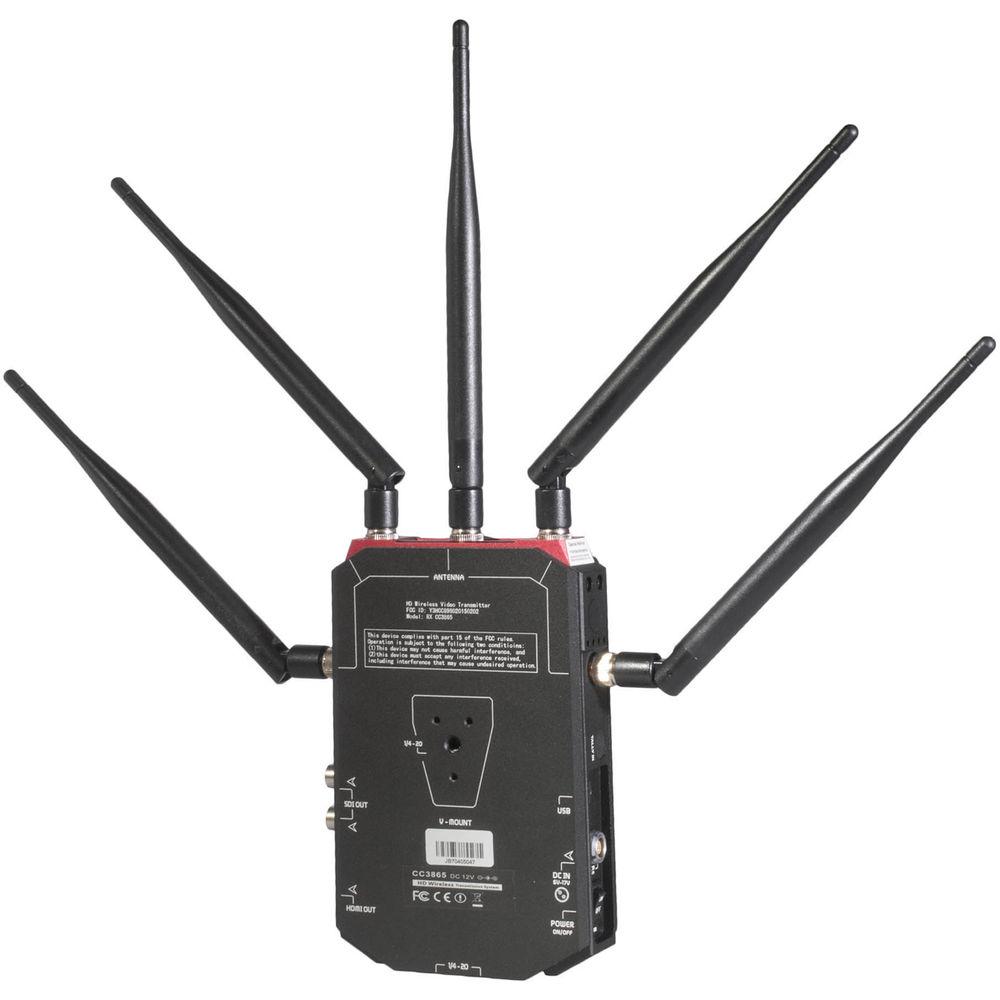

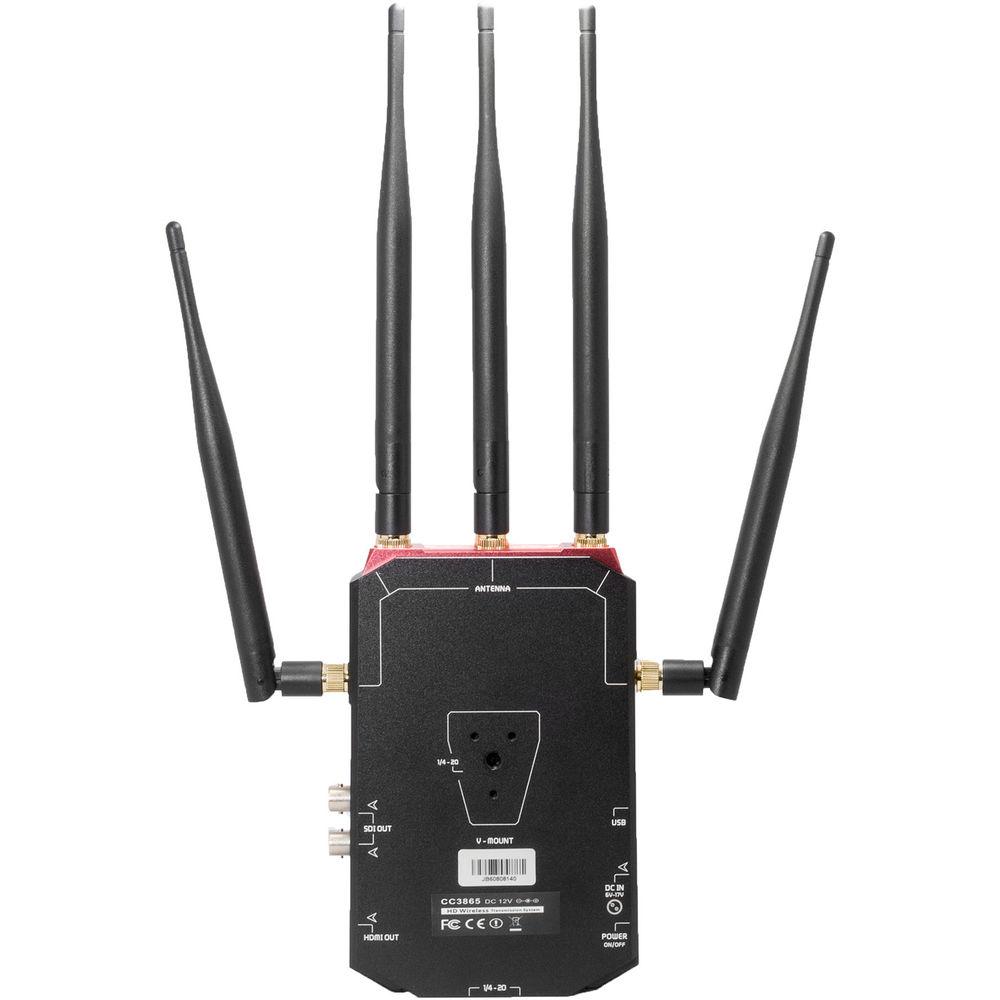

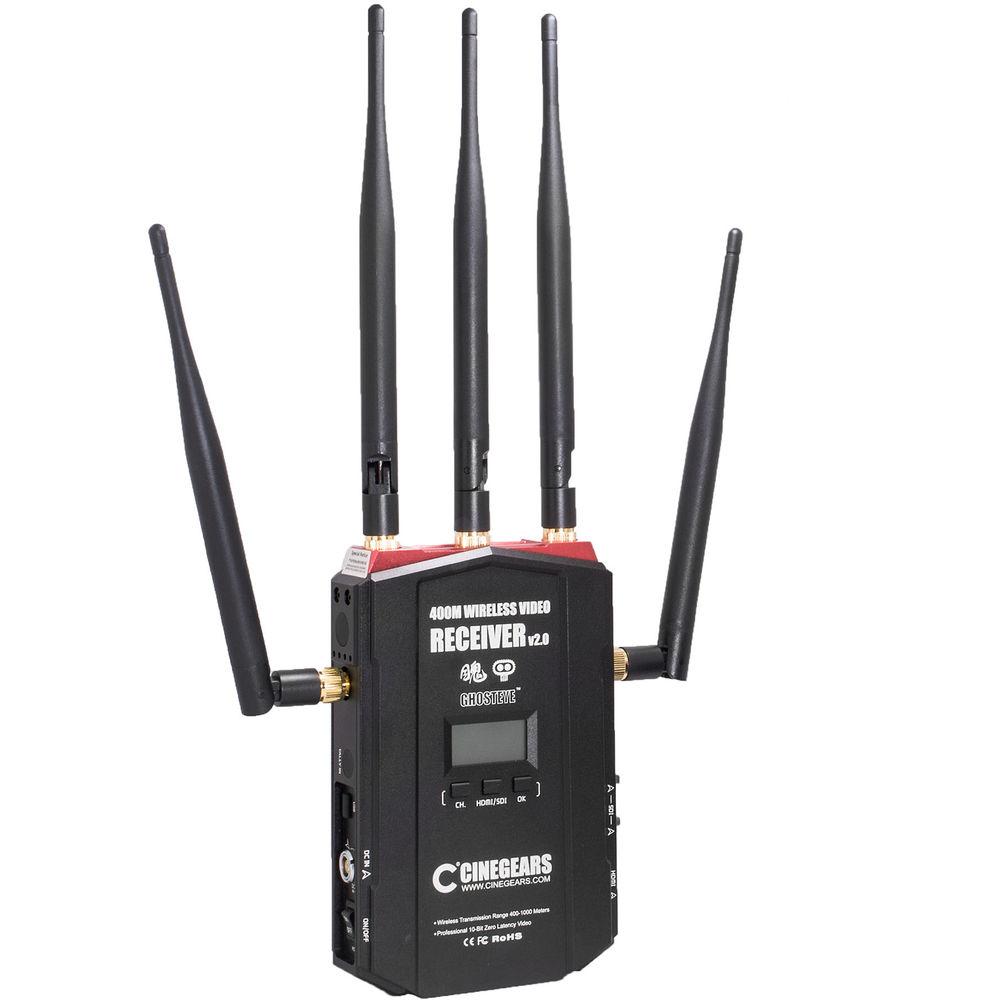

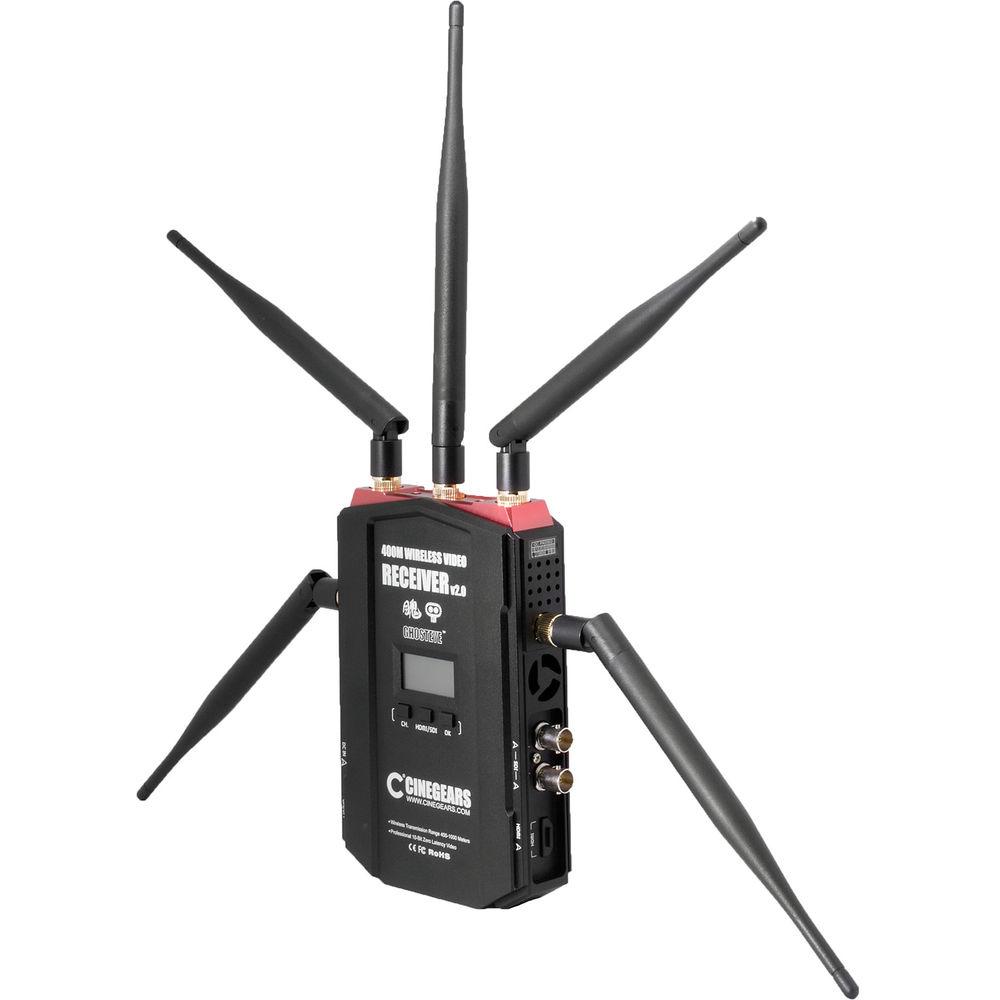

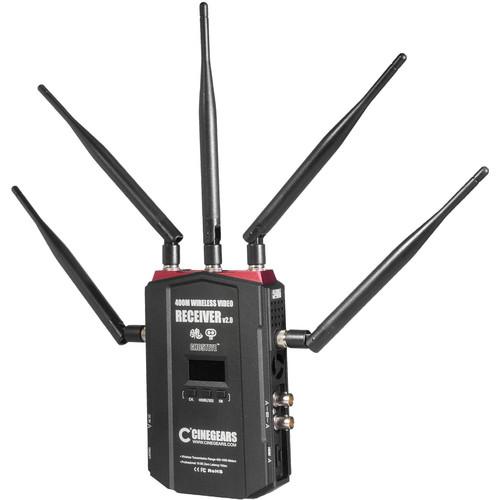

The Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver from CINEGEARS receives wireless 1080p60, 4:4:4 HD video at distances up to 3281 feet. Using the license-free 5 GHz frequency band, this receiver supports up to 1080p60 with under 1 ms latency. The Ghost-Eye 400M V2 Receiver features HDMI and 3G/HD/SD-SDI inputs and outputs with built-in cross conversion. Each coordinating transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks.A handy function of the Ghost-Eye 400M V2 Receiver is its cross-compatibility—it will work with any Ghost-Eye 100M, 150M, or 300M transmitter and receiver you may already own. Additional functions include AES-128/256 signal encryption, timecode and tally support, an LCD status display panel, and optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included). The Ghost-Eye 400M V2 HDMI/SDI Receiver features plug-and-play installation, with firmware upgrades available via its mini-USB port. - Receiver Details
- The receiver operates on the 5 GHz band, using up to four channels simultaneously
- Maximum Range
- Receives uncompressed 10-bit HD video and audio up to 3281' range
- Latency
- Low-latency rate of <1 millisecond
- Multiple Receivers
- Transmitters and receivers can be arranged in point-to-point and point-to-multipoint networks
- Cross Compatibility
- Mix-and-match the 400M with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
- Resolution
- The receiver handles resolutions up to 10-bit 4:4:4 color depth, 1080p60 HDMI, and 3G/HD/SD-SDI
- Integrated Cross Conversion
- Both the transmitters and receivers can send signals via SDI and receive via HDMI, or vice-versa
- Additional Features
-
- AES-128/256 encryption
- Timecode and tally signal support
- Optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included)
- Plug-and-play installation with firmware upgrades via mini-USB port
- Integrated LCD status display
UPC: 714983522250 In the Box CINEGEARS Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver 5 x Antennas 2-Pin LEMO to D-Tap Cable Limited 3-Year Warranty (North America Only) User Manual PDF 14mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 400M V2 Wireless HDMI SDI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6-404 Specs | Interface | Output:
1 x SDI BNC, female
1 x HDMI Type A, female
1 x SDI, loop-through out
Power In
Power On/Off
Antenna: 5 x RP5MA | | Power | Consumption: <6 W
Input Voltage Range: 6.5 to 16.8 VDC | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Audio Output Format | SDI embedded 4-channel 24-bit/48 kHz
PCM
DTS-HD
Dolby TrueHD | | Maximum Transmission Distance | 3281' (1000 m) | | Frequency Band | 5.1 to 5.9 GHz | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 40 MHz | | Encryption | AES-128/256 | | Temperature | Operating: 5 to 140°F (-15 to 60°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions (LxWxH) | 5 x 3 x 1.2" (12.7 x 7.5 x 3.15 cm) | | Weight | 1.1 lb (480 g) | | | | Package Weight | 1.36 lb | | Box Dimensions (LxWxH) | 10.25 x 7.75 x 2.75" |
