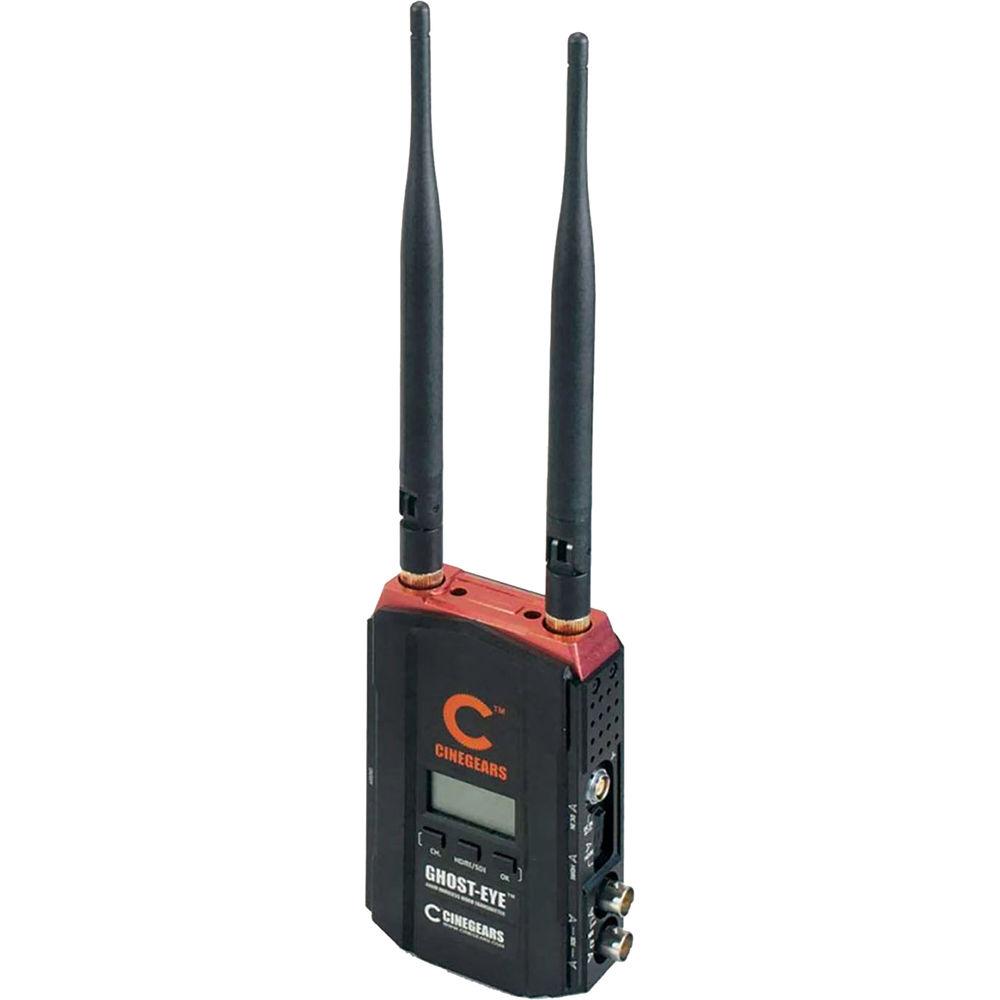

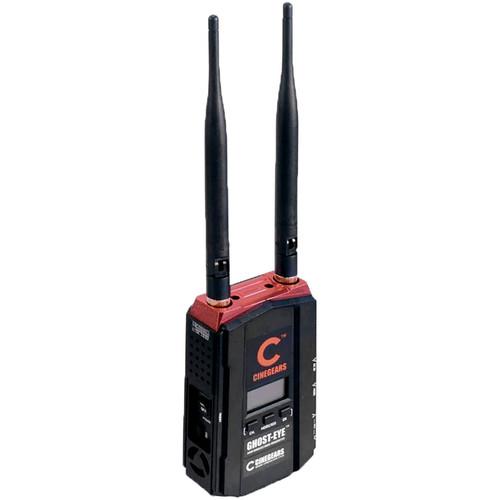

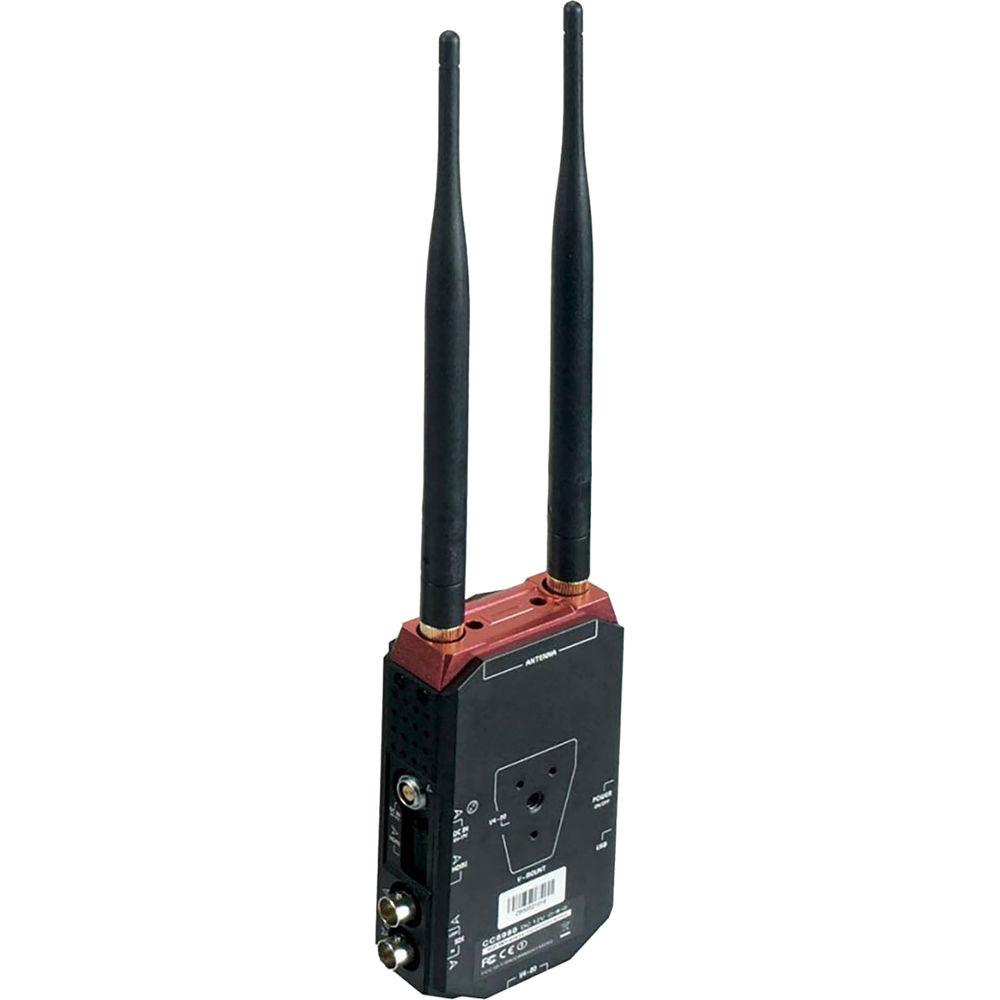

Product description The Ghost-Eye 400ME Wireless HD & SDI Video Transmitter from Cinegears transmits uncompressed HD video and audio from 1,312 to 3,280'. It comes with added security encryption that ensures no data is lost during transmission. With both 3G and HDMI inputs and outputs, using frequencies between 5.1 to 5.9 GHz as needed (up to four simultaneously), you can utilize the video transmission for professional applications. The transmitter unit ensures complete encryption of data during transmission. This transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multi-point networks. - Uses license-free 5 GHz ISM frequency band, maximum four frequency channels with automatic or manual selection, coexists with Wi-Fi
- Supports wireless 10-bit HD video with no compression and no delay from 1,312 to 3,280'
- Uncompromised picture quality with low latency less than 1 ms
- Supports point-to-point, and point-to-multipoint network topology
- Supports up to four receivers
- Cross-compatible with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
- Highest resolution 10-bit color depth 4:2:2, 1080p 60 fps HDMI and 3G/HD/SD-SDI input and output
- Supports HDMI to SDI cross-conversion
- Supported professional audio formats include Dolby True HD, DTS-master, and more
- SDI/HDMI input from digital cinema cameras, HD SDI video cameras, and other digital devices
- AES-128 encryption with air interface HD video data stream
- HDMI 1.4 with EDID support
- Supports timecode and tally for broadcast or live event streaming production
- Built-in ultra-silent intelligent fan prevents heat and moisture damage
- Supports wide-range power voltage input, adapts most kinds of camera batteries with optional V-Mount, Gold mount (Anton Bauer), or 1/4" bolt mount battery plates
- Comes with five external antennas with RPSMA socket
- Supports all input and output ports with ±8 kV ESD protection level (HBM, contact discharge)
- Plug-and-play hardware design without need for software, firmware upgradable via mini USB port
- Professional standard two-pin Lemo power plugs
- Built-in LCD screen displays for device and signal status
- Water and mist-proof, shockproof production case with foam insert for easy transportation (available separately)
- CE, FCC, RoHS certified product, safe to use worldwide
UPC: 714983521871 In the Box CINEGEARS Ghost-Eye 400ME Wireless HD & SDI Video Transmitter with Data Encryption 5 x Extended Antenna 2-Pin Lemo Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 400ME Wireless HD & SDI Video Transmitter with Data Encryption in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Frequency Band | 5.1 to 5.9 GHz (Configurable with China, North American, Europe, etc.) | | Transmission Range | 1,312 to 3,280' (400 to 1,000 m) | | Interface | 1 x SDI input (BNC female)
1 x HDMI input (Type A female)
1 x SDI loop out
1 x Lemo (0B/2 core)
1 x Power in
1 x RP5MA antenna
1 x Power switch | | Video Input Formats | SDI:
3G, HD, SD-SDI (Auto / Manual-Selected):
525i
625i
720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
HDMI Type A:
525i
625i
720p 50 / 59.94 / 60
1080i 50/ 59.94/ 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
SMPTE:
259 / 274 / 292 / 296 / 372 / 424 / 425 | | Video Output Format | SDI input loop out | | Color Depth Supported | Video Processing Color Depth: 8-bit; 10-bit; (4:0:0); (4:2:2); (4:4:4) | | Audio Input Formats | SDI embedded 4-channel 24-bit / 48 kHz PCM, DTS-HD, Dolby True HD | | Audio Output Format | SDI embedded audio loop out | | Signal Indicator | Power: Green
Video: Yellow | | Modulation Mode | OFDM 16QAM | | Transmission Power | <21 dBm | | Occupied Bandwidth | 40 MHz | | Time Code | Every 10 sec | | Encryption | AES-128/256 | | Power Supply | 6.5 to 16.8 VDC | | Power Consumption | <6.5 W | | Compliance | FCC, CE, RoHS | | Temperature Range | Operating: 5 to 140°F (-15 to 60°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions | 4.3 x 2.4 x 0.9" (108 x 60 x 23 mm) | | Weight | 12.7 oz (360 g) |
