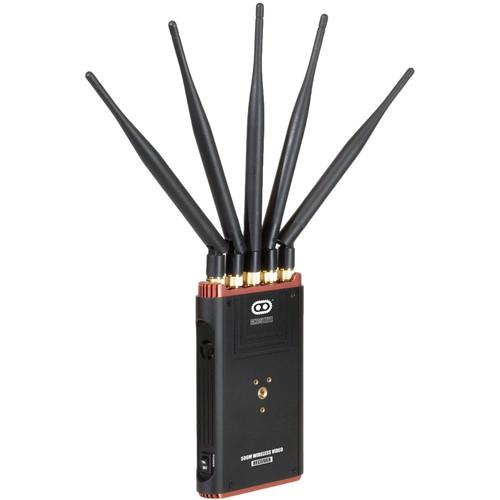

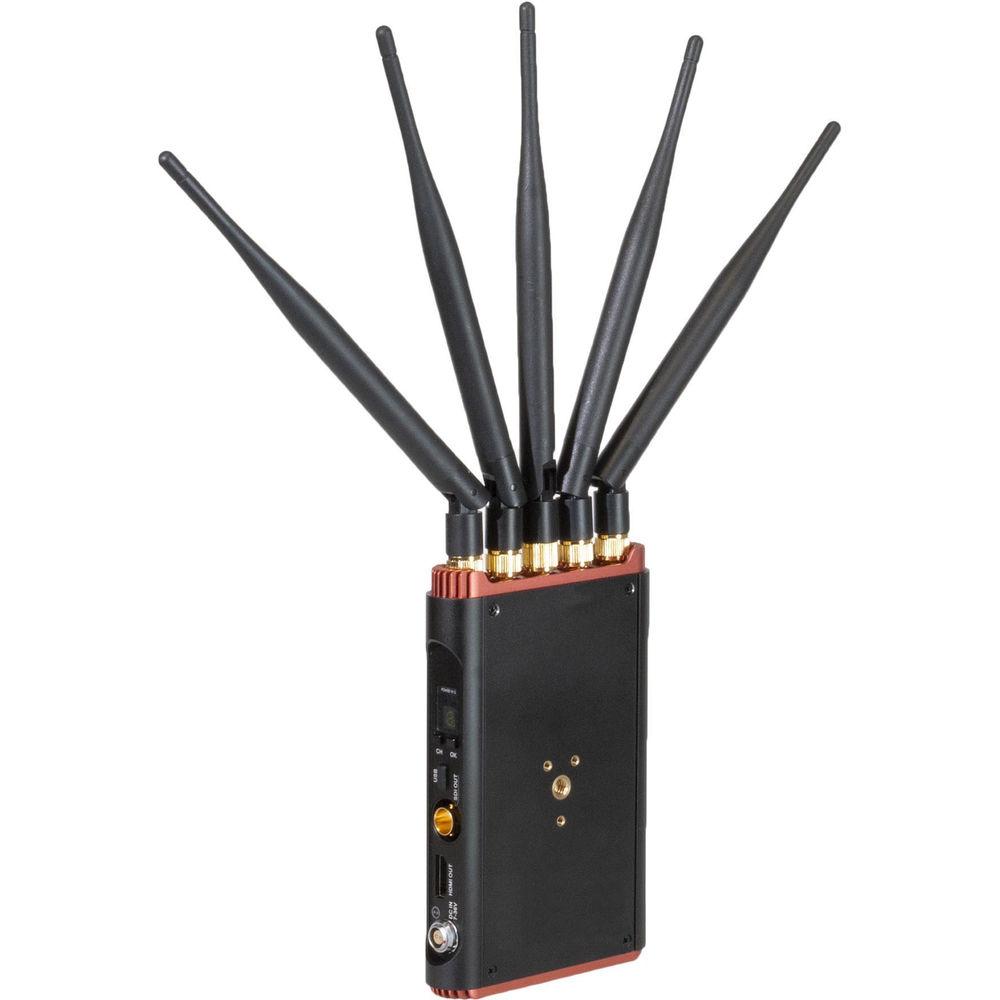

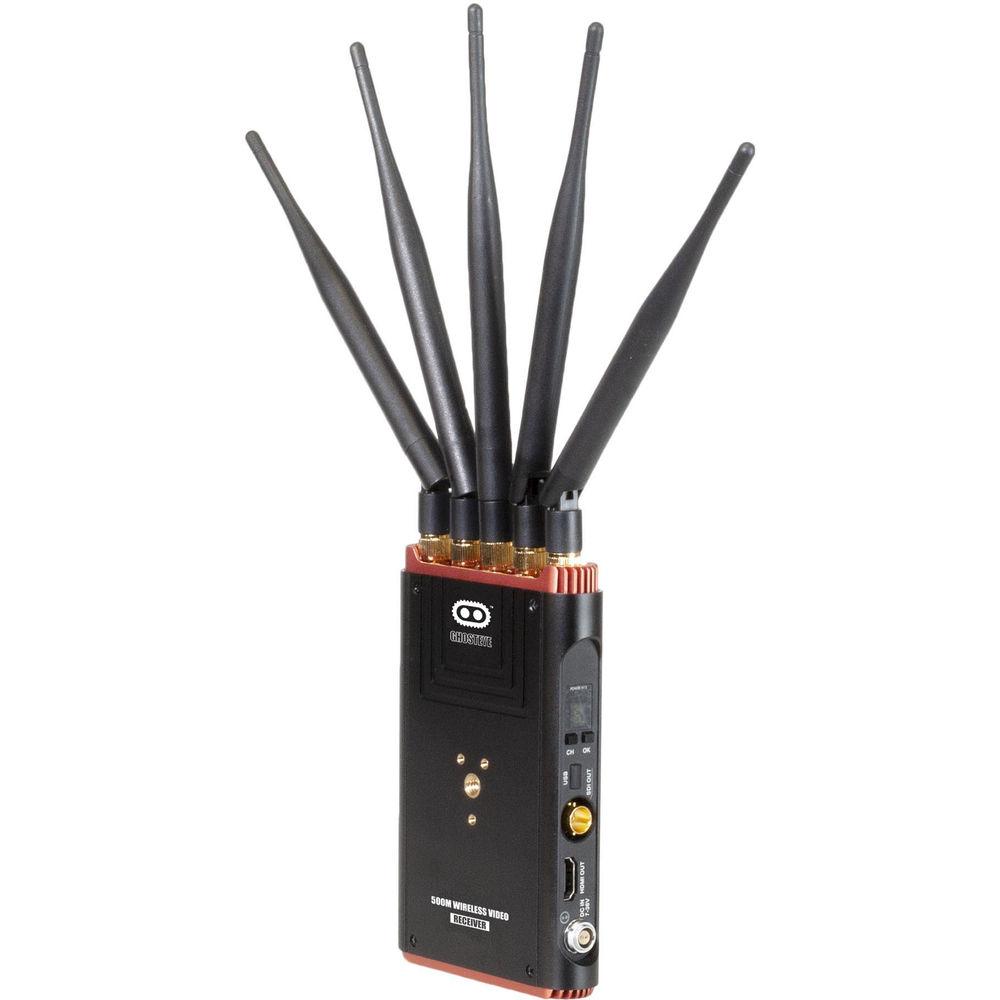

Product description The Ghost-Eye 500M Wireless HD & SDI Audio/Video Receiver from Cinegears provides a suitable solution for video and audio transmission for film making and television professionals, both on set and post-production. It receives uncompressed HD video and audio up to a distance of 1500', allowing you to shoot in both indoor and outdoor situations. With both 3G and HDMI inputs and outputs, using frequencies between 4.9 to 5.9GHz as needed (up to four simultaneously), you can utilize the video transmission for professional applications. It requires the Ghost-Eye 500M Wireless Transmitter at the transmitting end for full-feature utilization. - Allows you to broadcast video and audio up to 1500' (line-of-sight) over 5 GHz frequencies
- Receives uncompressed, 10-bit 4:2:2, 1080p 60 fps video
- Offers low latency of less than 1 ms (no frames dropped) with 300 Mb/s transfer speed
- HDMI and SDI inputs and SDI loop out
- Supports HDMI to SDI cross-conversion
- Cross-compatible with Ghost-Eye 150M, 300M, and 400M transmitters and receivers
- Transmitter supports up to four receivers
- Auto-Relink—signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed
- Small obstacles in the line-of-sight are accommodated with an adaptive signal logarithm for continuous signals
- High-sensitivity, omnidirectional antennas broadcast your signal with integrity
UPC: 714983521857 In the Box CINEGEARS Ghost-Eye 500M Wireless HD & SDI Audio/Video Receiver 5 x Extended Antenna 2-Pin Lemo Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 500M Wireless HD & SDI Audio Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Frequency Band | 4.9 to 5.9 GHz | | Transmission Range | Up to 1500' (457 m) | | Interface | 1 x SDI input (BNC female)
1 x HDMI output (Type A female)
1 x SDI loop out
1 x Lemo (0B/2 core)
1 x Power in
1 x RP5MA antenna
1 x Power switch | | Video Input Formats | SDI:
3G-HD, SD-SDI (Auto / Manual-Selected):
525i
625i
720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
HDMI Type-A:
525i
625i
720p 50 / 59.94 / 60
1080i 50/ 59.94/ 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
SMPTE:
259 / 274 / 292 / 296 / 372 / 424 / 425 | | Video Output Format | SDI:
3G, HD, SD-SDI (Auto / Manual-Selected):
525i
625i
720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
HDMI Type A:
525i
625i
720p 50 / 59.94 / 60
1080i 50/ 59.94/ 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
SMPTE:
259 / 274 / 292 / 296 / 372 / 424 / 425 | | Color Depth Supported | Video Processing Color Depth: 8-bit; 10-bit; (4:0:0); (4:2:2) | | Audio Output Format | SDI embedded 4-channel 24-bit / 48 kHz PCM, DTS-HD, Dolby True HD | | Signal Indicator | Power: Green
Wireless RSSI: Blue (4 LEDs)
Power/Video: Yellow | | Modulation Mode | OFDM 16QAM | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 40 MHz | | Time Code | Every 10 sec | | Delay | <1 ms | | Pairing | Pair Pattern: One to one | | Noise Rejection | Coexist with Wi-Fi, 5 GHz, and phone | | Firmware Updates | Via mini-USB | | Installation | Adapts to Sony V-Mount battery plate (can be changed to Gold mount)
1/4" professional fixed screw hole | | Power Supply | 9 to 18 VDC | | Power Consumption | <9.5 W | | Compliance | FCC, CE, RoHS | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 6.1 x 2.2 x 7.1" (155 x 55 x 181 mm) | | Weight | 28.2 oz (800 g) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 7.2 x 6.7 x 3.6" |
