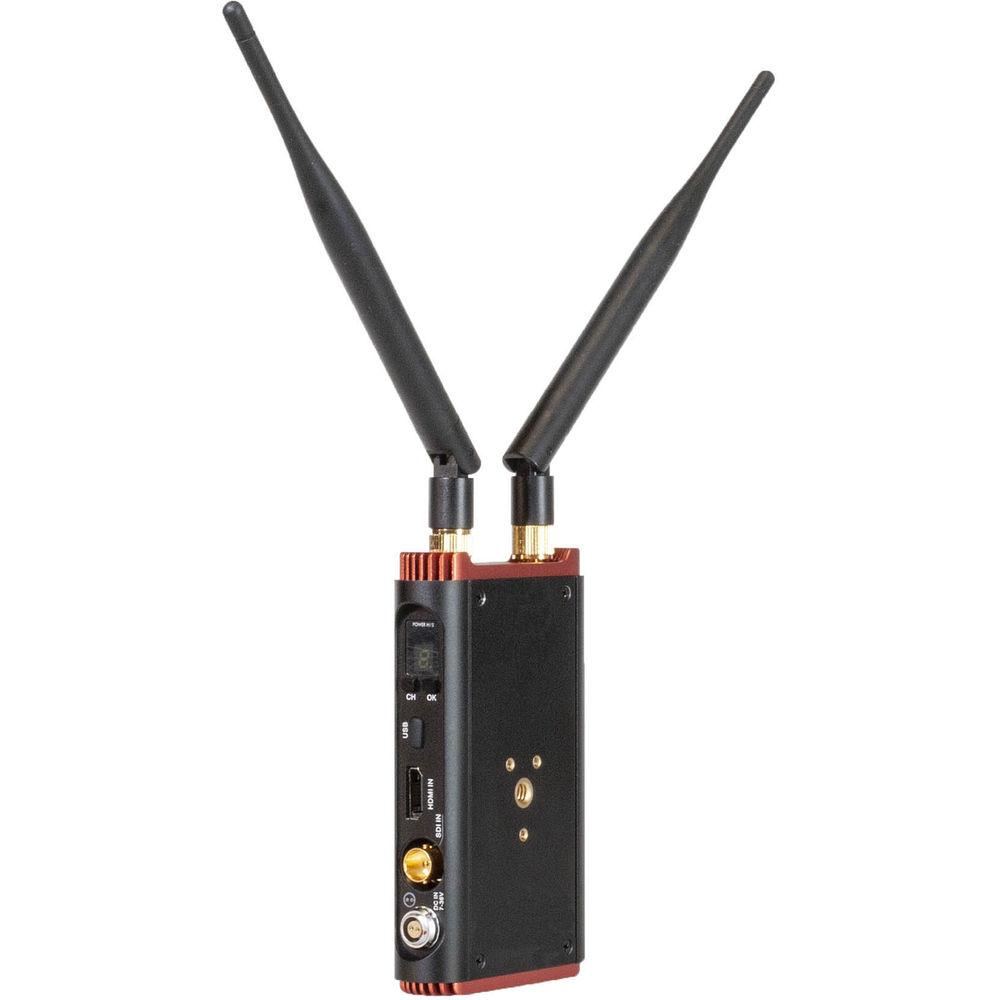

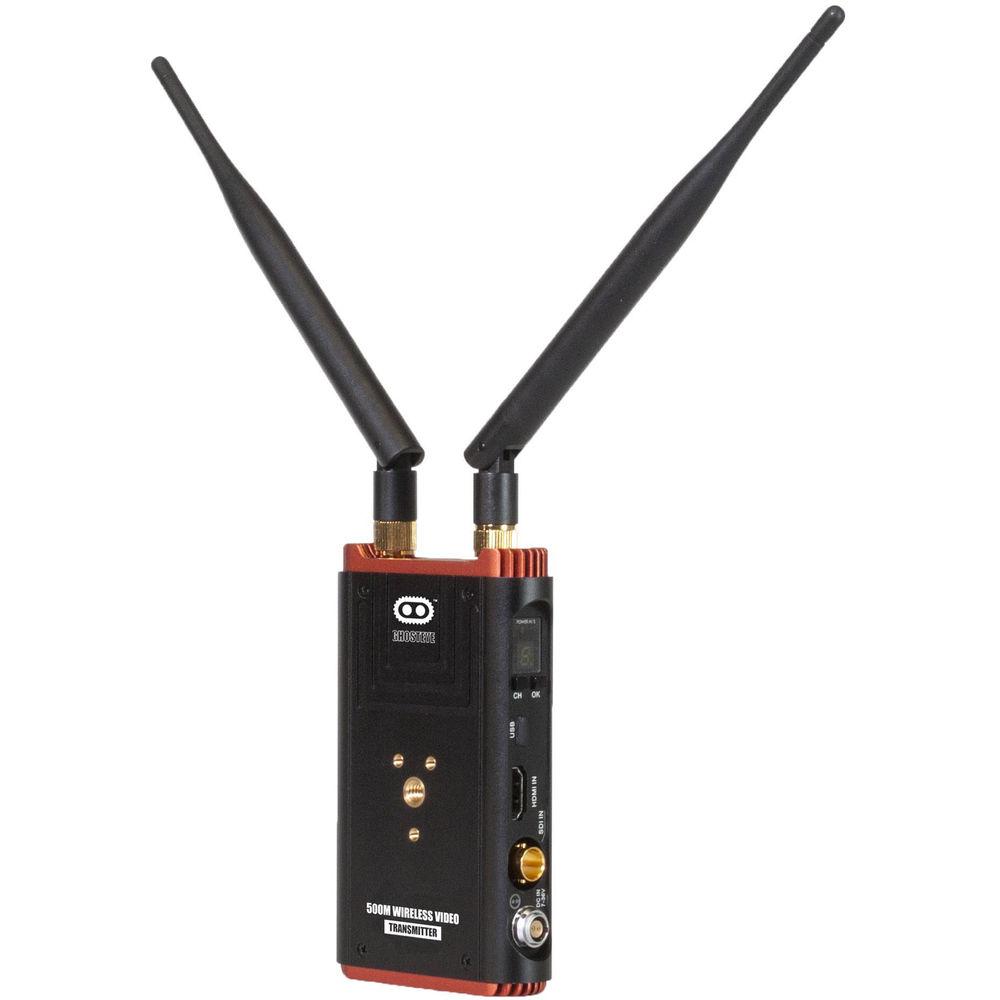

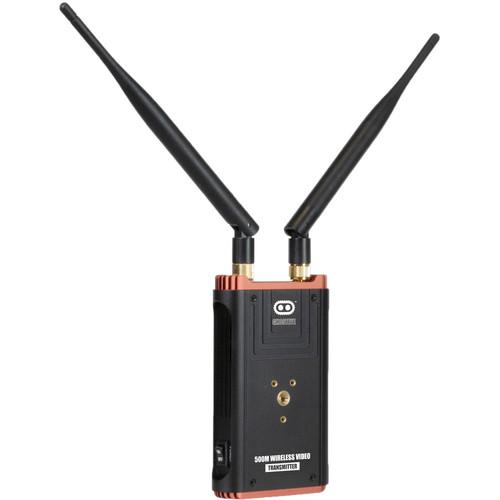

Product description The Ghost-Eye 500M Wireless HD & SDI Audio/Video Transmitter from Cinegears provides a suitable solution for video and audio transmission for film making and television professionals, both on set and post-production. It transmits uncompressed HD video and audio up to a distance of 1500', allowing you to shoot in both indoor and outdoor situations. With both 3G and HDMI inputs and outputs, using frequencies between 4.9 to 5.9GHz as needed (up to four simultaneously), you can utilize the video transmission for professional applications. It requires the Ghost-Eye 500M Wireless Receiver at the receiving end for full-feature utilization. - Allows you to broadcast video and audio up to 1500' (line-of-sight) over 5 GHz frequencies
- Transmits uncompressed, 10-bit 4:2:2, 1080p 60 fps video to up to four receivers simultaneously
- Offers low latency of less than 1 ms (no frames dropped) with 300 Mb/s transfer speed
- HDMI and SDI inputs and SDI loop out
- Supports HDMI to SDI cross-conversion
- Cross-compatible with Ghost-Eye 150M, 300M, and 400M transmitters and receivers
- Supports up to four receivers
- Auto-Relink—signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed
- Small obstacles in the line-of-sight are accommodated with an adaptive signal logarithm for continuous signals
- High-sensitivity, omnidirectional antennas broadcast your signal with integrity
In the Box CINEGEARS Ghost-Eye 500M Wireless HD & SDI Audio/Video Transmitter 2 x Extended Antenna 2-Pin Lemo Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 500M Wireless HD & SDI Audio Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Frequency Band | 4.9 to 5.9 GHz | | Transmission Range | Up to 1500' (457 m) | | Interface | 1 x SDI input (BNC female)
1 x HDMI input (Type A female)
1 x SDI loop out
1 x Lemo (0B/2 core)
1 x Power in
1 x RP5MA antenna
1 x Power switch | | Video Input Formats | SDI:
3G, HD, SD-SDI (Auto / Manual-Selected):
525i
625i
720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
HDMI Type A:
525i
625i
720p 50 / 59.94 / 60
1080i 50/ 59.94/ 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
SMPTE:
259 / 274 / 292 / 296 / 372 / 424 / 425 | | Video Output Format | SDI input loop out | | Color Depth Supported | Video Processing Color Depth: 8-bit; 10-bit; (4:0:0); (4:2:2) | | Audio Input Formats | SDI embedded 4-channel 24-bit / 48 kHz PCM, DTS-HD, Dolby True HD | | Audio Output Format | SDI embedded audio loop out | | Signal Indicator | Power: Green
Video: Yellow | | Modulation Mode | OFDM 16QAM | | Transmission Power | 17 dBm | | Occupied Bandwidth | 40 MHz | | Time Code | Every 10 sec | | Delay | <1 ms | | Pairing | Pair Pattern: One to multiple | | Noise Rejection | Coexist with Wi-Fi, 5 GHz, and phone | | Firmware Updates | Via mini-USB | | Installation | Adapts to Sony F550 and F970 battery plates 1/4" professional fixed screw hole | | Power Supply | 9 to 18 VDC | | Power Consumption | <7 W | | Compliance | FCC, CE, RoHS | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 2.5 x 1.4 x 4.3" (63 x 36 x 110 mm) | | Weight | 7.1 oz (200 g) |
