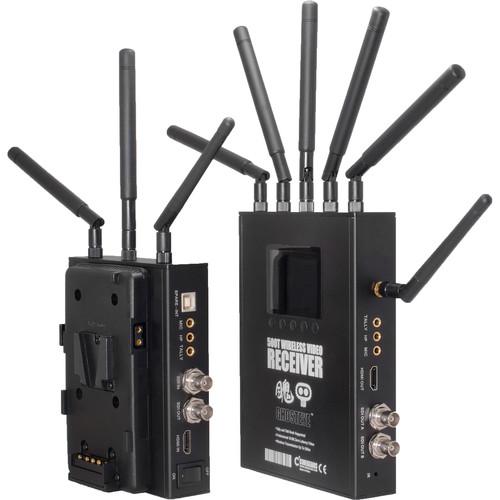

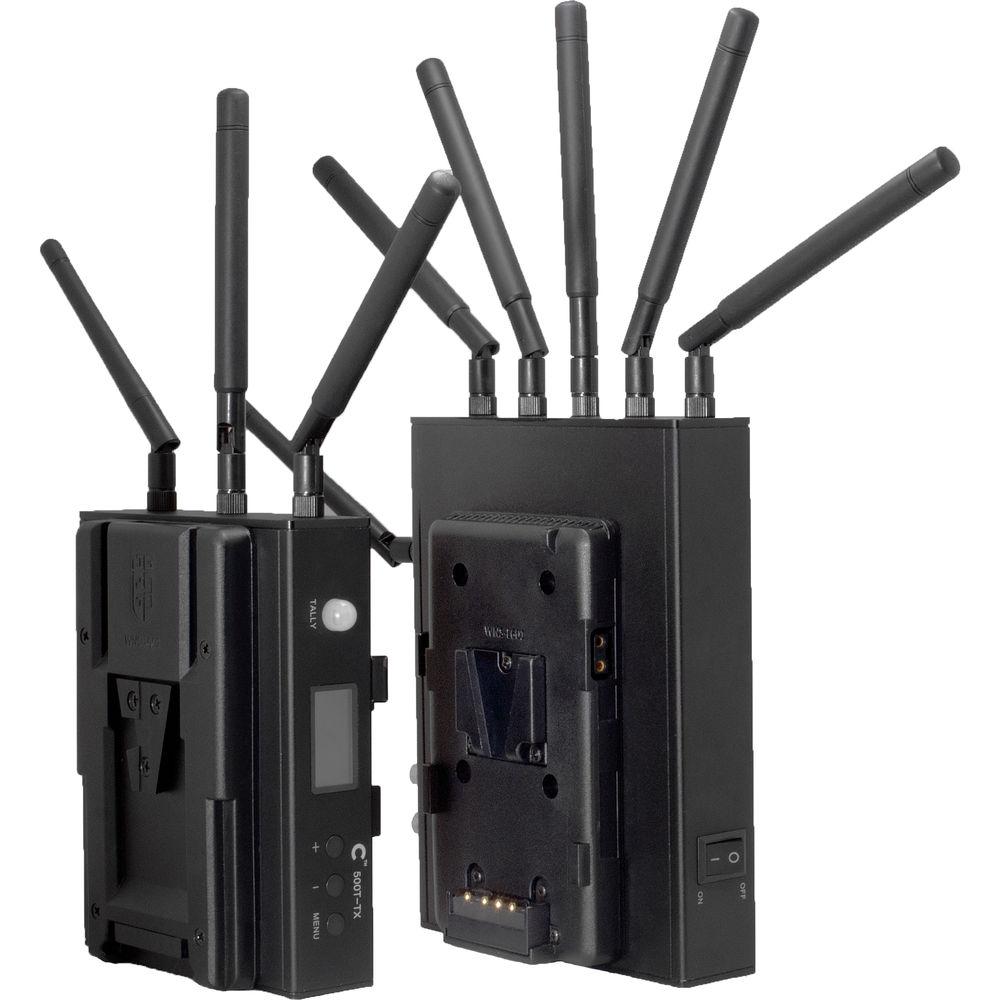

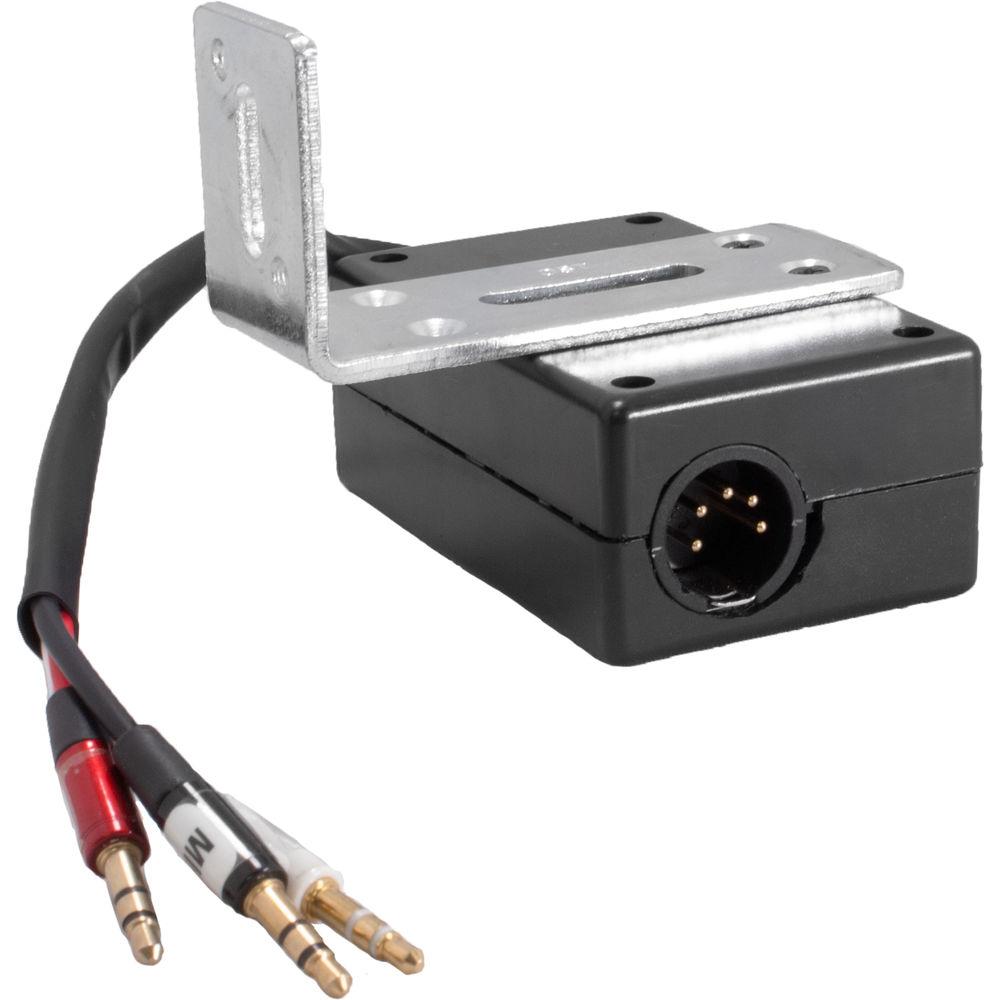

Product description The Ghost-Eye 500T Wireless HDMI/SDI Transmission System from Cinegears comes with intercom and tally functionality, and utilizes wireless video transmission technology. This system supports transmission of uncompressed 10-bit 4:2:2 video at less than 1 ms of delay up to 1500', and tally-supported, two-way audio up to 2000'. Both the transmitter and the receiver units feature HDMI and SDI inputs along with a SDI loop out. - Uses 5 GHz frequency band
- 10 frequency channels can be selected via buttons

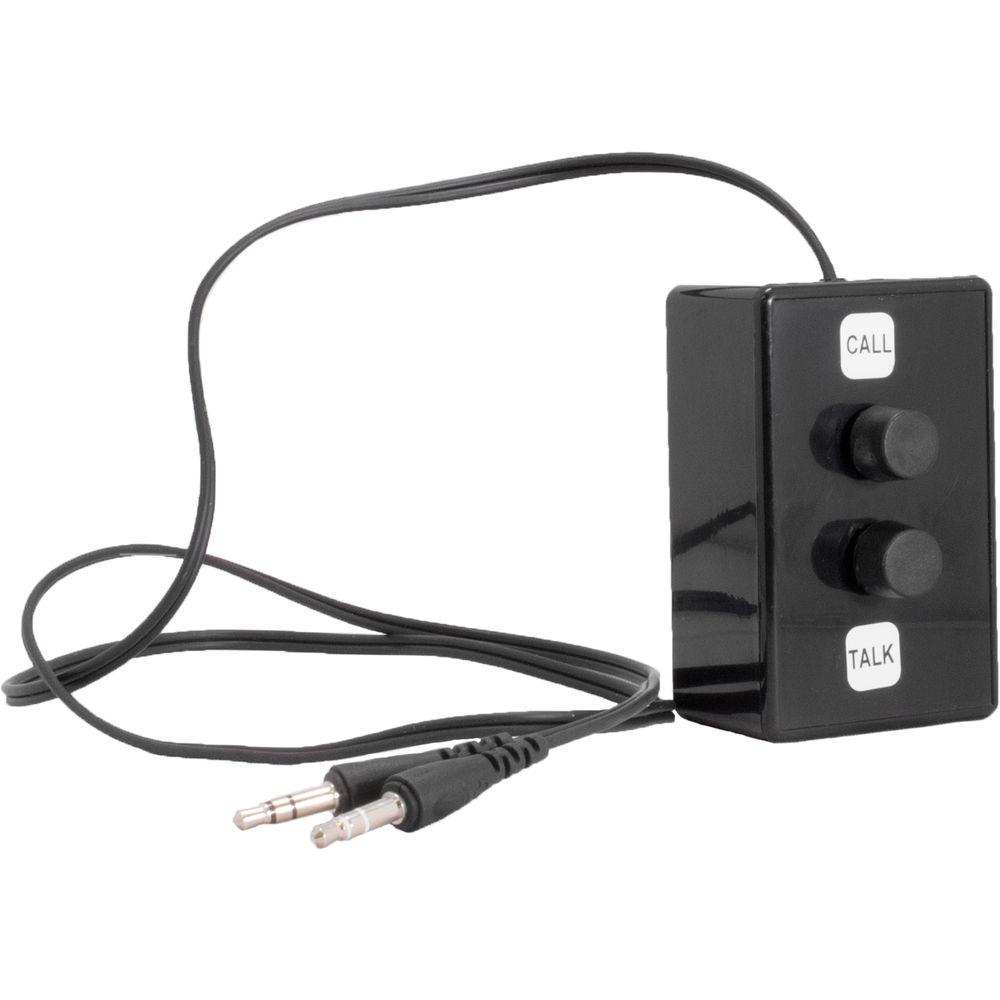

- Supports both video (up to 1500') and audio (2000') transmission (2-way communication)
- Supports transmission of uncompressed, 10-bit 4:2:2, 1080p 60 fps video signals
- Transmitter unit can transmit video signals to a virtually unlimited number of receivers simultaneously
- Offers low latency of less than 1 ms with 300 Mb/s transfer speed
- HDMI and SDI inputs and SDI loop out
- Supports HDMI to SDI cross-conversion
- Cross-compatible with Ghost-Eye 150M, 300M, and 400M transmitters and receivers
- Auto-Relink—signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed
- Small obstacles in the line-of-sight are accommodated with an adaptive signal logarithm for continuous signals

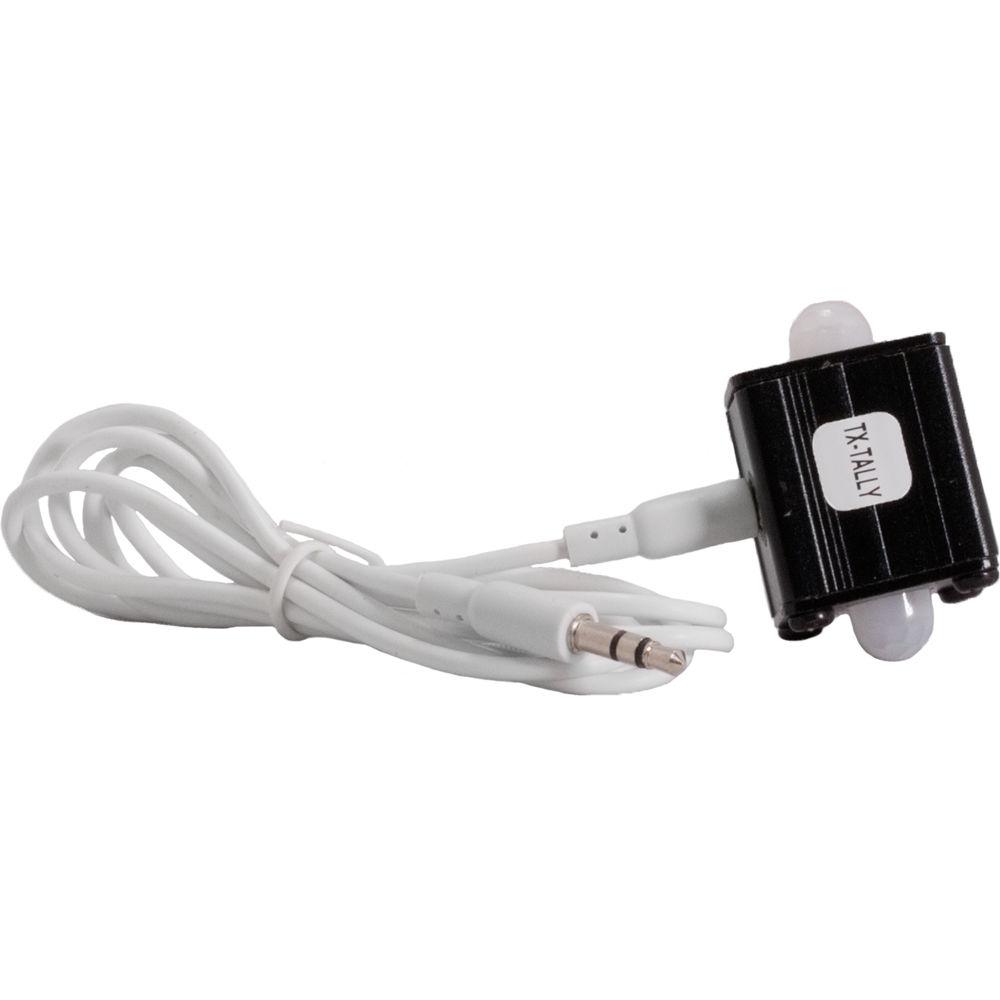

- Supports timecode and tally

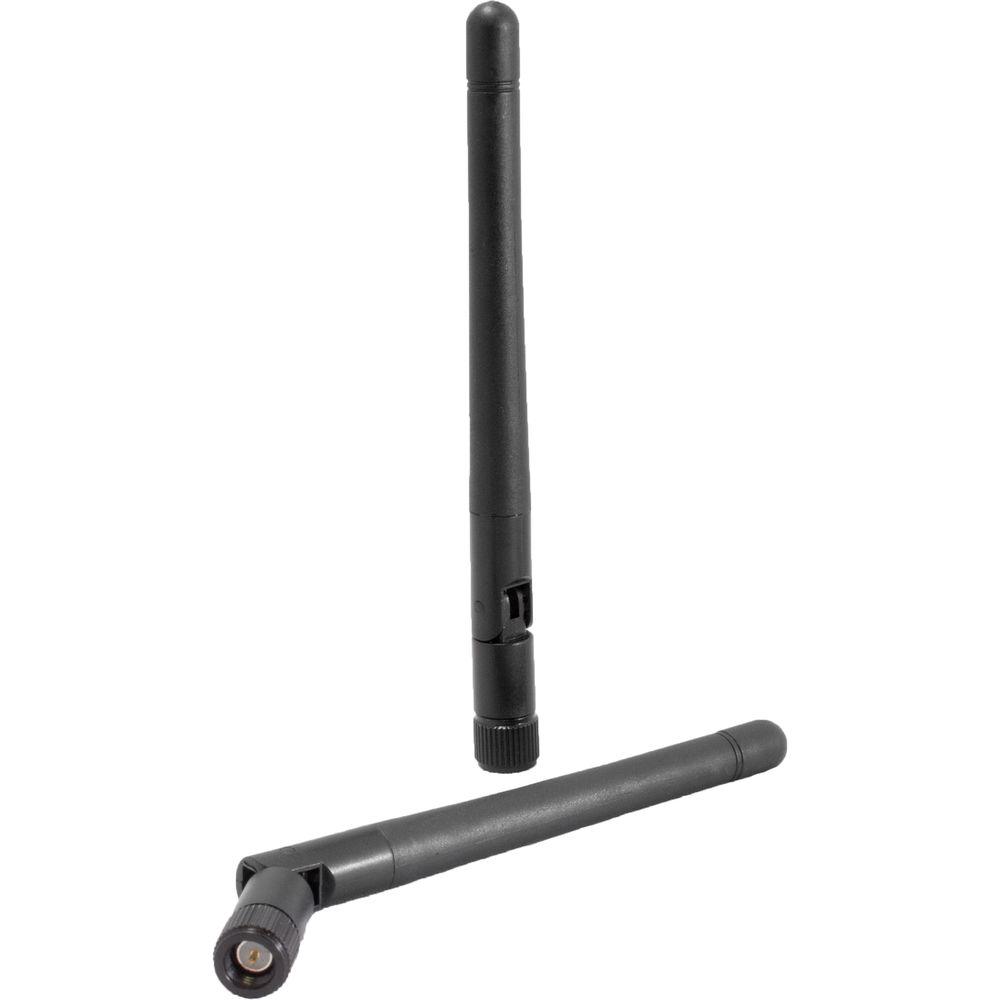

- High-sensitivity, omnidirectional antennas broadcast your signal with integrity
- Firmware upgrade via mini-USB

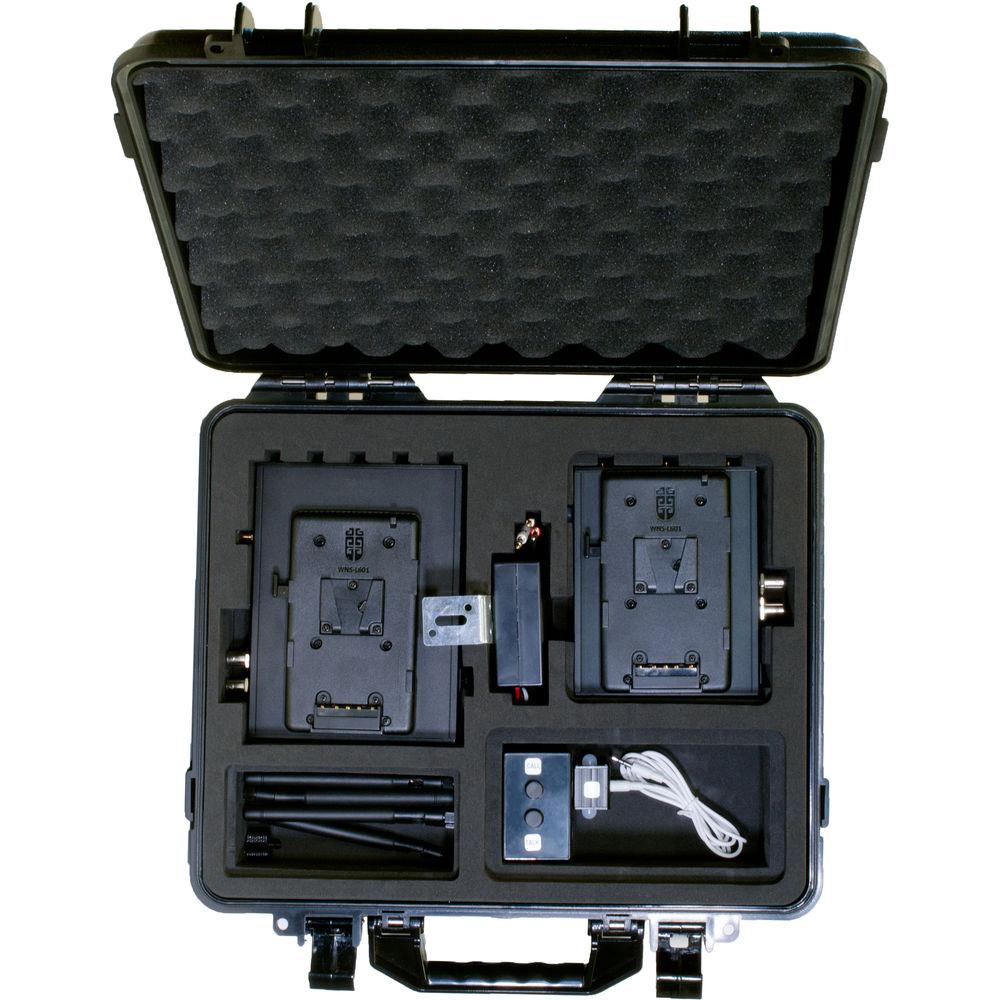

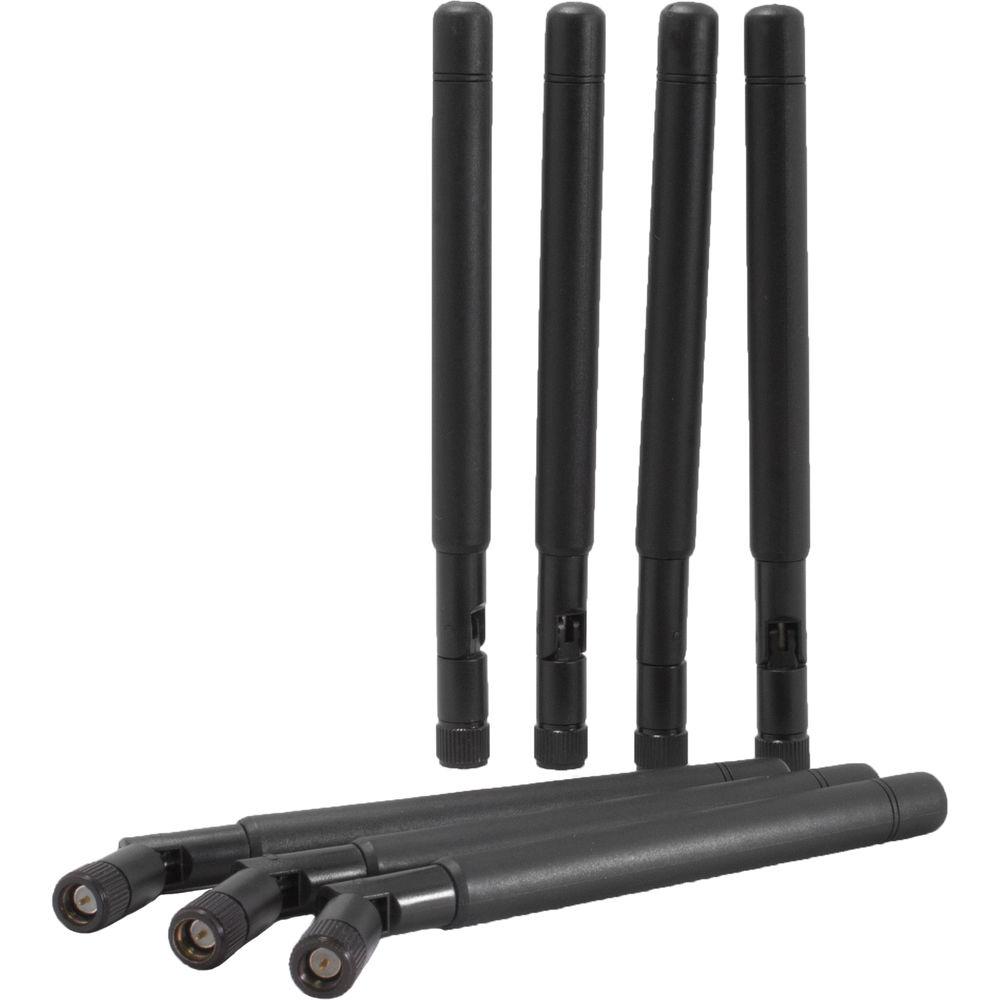

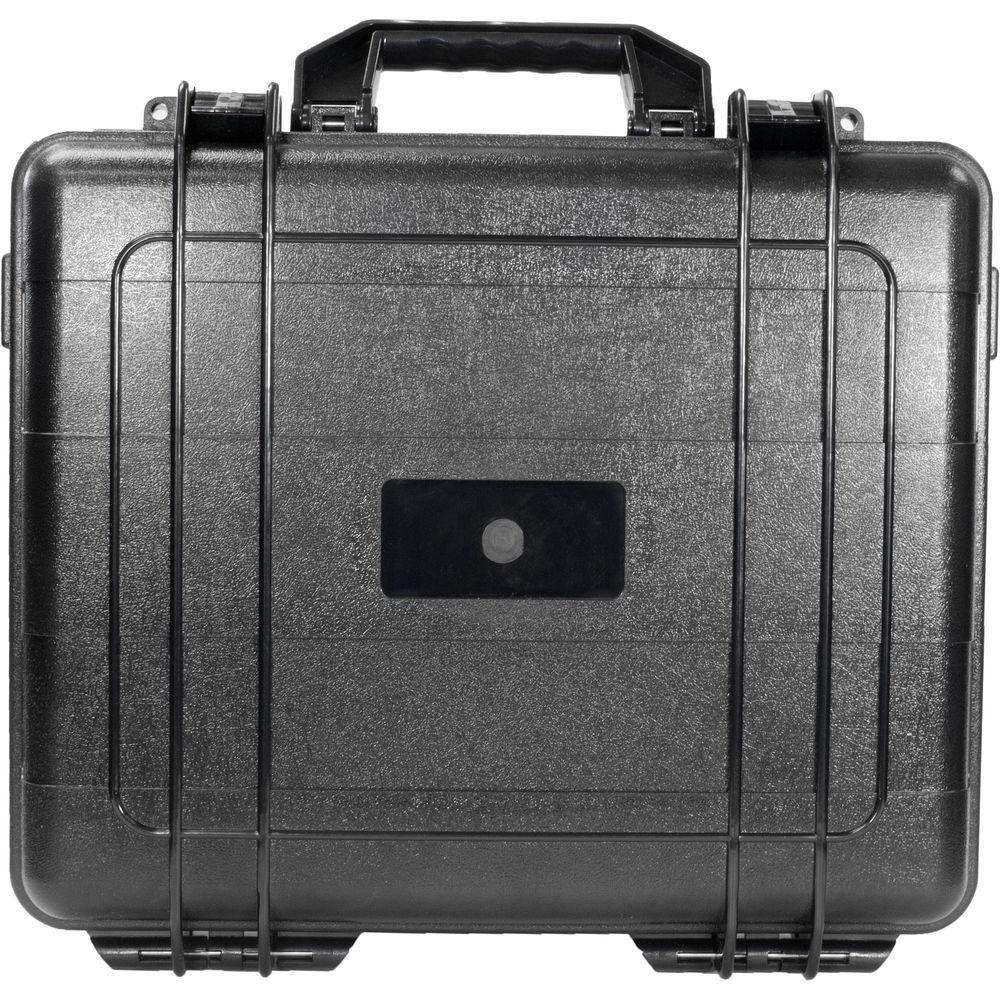

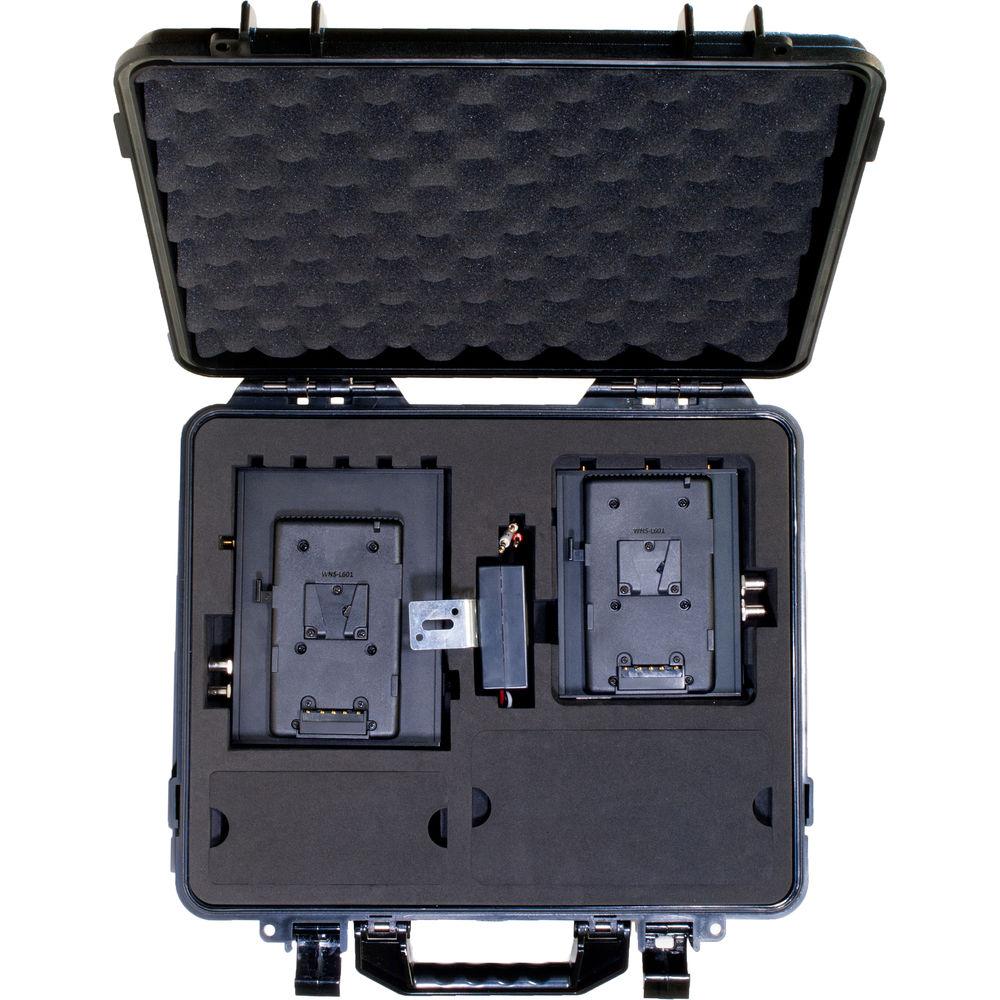

UPC: 714983522069 In the Box CINEGEARS Ghost-Eye 500T Wireless HDMI/SDI Transmission System Ghost-Eye 500T Wireless HD & SDI Audio/Video Transmitter vztwzbwzttt Ghost-Eye 500T Wireless HD & SDI Audio/Video Receiver 2 x V-Mount Bracket 2 x AC Adapter 2 x Hot Shoe Stand Waterproof Foamed Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 500T Wireless HDMI SDI Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6-500 Specs | | | Supported Video Format | 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 / 24psf / 25psf
1080i 60 / 59.94 / 50
720p 60 / 50
480p 60
480i (NTSC) / 576 (PAL)
SDI: 3G, HD, and SD-SDI (auto-adopt) | | Input | 1 x SDI (75 Ohms)
1 x HDMI (Type A)
1 x 3.5 mm earphone | | Output | 1 x SDI loop through (75 Ohms)
1 x 3.5 mm earphone | | Delay | <1 ms | | Supported Audio Formats | SDI, HDMI-embedded 24-bit / 48 kHz PCM | | Frequency | Standard: 5.1 to 5.9 GHz
Wireless Talk: 2.4 to 2.4835 GHz | | Power | Transmitter: 17 dBm
Wireless Talk: 18 dBm | | Tally | 1 x 3.5 mm connector
2 x LED indicator | | Working Distance | Lossless Video: Up to 1500' (457.2 m)
Lossless Audio: Up to 2000' (609.6 m) | | Bandwidth | 20 / 40 MHz | | Noise Rejection | Co-exist Wi-Fi and 5 GHz cordless phone | | Mode | Peer to peer | | Software Upgrade | Upgrade through mini-USB | | Installation | Sony V-Mount battery plate
1/4" professional fixed screw holes | | Display Screen | 1.3" (3.3 cm) OLED | | Input Voltage | 9 to 18 VDC | | Power Consumption | <8.5 W (at highest resolution of 1080p60) | | Working Temperature | 14 to 122°F (-10 to 50°C) | | Compliance | FCC, CE, RoHS | | Dimensions | 5.3 x 2.7 x 5.9" (135 x 69 x 150 mm) | | Weight | 28.2 oz (800 g) | | | | Supported Video Format | 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 / 24psf / 25psf
1080i 60 / 59.94 / 50
720p 60 / 50
480p 60
480i (NTSC) / 576 (PAL)
SDI: 3G, HD, and SD-SDI (auto-adopt) | | Input | 1 x 3.5 mm microphone
1 x 3.5 mm Tally | | Output | 2 x SDI (75 Ohms)
1 x HDMI (Type A)
1 x 3.5mm earphone | | Delay | <1 ms | | Supported Audio Formats | SDI HDMI embedded 24-bit / 48 kHz PCM | | Frequency | Standard: 5.1 to 5.9 GHz
Wireless Talk: 2.4 to 2.4835 GHz | | Receiver Sensitivity | 17 dBm | | Power | Wireless Talk: 18 dBm | | Tally | Status displayed on OLED | | Working Distance | Lossless Video: Up to 1500' (457.2 m)
Lossless Audio: Up to 2000' (609.6 m) | | Bandwidth | 20 / 40 MHz | | Noise Rejection | Co-exist Wi-Fi and 5 GHz cordless phone | | Mode | Peer to peer | | Software Upgrade | Upgrade through mini-USB | | Installation | Sony V-Mount battery plate
1/4" professional fixed screw holes | | Display Screen | 2.6" (6.6 cm) OLED | | Input Voltage | 9 to 18 VDC | | Power Consumption | <9.5 W (at highest resolution of 1080p60) | | Working Temperature | 14 to 122°F (-10 to 50°C) | | Compliance | FCC, CE, RoHS | | Dimensions | 6.1 x 2.2 x 7.1" (155 x 55 x 181 mm) | | Weight | 28.2 oz (800 g) |
