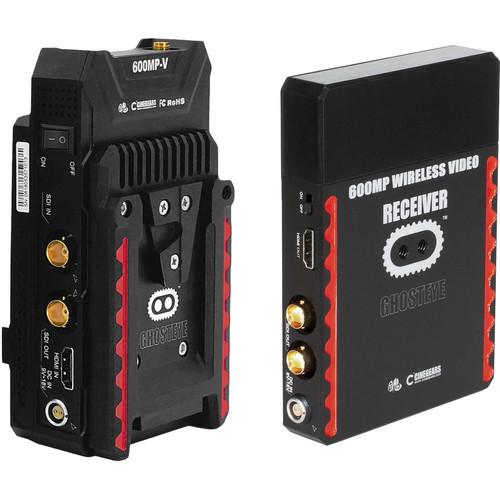

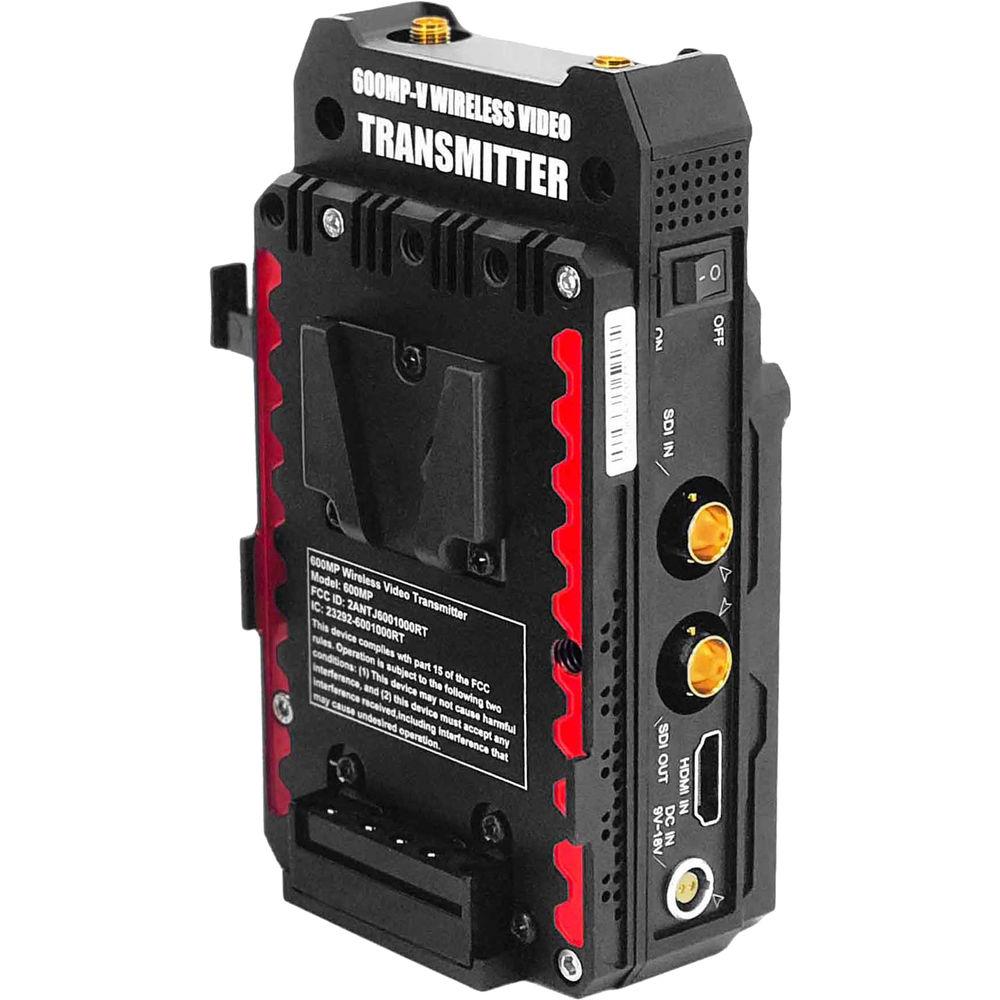

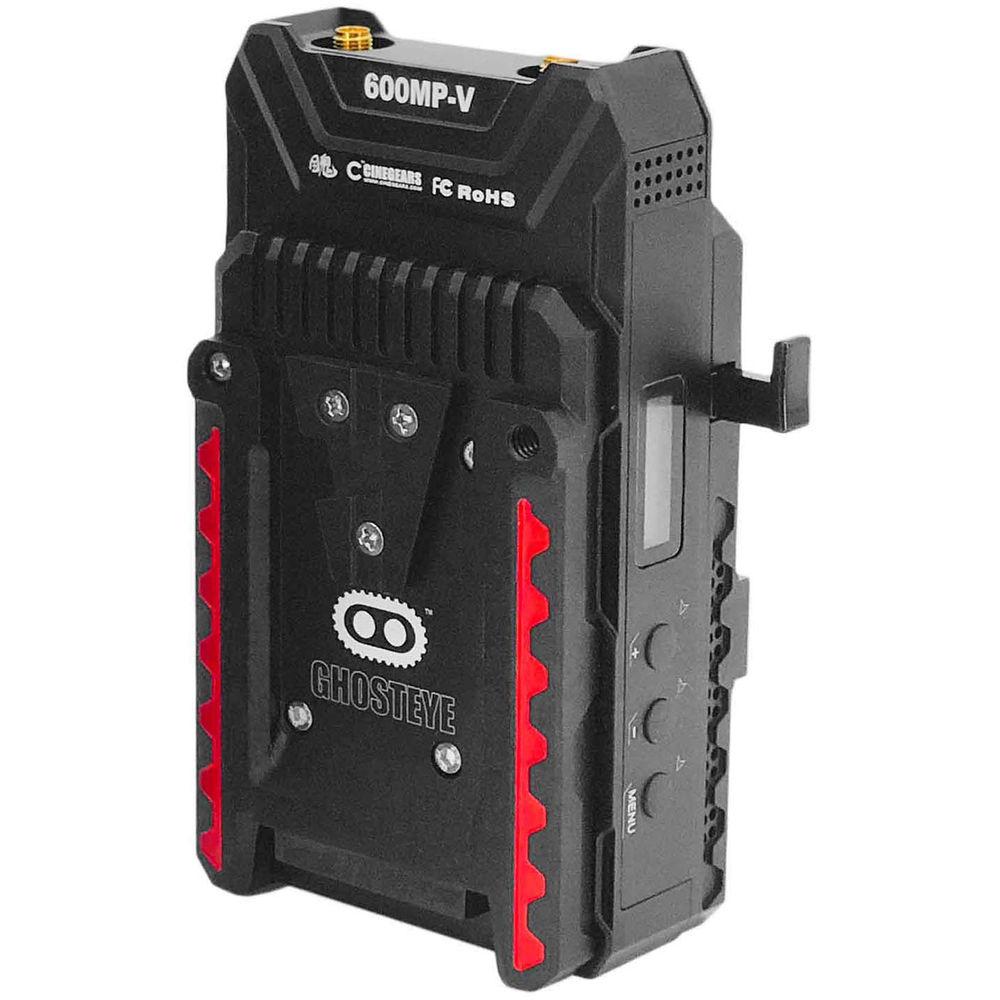

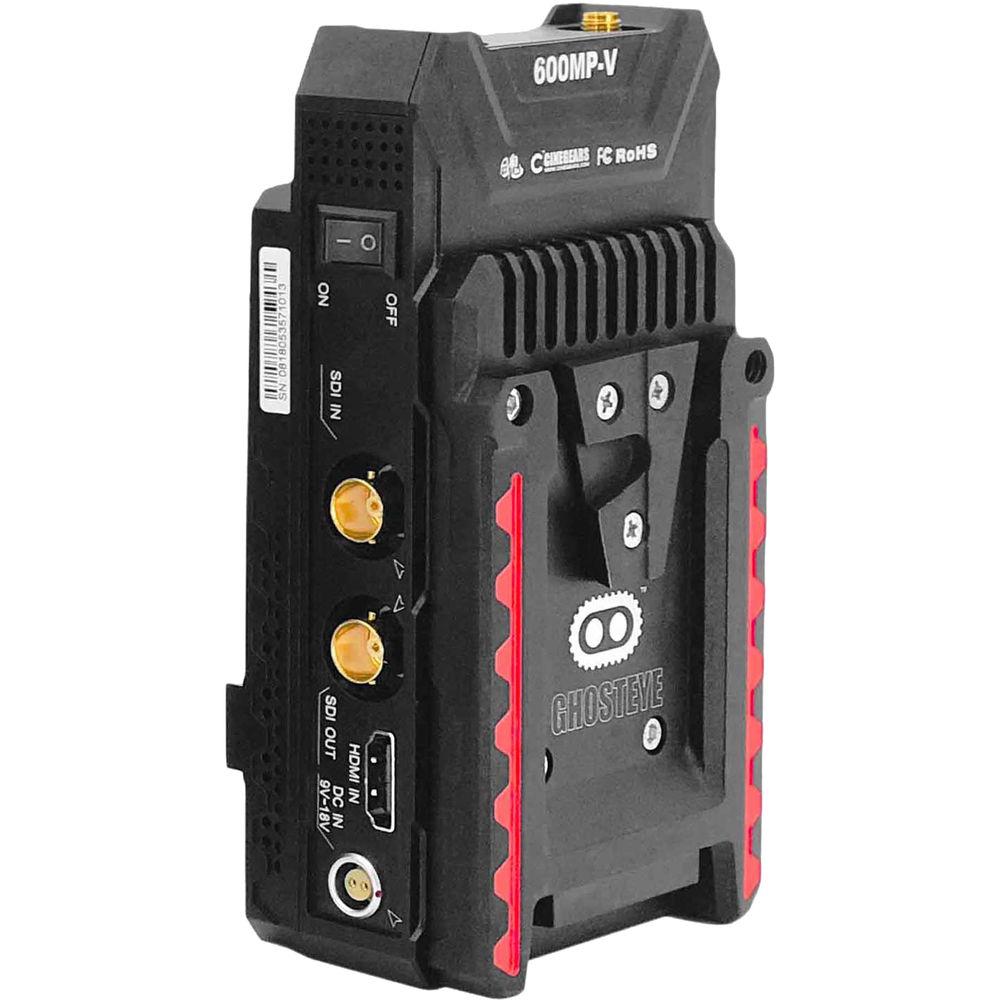

Product description The Cinegears Ghost-Eye 600MP Wireless Transmitter and Receiver Kit provides HDMI/SDI cross compatibility, 10-bit color, and SDI loop-out. The transmitter features V-mount battery plate and can alternatively be powered via a 2-pin LEMO connector using an included D-Tap to 2-pin LEMO cable. The receiver comes with an L-series battery plate. The 600M Plus is more robust and powerful than its predecessors, transmitting up to 2000' line-of-sight. Omnidirectional mushroom antennas on the transmitter and built-in antennas on the receiver provide for a compact form factor. One of the more exciting features of the Ghost-Eye system is that it is compatible with previous generations of Ghost-Eye transmitters and receivers, and you can also transmit to an unlimited number of receivers.
The 600M Plus supports both SDI and HDMI input and output signals, and enables cross conversion during transmission so you can input an SDI signal on the transmitter and output HDMI on the receiver, or vice versa. The transmitter also features a loop-through SDI output, while the receiver features one HDMI and two SDI outputs. It locates the indicator lights and status screen on the side, which allows you to sandwich the unit with a front and back mount. The LED status screen allows the user to easily access the channel selection screen. An included hard-sided waterproof case protects your gear during transportation and storage. - 10-Bit 4:2:2 Video
- Transmits and receives uncompressed 1080p60 video
- Data Transmission and Latency
- 300 Mb/s transmission with no more than 1 ms latency
- I/O
- The transmitter features an SDI and HDMI input, with an SDI loop-through output, while the receiver features two SDI outputs and an HDMI output
- Cross Conversion
- The system supports cross conversion, allowing you to transmit SDI and output HDMI, or vice versa
- Compatibility
- All Ghost-Eye transmitters and receivers are cross compatible, which means your previous generation Ghost-Eye transmitters and receivers will work with this model
- Auto-Relink
- Allows for dropped signals due to interference or line-of-sight issues to automatically reconnect within 1 ms when the interference clears or the obstacle blocking the line-of-sight transmission is removed
- Intuitive Signal Accommodation
- An adaptive signal algorithm reduces signal loss when small objects cross the line-of-sight path
- Omnidirectional Antennas
- The omnidirectional antennas allow you to move your camera while maintaining your connection
UPC: 610877597857 In the Box CINEGEARS Ghost-Eye 600MP Wireless Transmitter and Receiver Kit (V-Mount/L-Series) 600MP Transmitter 600MP Receiver Heavy Duty Steel Ball Joint Articulated Arm dcfuesfxzvzdevvweeadqyfbutsbseayzcct 2 x CI6302 2 x CI6204 Waterproof Case Limited 3-Year Warranty User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 600MP Wireless Transmitter and Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | | | Frequency Range | 5.1 to 5.9 GHz
2.4 to 2.483 GHz with ISM band | | Modulation Method | OFDM/40 MHz (for video)
GSK/1 MHz (for intercom system) | | Video Format Support | 1080p: 60/50/30/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | Audio Formats Support | PCM
DTS-HD
Dolby TrueHD | | Timecode | SMPTE-12M | | Transmission Range | Line of Sight: 2000' / 600 m | | | | Transmission Power | 18 dBm | | Interface | HDMI Input
SDI Input
SDI Loop Through
Mini-USB
LEMO Power In
Antenna RPSMA socket
Power On/Off
HP/MIC: 3.5 mm | | Mounting | 1/4" hot-shoe connection | | OLED Viewscreen | Channel info
Video status
Battery capacity
Status menu
Audio volume | | Power | Input: 9 to 18 VDC
Consumption: 7.5 to 8.5 W
Battery Plate: V-mount | | Temperature | Operating: 14 to 122°F / -10 to 50°C
Storage: -40 to 176°F / -40 to 80°C | | Dimensions | 5.61 x 2.99 x 0.96" / 14.25 x 7.6 x 2.43 cm | | Weight | 14.1 oz / 400 g | | | | Receiving Sensitivity | -70 dBm | | Interface | HDMI Output
Dual SDI Output
Mini-USB
LEMO Power In
Antenna RPSMA socket
Power On/Off | | Mounting | 1/4" hot-shoe connection | | OLED Viewscreen | Channel info
Signal strength
Power info | | Power | Input: 9 to 18 VDC
Consumption: 7.5 to 8.5 W
Battery Plate: L-series | | Temperature | Operating: 14 to 122°F / -10 to 50°C
Storage: -40 to 176°F / -40 to 80°C | | Dimensions | 6.67 x 4.8 x 0.99" / 16.95 x 12.2 x 2.52 cm | | Weight | 28.2 oz / 800 g (including antenna) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 13.7 x 13.1 x 5.1" |
