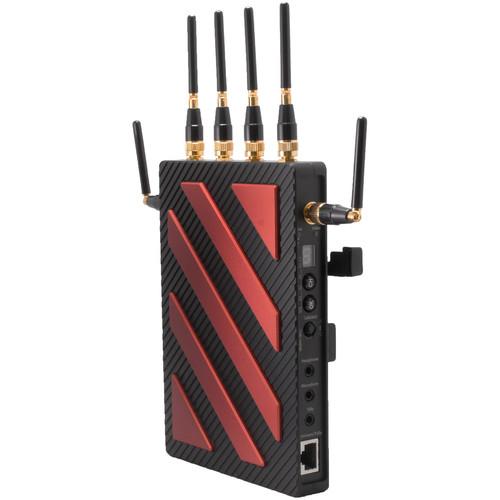

Product description The Ghost-Eye 600T Wireless HD & SDI Video Receiver from Cinegears receives uncompressed HD video and audio up to 3280'. It comes with added security encryption that ensures no data is lost during transmission. With both 3G and HDMI inputs and outputs, using frequencies between 5.1 to 5.9 GHz as needed (up to four simultaneously), you can utilize the video transmission for professional applications. The Ghost-Eye wireless video transmitter is required at the transmitting end for full feature utilization. Each coordinating transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks. - Uses license-free 5 GHz ISM frequency band, maximum four frequency channels with automatic or manual selection, coexists with Wi-Fi
- Supports wireless 10-bit HD video and audio with no compression and no delay up to 3280' (line-of-sight)
- Supports timecode, LUTs, start/stop sync, and tally for broadcast or live event streaming production
- Uncompromised picture quality with low latency less than 1 ms
- Supports point-to-point, and point-to-multipoint network topology
- Cross-compatible with Ghost-Eye 100M, 150M, 300M, 400M and 600T transmitters and receivers
- High resolution, 10-bit color depth 4:2:2, 1080p 60 fps HDMI and 3G/HD/SD-SDI input and output
- Supports HDMI to SDI cross conversion
- Built-in talk back microphone and headphone
- Supports professional audio formats include Dolby True HD, DTS-master, and more
- Supports SDI/HDMI dual output
- AES-128/256 encryption with air interface HD video data stream
- Auto-Relink signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed
- Small obstacles in line-of-sight are accommodated with an adaptive signal logarithm for continuous signals
- HDMI 1.4 with EDID support
- Built-in, ultra-silent intelligent fan prevents heat and moisture damage
- Supports wide-range power voltage input, adapts most kinds of camera batteries with optional V-Mount, Gold mount (Anton Bauer), or 1/4" bolt mount battery plates
- Six high-sensitivity, omnidirectional external antennas with RPSMA socket
- Supports all input and output ports with ±8 kV ESD protection level (HBM, contact discharge)
- Plug-and-play hardware design without need for software, firmware upgradable via mini USB port
- Professional standard two-pin Lemo power plugs
- Built-in LCD screen displays for device and signal status
- Waterproof, mist-proof, shockproof production case with foam insert available separately for traveling
UPC: 714983521819 In the Box CINEGEARS Ghost-Eye 600T Wireless HD & SDI Video Receiver 6 x Extended Antenna 2-Pin Lemo Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye 600T Wireless HD & SDI Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Frequency Band | 5.1 to 5.9 GHz (Configurable with China, North American, Europe, etc.) | | Transmission Range | 3280' (1000 m) | | Interface | 1 x SDI output (BNC female)
1 x HDMI output (Type A female)
1 x SDI loop out
1 x Lemo (0B/2 core)
1 x Power in
6 x RPSMA antenna
1 x Power switch | | Video Input Formats | SDI:
3G, HD, SD-SDI (Auto / Manual-Selected):
525i
625i
720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
HDMI Type A:
525i
625i
720p 50 / 59.94 / 60
1080i 50/ 59.94/ 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
SMPTE:
259 / 274 / 292 / 296 / 372 / 424 / 425 | | Video Output Format | SDI:
3G, HD, SD-SDI (Auto / Manual-Selected):
525i
625i
720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
HDMI Type A:
525i
625i
720p 50 / 59.94 / 60
1080i 50/ 59.94/ 60
1080p 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60
SMPTE:
259 / 274 / 292 / 296 / 372 / 424 / 425 | | Color Depth Supported | Video Processing Color Depth: 8-bit; 10-bit; (4:0:0); (4:2:2) | | Audio Output Format | SDI embedded 4-channel 24-bit / 48 kHz PCM, DTS-HD, Dolby True HD | | Signal Indicator | Power: Green
Wireless RSSI: Blue (4 LEDs)
Power/Video: Yellow | | Modulation Mode | OFDM 16QAM | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 40 MHz | | Time Code | Every 10 sec | | Encryption | AES-128/256 | | Power Supply | 6.5 to 16.8 VDC | | Power Consumption | <6 W | | Compliance | FCC, CE, RoHS | | Temperature Range | Operating: 5 to 140°F (-15 to 60°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions | 5 x 3 x 1.2" (126.5 x 75 x 31.5 mm) | | Weight | 16.9 oz (480 g) |
