User Manual for CINEGEARS Ghost-Eye Handheld Real-Time 5G Wireless Video Scanner Receiver Monitor Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Handheld Real-Time 5G Wireless
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Handheld Real-Time 5G Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

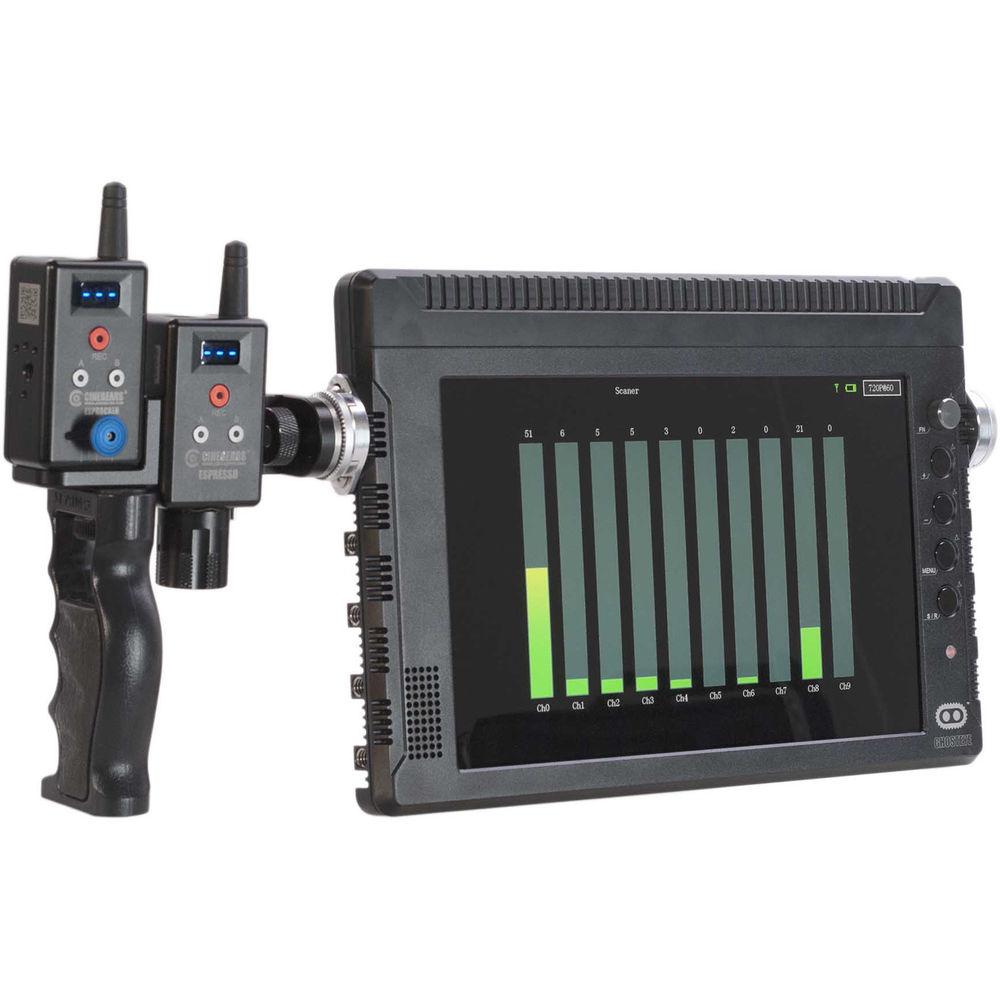

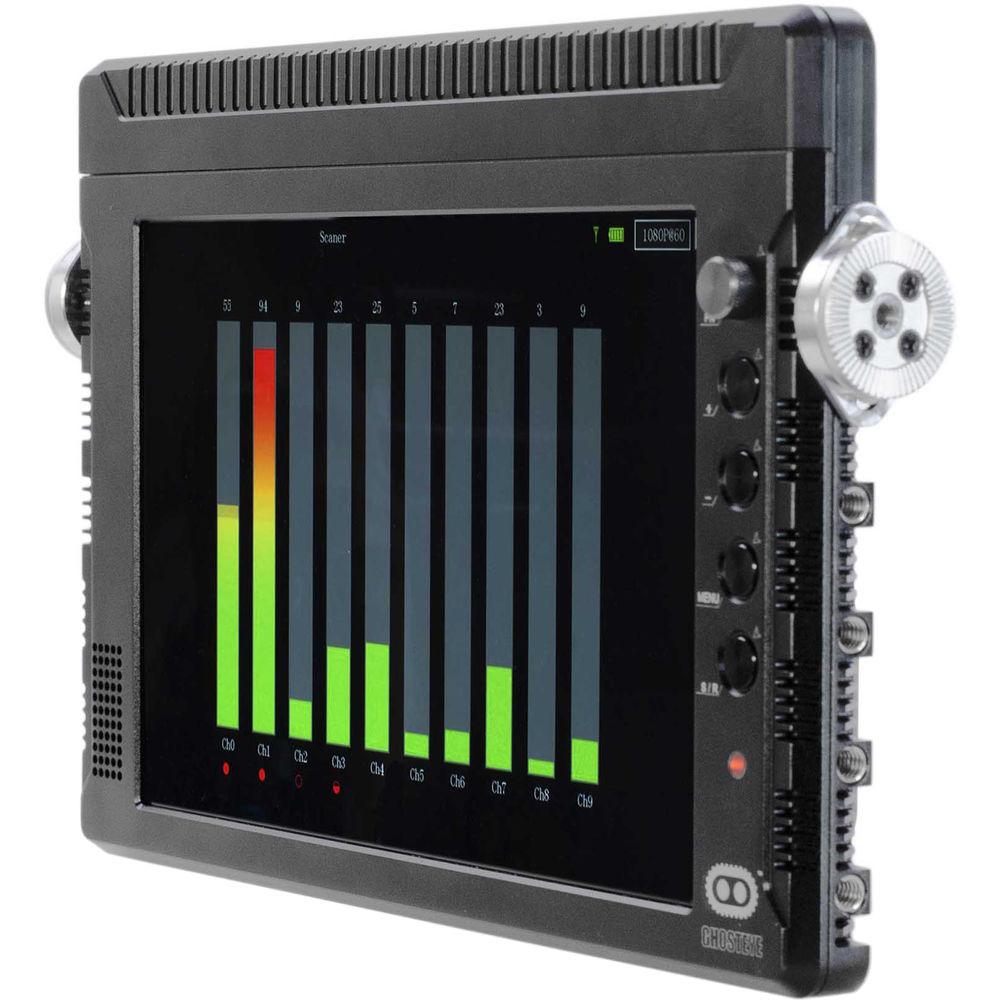

Product description Find an open 5G wireless channel for video transmission with this 10" Ghost-Eye Handheld Real-Time 5G Wireless Video Scanner/Receiver/Monitor from CINEGEARS. Rather than guessing which signals are open or the strongest to match your transmitters and receivers, the scanner uses a high-power built-in panel antenna that allows you to see the status and strength of the open channels on the 5G band in real time.
The thin panel scanner has two modes: a scanner/receiver mode and a monitor mode in which it can be used as a 10" live mobile monitor to wirelessly preview your video in 1080p60 resolution, as well as preview the audio with a headphone jack or through the built-in speaker. It has both an HDMI and an SDI output to send your video to another display, recorder, or switcher. The scanner supports encrypted video from all Ghost-Eye wireless models.

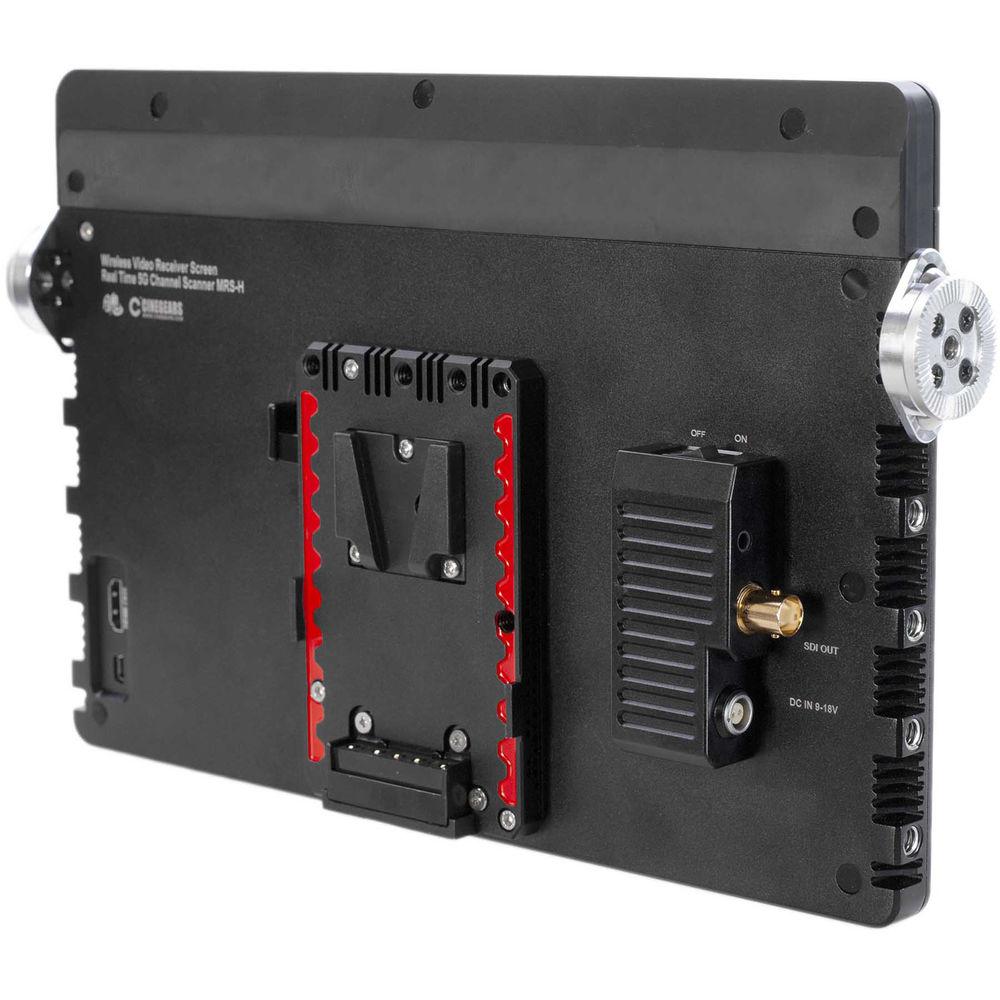

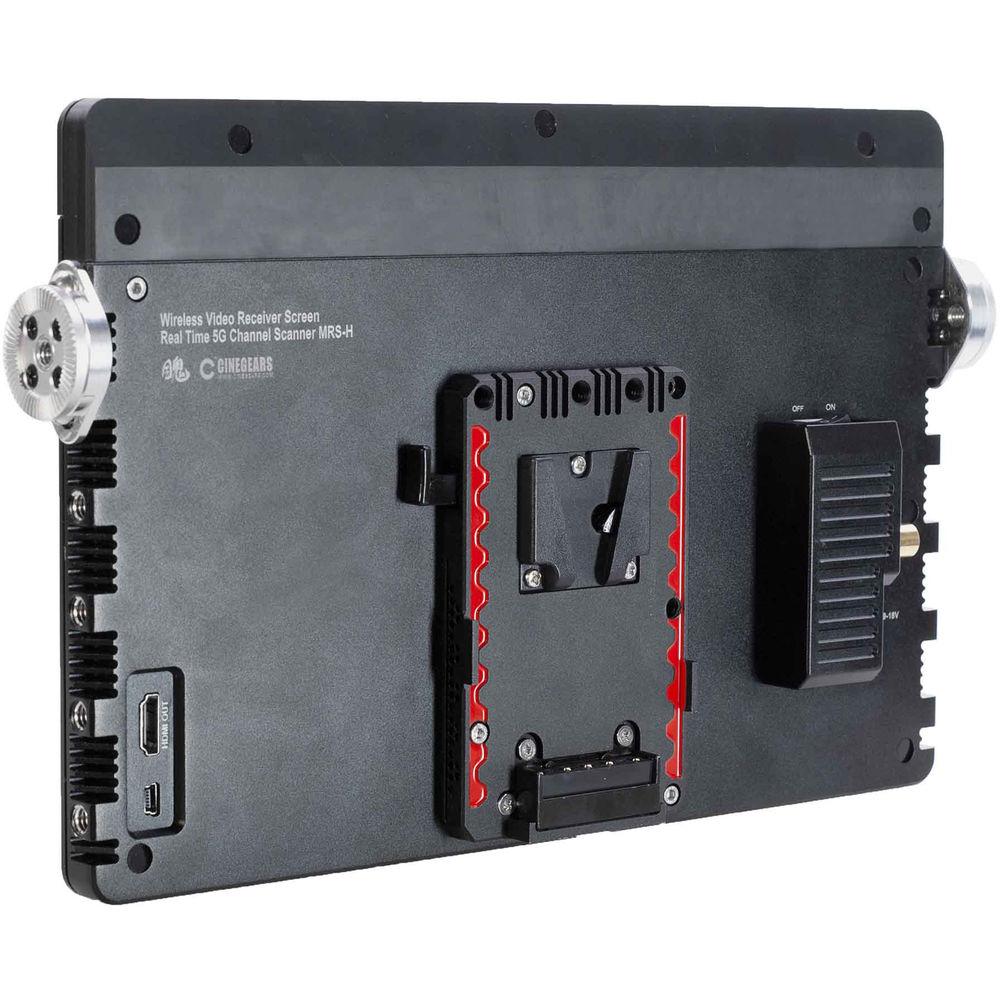

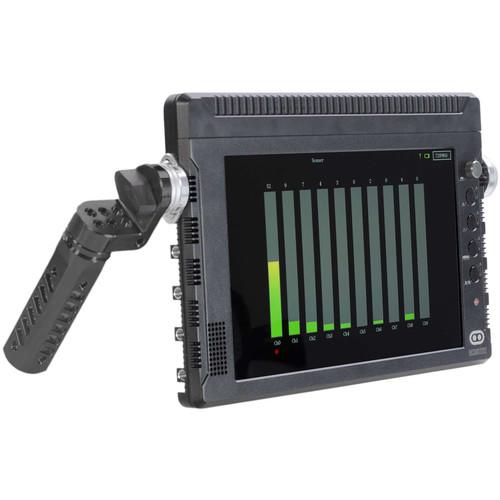

The monitor has built-in image features to ensure proper levels such as false color, full blue signal, zebra, zoom, safe frame, audio levels, and auxiliary focus. It features a V-mount battery mount on the back, multiple mounting threads on the sides, and rosette mounts on the left and right side to add handles to take it mobile. - Built-In Image Features
-
- False color
- Full blue signal
- Zebra
- Zoom
- Safe frame
- Audio levels
- Auxiliary focus
UPC: 610877597611 In the Box CINEGEARS Ghost-Eye Handheld Real-Time 5G Wireless Video Scanner/Receiver/Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Handheld Real-Time 5G Wireless Video Scanner Receiver Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Compatibility | All Cinegears Ghost-Eye Wireless Video Transmission Systems | | Display Resolution | 1080p60 | | Brightness | 800 cd/m² | | Display Size | 10" | | Display Type | LED | | Battery Mount | V-Mount | | Video Output | 1 x HDMI
1 x SDI | | Audio Output | 1 x 3.5 mm Stereo Headphone | | Built-In Speaker | Yes | | Frequency Band | 5G | | Maximum Transmission Distance | 3280' / 1000 m | | | | Package Weight | 8.82 lb | | Box Dimensions (LxWxH) | 13.5 x 12.7 x 5.1" |
