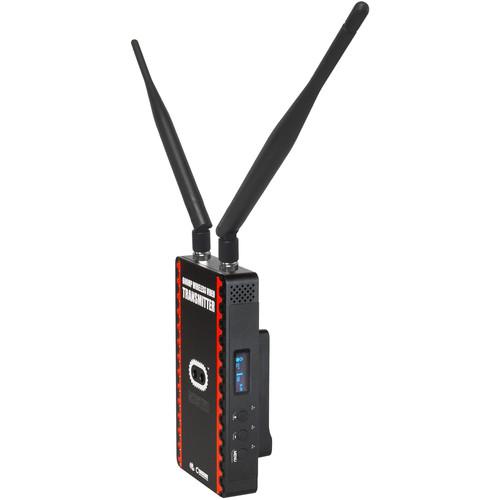

User Manual for CINEGEARS Ghost-Eye Wireless 600MP ENG HD SDI Video Transmitter Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless 600MP ENG HD
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
|
User manual for the CINEGEARS Ghost-Eye Wireless 600MP ENG HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Ghost-Eye Wireless Video Transmission 600MP on Set with Director Sukh Sanghera
- Ghosteye Wireless Transmitter review
The innovative 600MP ENG HD/SDI Video Transmitter from CINEGEARS incorporates a battery plate with pass-through power, enabling you to power the transmitter and your camera with a single Gold mount battery. Supporting up to 1080p60 video with 10-bit 4:2:2 color, this ENG-style transmitter offers 2000' line-of-sight transmission, HDMI/SDI cross-compatibility, SDI loop-through output, and a limited REC start/stop function.The 600MP ENG Transmitter fully supports both 3G-SDI Types A and B, is cross-compatible with other Ghost-Eye components, and can be paired with an unlimited number of Ghost-Eye receivers. This unit is powered via a 2-pin LEMO connector (D-Tap to 2-pin LEMO cable included), and includes a D-Tap output for powering an accessory.The robust 600MP ENG Transmitter features a heavy-duty casing with durable, inset SDI connectors that minimize the chance of port damage. Its auto-link function is useful for traveling shots, relinking the transmitter once it's returned after traveling out of range. - Features
-
- Zero-latency wireless HD video and audio transmission over 2000'
- Gold mount battery plate with pass-through powers both the transmitter and your camera
- Supports up to 1080p60 video with 10-bit 4:2:2 color
- HDMI/SDI cross compatibility with SDI loop-through out
- Limited REC start/stop function
- Fully supports both 3G-SDI Level A and 3G-SDI Level B
- Pairs with an unlimited number of Ghost-Eye receivers
- Cross-compatible with other Ghost-Eye models
- Auto-relinking once the transmitter is carried back within range
UPC: 610877597918 In the Box CINEGEARS Ghost-Eye Wireless 600MP ENG HD/SDI Video Transmitter (Gold Mount) 2 x Extended-Range Antenna 2-Pin LEMO-Type to D-Tap Power Cable Limited 3-Year Warranty User Manual PDF 1.5mbcqcrqytzstuwcytsezdycuceyevefb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless 600MP ENG HD SDI Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Transmission Range | Line of Sight:
2000' / 600 m | | Supported Video Resolutions | Up to 1080p60, 10-bit, 4:2:2 | | Interface | 1 x HDMI input
1 x SDI input
1 x SDI loop-through
1 x 2-pin LEMO-type power in
2 x Antenna sockets
1 x Power on/off | | Power Input | 9 to 18 VDC | | Battery Plate Type | Gold mount | | Dimensions | 5.0 x 3.5" / 12.7 x 8.9 cm | | Weight | 1 lb / 0.45 kg | | | | Package Weight | 8.42 lb | | Box Dimensions (LxWxH) | 13.5 x 12.86 x 5.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
