Product description - Ghost-Eye Wireless Video Transmission 600MP on Set with Director Sukh Sanghera
- Ghosteye Wireless Transmitter review

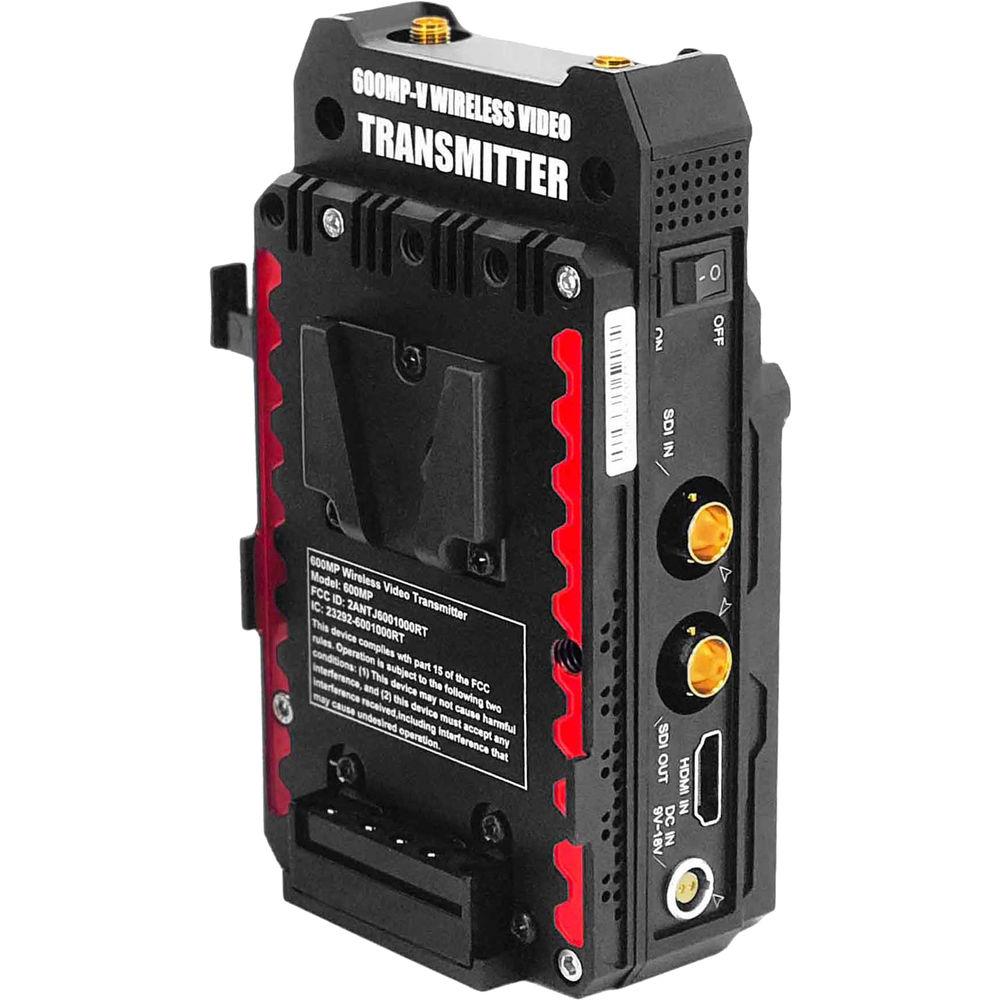

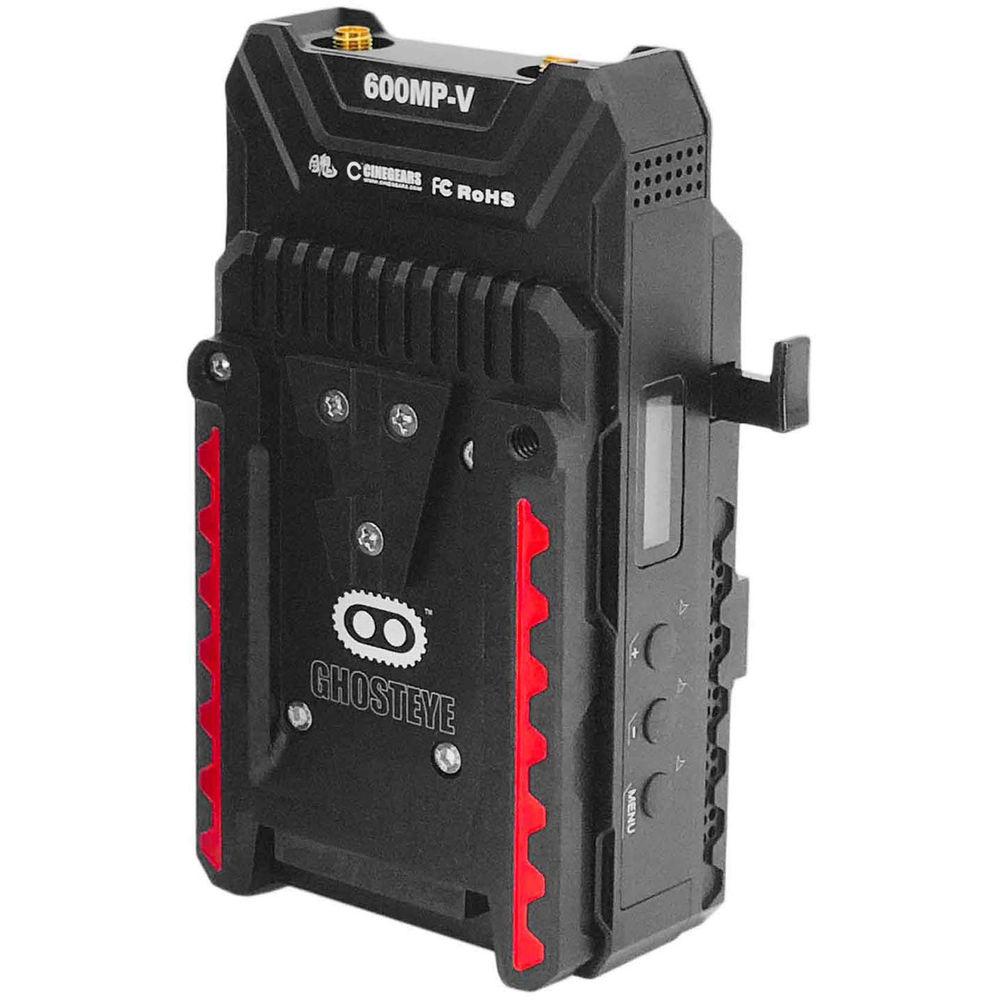

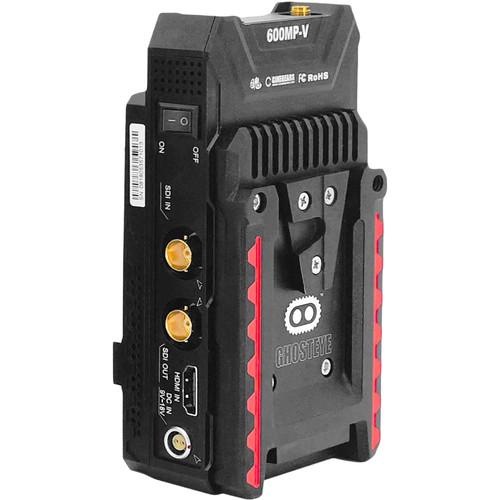

The innovative 600MP ENG HD/SDI Video Transmitter from CINEGEARS incorporates a battery plate with pass-through power, enabling you to power the transmitter and your camera with a single V-mount battery. Supporting up to 1080p60 video with 10-bit 4:2:2 color, this ENG-style transmitter offers 2000' line-of-sight transmission, HDMI/SDI cross-compatibility, SDI loop-through output, and a limited REC start/stop function.The 600MP ENG Transmitter fully supports both 3G-SDI Types A and B, is cross-compatible with other Ghost-Eye components, and can be paired with an unlimited number of Ghost-Eye receivers. This unit is powered via a 2-pin LEMO connector (D-Tap to 2-pin LEMO cable included), and includes a D-Tap output for powering an accessory.The robust 600MP ENG Transmitter features a heavy-duty casing with durable, inset SDI connectors that minimize the chance of port damage. Its auto-link function is useful for traveling shots, relinking the transmitter once it's returned after traveling out of range. - Features
-
- Zero-latency wireless HD video and audio transmission over 2000'
- V-mount battery plate with pass-through powers both the transmitter and your camera
- Supports up to 1080p60 video with 10-bit 4:2:2 color
- HDMI/SDI cross compatibility with SDI loop-through out
- Limited REC start/stop function
- Fully supports both 3G-SDI Level A and 3G-SDI Level B
- Pairs with an unlimited number of Ghost-Eye receivers
- Cross-compatible with other Ghost-Eye models
- Auto-relinking once the transmitter is carried back within range
UPC: 610877597833 In the Box CINEGEARS Ghost-Eye Wireless 600MP ENG HD/SDI Video Transmitter (V-Mount) 2 x Extended-Range Antenna 2-Pin LEMO-Type to D-Tap Power Cable Limited 3-Year Warranty User Manual PDF 1.5mbdwsabfdbbfufzyefqde Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless 600MP ENG HD SDI Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Transmission Range | Line of Sight:
2000' / 600 m | | Supported Video Resolutions | Up to 1080p60, 10-bit, 4:2:2 | | Interface | 1 x HDMI input
1 x SDI input
1 x SDI loop-through
1 x 2-pin LEMO-type power in
2 x Antenna sockets
1 x Power on/off | | Power Input | 9 to 18 VDC | | Battery Plate Type | V-mount | | Dimensions | 5.0 x 3.5" / 12.7 x 8.9 cm | | Weight | 1 lb / 0.45 kg | | | | Package Weight | 1.46 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.0" |
