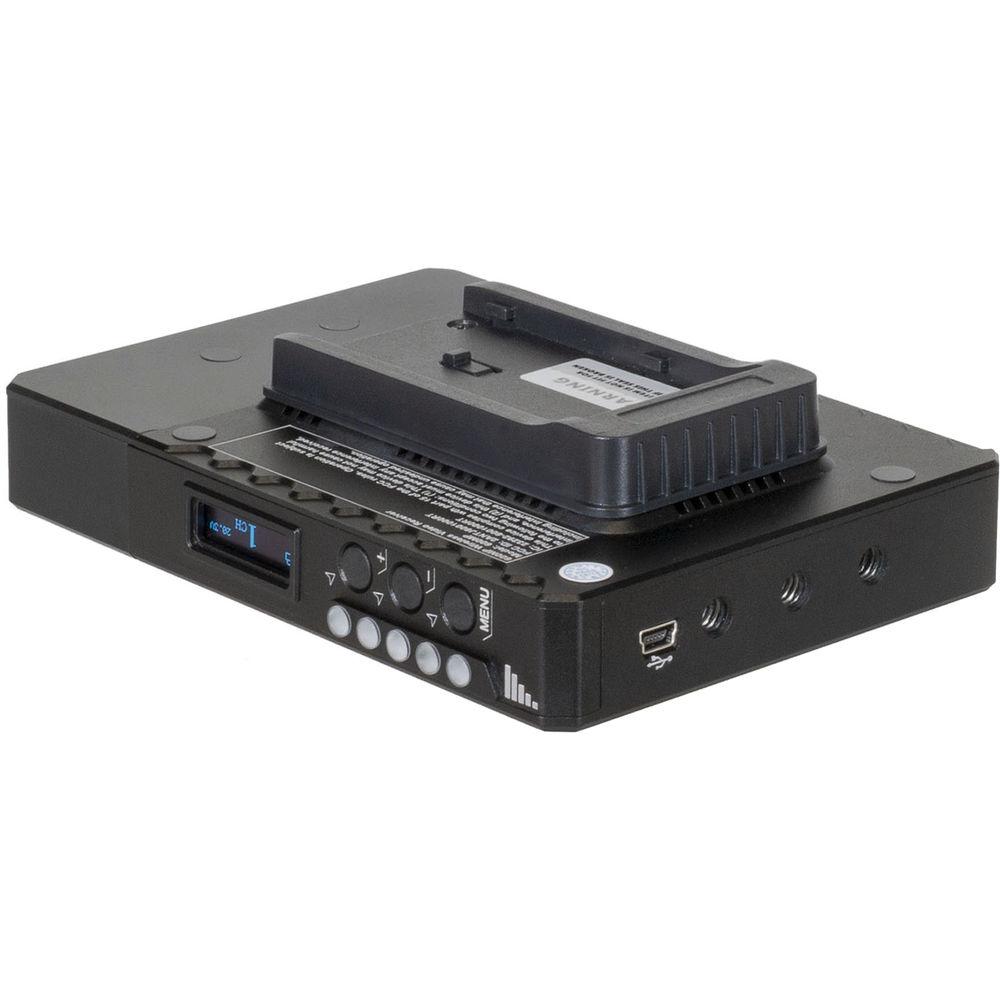

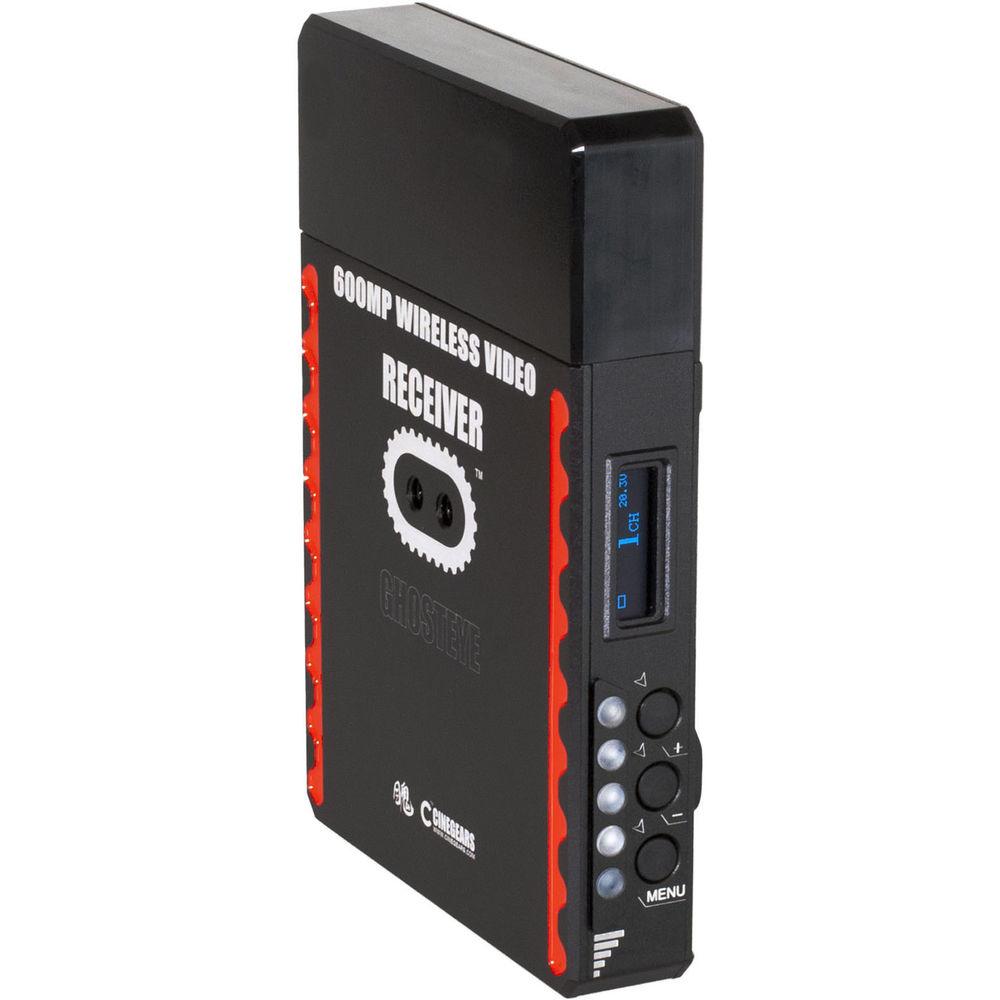

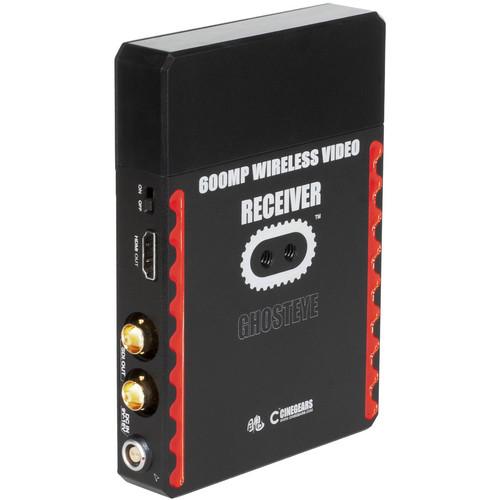

User Manual for CINEGEARS Ghost-Eye Wireless 600MP HD SDI Video Receiver Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless 600MP HD SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless 600MP HD SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description Receive uncompressed 1080p60, 10-bit, 4:2:2 video from up to 1984' away with the CINEGEARS Ghost-Eye Wireless 600MP HD/SDI Video Receiver from a Ghost-Eye transmitter. It safely can receive video using its internal directional antenna on up to ten frequencies and can work alongside multiple receivers on the same band. It features one HDMI and two SDI outputs.
Whether you have a point-to-point or point-to-multipoint configuration, your signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected, and the receiver also supports AES-128 signal encryption. For safety, signals dropped due to interference or a loss of line of sight are automatically relinked within 1 ms of the obstacle being removed. The 600MP receiver comes with an L-series battery mount. - Key Features
-
- Receive uncompressed 1080p60, 10-bit, 4:2:2 video from up to 1984' away
- Compatible with 600MP, 600M, and 1000M transmitters
- Works with multiple receivers simultaneously
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- One HDMI and two SDI outputs
- Adaptive signal logarithm compensates for small obstacles in the line of sight
- Auto-relink
- AES-128 signal encryption
- L-series battery plate
UPC: 610877597604 In the Box CINEGEARS Ghost-Eye Wireless 600MP HD/SDI Video Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless 600MP HD SDI Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Video Output | 1 x HDMI
2 x SDI | | Other I/O | 1 x Mini-USB (Firmware Upgrades) | | Transmission Distance | Approximately 1984' / 600 m, Line of Sight | | Modulation Mode | OFDM 16QAM | | Video Input Formats | 1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i
525i
SMPTE:
259/274/292/296/372/424/425 | | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i
525i
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i
525i
SMPTE:
259/274/292/296/372/424/425 | | Embedded Audio | 2-Channel, 24-Bit, 48 kHz | | Color Depth | 8-Bit, 10-Bit 4:0:0, 4:2:2, 4:4:4 | | Frequency Band | 5.1 to 5.9 GHz | | Receiver Sensitivity | -75 dBm | | ESD Protection |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
